Stonex S950 GNSS Receiver | Dual Camera and Laser Distance Meter

Data Sheet

Presentation

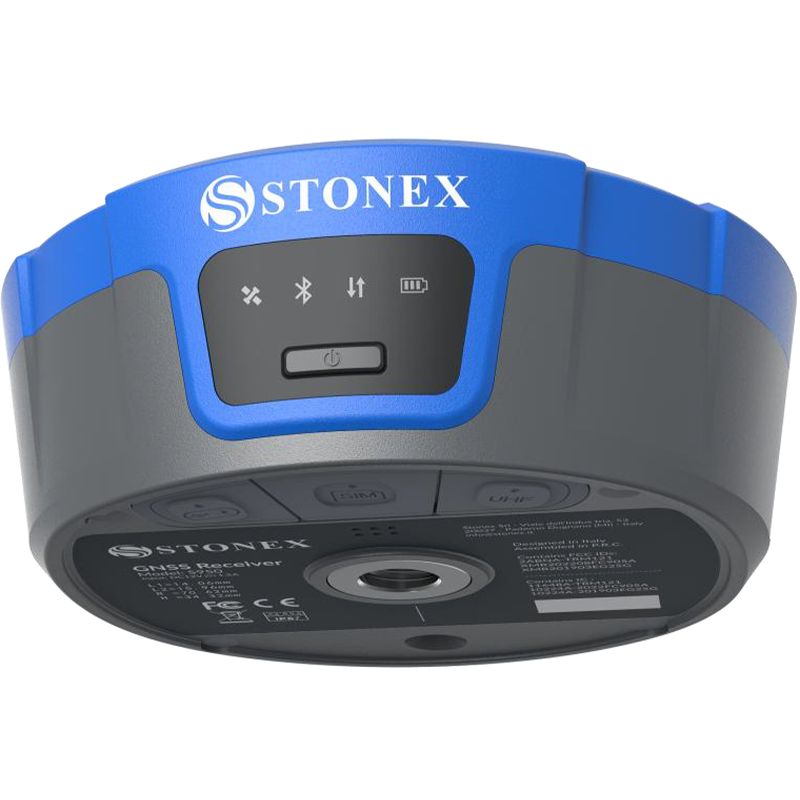

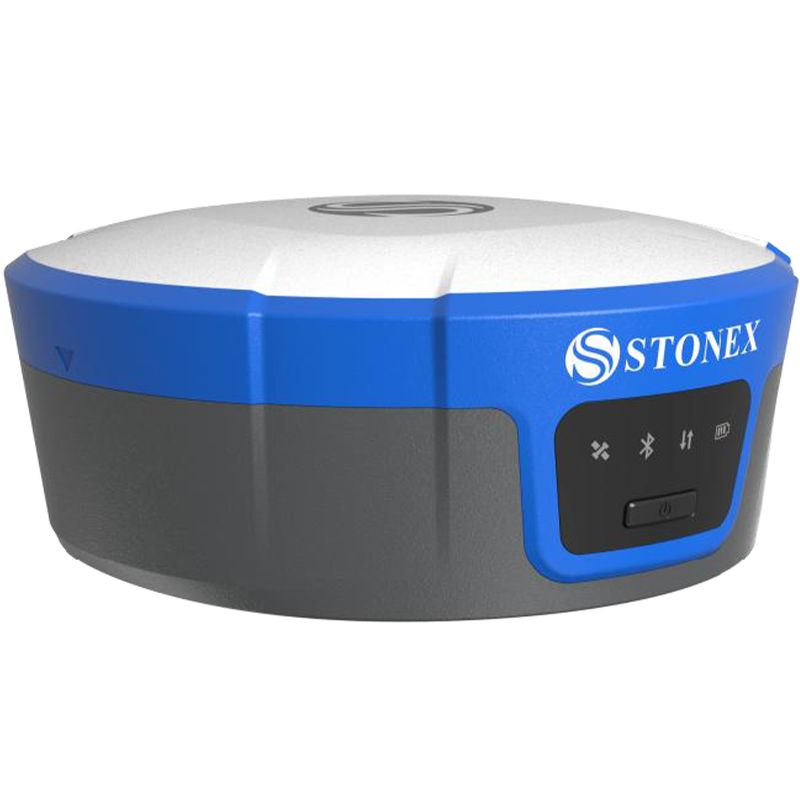

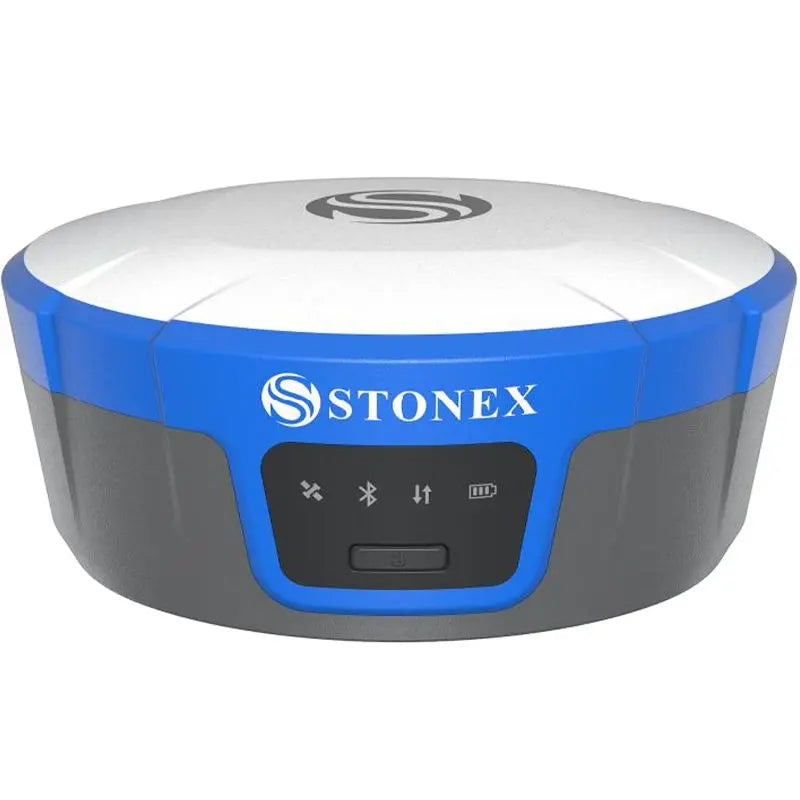

The Stonex S950 is a high-performance GNSS receiver built for demanding surveying and geospatial applications. Equipped with a 1,408-channel multi-constellation tracking engine, it supports GPS, GLONASS, Galileo, BeiDou, QZSS, and IRNSS for robust positioning even in challenging environments.

Key Features

• 1,408 Channels for Precise Satellite Tracking: With 1,408 channels, the S950 ensures accurate positioning and reliable satellite tracking, even in challenging environments.
• GSM 4G Connectivity: Stay connected in real-time with seamless GSM 4G connectivity for efficient data transfer and remote monitoring.
• UHF Radio Communication: The built-in UHF radio (430–470 MHz) delivers strong communication capabilities between base and rover units, ensuring uninterrupted field operations.
• Integrated IMU: Automatically compensates for pole tilt up to 60 degrees, increasing survey speed and efficiency while reducing the need for precise leveling.
• Advanced Laser Distance Meter: Integrated green laser distance meter provides high-precision offset measurements up to 30 m, combining laser and GNSS data for real-time georeferenced results, even for inaccessible points.
• Battery & Lightweight Design: Weighing just 1.78 lbs with a battery life of over 10 hours, the S950 offers excellent portability for extended field use.
• Rugged and Durable: Built for extreme conditions, the S950 operates between -40 °C to +65 °C and features an IP67 rating, making it fully dustproof and waterproof for reliability in harsh environments.


Laser Distance Meter & Dual-Camera Functionality

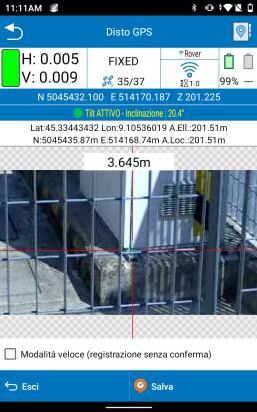

The integrated green laser distance meter on the S950 offers unmatched flexibility in the field by allowing you to capture offset points with precision—without physically occupying the point. With a range of up to 30 meters, you can measure inaccessible or unsafe locations, such as building edges, roadways, or obstructed features, directly from a single GNSS position. This functionality seamlessly combines laser distance data with GNSS measurements, instantly providing georeferenced points for faster and safer workflows.

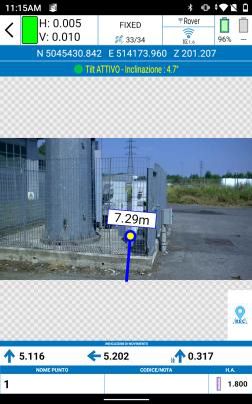

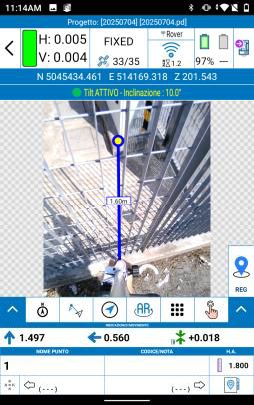

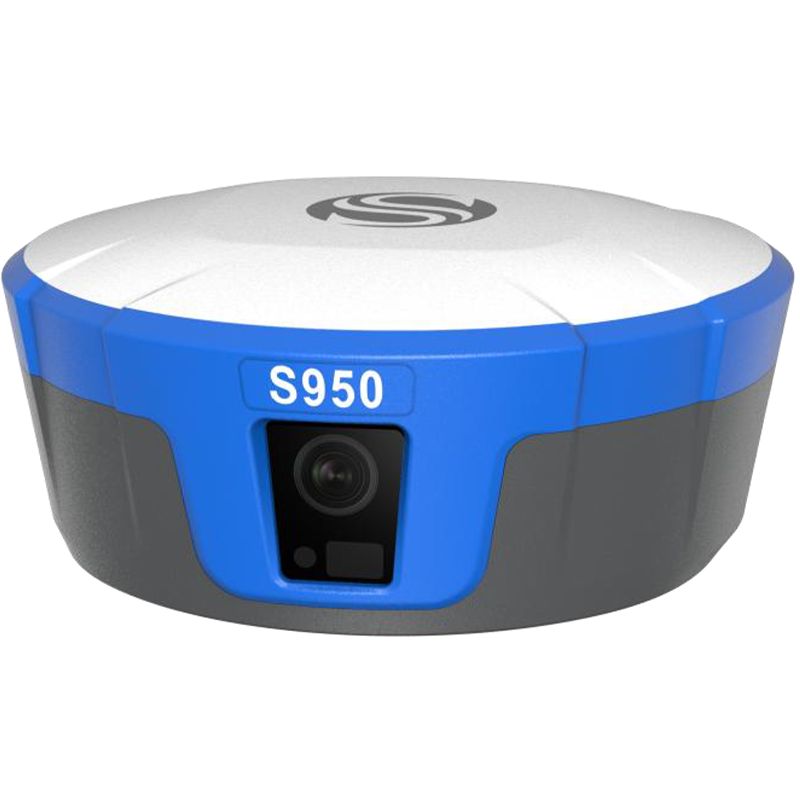

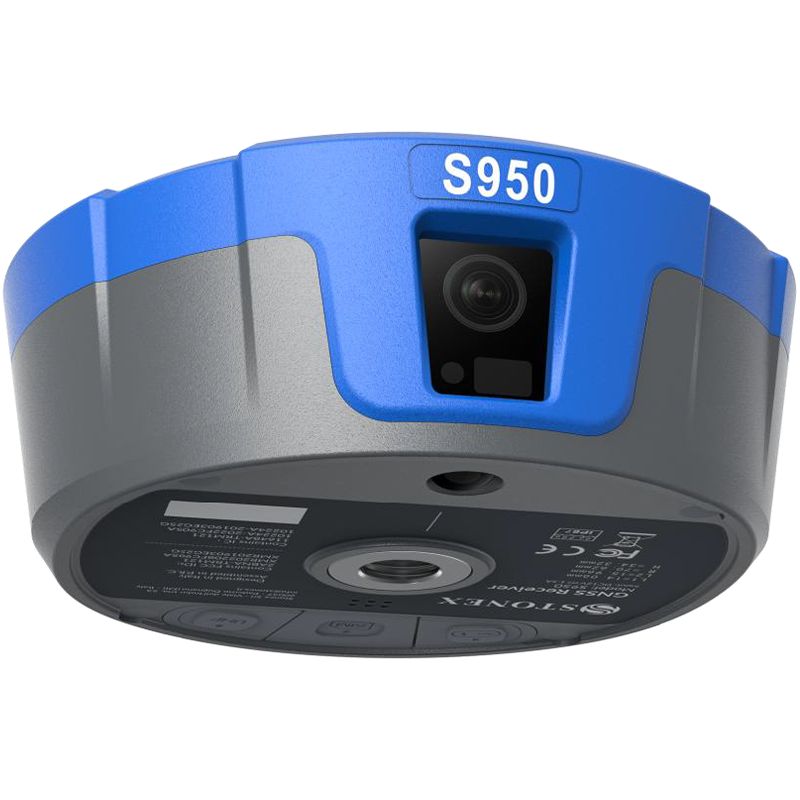

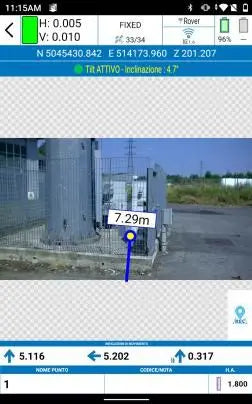

In addition, the S950’s dual-camera system enhances field efficiency with AR (Augmented Reality) stakeout capabilities. By using the forward-facing and downward-facing cameras simultaneously, surveyors can visualize point locations in real-time on the live camera feed, making stakeout tasks more intuitive and reducing human error. This dual perspective allows for faster, more accurate alignment of targets and simplifies complex site layouts, particularly in urban or obstructed environments.

Together, these features make the S950 a powerful tool for modern survey workflows, combining advanced measurement options with real-time visual guidance for improved productivity and accuracy.

What’s Included

Unit Only

• B10+150224 – Stonex S950 GNSS Receiver, 1,408 channels, IMU, 4G, UHF, Laser
• Power adapter with 4 plug types (US, UK, EU, AU)
• Charging cable & Type-C to Type-C cable (1.5 m)
• Carrying case
• AR-100 UHF antenna (430–470 MHz, 10 cm, TNC)

Rover Kit

• Stonex S950 GNSS Receiver - B10+150224
• Power adapter with 4 plug types (US, UK, EU, AU)
• Charging cable & Type-C to Type-C cable (1.5 m)
• Carrying case
• AR-100 UHF antenna (430–470 MHz, 10 cm, TNC)
• S80 Android Rugged Tablet 8" - 50-550739
• S80 Pole Bracket Assembly - 30-350844
• Cube-a GPS Software v7.x
• PG-260 GNSS Pole, Carbon Fiber, 2-Section, 2.6m, Telescopic - 30-350607
• Stonex Bipod w/Bag - 30-000037
• SB-100 Soft bag for GNSS Receiver and S80

Base and Rover Kit Configuration

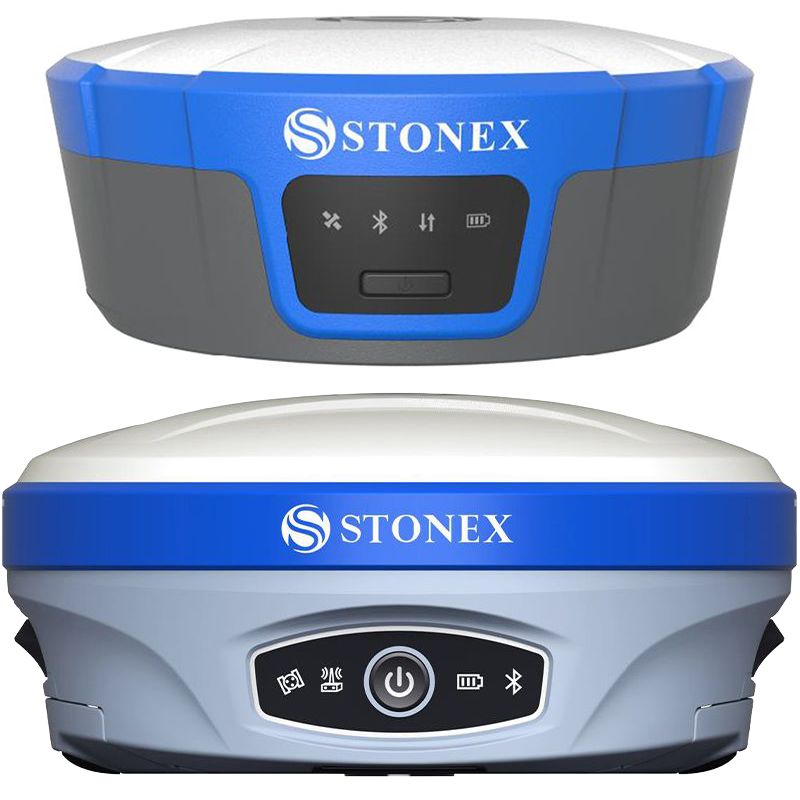

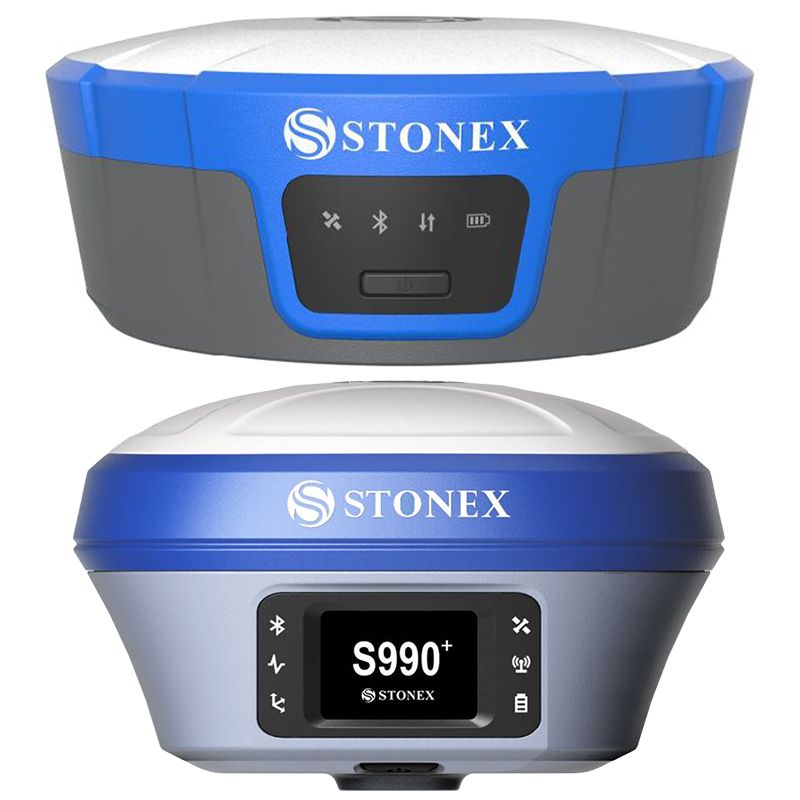

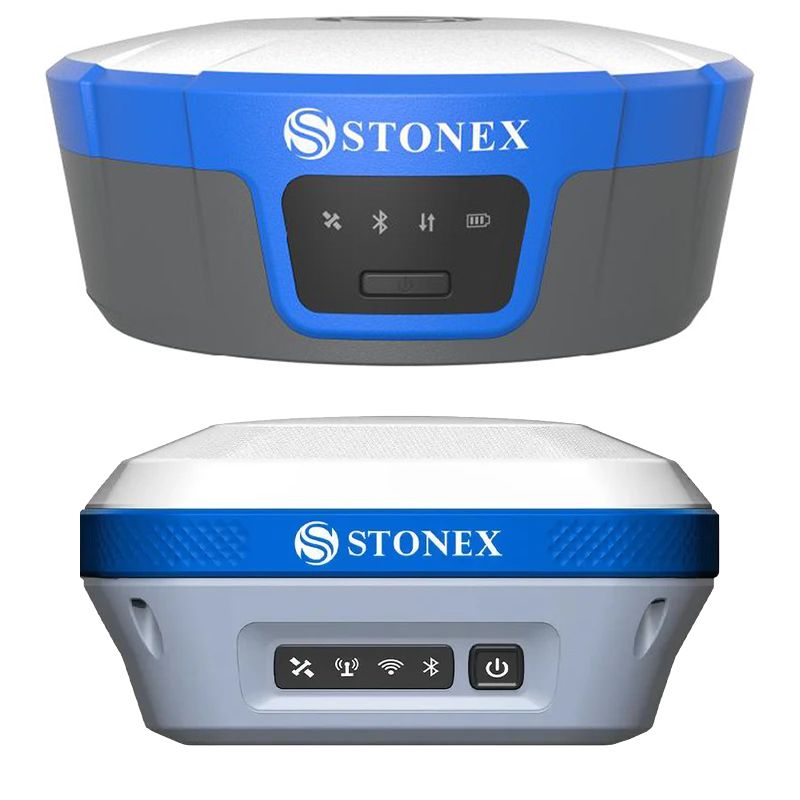

• Your choice of S850, S900+, and S990+ Base Station with relevant case accessories
• Your choice of "Unit Only" or "Rover Kit" configuration
• Stonex Heavy Duty Wood Tripod 1.75m, Round (TW400) - 30-000033
• STJ13-S93B, Tribrach [metal, three-jaw, without optical plummet, black] - 30-350060
• STL10-S93B, Adapter for tribrach STJ13-S93B [metal, three-jaw, optical plummet, black] - 30-350061
• Fiberglass mounting pole, 25cm (GF-025) - 30-350177
• UHF antenna, 450MHz-470MHz, TNC, 29cm (AR-430) - 30-350085
