Leica DISTO X6 Laser Distance Meter P2P Package

Overview

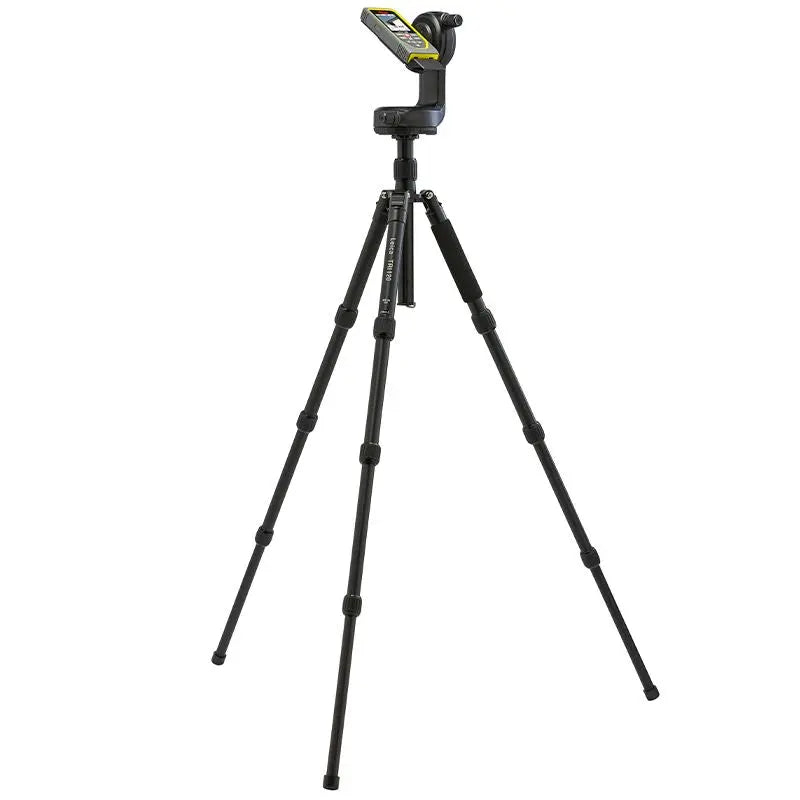

The Leica DISTO X6 P2P Package is a professional long-range laser measuring system built for contractors, estimators, architects, survey-adjacent workflows, and construction professionals who need to capture accurate measurements from a safe location. By combining the Leica DISTO X6 with the Leica DST 360-X adapter and TRI 120 tripod, this package turns the X6 into a Point-to-Point measurement station for measuring distances between two points, even when those points are inaccessible.

This package is ideal for measuring building faces, rooflines, openings, elevations, complex areas, and other hard-to-reach locations without ladders, lifts, or unsafe setups. Measurements can also be downloaded as organized DXF files for use in CAD software, helping reduce manual drafting and transcription errors.

Built for Point-to-Point Measuring

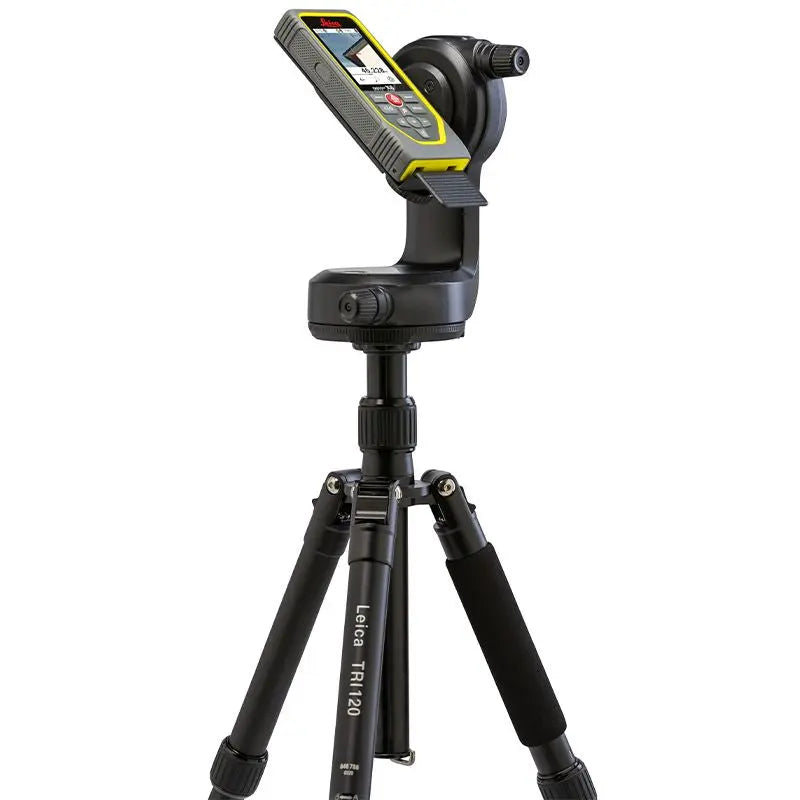

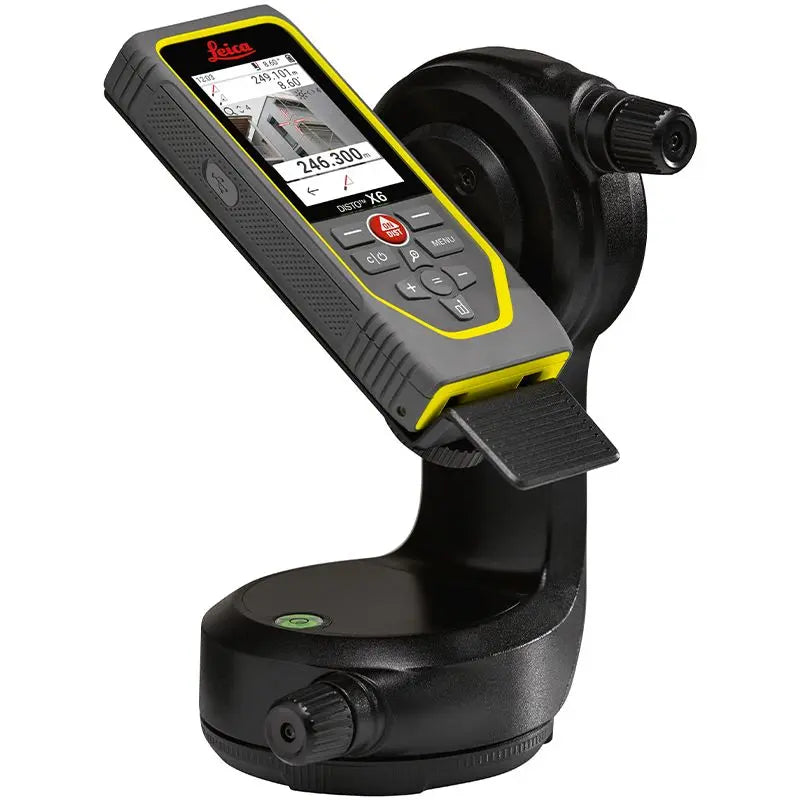

When docked into the DST 360-X adapter, the Leica DISTO X6 can measure the distance between any two points from one setup location. This allows users to capture tie distances, complex shapes, and hard-to-reach measurements from a safer and more efficient position. Leica notes that the X6 P2P system can capture tie distances between two points from up to 250 m (820 ft) away.

Ideal for:

• Exterior building measurements
• Rooflines and façade measurements
• Windows, openings, and elevation checks
• Complex area measurements
• CAD-ready field documentation
• Estimating and renovation work
• Measuring inaccessible or unsafe areas

Key Features

• Leica DISTO X6 laser distance meter with P2P package
• Measures up to 820 ft (250 m) in favorable conditions
• Measures up to 500 ft (150 m) in unfavorable conditions
• Accuracy of ±1.0 mm under favorable conditions
• P2P function tolerance of ±5 mm at 5 m and ±10 mm at 10 m
• Digital pointfinder with 4x zoom
• 360° tilt measuring range with ±0.2° tolerance
• DST 360-X horizontal measuring range of 360°
• DST 360-X vertical measuring range from -64° to greater than 90°
• Bluetooth 5.0 connectivity with up to 10 m range
• Memory for 300 reports and 1,000 captured 3D points
• Li-Ion battery supports up to 4,000 measurements or 8 hours of operation
• The device with the adapter weighs approximately 1580g

Export Measurements to CAD

One of the biggest advantages of the Leica DISTO X6 P2P Package is the ability to create 2D or 3D DXF files directly from field measurements. Instead of writing down measurements and manually rebuilding shapes later, users can capture organized measurement data onsite and export it for further processing in CAD software.

This helps improve documentation speed, reduce field-to-office errors, and create a cleaner digital workflow.

4x Zoom Camera and Touchscreen Operation

The DISTO X6 includes a digital pointfinder with 4x zoom, making it easier to aim at distant targets when the laser dot is difficult to see. The bright 2.8 inch scratch-resistant touchscreen allows users to zoom, swipe through functions, and operate the device quickly in the field.

This makes the X6 especially useful for outdoor measurements, long-distance targeting, and jobs where visibility matters.

Gesture-Activated Measuring

At long distances, pressing the measurement button can slightly move the laser off target. The Leica DISTO X6 helps solve this with gesture-activated measurements. Once the laser is aimed, users can trigger a measurement by briefly interrupting the beam with a hand movement, helping reduce movement and improve accuracy on small or distant targets.

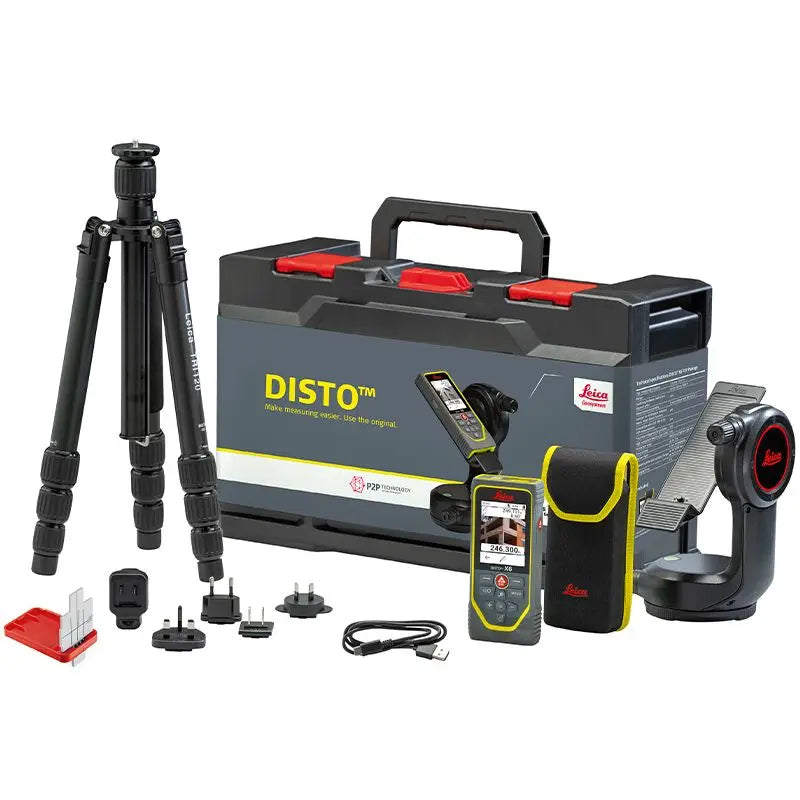

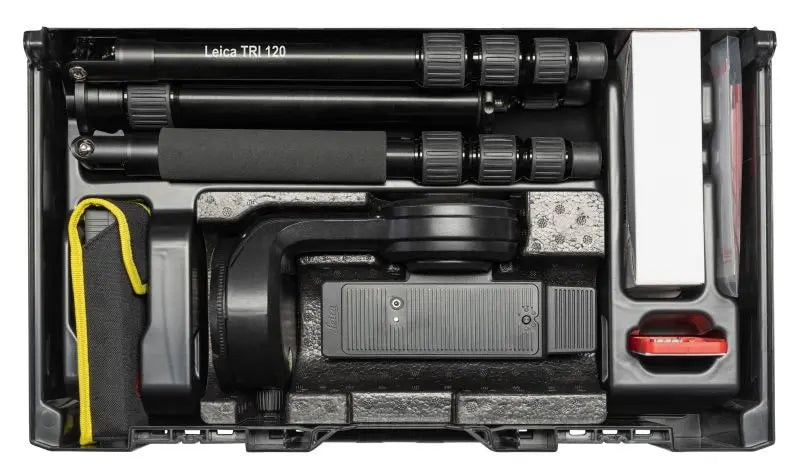

What’s Included

• Leica DISTO X6 Laser Distance Meter
• Leica DST 360-X Adapter
• Leica TRI 120 Tripod
• Leica GZM 3 Target Plate
• Hand Loop
• Pouch
• Charger with four plug adapters and USB cable
• metaBOX
• Safety Instructions
• Calibration Certificate Silver
• Quick Start with QR code linking to online manual
• 3-Year Manufacturers Warranty - Register Here


Reliable P2P Measuring for Professional Workflows

The Leica DISTO X6 P2P Package is more than a laser distance meter. It is a complete measuring system for professionals who need safer access, faster documentation, and CAD-ready results. With long-range measuring, point-to-point capability, Bluetooth connectivity, and DXF export, it is built for users who need to capture accurate measurements efficiently in the field.
