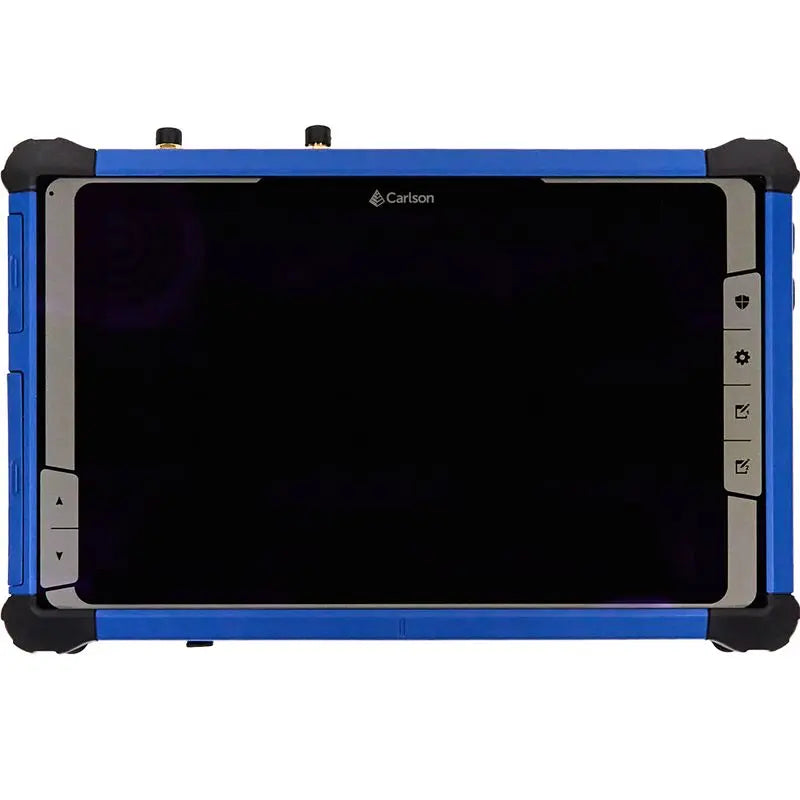

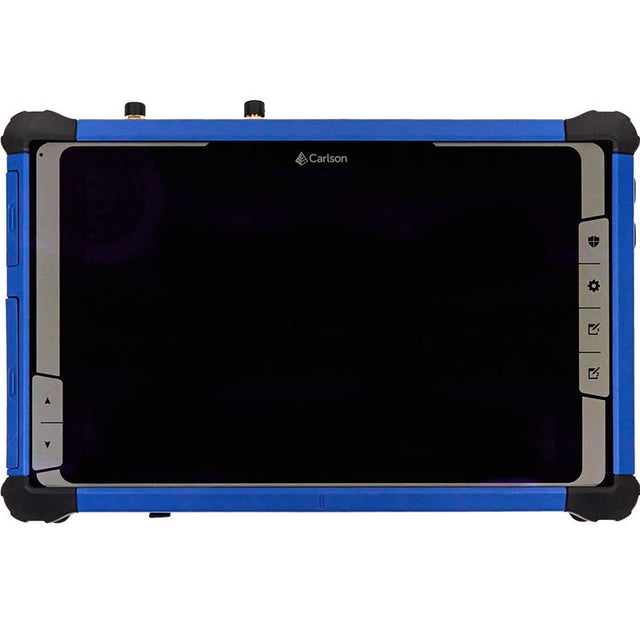

Carlson RT5+ Data Collector
All Instruments Will Ship Calibrated
Certification Provided For Optical & Lasers
Description
Description
Data Sheet
Key Features:
- Optionally preloaded with Carlson SurvPC software
- Intel® Core™ N250 processor, 16 GB RAM, and 512 GB storage for high performance
- Windows 11 IoT NTSC
- 8" 800-nit WXGA sunlight-readable touchscreen with pen support
- Rugged IP65 and MIL-STD-810G build for field reliability
- Hot-swappable battery system with 10–15+ hours of operation
- Optional SurvPC modules for Robotics, GPS, Hybrid+, BIM, and Tunneling
- Long-range Bluetooth®, Wi-Fi, and optional 4G LTE connectivity
- 3-Year no-fault warranty with U.S. two-way shipping coverage
The Carlson RT5+ is a next-generation Windows data collector designed for surveying and construction professionals who need maximum performance in demanding field environments. Built for speed, durability, and precision, the RT5+ runs Carlson SurvPC software, providing seamless integration with robotic total stations, GNSS receivers, and hybrid survey systems.
Powered by an Intel® Core™ N250 processor with 16 GB RAM and 512 GB of storage, the RT5+ delivers smooth multitasking and rapid data handling for large projects. The rugged 8-inch sunlight-readable WXGA display ensures crisp visibility in outdoor conditions, while IP65 and MIL-STD-810G certification protect against dust, water, vibration, and temperature extremes.
With a removable 5400 mAh battery that delivers over 10 hours of runtime, and an optional 8000 mAh pack for up to 15+ hours, the RT5+ keeps crews productive all day. Connectivity options include long-range Bluetooth®, dual-band Wi-Fi, and optional 4G LTE for real-time data sync. The RT5+ supports module upgrades across Robotics, GPS, Hybrid+, BIM, and Tunneling, making it adaptable to your workflow.
Compatible with Carlson SurvPC:

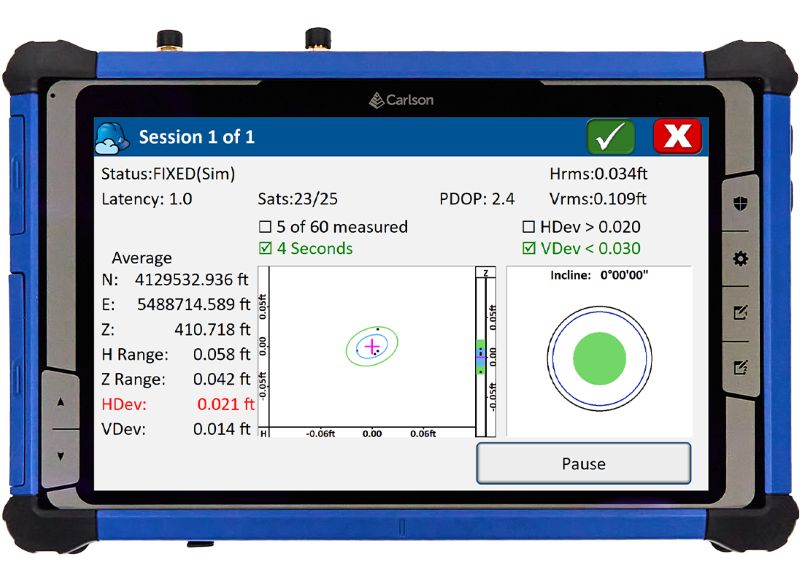

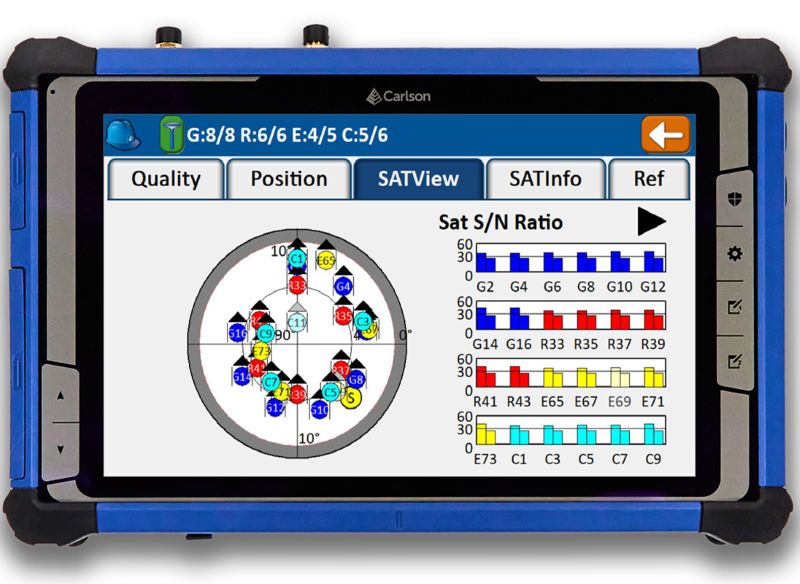

Carlson SurvPC runs seamlessly on the RT5+, combining the power of office CAD with field data collection. It supports both GNSS and robotic total stations, offers hybrid positioning, and provides advanced stakeout, topographic survey, and GIS mapping tools. SurvPC allows professionals to work within familiar Carlson workflows while taking full advantage of the RT5+'s large display and fast processor.
