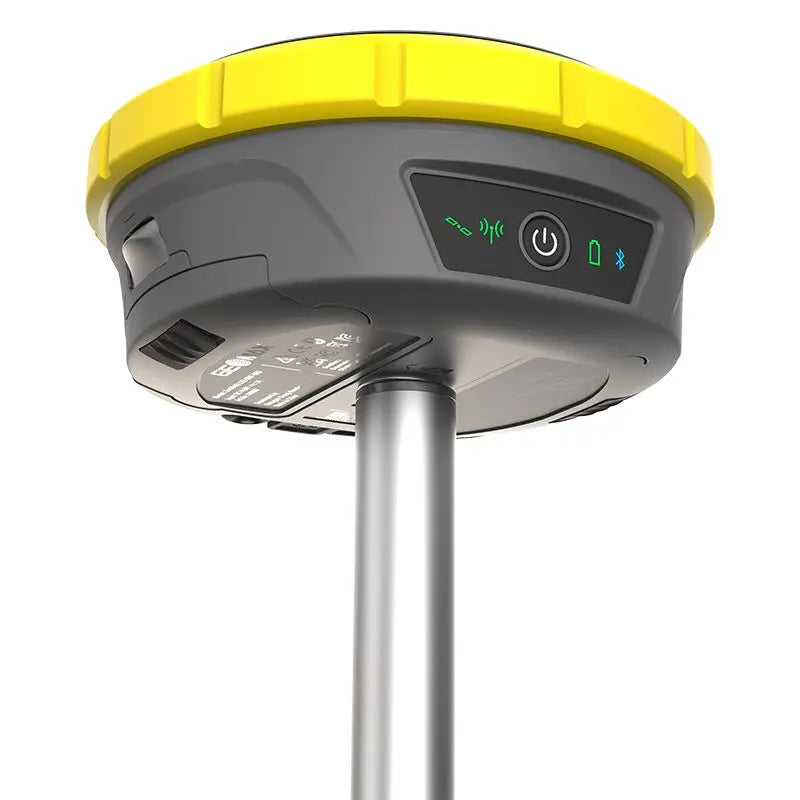

GeoMax Zenith60 GNSS Receiver Smart Antenna

What’s Included in the Box?

• 789349 – ZPC200 Telescopic GNSS Pole
• 852445 – 2x ZBA700 Battery Li-Ion (3.4 Ah)
• 949047 – ZCH701 Charger for ZBA700
• 950673 – ZMC05 microSD Card (16GB)
• 949046 – ZCT206 Zenith60 GNSS Container

The GeoMax Zenith60 GNSS Receiver is a high-precision, multi-frequency GNSS solution designed for maximum reliability, flexibility, and ease of use. Featuring calibration-free tilt compensation, electromagnetic resistance, and multi-constellation tracking, the Zenith60 ensures fast, accurate positioning in any environment. With 4G LTE, SATEL UHF radio, and Bluetooth® connectivity, surveyors and construction professionals can achieve seamless real-time data transfer while maintaining high accuracy.

Key Features:

• Multi-Constellation GNSS Tracking: Supports GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS for maximum accuracy.
• High-Precision RTK Accuracy:
  • 0.31in + 1 ppm (8 mm + 1 ppm) horizontally
  • 0.59in + 1 ppm (15 mm + 1 ppm) vertically
• Calibration-Free Tilt Compensation: Enables precise measurements up to 30° tilt, reducing setup time.
• Reliable GNSS Performance: Features 555 channels with NovAtel OEM7 engine for superior positioning.
• Fast Initialization: Achieves a 4-second startup time for quick deployment in the field.
• Seamless Connectivity: Equipped with 4G LTE, UHF radio (403-473 MHz), Bluetooth® 5.0, and WLAN for efficient data exchange.
• Long Battery Life: Operates for 12.5 hours in static mode and 11 hours in rover mode with hot-swappable dual batteries.
• Rugged & Durable: IP68-rated, fully dustproof, waterproof, and tested to withstand a 6.56ft (2m) drop onto hard surfaces.
• GeoMax Ecosystem Integration: Works seamlessly with GeoMax field controllers, X-PAD Ultimate, and robotic total stations for a streamlined workflow.

The GeoMax Zenith60 GNSS Receiver is the ultimate high-precision GNSS solution, offering unmatched performance, flexibility, and durability for surveying, construction, and geospatial applications.
