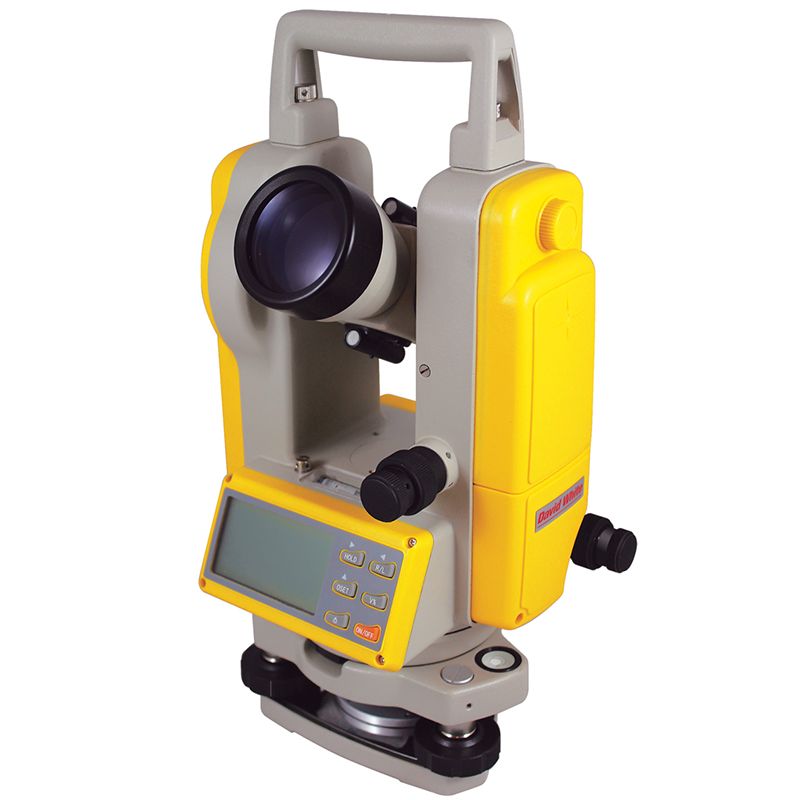

SitePro DT8-05 Theodolite

The SitePro DT8-05LP 5-Second Digital Theodolite is a dependable, cost-effective solution for precise angle measurement and layout tasks in construction and surveying. With 5-second angular accuracy, this instrument is ideal for alignment, layout, and grade checking, offering a balance of simplicity and performance.

Equipped with a laser plummet, the DT8-05LP makes setup over a point fast and easy—saving time on every job. Dual, backlit LCD displays with large characters allow clear readings in both bright sunlight and low-light conditions. The simple, four-key operation ensures minimal training is needed, making it a go-to tool for contractors and field crews.

Designed for tough jobsite conditions, the DT8-05LP features an IP54-rated weather-resistant housing and operates up to 80 hours on AA batteries. Whether for general construction layout or precision alignment work, this theodolite delivers reliable accuracy in a rugged and easy-to-use package.

Key Features:

• Angular Accuracy: 5" (5-second)

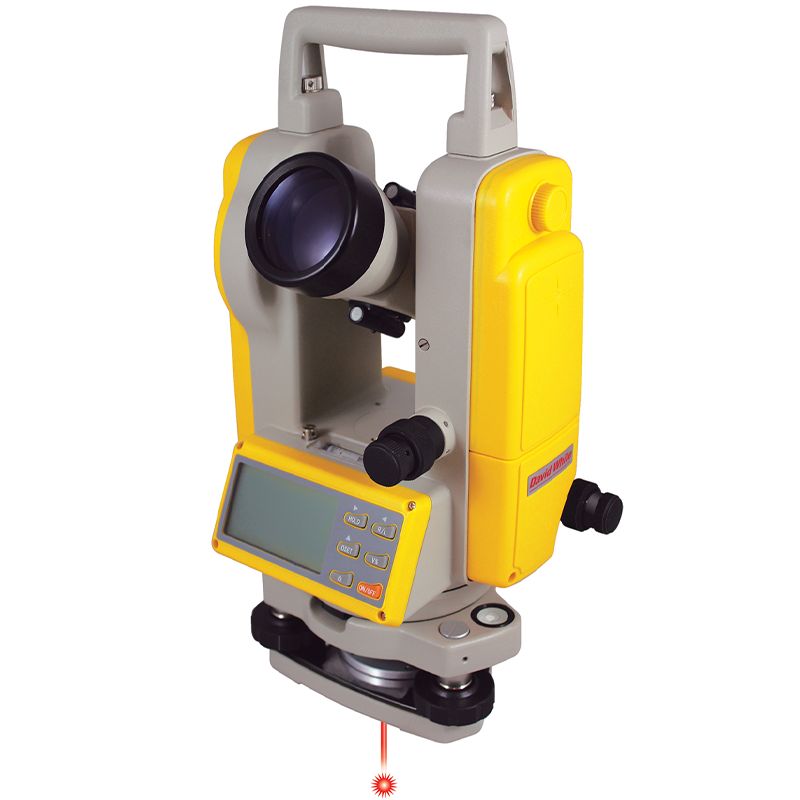

• Laser Plummet: Built-in for quick setup

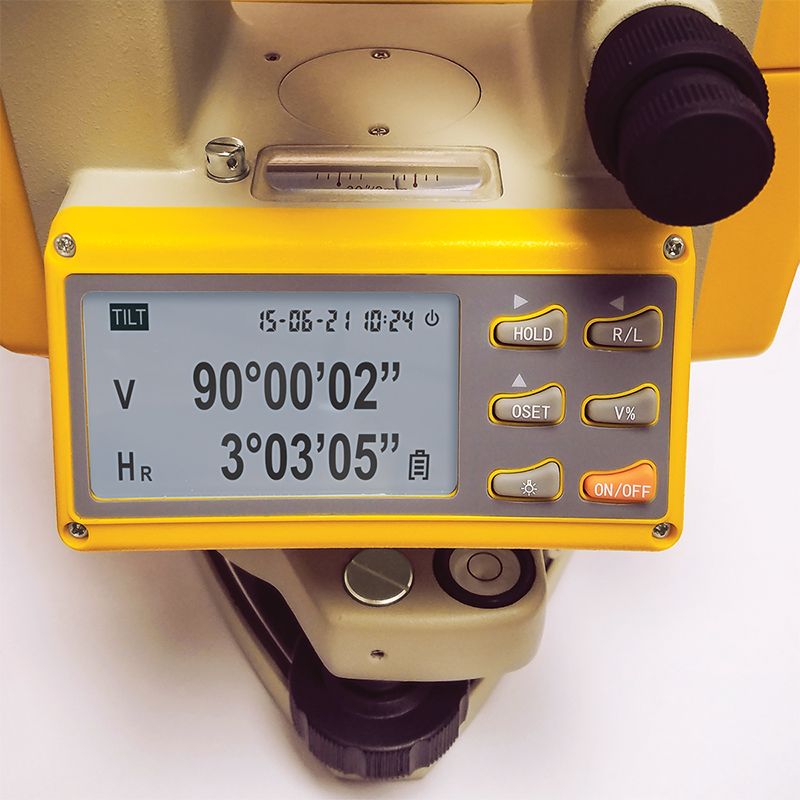

• Display: Dual LCDs with backlight for low-light visibility
• Telescope Magnification: 30X
• Operating Time: Up to 80 hours with AA batteries
• Weather Protection: IP54-rated dust and water resistance
• User Interface: Simple 4-key operation for fast learning
• Application: Ideal for layout, alignment, and grade checking in the field

Technical Data:

• Dimensions: 6.9"x6.5"x13.4"
• Weight: 9 lbs
• Warranty: 1 year
