Stonex | SKU: B20-220113

Stonex R120 Robotic Total Station | 1", 2"

Name: Stonex R120 Robotic Total Station | 1", 2"
Brand: Stonex
SKU: B20-220113
Price: 16999 USD
Availability: InStock

$16,999.00 ~~$22,000.00~~

Shipping calculated at checkout.

Accuracy

One Pole Solution

Product variants

Stonex R120 Robotic Total Station | 1", 2" - 2" / None is backordered and will ship as soon as it is back in stock.

Price Matching

Found a better price?

Send us an email with a link to the authorized dealers listing and we'll match it or do better!

info@aaisurvey.com

Delivery and Shipping

All in-stock equipment will be shipped out within 24 hours of purchase

A UPS tracking # will be provided via email and/or text when we create the label

For backordered equipment, expect and additional 3-5 days of shipping + calibration process

Speak With an Expert:

+1 (800) 821-9656
info@aaisurvey.com
Monday - Friday 9am-5pm PST

All Equipment Will Ship Calibrated

Optical Instruments & Rotating Lasers Come With A Certification

Description

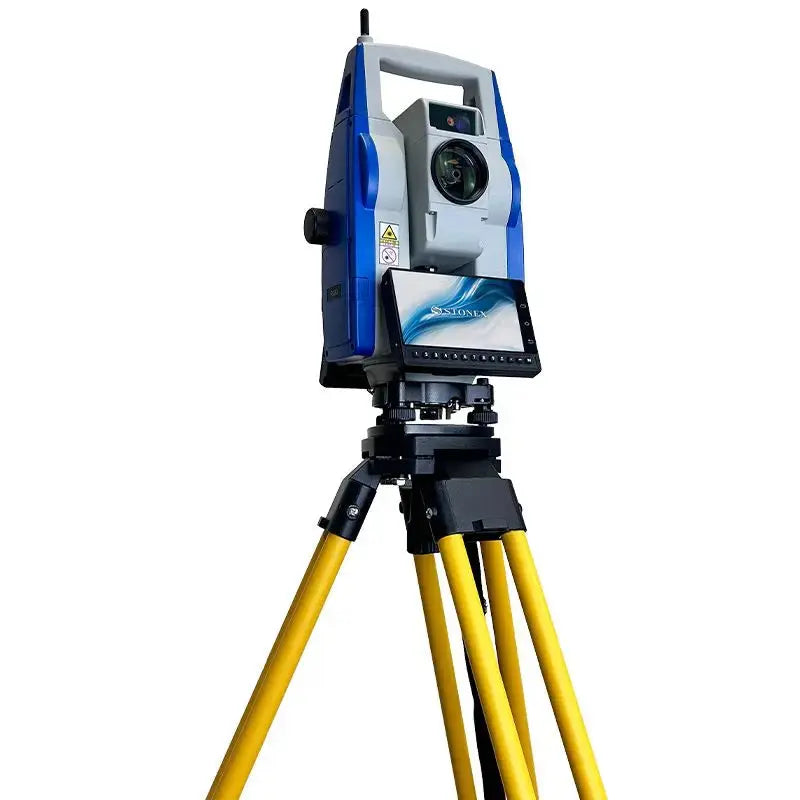

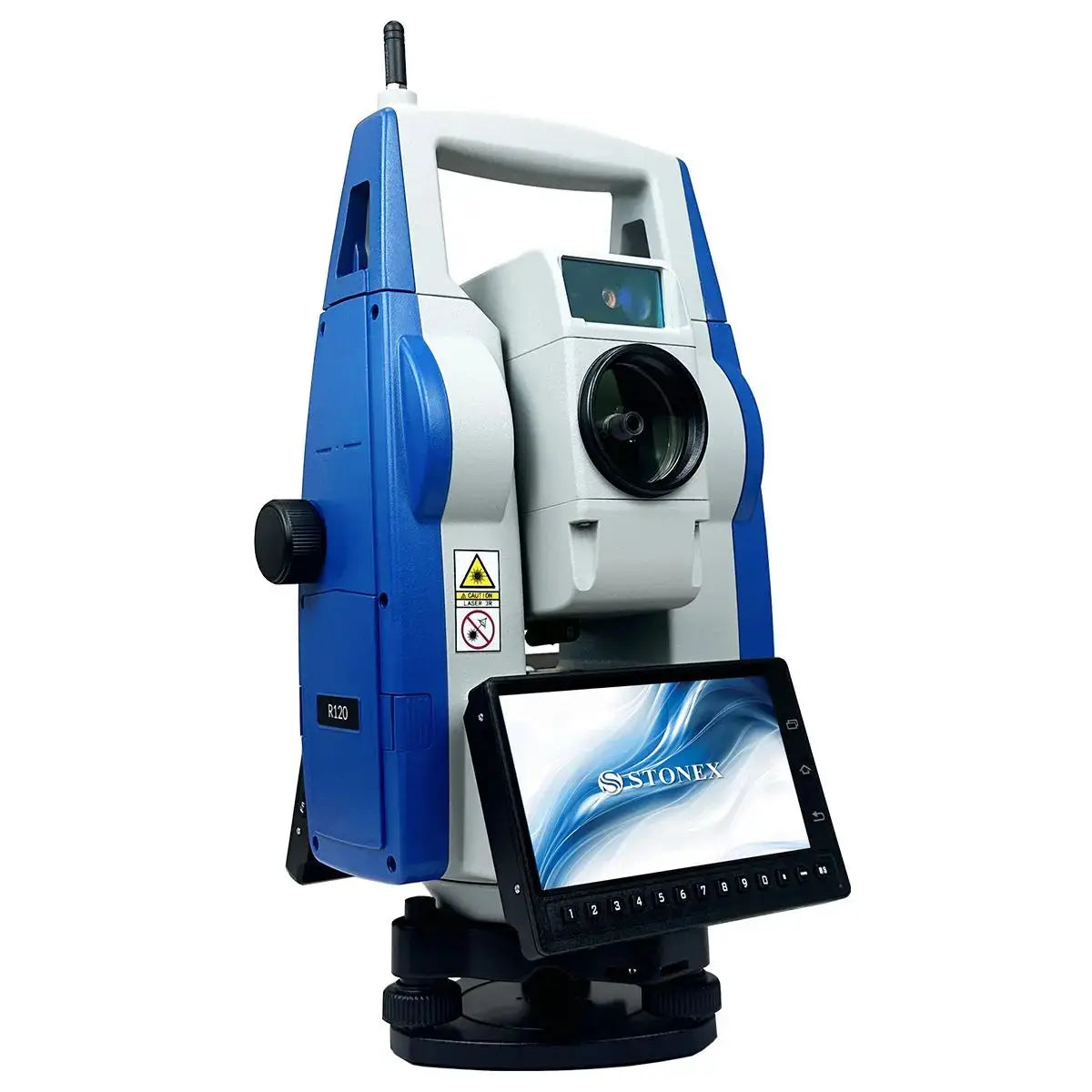

The Stonex R120 Robotic Total Station is a high-precision, fully motorized total station designed for advanced surveying, construction, and engineering applications. Available in 1" and 2" angular accuracy, the R120 delivers exceptional accuracy and efficiency for demanding fieldwork. With a DC servo motor, long-range Bluetooth, and Fast360 search technology, it enables seamless remote operation and precise target tracking.

Key Features:

High Precision Measurement: Available in 1" or 2" accuracy, ensuring reliable and repeatable results.
Long-Range Capability: Measures up to 11,483ft (3,500m) with a prism and 3280ft (1,000m) reflectorless. For the 2" model it measures up to 2624ft (800m) reflectorless.
Fast and Accurate Distance Measurements: 1 mm + 1 ppm (prism mode) and ±2 mm + 2 ppm reflectorless for D ≤ 500m.
Efficient Target Lock and Search: Fast360 search technology and APC automatic prism centering improve tracking speed and accuracy.
Motorized Technology: DC Servo Motor with 60°/sec max rotation speed enables fast and smooth operation.
Intuitive User Interface: Features a 5.5-inch TFT LCD screen (720x1280 px) with Android 11 OS for modern usability.
Robust Data Transfer & Connectivity: Equipped with RS232, USB Type-C OTG, TF card slot, Bluetooth (300m range), WLAN, and 4G network support.
Durable and Weatherproof: IP55-rated dust and waterproof construction for reliable operation in harsh environments.
Long Battery Life: Powered by a 5400mAh Li-Ion rechargeable battery, delivering up to 4 hours of continuous operation.

R120 Box Contents (Included in All Packages)

Tools Bag
Target Sheet
Battery
Adapter + Cable (EU & US)
Strap for Carrying Case

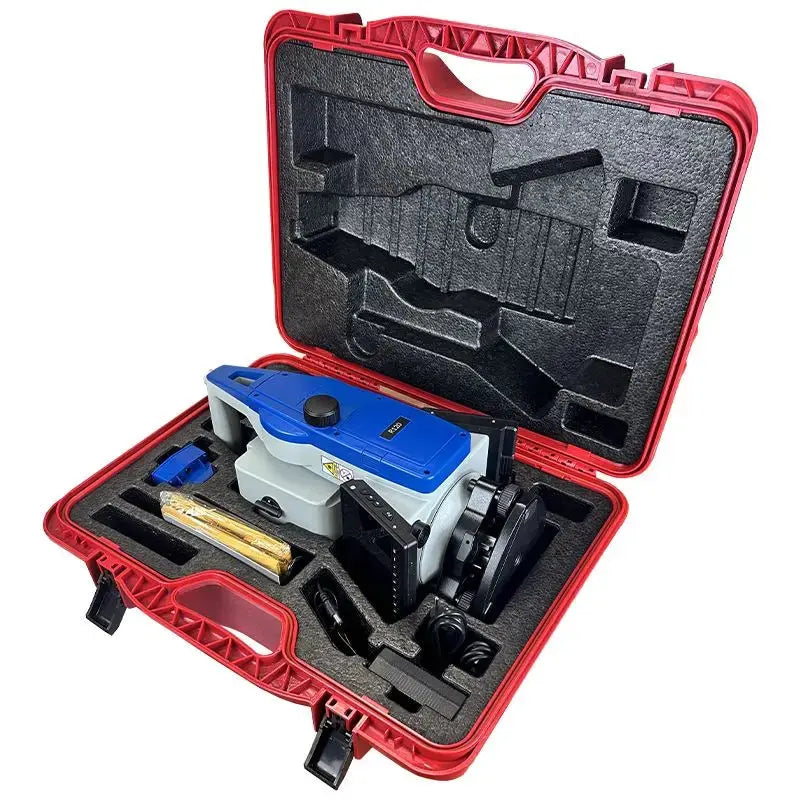

Carrying Case
Silica Gel
Rain Cover
Targets
Type C & USB Converter
Antenna BT Long Range
Software Stonex Cube-a TS+GPS on Board v6.x

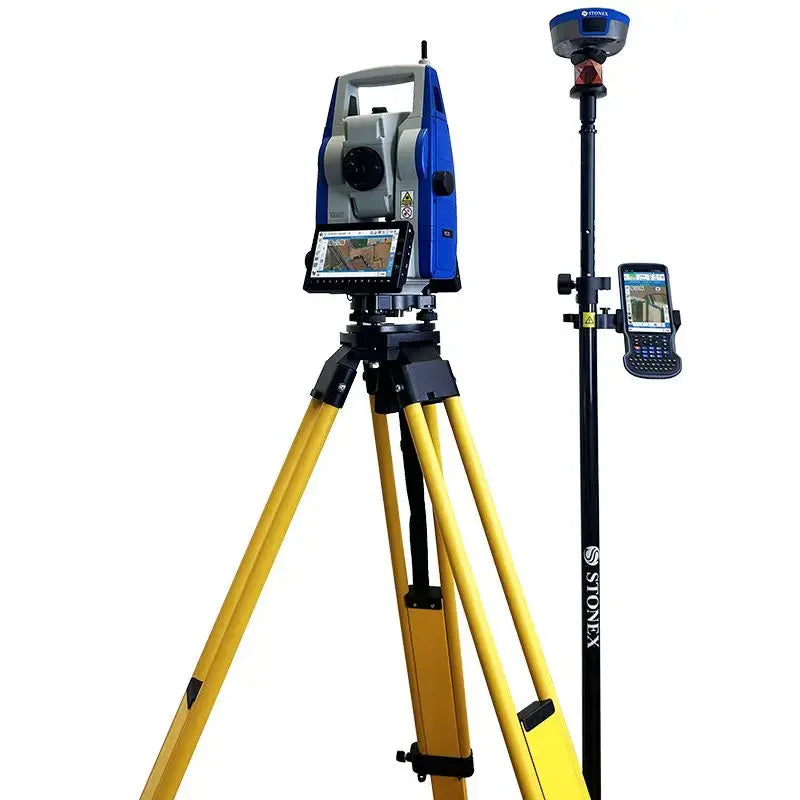

ONEPOLE SOLUTION S580

B20-220113 – R120 Robotic Total Station (2", 800m, Endless, Android)
30-600300 – Wooden Tripod (114-187 cm)
30-040023 – Prism 360° - P96
30-350601 – Carbon Fiber Pole (2m, 2 sections with holes for antenna cable)
50-550731 – UT12P Controller (6", 4G, Android)
30-350391 – UT12P Bracket
40-450665 – Stonex Cube-a GPS/TS v6.x Software
B10-150515 – S580+ GNSS (1408Ch, IMU)

ONEPOLE SOLUTION S80G

B20-220113 – R120 Robotic Total Station (2", 800m, Endless, Android)
30-600300 – Wooden Tripod (114-187 cm)
30-040023 – Prism 360° - P96
30-350601 – Carbon Fiber Pole (2m, 2 sections with holes for antenna cable)
B15-100232 – S80G Tablet GNSS (1408Ch, Android)
30-350389 – S80/S70G/UT32 Bracket
40-450665 – Stonex Cube-a GPS/TS v6.x Software
30-357138 – SA85 GNSS Survey Antenna
30-350353 – S80G Antenna Cable for SA85

ONEPOLE SOLUTION S880

B20-220113 – R120 Robotic Total Station (2", 800m, Endless, Android)
30-600300 – Wooden Tripod (114-187 cm)
30-040023 – Prism 360° - P96
30-350607 – PG-260 GNSS Pole (2.60m, 2-section, Carbon Fiber/Aluminum, Telescopic)
50-550731 – UT12P Controller (6", 4G, Android)
30-350391 – UT12P Bracket
40-450665 – Stonex Cube-a GPS/TS v6.x Software
B10+150220 – S880 GNSS (1408Ch, IMU, 4G, Camera)
