Stonex  |  SKU: B10+150208

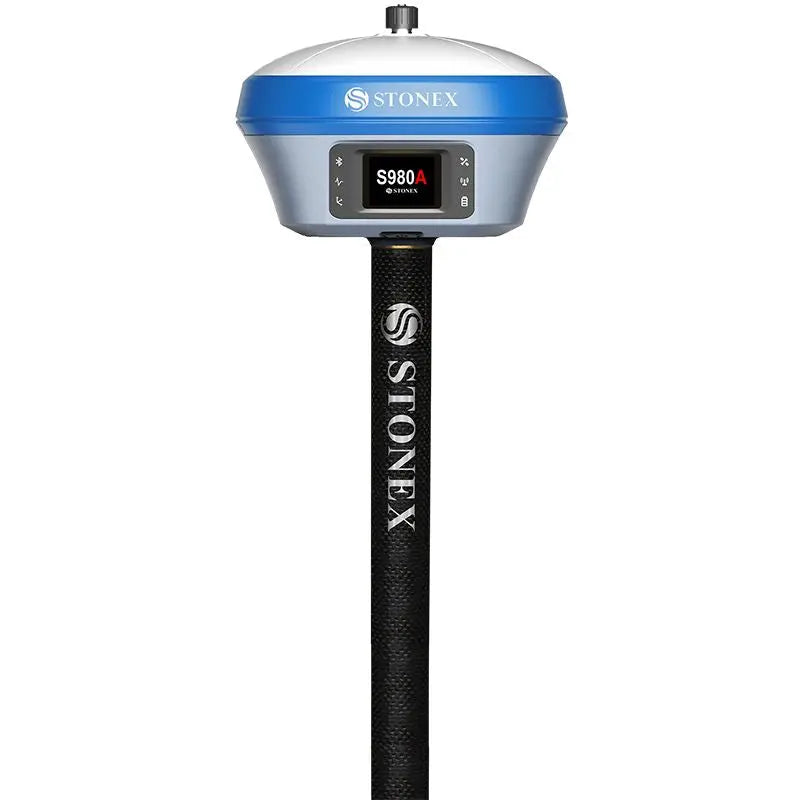

Stonex S980A GNSS | Base & Rover Bundle

$25,590.00
Shipping calculated at checkout.


Price Matching

Found a better price?

Send us an email with a link to the authorized dealers listing and we'll match it or do better!

info@aaisurvey.com

Delivery and Shipping

All in-stock equipment will be shipped out within 24 hours of purchase

A UPS tracking # will be provided via email and/or text when we create the label

For backordered equipment, expect and additional 3-5 days of shipping + calibration process

Speak With an Expert:

+1 (800) 821-9656
info@aaisurvey.com
Monday - Friday 9am-5pm PST

All Equipment Will Ship Calibrated

Optical Instruments & Rotating Lasers Come With A Certification

Description

Included:

  • Base & Rover S980A GNSS, 800Ch, 4G, WiFi, BT, IMU - Bundle
  • UHF & IMU Firmware Activated
  • SH5A Data Collector
  • CubeA GPS/TS v6 -OR- FieldGenius v2.3 Software Activated

---------------------------------------------------------------------------------------------------------------
  • Multi Constellation (GPS, Glonass, Beidou, Galileo, & IRNSS)

  • 2-5W Radio (410-470MHz)

  • Electronic Bubble + IMU

  • Fast Initialization

  • Up To 60° Inclination

  • Fast & Precise Survey

  • 2yr Manufacturer's Warranty

More info about the Stonex S980A

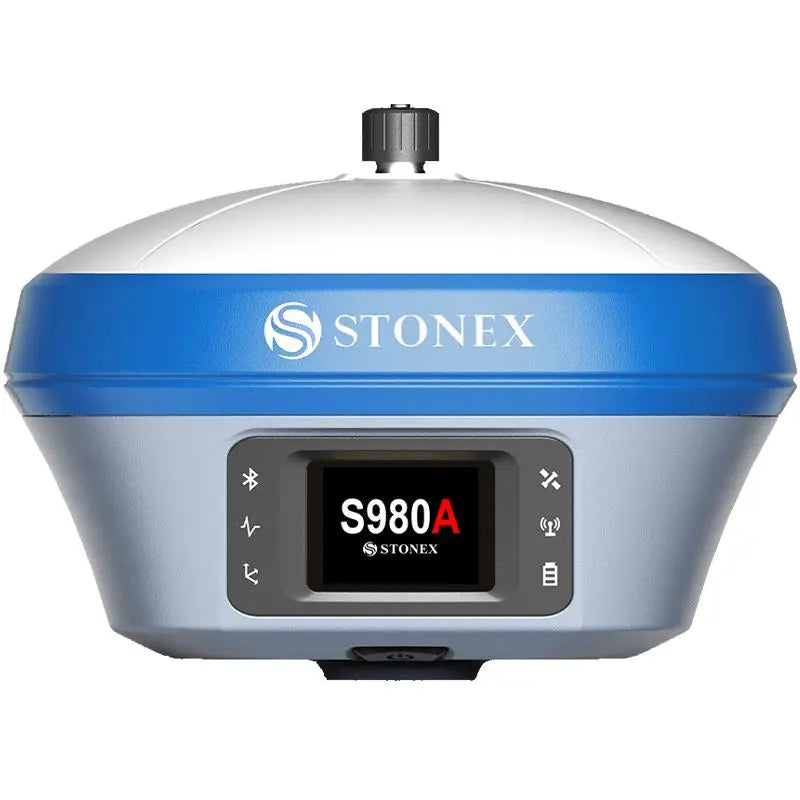

Stonex S980A integrated GNSS receiver tracks all the present constellations and satellite signals GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS.

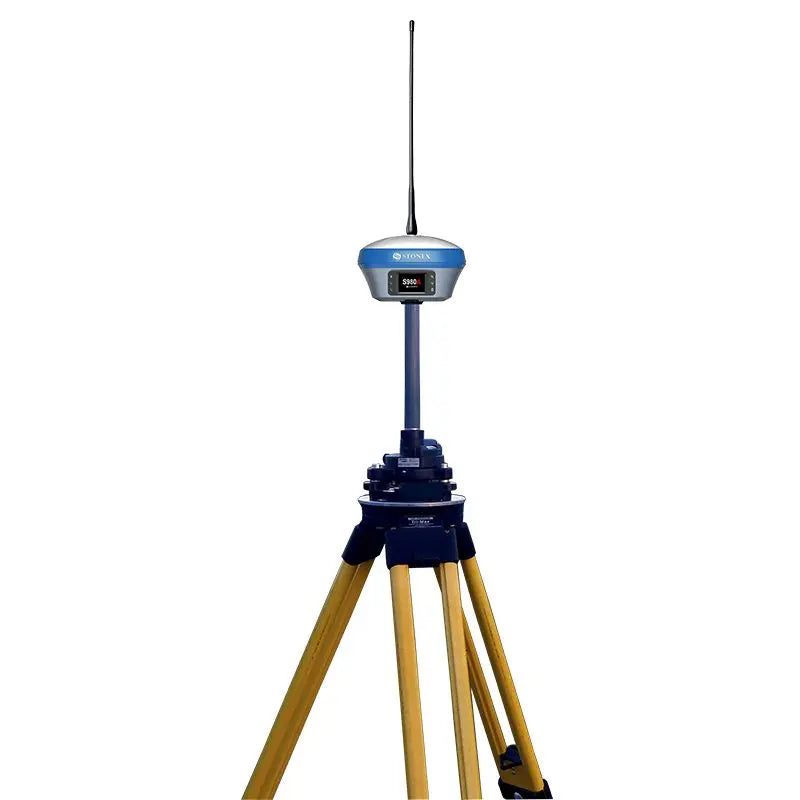

Through the 4G GSM modem a fast internet connection is guaranteed and the Bluetooth and Wi-Fi modules allow always reliable data flow to the controller. These features combined with the integrated 2-5 watt radio make S980A the perfect base station receiver.

The color touch display and the possibility of connecting an external antenna makes S980A an extremely effective receiver for every type of job. S980A is also equipped with an E-Bubble and the optional IMU technology: fast initialization, up to 60° inclination.

S980A has a 1PPS port which can be used in applications that require precise synchronization time to ensure that multiple instruments work together or that use the same parameters for system integration based on precise time.

Items Included In S980A Box

S980A instrument unit
30-350292 Power adapter with 4 plugs
30-350293 Charging Cable USB type C
30-350300 USB A to USB C
30-350176 Height measuring plate for GNSS (HM-100)
30-350084 UHF antenna, 430MHz-450MHz, TNC, 29cm (AR-430)
30-350063 Measuring tape 3m (MT-300)
30-350335 Carrying case for S980 (CC-980)
SW Cube-link
Pen Drive set 8Gb  with Manual & Video Tutorial

SH5A Items Included:

  • CubeA / FieldGenius Software Activated
  • Pen
  • Strap
  • Battery
  • Charger
  • Screen Protection Sticker

Any questions? Feel free to give us a call! Come in person for a free demo of the Stonex S980A.
