Leica CC180 Data Collector - Windows 10 Tablet with 8" Screen

Data Sheet

Overview

The Leica CC180 Data Collector is a rugged Windows 10 field tablet designed for Leica Captivate and Leica iCON workflows. Built with an 8-inch display, strong processing power, and a compact form factor, the CC180 is a great middle-ground option for crews that want more screen space than a handheld controller without moving up to a full 10-inch tablet.

The CC180 runs Microsoft Windows 10 IoT Enterprise LTSC and is powered by an Intel Pentium Gold 8500 processor with 8 GB RAM and 128 GB storage, giving survey and construction crews the performance needed for field data collection, layout, and design workflows.

What’s Included

• 1 × CC180-1 Captivate Tablet, Windows 10, US/CA (p/n: 1008048)
• 1 × Leica Entitlement Activation Guide, English (p/n: 947231)

Optional Accessories

Additional Leica CC180 accessories are available to help customize the tablet for your field workflow, charging setup, vehicle use, or pole-mounted data collection. If you would like to add any of these accessories to your order, please reach out to us and we can help quote the correct items.

• CBA5 Li-Ion Battery for CC180 (p/n: 999246)
• 2-Bay Charger for CBA5 Batteries (p/n: 999248)
• CCC22 Vehicle Adapter for CC180 (p/n: 999249)
• CBC21 Docking Station for CC180 (p/n: 999250)
• CAG1 Hand Strap for CC180 (p/n: 999251)
• CA63 Display Protection Foil (p/n: 999253)
• CA62 Stylus for CC180 Tablet (p/n: 999254)
• Vehicle Docking Station for CC180 (p/n: 999255)
• GHT63 Pole Clamp Attachment GHT (p/n: 767880)

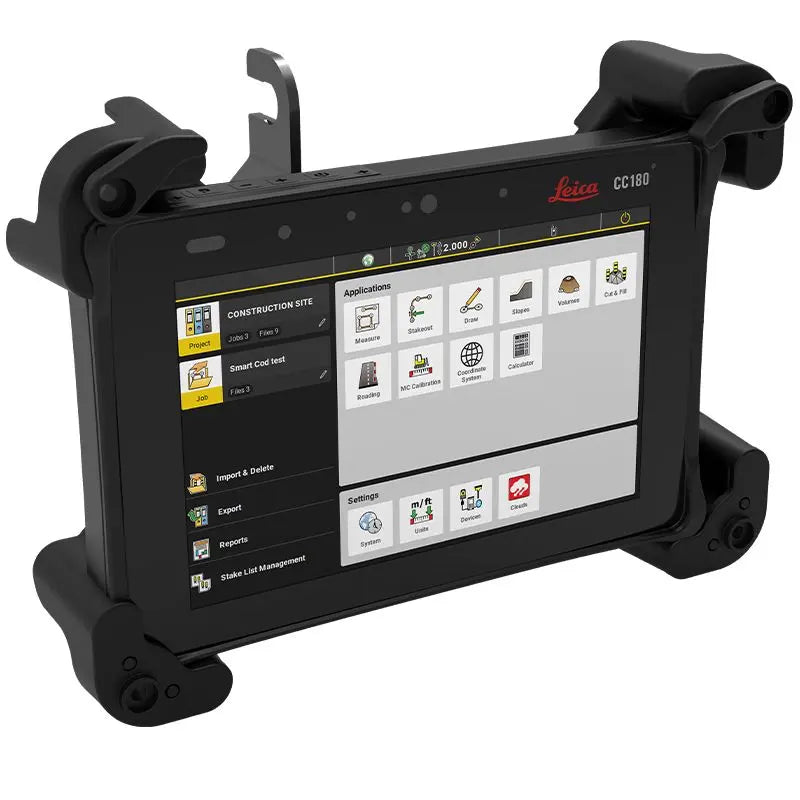

• GHT90 Holder for CC180 (p/n: 1008396)
• GHT92 Cradle for GKP100 (p/n: 1008402)
• GHT93 Add-on for GHT92 to CMB16/18 (p/n: 1014801)
• GKP100 Leica Captivate Keypad (p/n: 995129)
• CTR180 Long-Range Bluetooth Extension (p/n: 1042226)

These accessories are useful for crews who need extra battery power, additional charging options, pole mounting, vehicle mounting, screen protection, stylus input, keypad control, or extended Bluetooth range for robotic total station workflows.

Key Features

• Part Number: LCA1008048
• 8-inch rugged Windows field tablet
• Microsoft Windows 10 IoT Enterprise LTSC
• Intel Pentium Gold 8500 processor, up to 4.4 GHz
• 8 GB RAM
• 128 GB data storage
• 1280 × 800 sunlight-readable display
• 800-nit DynaVue touchscreen
• Finger/rain, glove, and stylus touch modes
• Thunderbolt 4, USB-C, audio, microSD, nano SIM, and DC-in ports
• 4G LTE mobile broadband
• Wi-Fi 6E and Bluetooth 5.3
• 2 MP front camera
• 8 MP rear camera with autofocus and flash
• Up to 8 hours of operation
• IP66 dust and water protection
• 1.8 m drop rating
• MIL-STD-810H tested rugged design

Built for Leica Captivate and iCON Workflows

The Leica CC180 is designed for crews running Leica Captivate and Leica iCON field applications. It gives users a larger screen than traditional handheld data collectors while staying compact enough for pole-mounted work, machine control support, and construction layout workflows.

Ideal for:

• Robotic total station control
• GNSS surveying
• Construction layout
• Site measurement
• Machine control support workflows
• Cut and fill earthmoving applications
• Field data collection
• As-built documentation

The CC180 is especially useful for users who want a Windows-based tablet that can handle more demanding field files while remaining manageable in the field.

Compatible Software

The Leica CC180 works with Leica Captivate and Leica iCON field workflows, giving survey and construction crews a capable Windows platform for data collection, layout, and field measurement. Leica notes that the CC180 supports construction workflows including iCON site machine indicative guidance for cut and fill earthmoving jobs and the iCON site excavator application.

For survey crews, the CC180 provides a strong platform for Leica robotic total stations, GNSS receivers, and field-to-office workflows. Its Windows 10 environment also gives users flexibility for file handling, data transfer, and other field utilities.

Rugged 8-Inch Field Tablet Design

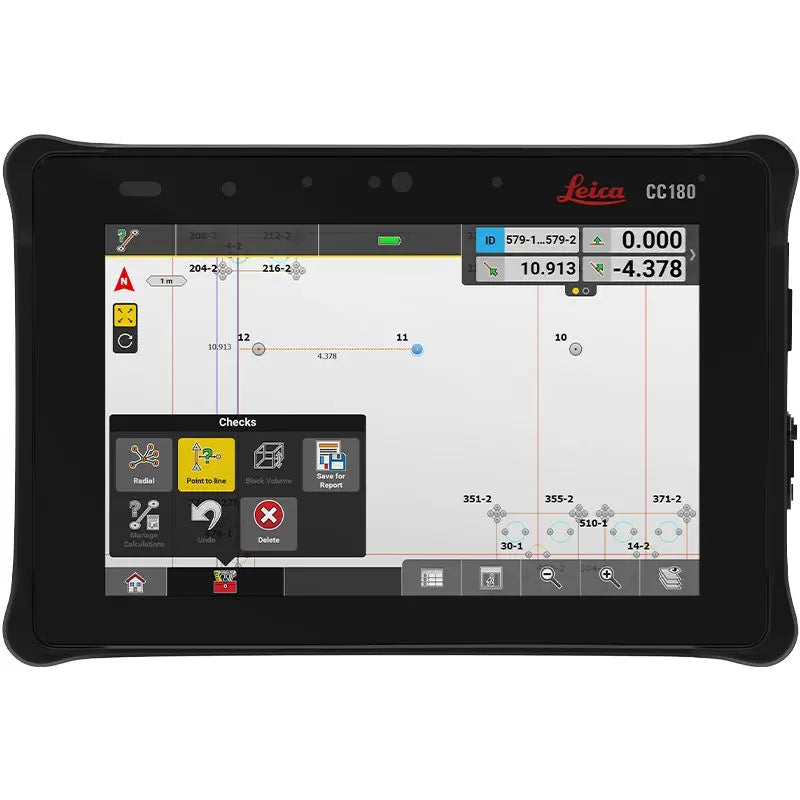

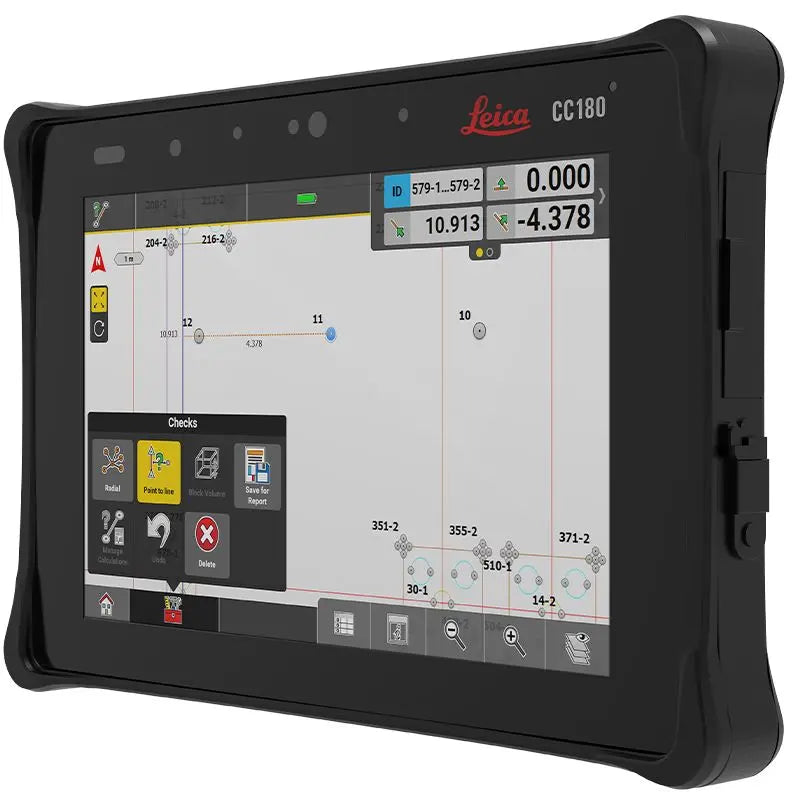

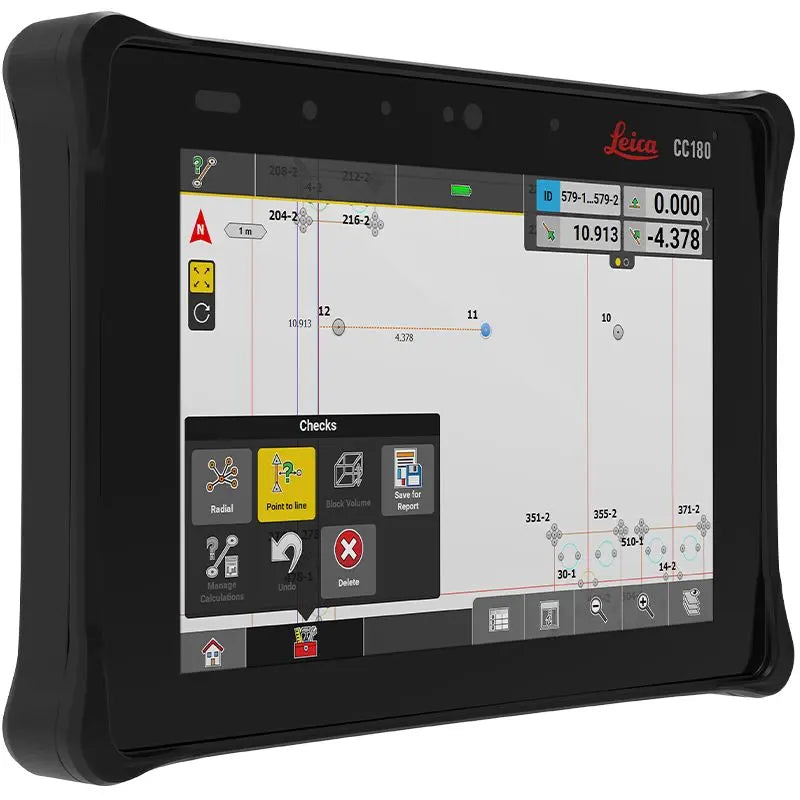

The CC180 features an 8-inch LCD screen with a 1280 × 800 resolution and 800-nit DynaVue sunlight-readable display, helping users view maps, points, linework, and project files in bright outdoor conditions. The touchscreen supports finger/rain, glove, and stylus modes, making it easier to use in changing field conditions.

At 974 g (2.14 lb) including the battery, the CC180 offers a strong balance of screen size, portability, and rugged performance.

Field-Ready Connectivity

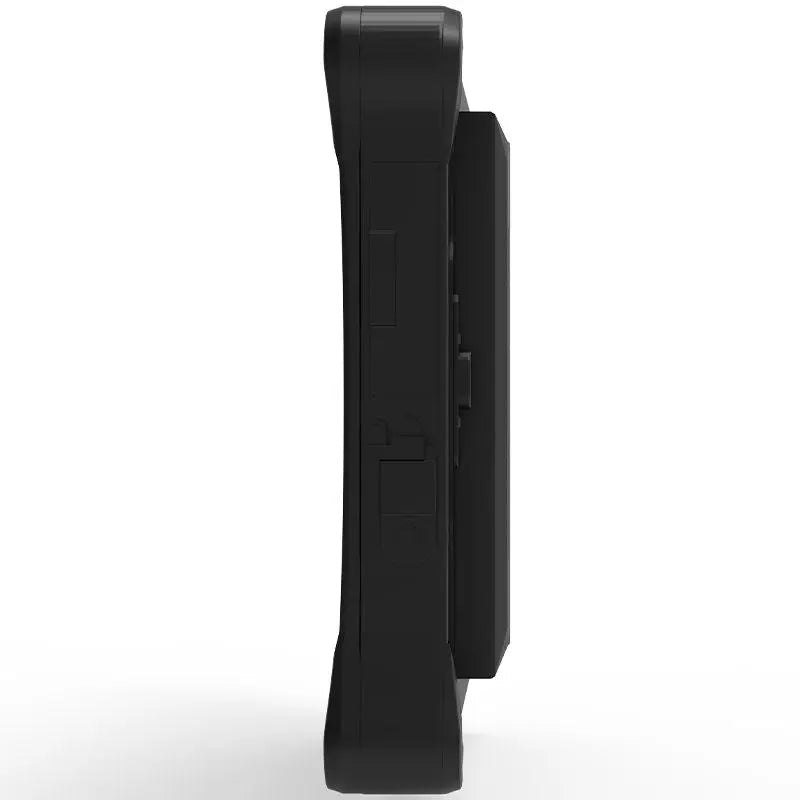

The Leica CC180 includes multicarrier 4G LTE mobile broadband, Wi-Fi 6E, Bluetooth 5.3, and GPS combo support. It also includes Thunderbolt 4, USB-C, microSD, nano SIM, audio, docking connector, and DC-in ports for flexible field and office connectivity.

For one-person total station workflows, Leica lists a typical TPS working range of 450 m, and up to 500 m with direct line of sight.

Rugged Protection for Jobsite Use

The CC180 is built to handle demanding field conditions with IP66 rain and dust protection, a 1.8 m drop rating, and MIL-STD-810H testing for drop, shock, vibration, rain, dust, altitude, freeze/thaw, temperature shock, humidity, and high/low temperature exposure.

Its operating temperature range of -20°C to 60°C makes it suitable for tough construction and surveying environments.

Reliable Performance in a Compact Package

The Leica CC180 Data Collector is a strong choice for professionals who want a rugged Windows tablet with Leica workflow compatibility, strong processing power, and a practical 8-inch screen. It delivers the performance needed for field data collection and construction layout while staying compact enough for everyday field use.
