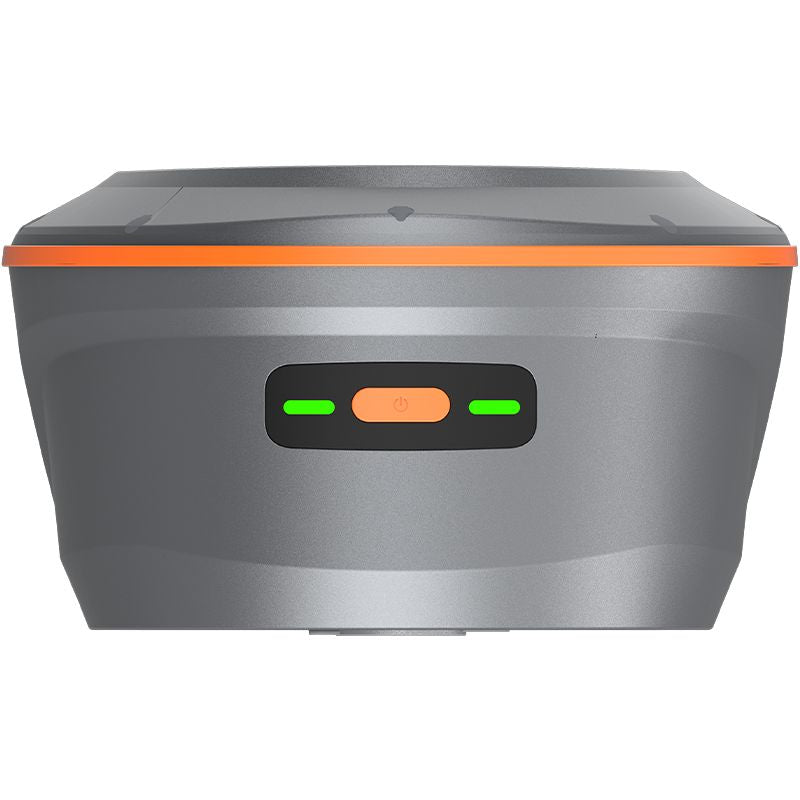

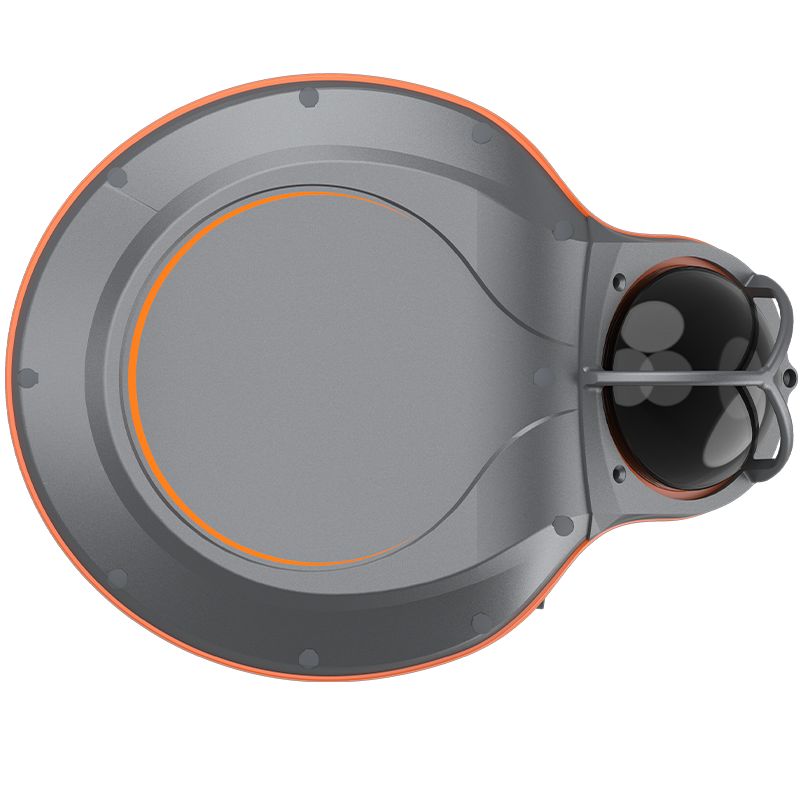

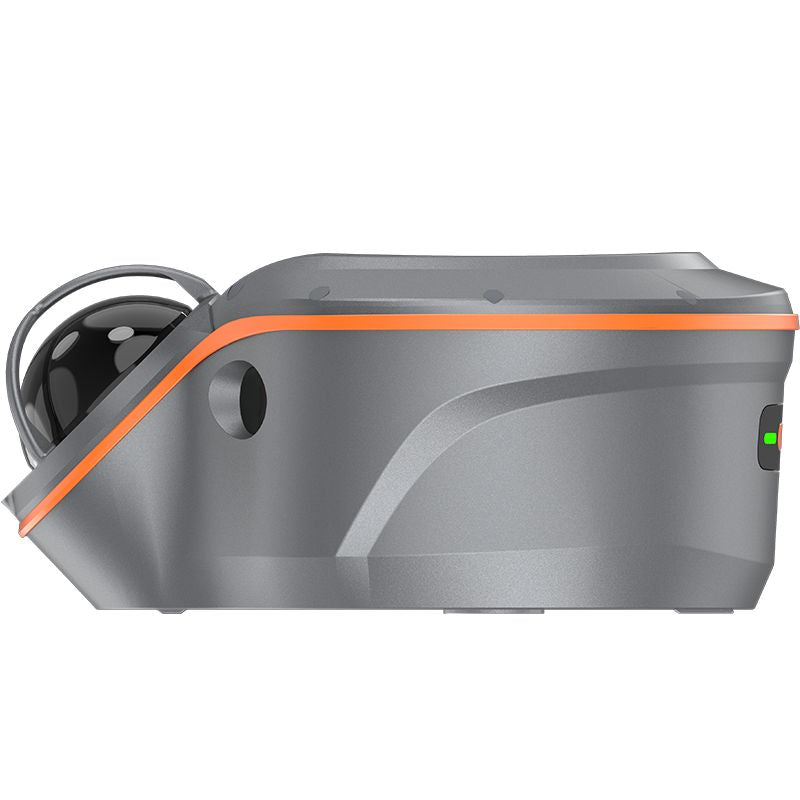

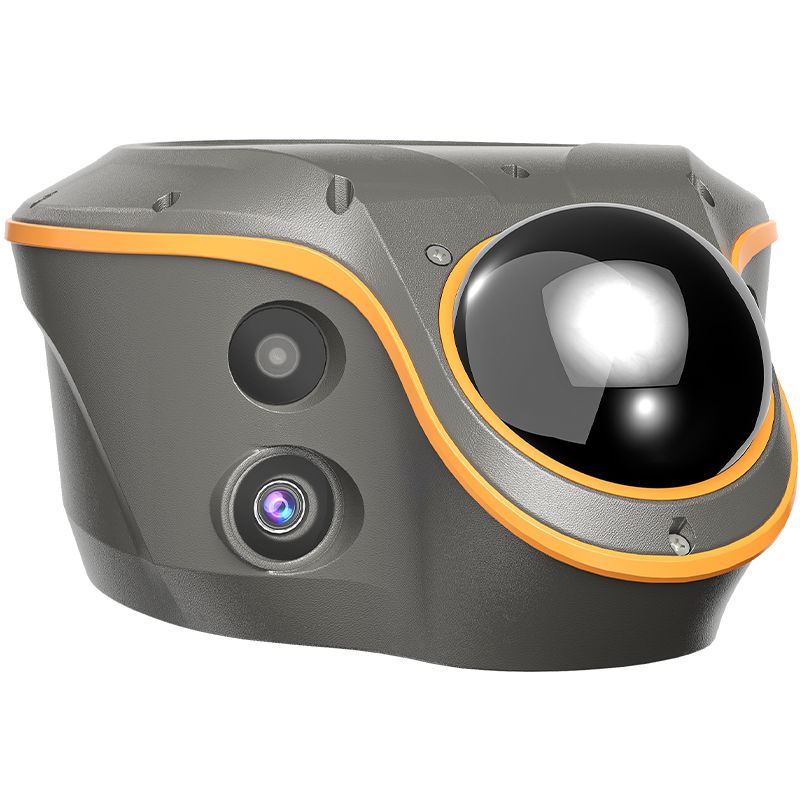

CHCNAV ViLi i100 Visual-LiDAR GNSS Receiver

Data Sheet | User Guide
Training Videos

---

What’s Included

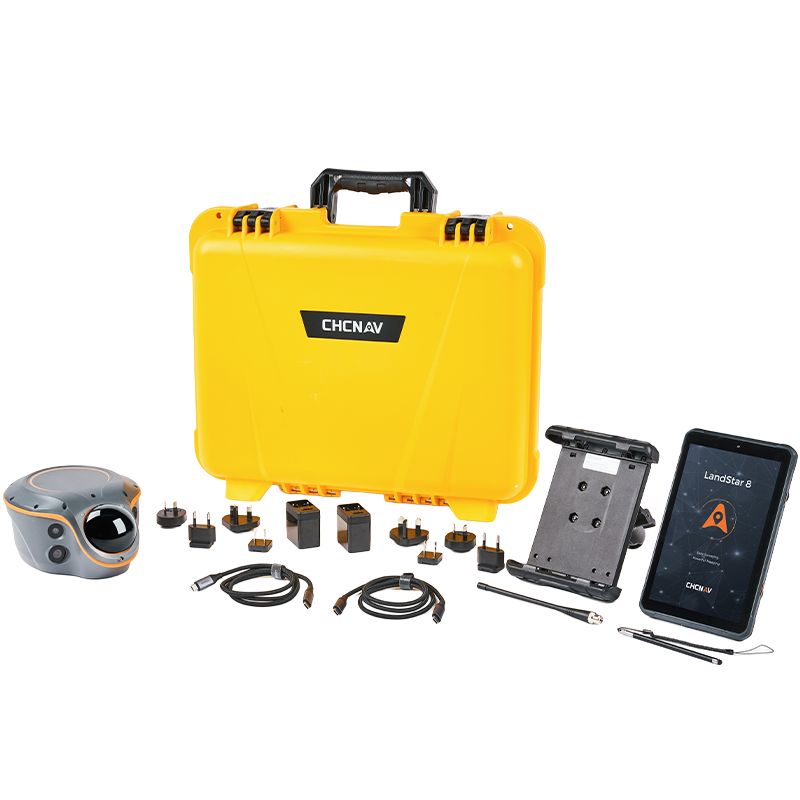

The CHCNAV ViLi i100 with LT800 Rover Kit – Part Number 1100 010 002 includes:

• 1× 1101 020 002 – CHCNAV ViLi i100 Visual-LiDAR GNSS Receiver
• 1× 4101 030 017 – SMA Whip Antenna, 410–470 MHz
• 2× 160021001X – USB-C to USB-C Data Cable
• 2× 1900 130 004 – 45 W PD Power Adapter
• 1× 160051000F – Rover Transport Hard Case
• 2× 0103 150 182 – ViLi i100 Transport Hard Case Foam / Pocket Insert
• 1× 4106 040 416 – Rover Hard Case Inner Carton
• 1× 0103 051 069 – CHCNAV GNSS Receiver Case Label
• 1× 1800 020 012 – Note Card
• 1× 0103 051 469 – Vibration Indicator Label
• 1× 0103 051 446 – Hard Case Warning Label
• 1× 4102 020 026 – Range Pole
• 1× 0103020320 – Android Stylus
• 1× 16001900D6 – LiDAR Protective Cover Kit
• 1× 4002 020 012 – CHCNAV LT800 Android Tablet
• 1× 0203 000 392 – Tablet Bracket
• 1× 1906 210 639 – LandStar 8 Data Collection Software for Android

CHCNAV’s user guide confirms the complete rover configuration includes the ViLi i100 receiver, UHF antenna, power adapter, USB Type-C cable, range pole, stylus, transport case, LT800 Android tablet, LiDAR protective cover, tablet bracket, and LandStar 8 software.

---

Overview

The CHCNAV ViLi i100 is a flagship Visual-LiDAR GNSS RTK receiver designed to extend high-accuracy surveying into environments where conventional GNSS receivers may struggle. It combines an 1892-channel GNSS engine, CHCNAV iStar2.0 technology, a 96-line LiDAR scanner capturing up to 860,544 points per second, 200 Hz AUTO-IMU, multiple cameras, and CHCNAV’s SFix 2.0 positioning technology in one integrated field system.

Unlike a conventional RTK rover that depends primarily on an open view of the sky, the ViLi i100 uses GNSS, LiDAR, cameras, IMU data, and SLAM-based positioning together to maintain useful survey accuracy around buildings, under structures, in narrow alleys, beneath tree canopy, and even during short periods where GNSS signals are unavailable.

In GNSS-obstructed environments, CHCNAV specifies better than 5 cm absolute positioning accuracy through advanced multipath filtering and multi-sensor fusion. In GNSS-denied areas, the ViLi i100’s SFix 2.0 system can maintain approximately 5 cm accuracy within a 20 m radius, allowing survey crews to continue collecting points where a conventional RTK rover might otherwise lose its fixed solution.

This complete kit also includes the CHCNAV LT800 Android tablet, tablet bracket, and LandStar 8 software, providing a ready-to-use surveying system for RTK, LiDAR, point cloud, visual stakeout, and earthwork applications.

---

Key Features

• 1892-channel GNSS receiver with iStar2.0
• Integrated 96-line LiDAR scanner
• Up to 860,544 points per second
• SFix 2.0 positioning in GNSS-denied environments
• Better than 5 cm absolute accuracy in GNSS-obstructed areas
• Approximately 5 cm accuracy within 20 m without GNSS using SFix
• Vi-LiDAR contactless surveying
• Select multiple survey points from a single captured scene
• Integrated 8 MP HD telephoto camera
• Dual-camera AR Visual Stakeout
• 200 Hz AUTO-IMU
• Tilt compensation up to 60°
• Real-time 3D point cloud scanning
• On-site cut/fill and earthwork volume calculations
• Conventional RTK, NTRIP, UHF, and PPP workflows
• 410–470 MHz internal UHF receiver
• Up to 22 hours in conventional UHF / 4G RTK rover mode
• Up to 5 hours in SFix, Vi-LiDAR, or Point Cloud Scan modes
• 64 GB internal storage
• Expandable storage up to 1 TB
• IP67 environmental protection
• IK08 impact resistance
• Includes LT800 Android tablet and LandStar 8 software

---

Survey Where Conventional GNSS Struggles

The primary advantage of the ViLi i100 is its ability to continue working when satellite visibility becomes obstructed.

Tall buildings, bridges, trees, retaining walls, narrow corridors, and other structures can block or reflect GNSS signals. These multipath reflections can cause a conventional receiver to produce unstable coordinates or lose its fixed solution entirely.

The ViLi i100 combines LiDAR-derived 3D information with real-time satellite path analysis to identify and filter GNSS signals affected by obstructions and reflections. CHCNAV states this provides approximately 3× better multipath auto-filtering and helps maintain consistent positioning with better than 5 cm absolute accuracy in difficult environments.

This makes the ViLi i100 especially useful for:

• Urban surveying
• Narrow alleys
• Dense construction sites
• Areas beside high-rise buildings
• Under tree canopy
• Under eaves
• Beneath viaducts and bridges
• Other partially obstructed sites

---

SFix 2.0 for GNSS-Denied Areas

When GNSS signals are unavailable altogether, the ViLi i100 can transition to SFix 2.0.

SFix combines the receiver’s high-speed LiDAR scanner, IMU, cameras, and SLAM-based positioning to continue estimating the receiver’s position relative to its previously established GNSS position.

CHCNAV specifies:

• With GNSS signal: ±3 cm at 2σ
• Without GNSS signal: ±5 cm at 2σ within a 20 m radius
• Seamless SFix initialization
• 0–360° tilt-supported positioning



This capability allows a surveyor to initialize the system in an area with good GNSS coverage and then continue into a temporarily GNSS-denied location.

Examples include:

• Moving beneath a bridge
• Entering a covered structure
• Surveying between buildings
• Working underneath overhangs
• Entering dense vegetation
• Measuring around structural obstructions

CHCNAV notes that accuracy in heavily obstructed areas begins to degrade after approximately 20 m without GNSS, so SFix is primarily intended to bridge short GNSS outages rather than replace GNSS indefinitely.

---

Vi-LiDAR Contactless Surveying

The ViLi i100 can also use its LiDAR and camera system to remotely measure points without placing the range pole directly on the target.

With Vi-LiDAR, the operator captures a scene using the receiver’s camera and LiDAR. After the image is captured, individual target points can be selected from the image and their 3D coordinates calculated.

Multiple points can be selected from the same capture, eliminating the need to aim at and occupy each point individually.

CHCNAV specifies:

• Multiple survey points from a single captured scene
• Survey range up to approximately 20 m
• Typical accuracy of approximately ±5 cm at 15 m with GNSS
• SFix-assisted operation when GNSS is unavailable



This workflow can be useful when measuring:

• Building corners
• Utility structures
• Fences
• Areas across traffic
• Excavations
• Slopes
• Restricted-access locations
• Points across water
• Dangerous or unstable surfaces

Instead of balancing the range pole precisely over every target, the operator can capture the scene from a safe position and select the necessary coordinates afterward.

---

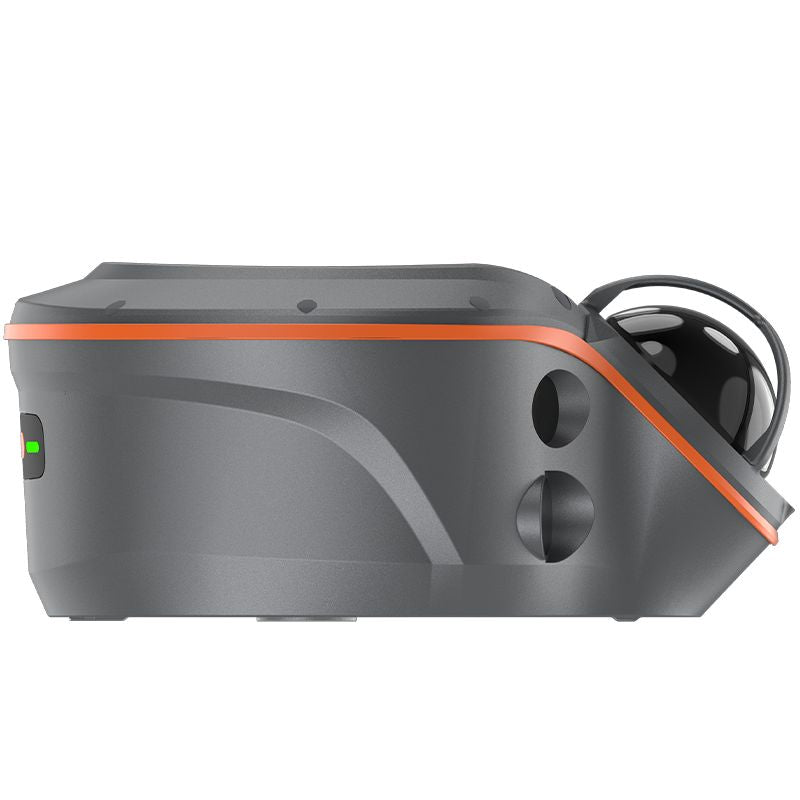

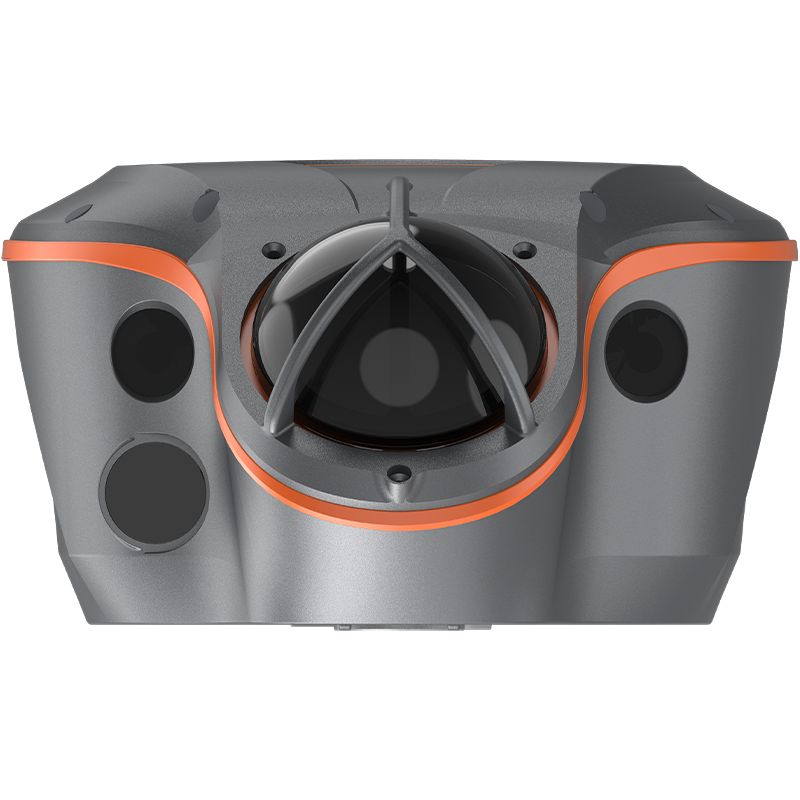

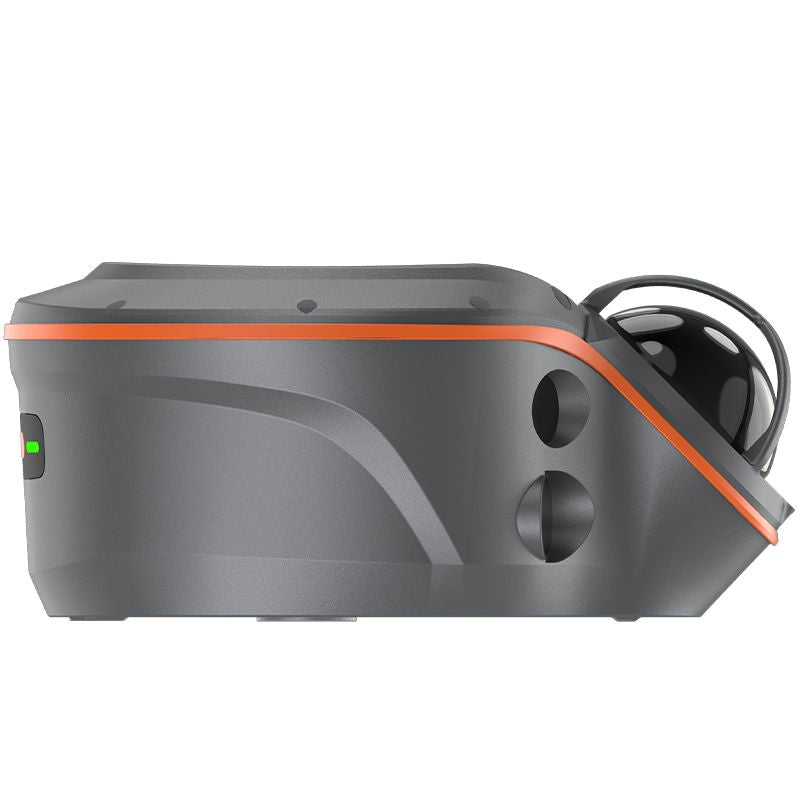

8 MP Telephoto Camera

The ViLi i100 incorporates an 8 MP HD telephoto camera to improve target identification at longer distances.

CHCNAV specifies clear visual targeting at approximately 15 m, helping operators identify and select points accurately within complex scenes.

The complete camera system includes:

• 8 MP HD telephoto camera
• Two additional 2 MP cameras
• Dedicated bottom camera for AR stakeout
• Wide-angle point-cloud colorization
• True-color point cloud support

The user guide identifies a total of four camera positions: the main Vi-LiDAR / AR camera, left and right auxiliary cameras for point-cloud colorization, and the bottom AR stakeout camera.

---

860,544 Points-Per-Second LiDAR Scanner

The ViLi i100 integrates a 96-line LiDAR scanner capable of collecting up to 860,544 points per second in single-echo mode.

LiDAR specifications include:

• 96 scanning lines
• 860,544 points/sec
• 360° horizontal field of view
• 90° vertical field of view
• 30 m range at 10% reflectivity
• 70 m range at 80% reflectivity
• Class 1 eye-safe laser classification



This LiDAR data serves multiple functions within the receiver, including:

• SFix positioning
• Vi-LiDAR remote point collection
• Point cloud scanning
• Multipath analysis
• Earthwork volume calculations
• 3D documentation

---

Real-Time 3D Point Cloud Scanning

The ViLi i100 can operate as a handheld / pole-mounted point cloud scanner directly through LandStar.

After SLAM initialization, operators can walk around the target area while the receiver generates a live 3D point cloud. The LandStar interface provides a real-time preview of the scanned area as data is collected.

Point cloud files can be exported as LAS files with georeferenced coordinates, allowing the data to be used in compatible point-cloud and CAD workflows.

The system provides 64 GB of internal storage, which CHCNAV specifies as sufficient for approximately:

• 1 hour of on-site scan storage, or
• 30 hours of point-cloud data storage

Storage can be expanded up to 1 TB.

---

On-Site Earthwork Volume Calculations

The ViLi i100 and LandStar can also perform real-time point cloud earthwork calculations.

Instead of collecting individual ground points and processing the surface later in the office, the operator can scan a stockpile, excavation, or earthwork area and calculate the volume directly in LandStar.

The workflow allows the operator to:

1. Scan the target area.
2. Generate the point cloud.
3. Define the calculation boundary.
4. Select the appropriate surface or Stockpile/Pit calculation mode.
5. Calculate the volume.
6. Export an earthwork report.



CHCNAV promotes this workflow as non-contact measurement, helping reduce the need to climb on stockpiles or enter potentially unsafe excavation areas. The manufacturer states 99.98% accuracy for its real-time earthwork calculation workflow under its specified test conditions.

---

1892-Channel GNSS with iStar2.0

The ViLi i100 remains a fully capable professional RTK receiver in addition to its LiDAR capabilities.

Its 1892-channel GNSS engine with iStar2.0 supports:

• GPS: L1C/A, L1C, L2C, L2P(Y), L5
• GLONASS: G1, G2, G3
• BeiDou: B1I, B2I, B3I, B1C, B2a, B2b
• Galileo: E1, E5a, E5b, E6*
• QZSS: L1C/A, L1C, L2C, L5
• NavIC/IRNSS: L5*
• SBAS: L1C/A*
• PPP: B2b-PPP and E6B-HAS



*Some signals or services may depend on firmware and service availability.

---

Survey-Grade RTK Accuracy

In conventional open-sky RTK operation, the ViLi i100 provides standard survey-grade GNSS accuracy.

RTK Accuracy

• Horizontal: 8 mm + 1 ppm RMS
• Vertical: 15 mm + 1 ppm RMS
• Initialization time: <10 seconds
• Initialization reliability: >99.9%

The receiver also supports:

• PPK
• High-precision static
• Static and rapid static
• PPP
• Code differential
• Autonomous GNSS positioning



---

200 Hz AUTO-IMU Tilt Compensation

The ViLi i100 incorporates a 200 Hz AUTO-IMU for tilt-compensated GNSS surveying.

The system supports pole tilt angles from 0–60°, allowing measurements to be collected without holding the range pole perfectly vertical.

CHCNAV specifies additional horizontal tilt uncertainty of approximately:

8 mm + 0.3 mm/° when tilted up to 30°



Tilt compensation can improve productivity around:

• Walls
• Fences
• Buildings
• Vegetation
• Vehicles
• Excavations
• Other obstacles

---

CAD + AR Visual Stakeout

The ViLi i100 also supports AR Visual Stakeout using its integrated camera system and LandStar.

Instead of relying only on conventional directional arrows, LandStar can display the target point within a live camera view.

The system can use the front camera while approaching the point and transition to the downward camera at close range. Once the virtual pole tip reaches the displayed target, the stakeout point can be stored.

CHCNAV states that its dual-camera CAD + AR stakeout workflow can improve stakeout efficiency by up to 50% in suitable applications.

---

UHF, NTRIP, and PPP Rover Support

The ViLi i100 is designed as an all-in-one rover that can operate with several correction methods.

Supported workflows include:

• UHF RTK
• NTRIP / CORS
• PPP
• Conventional GNSS RTK
• SFix
• Vi-LiDAR

The built-in UHF radio is an Rx-only receiver, meaning the ViLi i100 can receive UHF corrections from a base station but does not transmit corrections as a UHF base.

UHF specifications include:

• 410–470 MHz
• Internal Rx-only radio
• CHC protocol
• Transparent protocol
• TT450 protocol



This differentiates the ViLi i100 from some CHCNAV GNSS receivers with Tx/Rx radios. The ViLi i100 is primarily intended to function as a high-end rover.

---

Complete LT800 Rover Package

This package includes the CHCNAV LT800 Android Tablet, eliminating the need to purchase a separate field controller.

The LT800 is supplied with:

• Android stylus
• Tablet bracket
• LandStar 8 Data Collection Software

LandStar is the primary software interface for the ViLi i100’s surveying and LiDAR workflows, including:

• Conventional RTK surveying
• SFix
• Vi-LiDAR
• Point cloud scanning
• Earthwork calculations
• Tilt survey
• Point stakeout
• AR stakeout

The LT800, bracket, stylus, and LandStar license are included directly in Kit 1100 010 002.

---

Battery Life and Fast Charging

The ViLi i100 uses a built-in 7.2 V / 9900 mAh / 71.28 Wh lithium-ion battery.

CHCNAV specifies:

• SFix / Vi-LiDAR / Point Cloud Scan: Up to 5 hours
• UHF / 4G RTK Rover: Typical 22 hours

The receiver supports up to 30 W PD fast charging, with a full charge taking approximately 5 hours.

This kit includes two 45 W PD power adapters and two USB-C to USB-C cables, allowing both the receiver and included LT800 tablet to be supported with dedicated charging accessories.

---

Rugged Field Design

The ViLi i100 is built for demanding surveying and construction environments.

Environmental specifications include:

• IP67 ingress protection
• IK08 impact resistance
• Operating temperature: -20°C to +55°C (-4°F to +131°F)
• Storage temperature: -40°C to +75°C (-40°F to +167°F)

The receiver weighs approximately 1.39 kg (3.06 lb) and measures:

208 × 162 × 95.5 mm (8.19 × 6.38 × 3.76 in).

The included LiDAR protective cover kit helps protect the scanner during transport and handling.

---

Ideal Applications

The CHCNAV ViLi i100 is especially well suited for:

• GNSS surveying in urban environments
• High-rise building corridors
• Narrow alley surveying
• Surveys under bridges and viaducts
• Dense forest surveying
• GNSS-denied point collection
• Topographic surveys
• Construction layout
• Utility mapping
• Site development
• Earthwork calculations
• Stockpile volume measurement
• Excavation measurement
• Contactless surveying
• Point cloud scanning
• As-built documentation
• CAD AR stakeout
• Road and infrastructure projects
• Complex sites where conventional RTK alone is unreliable

---

Technical Specifications

GNSS Channels: 1892 with iStar2.0

RTK Accuracy

• Horizontal: 8 mm + 1 ppm RMS
• Vertical: 15 mm + 1 ppm RMS
• Initialization: <10 seconds
• Initialization reliability: >99.9%

PPK

• Horizontal: 3 mm + 1 ppm RMS
• Vertical: 5 mm + 1 ppm RMS

High-Precision Static

• Horizontal: 2.5 mm + 0.1 ppm RMS
• Vertical: 3.5 mm + 0.4 ppm RMS

Static / Rapid Static

• Horizontal: 2.5 mm + 0.5 ppm RMS
• Vertical: 5 mm + 0.5 ppm RMS

PPP

• B2b-PPP and E6B-HAS
• Horizontal: 10 cm
• Vertical: 20 cm

SFix

• With GNSS: ±3 cm (2σ)
• Without GNSS: ±5 cm (2σ) within 20 m
• Supports seamless SFix initialization

Vi-LiDAR Survey

• Multiple points per capture
• Range: Up to 20 m
• Typical accuracy with GNSS: ±5 cm at 15 m

IMU

• 200 Hz AUTO-IMU
• Tilt range: 0–60°
• Tilt uncertainty: 8 mm + 0.3 mm/° to 30°

LiDAR

• 96 lines
• Up to 860,544 points/sec
• Horizontal FOV: 360°
• Vertical FOV: 90°
• Range: 30 m at 10% reflectivity
• Range: 70 m at 80% reflectivity
• Class 1 eye-safe

Cameras

• 8 MP HD telephoto camera
• Dual 2 MP auxiliary / visual cameras
• Bottom AR camera
• True-color point cloud support

UHF Radio

• Rx only
• 410–470 MHz
• Protocols: CHC, Transparent, TT450

Wireless

• Bluetooth 5.0 / 4.2 + EDR
• Wi-Fi 802.11g
• Wi-Fi 802.11ac

Storage

• 64 GB internal
• Expandable to 1 TB
• LAS point cloud output with georeferenced coordinates

Ports

• 1× USB 3.0 Type-C
• 1× SMA UHF antenna port

Battery: 7.2 V / 9900 mAh / 71.28 Wh

Operating Time

• SFix / Vi-LiDAR / Point Cloud Scan: Up to 5 hours
• UHF / 4G RTK Rover: Typical 22 hours

Fast Charging

• Up to 30 W PD
• Approximately 5 hours to full charge

Ingress Protection: IP67

Impact Protection: IK08

Operating Temperature: -20°C to +55°C (-4°F to +131°F)

Storage Temperature: -40°C to +75°C (-40°F to +167°F)

Dimensions: 208 × 162 × 95.5 mm (8.19 × 6.38 × 3.76 in)

Weight: 1.39 kg (3.06 lb)

---

GNSS, LiDAR, SLAM, and Data Collection in One Complete Kit

The CHCNAV ViLi i100 with LT800 Rover Kit combines professional RTK GNSS with high-speed LiDAR, SFix 2.0 positioning, contactless point measurement, real-time point cloud scanning, earthwork calculations, AUTO-IMU tilt compensation, and AR stakeout. Its ability to maintain useful positioning through obstructed and temporarily GNSS-denied areas makes it particularly valuable for surveyors working in urban, structural, forestry, and complex construction environments where conventional RTK receivers may struggle.

With the LT800 tablet, LandStar 8 software, range pole, bracket, charging equipment, and protective transport case all included, Part Number 1100 010 002 provides a complete field-ready ViLi i100 surveying package.
