Schonstedt  |  SKU: ULOCATE+

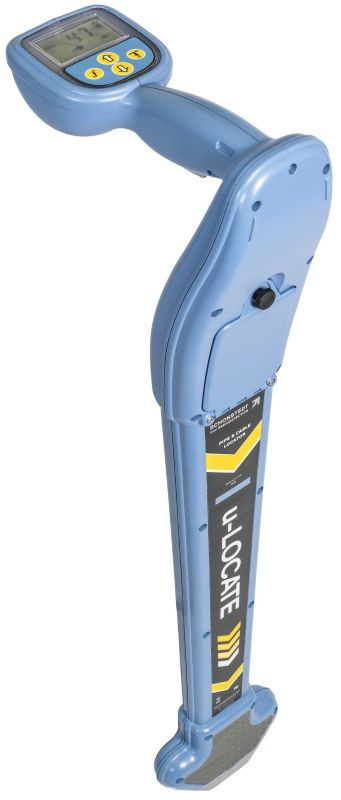

Schonstedt u-LOCATE+ Pipe & Cable Locator | Transmitter Kit

Regular price $2,168.00
Shipping calculated at checkout.

Delivery and Shipping

Your order will be shipped out within 24 hours of purchase

A UPS tracking # will be provided via email and/or text when we create the label

View our 60-Day return policy

Speak With An Expert

Phone: (323) 662-9237


Email: info@aaisurvey.com


Monday - Friday 9am-5pm PST

Why Choose Absolute Accuracy

Trusted by professionals in the Los Angeles area since 2008, our expert sales team is here to support you with everything you need.
We provide certified, calibrated surveying and construction equipment designed for precision and reliability. Enjoy fast shipping, expert support, and competitive pricing on industry-leading brands. Shop with confidence, knowing you’re getting high-quality, expertly tested tools backed by our commitment to accuracy.

All Instruments Will Ship Calibrated

Certification Provided For Optical & Lasers

Description

Brochure / Technical Specifications


The Schonstedt u-LOCATE+ is an enhanced version of the standard u-LOCATE, offering dual-frequency operation (33 kHz and 82 kHz) for locating a wider range of underground utilities. With active, passive, and Sonde (512 Hz) locating modes, it’s ideal for professionals who need flexibility across different jobsite conditions and utility types.

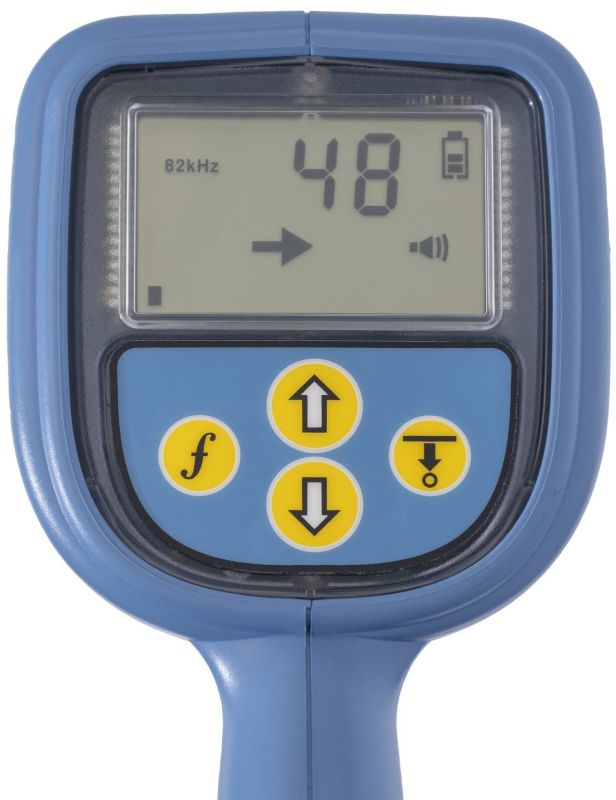

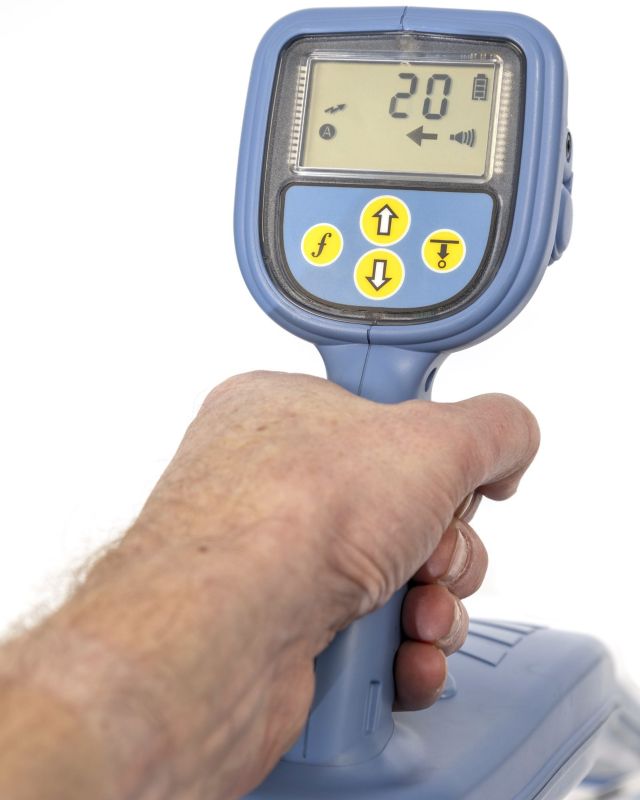

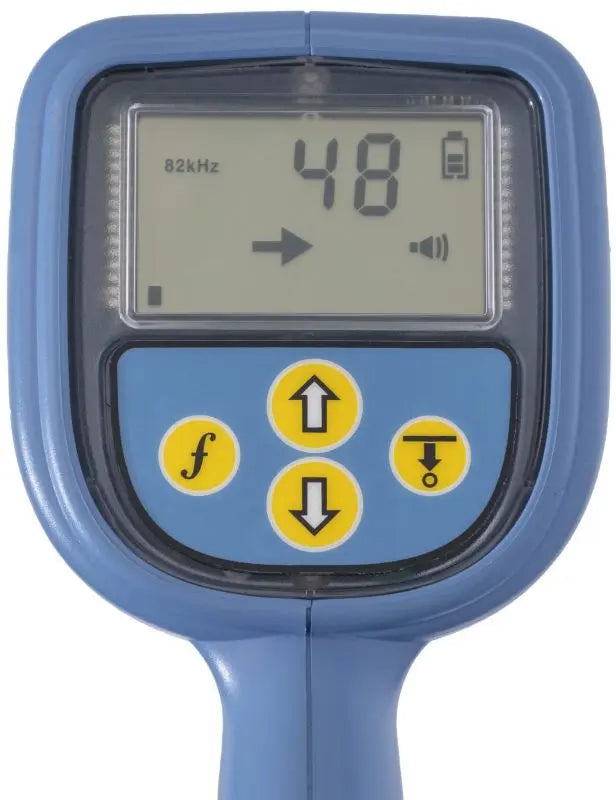

This lightweight system features directional arrows, real-time signal strength, and depth estimation up to 19 feet, making it fast and intuitive for any operator. It detects live power lines (50/60 Hz), conductive pipes, and non-metallic conduits equipped with sondes or tracing tools. Designed with durability in mind, the receiver is IP65-rated and powered by six AA batteries for up to 20 hours of use.


Enhanced Transmitter Features

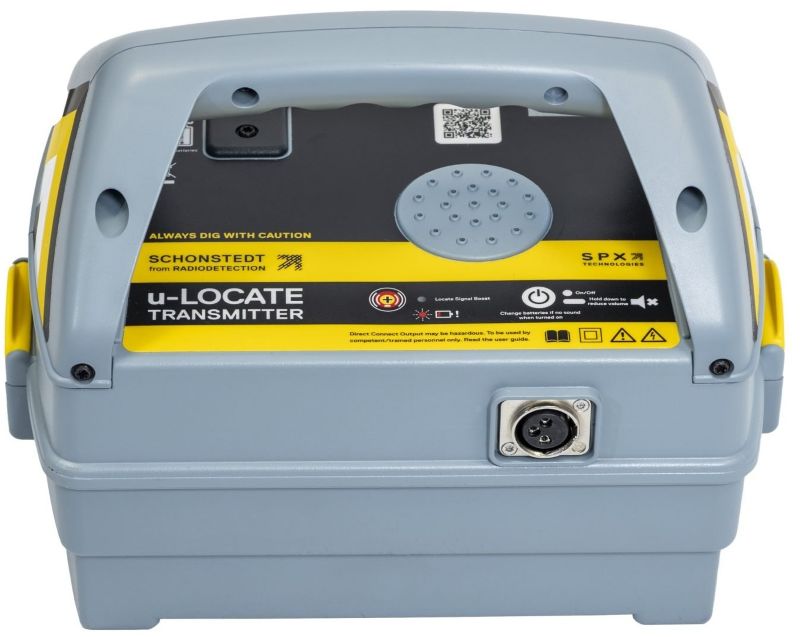

The included 1-watt transmitter supports both 33 kHz and 82 kHz output for superior adaptability when tracing long-distance lines or congested underground zones. Signal can be applied via direct connection, induction, or optional clamp (sold separately). The transmitter is IP54-rated and runs on four D-cell batteries with field-adjustable power settings.

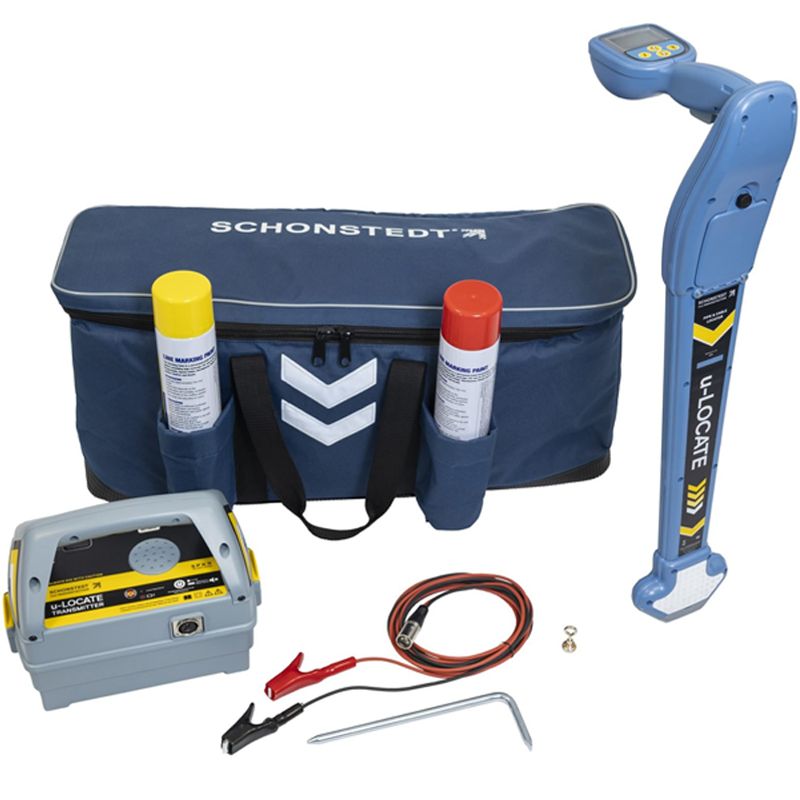

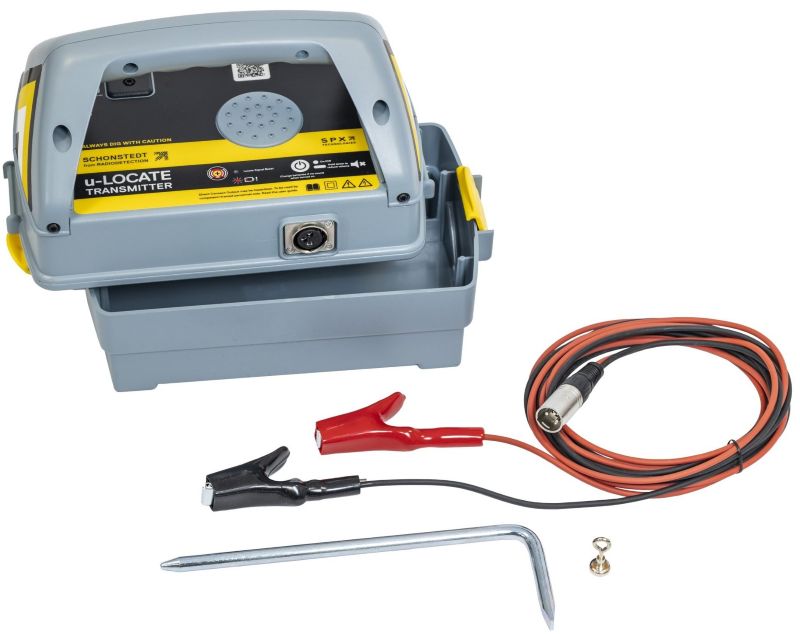

What’s Included

  • u-LOCATE+ Receiver (dual-frequency, IP65 rated)
  • 1-watt Transmitter (33/82 kHz, IP54 rated)
  • Direct Connection Lead
  • Extension Lead
  • Earth Stake
  • Magnet
  • Hard Carrying Case

Whether you're locating service lines, avoiding utility strikes, or tracing complex underground networks, the Schonstedt u-LOCATE+ gives you multi-frequency flexibility in a durable, field-ready package. It's the smart upgrade for crews who want more control without sacrificing simplicity.
