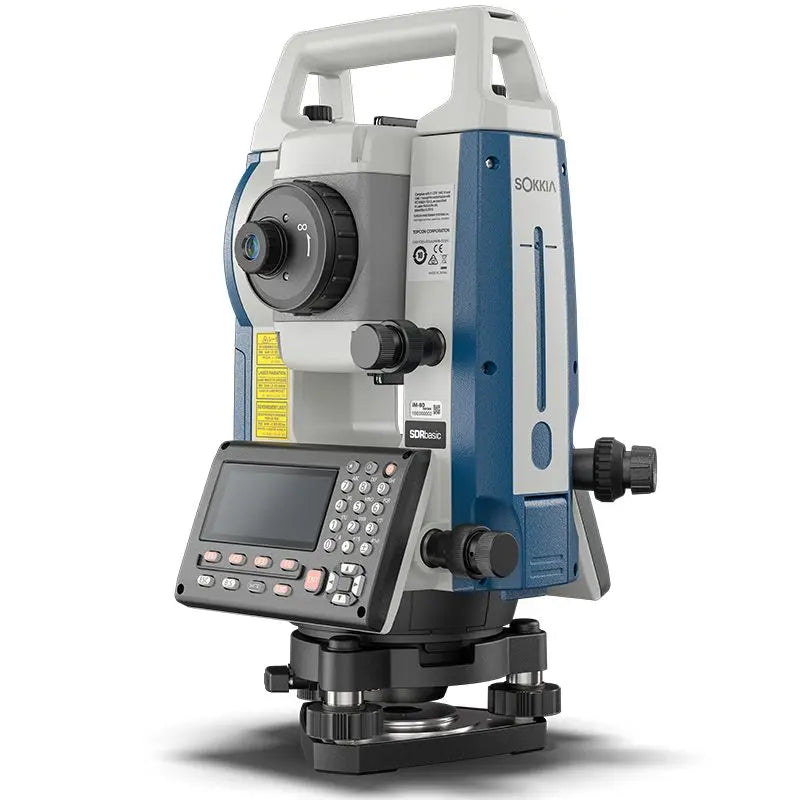

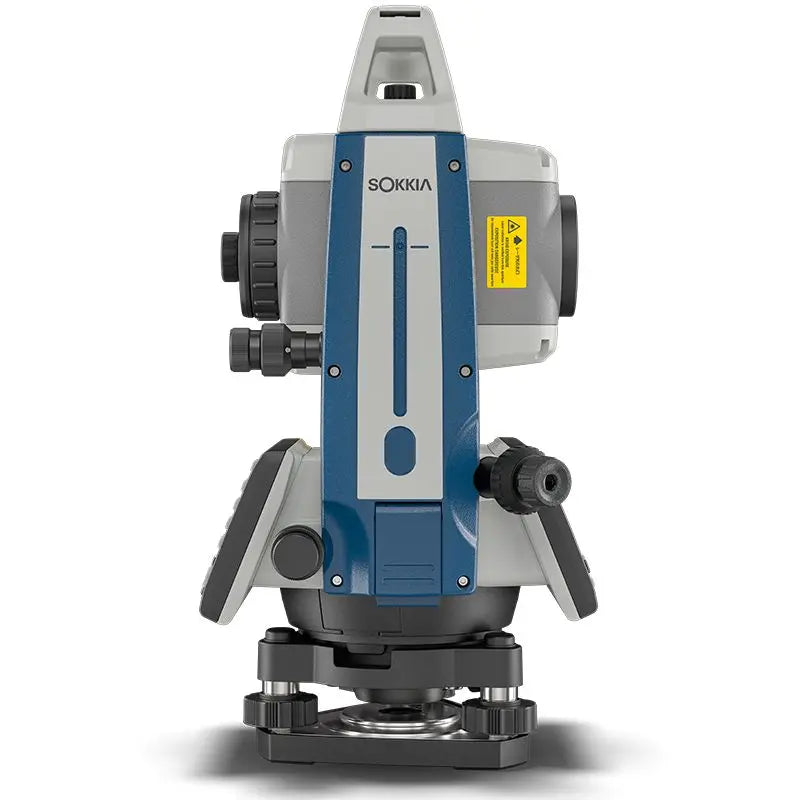

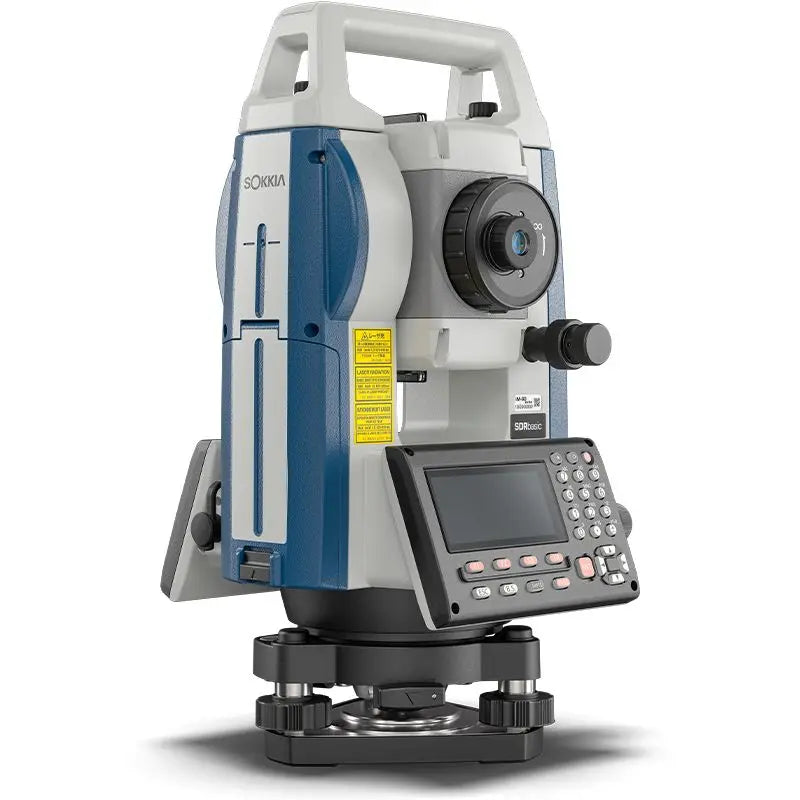

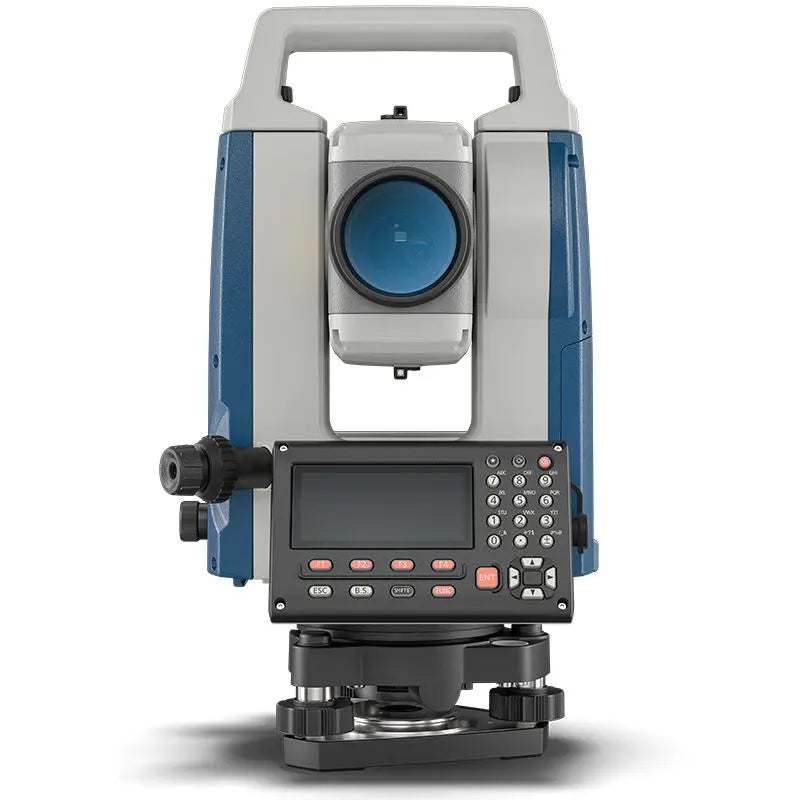

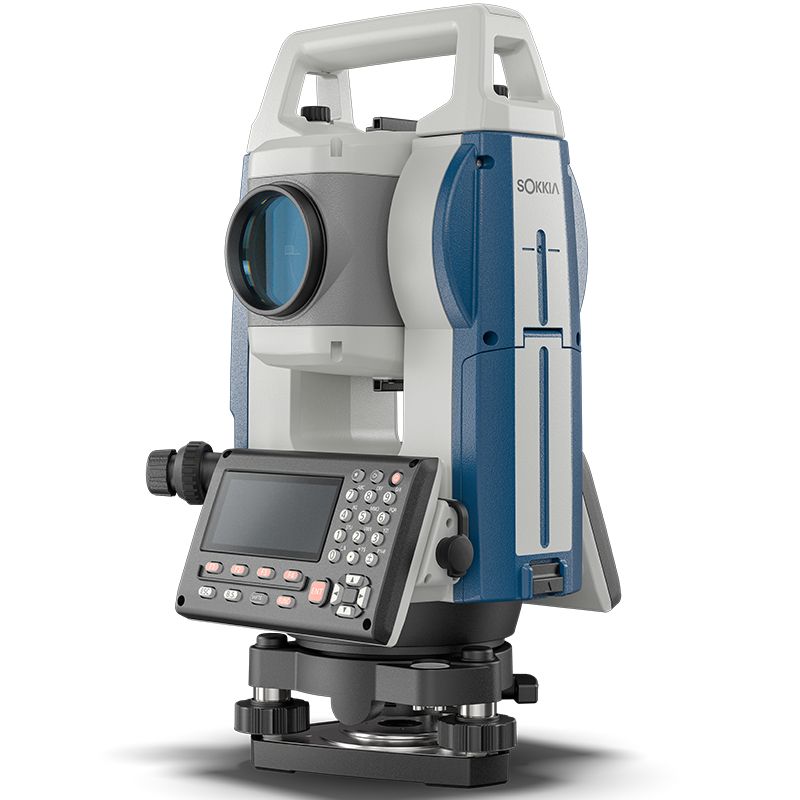

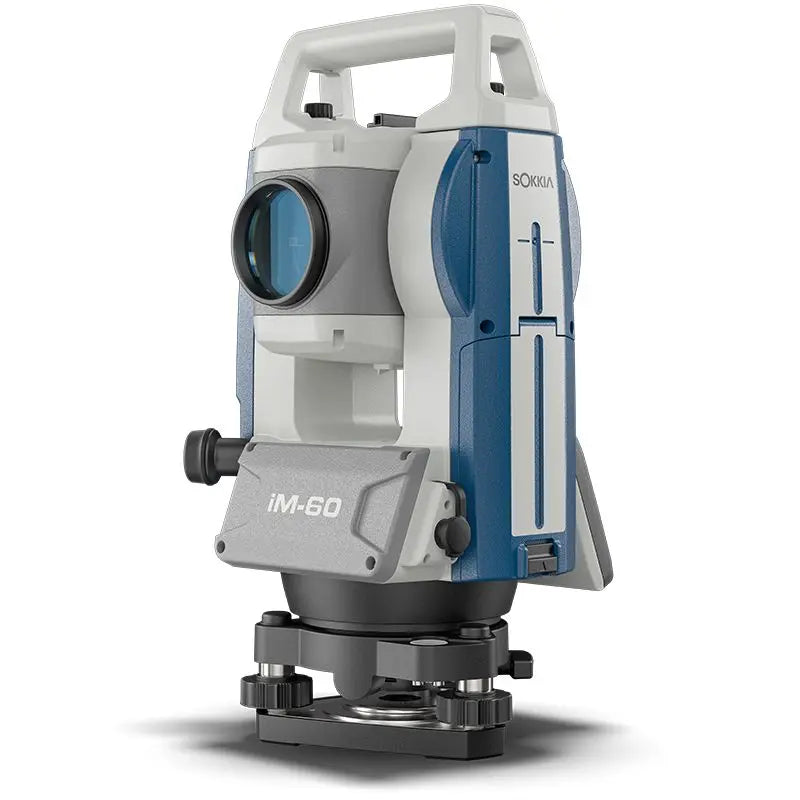

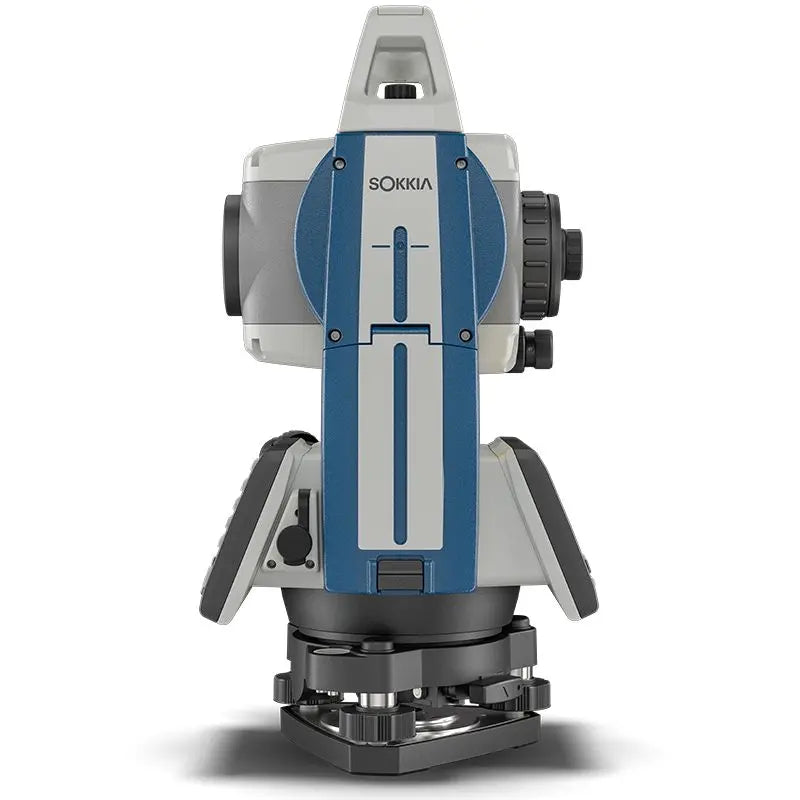

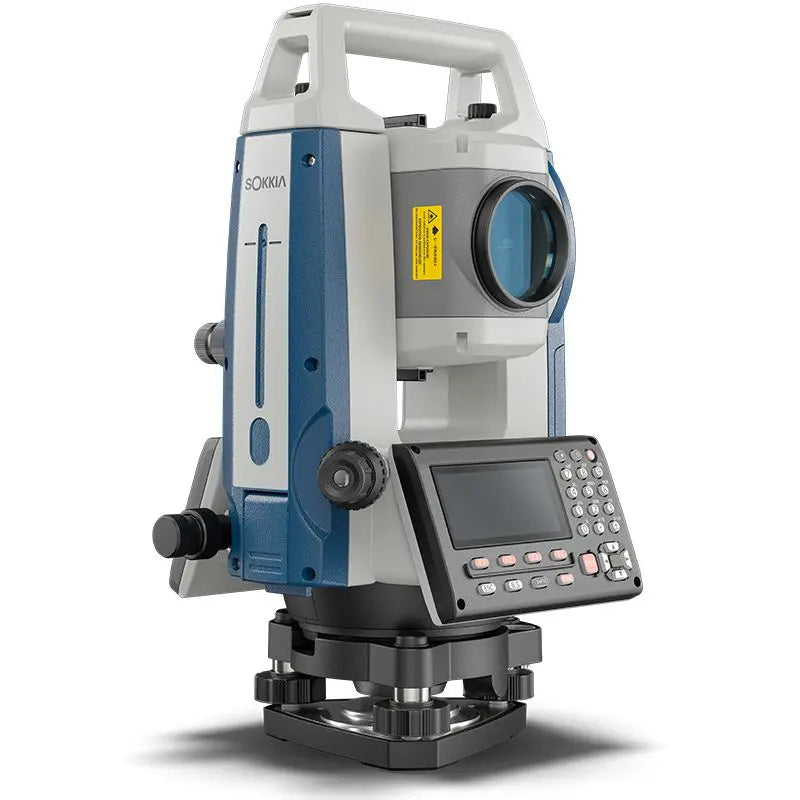

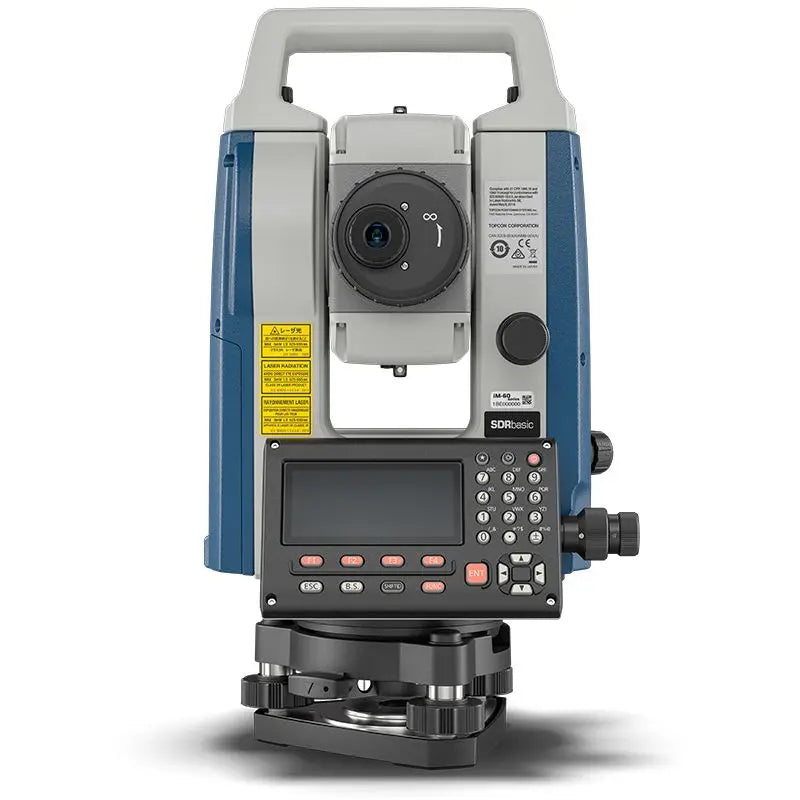

Sokkia iM-60 Series Manual Total Station | 2" or 5"

Brochure and Data Sheet

The Sokkia iM-60 Series Manual Total Station is the next generation of Sokkia's trusted entry-level surveying instruments, replacing the popular iM-50 Series with improved onboard software, integrated Bluetooth® connectivity, and faster measurement performance. Available in 2-second (iM-62) and 5-second (iM-65) angle accuracy models, the iM-60 is built for surveyors, construction professionals, engineers, and contractors who need dependable accuracy without the cost and complexity of a robotic total station.

Powered by Sokkia's proven EDM technology, the iM-60 measures reflectorless distances up to 500 m (1,640 ft.) and prism distances up to 4,000 m (13,120 ft.) with outstanding accuracy. Its ultra-narrow EDM beam allows precise measurements on difficult targets such as building corners, utility structures, manholes, chain-link fences, and tree branches, while rapid 0.9-second measurements help crews work more efficiently throughout the day.

Whether you're performing construction layout, topographic surveys, property boundary work, or as-built documentation, the iM-60 Series delivers the accuracy, durability, and simplicity professionals expect from Sokkia.

Key Features

• Available with 2" or 5" angle accuracy
• Reflectorless measurements up to 500 m (1,640 ft.)
• Prism measurements up to 4,000 m (13,120 ft.)
• Fast EDM with measurements in as little as 0.9 seconds
• Integrated SDRbasic construction and survey software
• Built-in Bluetooth® for wireless data transfer
• Approx. 50,000-point internal memory
• Supports USB flash drives up to 64 GB
• Rugged IP66 dustproof and waterproof construction
• Up to 14 hours of operation on a single battery
• Bright graphic LCD display with backlit keyboard
• Dual-axis compensator for improved angle accuracy
• Available with optical or optional laser plummet

Built for Construction & Survey Work

The iM-60 Series was designed to be a versatile total station capable of handling virtually every daily surveying task. From small residential layouts to large commercial construction projects, it provides the speed and accuracy needed to keep jobs moving.

Typical applications include:

• Construction staking
• Building layout
• Property boundary surveys
• Topographic surveys
• Utility mapping
• As-built documentation
• Elevation verification
• Earthwork and grading
• Infrastructure projects
• General engineering surveys

Its straightforward interface allows new users to become productive quickly while still providing the precision experienced surveyors demand.

Fast, Accurate EDM Performance

At the heart of the iM-60 is Sokkia's latest Electronic Distance Measurement (EDM) technology.

Using an ultra-narrow phase-shift EDM beam, the iM-60 quickly locks onto difficult reflectorless targets while minimizing unwanted reflections from surrounding objects. This allows crews to confidently measure:

• Building corners
• Utility poles
• Curbs
• Manholes
• Steel structures
• Chain-link fences
• Tree trunks and branches
• Hard-to-reach surfaces

Distance measurements are completed in as little as 0.9 seconds, reducing time spent waiting for readings and improving productivity on every job.

Reflectorless & Prism Measurements

Whether you're working with or without a prism, the iM-60 delivers dependable performance across a wide range of applications.

Reflectorless Range

• 0.3–500 m (1–1,640 ft.)

Standard Prism Range

• Up to 4,000 m (13,120 ft.)

Distance Accuracy

• Prism: ±(1.5 mm + 2 ppm)
• Reflectorless: ±(2 mm + 2 ppm)

This flexibility allows crews to switch between reflectorless measurements for inaccessible objects and prism measurements for longer-range survey work without changing instruments.

Integrated SDRbasic Onboard Software

Unlike basic manual total stations that require an external controller for every task, the iM-60 includes SDRbasic onboard software.

The integrated software provides the tools needed for common surveying and construction workflows directly from the instrument, allowing crews to:

• Collect field data
• Store survey points
• Perform construction layout
• Manage jobs
• Export data through USB
• Continue working without relying on an external data collector for basic operations

For many contractors, this means getting productive immediately with minimal setup.

Bluetooth® Connectivity

The iM-60 features integrated Bluetooth® connectivity for wireless communication with compatible data collectors and field software. Measurements can be transmitted without cumbersome serial cables, improving mobility and reducing setup time on the jobsite.

Bluetooth connectivity works seamlessly with many of today's most popular surveying software platforms, allowing crews to continue using their preferred field controller.

Software Compatibility

The Sokkia iM-60 integrates with many of today's leading field software packages using standard Sokkia and Topcon communication protocols.

Compatible software includes:

• Topcon Field / MAGNET Field
• Carlson SurvPC
• Carlson SurvCE
• MicroSurvey FieldGenius
• Leica Captivate (manual total station workflows)
• Pocket 3D
• Additional third-party software supporting Sokkia communication protocols

This flexibility allows existing survey crews to continue working with the software they're already familiar with while upgrading to newer hardware.

Sokkia iM-50 vs. iM-60 Series

The Sokkia iM-60 Series is the direct replacement for the widely used iM-50 Series, bringing several meaningful improvements while maintaining the same rugged reliability that made the iM-50 so popular.

Both instruments offer reflectorless measurements up to 500 meters, prism measurements up to 4,000 meters, IP66 environmental protection, and dependable Sokkia EDM performance. However, the iM-60 modernizes the platform with improved hardware and software designed for today's surveying workflows.

Improvements over the iM-50 include:

• Integrated Bluetooth® connectivity
• New SDRbasic onboard software
• Faster 0.9-second EDM measurements
• Improved reflectorless target acquisition
• USB storage support up to 64 GB
• Updated electronics and operating platform
• Enhanced workflow for construction and survey applications

If you're replacing an aging manual total station or purchasing new equipment, the iM-60 Series is the better long-term investment, offering modern connectivity and faster performance while preserving the reliability surveyors have trusted from the iM-50 for years.

Rugged Design Built for the Field

Survey equipment has to withstand challenging jobsite conditions, and the iM-60 was built with durability in mind.

Its rugged metal chassis and heavy-duty carrying handle are designed to withstand daily transportation and field use, while its IP66 environmental rating protects the instrument from dust, heavy rain, and harsh outdoor conditions.

The iM-60 operates in temperatures ranging from -20°C to 60°C (-4°F to 140°F), making it suitable for year-round surveying in virtually any climate.

Long Battery Life & Data Storage

Long field days require equipment that keeps working.

The iM-60 operates for approximately 14 hours on a single rechargeable BDC71 battery under typical conditions, allowing most crews to complete a full day's work without changing batteries.

Data management is equally capable, with:

• Approximately 50,000-point internal memory
• USB flash drive support up to 64 GB
• Easy project transfer between office and field

Ideal Applications

The Sokkia iM-60 Series is an excellent choice for:

Construction Contractors

Layout foundations, anchor bolts, utilities, concrete forms, and building corners with confidence.

Land Surveyors

Perform boundary surveys, topographic mapping, subdivision work, and general land development projects.

Civil Engineering

Collect accurate field measurements for roads, utilities, drainage, grading, and infrastructure improvements.

Utility Contractors

Document poles, pipelines, structures, and underground utilities while completing staking and verification work.

Education & Training

Its intuitive interface and onboard software make the iM-60 an outstanding teaching instrument for universities, technical schools, and survey training programs.

Technical Specifications

What's Included

• Sokkia iM-60 Series Manual Total Station
• Hard Carrying Case
• Topcon / Sokkia CDC77 Dual Battery Charger – 1038707-01
• EDC113B Charger Cable – 210160124
• Topcon / Sokkia BDC71 Li-Ion Battery – 1038705-01-SURSK
• Lens Brush
• Shoulder Strap / Belt
• Tool Pouch
• Screwdriver
• Lens Cap
• 2 × Adjusting Pins
• Hexagonal Wrench
• Silicon Cleaning Cloth
• Sun Shade / Lens Hood

Reliable Performance for Everyday Surveying

The Sokkia iM-60 Series builds upon one of the industry's most trusted manual total stations with faster EDM performance, integrated Bluetooth®, improved onboard software, and modern data management capabilities. Whether you're upgrading from an older instrument or purchasing your first professional total station, the iM-60 delivers the accuracy, reliability, and ease of use needed for years of productive field work.
