Leica Captivate Measure & Stakeout | 1-Year Subscription

Data Sheet

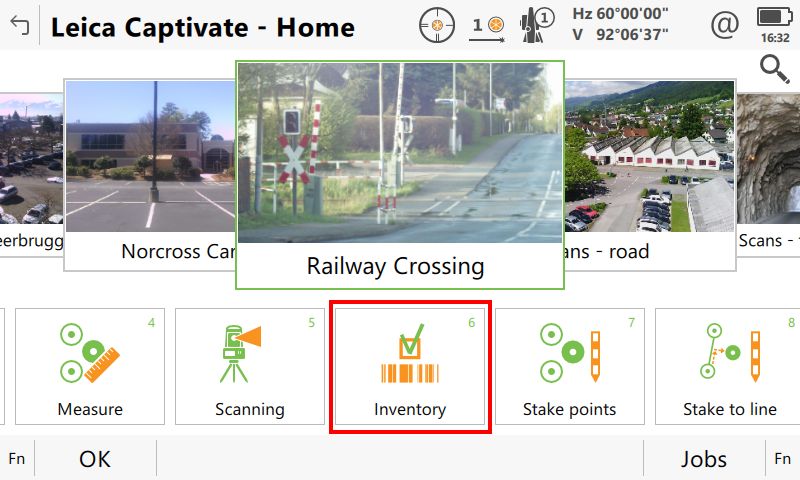

Overview

Leica Captivate Measure & Stakeout is a 1-year field software subscription built for professional survey, layout, and construction measurement workflows. Designed for Leica total stations, GNSS sensors, MultiStations, and compatible Windows field tablets, Captivate gives crews a clear, visual, and customizable way to collect, stake, manage, process, and deliver project data in the field.

With Measure & Stakeout, users can measure points, collect linework, stake points, lines, surfaces, DTMs, and alignments, and work with clear graphical and audible guidance. Leica Captivate is designed around 2D views, 3D models, easy-to-use apps, and industry-focused workflows, helping crews complete field tasks faster while reducing mistakes.

Key Features

• 1-year Leica Captivate Measure & Stakeout subscription
• Designed for Leica GNSS, total stations, MultiStations, and supported tablets

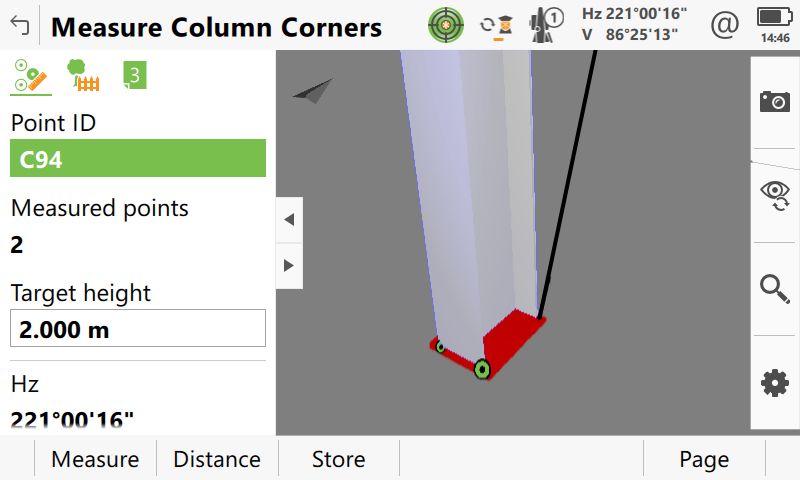

• Measure points, lines, surfaces, and project features
• Stake points, lines, DTMs, surfaces, and alignments
• Clear 2D, 3D, and directional stakeout guidance

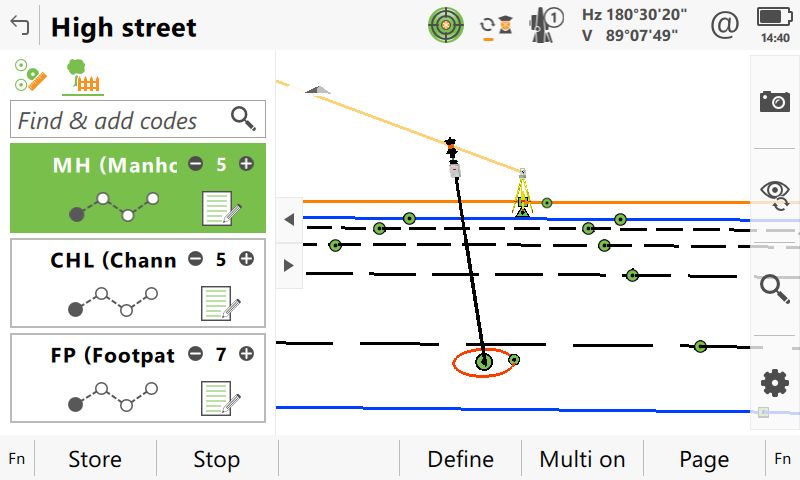

• Powerful coding and linework tools for CAD-ready field data
• Customizable displays, measurement styles, and quality settings
• Job creation, import, export, and data management tools
• Support for common formats, including IFC, DWG/DXF, XML, and ASCII
• Cloud and connectivity support through services such as GeoCloud Drive, Leica ConX, BIM 360 Docs, FTP, WMS, WFS, Hexagon SmartNet, and Active Assist
• Built for Leica Captivate workflows on supported controllers, tablets, total stations, and GNSS sensors

Built for Measure and Stake Workflows

Leica Captivate Measure & Stakeout is designed for everyday field production. It helps crews collect measurements efficiently, apply codes and linework, view data in 3D, and stake project data with clear visual guidance.

Ideal for:

• Construction layout
• Survey data collection
• Topographic surveys
• Stakeout and as-built work
• GNSS rover workflows
• Robotic total station workflows
• Surface and alignment stakeout
• Field-to-office data preparation

The software is especially useful for crews that need consistent workflows across Leica GNSS receivers, robotic total stations, and field controllers.

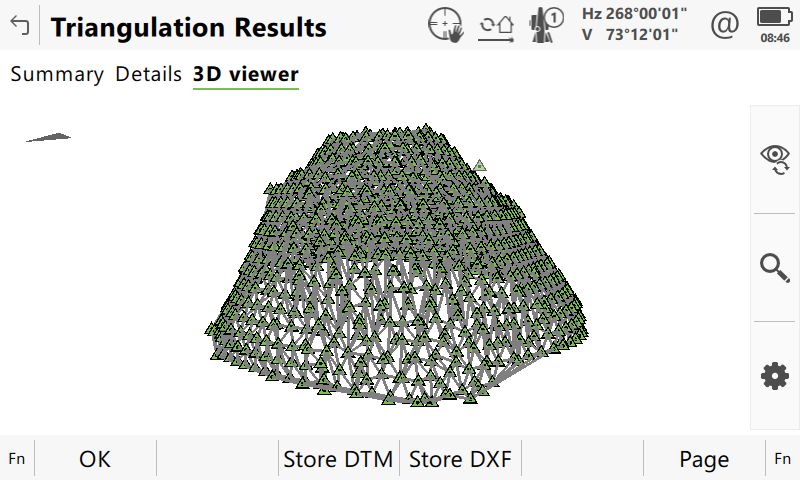

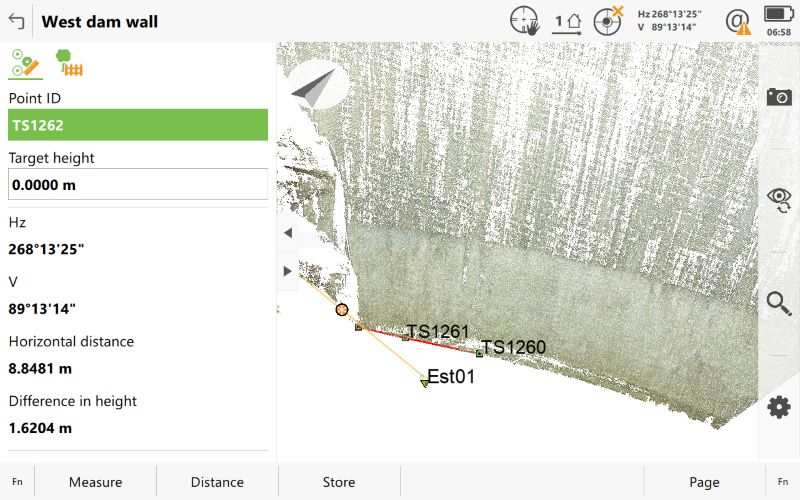

3D Viewer and Field Visualization

Leica Captivate includes a powerful 3D viewer that allows users to visualize measured, imported, and control data from multiple sources. Users can view project data, camera feeds, WMS imagery, and overlays with full 3D control, including zoom, pan, orbit, windowing, and profile views.

This makes it easier to understand the jobsite, check design data, and verify measurements before leaving the field.

Supported Devices and Sensors

Leica Captivate is accessible on Leica controllers, including the CS20, CS30, and CS35, as well as Leica total stations such as the FlexLine TS10, TS13, Viva TS16, Nova TS60, and Nova MS60. It is also supported on compatible Windows 10/11 tablets and PCs that meet Leica’s minimum requirements.

Supported sensors include Leica GNSS receivers such as GS07, GS08plus, Viva GS10/14/15/16/25, GS18 T, and GS18 I, as well as Leica FlexLine, Viva, Nova, MultiStation, and selected legacy Leica total stations.

Optional Add-On Subscriptions

Leica Captivate Measure & Stakeout can be expanded with 1-year optional app subscriptions for specialized survey, construction, inspection, monitoring, road, rail, tunnel, cloud, and reporting workflows. These add-ons allow crews to customize Captivate based on the type of work they perform in the field.

• Measure Stake Line (p/n: 5310648)
  Adds advanced line stakeout tools for laying out design lines, offsets, and linear features in the field. This is useful for construction layout, curb lines, utility alignments, building lines, and other linear stakeout tasks.

• Measure Plane Grid (p/n: 5310649)
  Supports measuring and staking grid points on a defined plane. This is useful for flatwork, façade checks, floor verification, surface layout, and applications where points need to be collected or checked against a plane.

• Area Division (p/n: 5310650)
  Adds tools for dividing measured areas into sections directly in the field. This is helpful for land surveying, parcel planning, site planning, and projects where field crews need to calculate or split areas without returning to the office.

• DTM Stakeout (p/n: 5310651)
  Enables stakeout against a Digital Terrain Model. Crews can compare field positions to a design surface, making it useful for grading, earthwork, site prep, drainage work, and checking cut/fill against a surface model.

• Volume Calculation (p/n: 5310652)
  Adds field volume calculation tools for comparing surfaces and estimating material quantities. This is useful for stockpiles, excavation, embankments, cut/fill checks, and earthwork quantity verification.

• Road (p/n: 5310653)
  Adds road-specific layout and measurement tools for working with alignments, stations, offsets, cross sections, and road design data. This is ideal for highway, street, roadway, and civil construction staking.

• Rail (p/n: 5310654)
  Adds rail-focused measurement and layout tools for rail alignment, track geometry, and rail construction or maintenance workflows. This is intended for crews working on rail corridors, track verification, and rail infrastructure projects.

• Tunnel (p/n: 5310655)
  Adds tunnel measurement and stakeout tools for underground construction workflows. This is useful for tunnel profiling, excavation checks, design comparison, and tunnel construction layout.

• TS Hidden Point (p/n: 5310656)
  Allows users to measure points that cannot be directly observed with the total station by using hidden point methods. This is helpful when features are blocked by obstacles, walls, corners, equipment, or unsafe access areas.

• Traverse (p/n: 5310657)
  Adds traverse measurement workflows for establishing, checking, and extending survey control. This is useful for control networks, boundary work, construction control, and projects requiring structured angle and distance observations.

• Set of Angles (p/n: 5310658)
  Adds routines for measuring multiple angle sets to improve observation quality. This is useful for higher-precision control work where repeated angle measurements are needed for better confidence and accuracy.

• QuickVolume (p/n: 5310659)
  Provides a faster field workflow for calculating volumes without building a more complex surface comparison process. This is useful for quick stockpile checks, excavation estimates, and rough quantity verification.

• ADSK BIM 360 Docs (p/n: 5310663)
  Adds connectivity with Autodesk BIM 360 Docs for cloud-based project document and model workflows. This helps crews access, exchange, and work with design data tied to BIM 360 project environments.

• Leica Captivate ConX (p/n: 5310664)
  Adds Leica ConX connectivity for connected field-to-office workflows. This allows project data to be shared, reviewed, and synchronized more efficiently between field crews and office teams.

• Captivate Bricsys 24/7 (p/n: 5310665)
  Adds Bricsys 24/7 connectivity for construction collaboration and document management workflows. This is useful for teams working with centralized project files, models, and documentation.

• Captivate Bentley SYNCHRO (p/n: 5310666)
  Adds Bentley SYNCHRO connectivity for construction project coordination and model-based workflows. This is useful for teams using SYNCHRO for planning, sequencing, and digital construction management.

• TPS Survey Streaming (p/n: 5310679)
  Enables streaming of total station measurement data for specialized real-time workflows. This can be useful for monitoring, inspection, machine-related workflows, or applications where live total station data needs to be transmitted continuously.

• NEN (p/n: 5310680)
  Adds support for NEN-related localized workflows and standards. This option is typically used when specific regional or project standards require NEN-compatible field procedures or deliverables.

• Inspect Surfaces (p/n: 5310681)
  Adds surface inspection tools for comparing measured points, point clouds, models, or design surfaces directly in the field. This is useful for quality control, flatness checks, design verification, and identifying deviations from planned surfaces.

• Profile Generator (p/n: 5310755)
  Adds tools for creating and reviewing profile information from measured or design data. This is useful for roads, corridors, slopes, drainage paths, and other projects where profile views are needed in the field.

• Inspect Road (p/n: 5310756)
  Adds road inspection workflows for comparing measured road data against design information. This is useful for checking pavement, subgrade, alignments, cross sections, and construction progress on road projects.

• Inspect Tunnel (p/n: 5310757)
  Adds tunnel inspection tools for comparing measured tunnel surfaces or profiles against design requirements. This is useful for tunnel excavation checks, clearance verification, and underground construction quality control.

• ESRI Shapefile Export Subscription (p/n: 5311021)
  Adds shapefile export capability for GIS deliverables. This is useful for users who need to move Captivate field data into ESRI-compatible GIS workflows.

• Quick Stake Subscription (p/n: 5311379)
  Adds a simplified, faster stakeout workflow for crews that need to quickly stake points or design features with fewer steps. This is useful for high-production construction layout and repetitive staking tasks.

• Quick Setup Subscription (p/n: 5311483)
  Adds a streamlined setup workflow to help users get the instrument ready faster. This is useful for crews that frequently move setups and want to reduce time spent configuring the total station in the field.

• Stakeout Auto Points Subscription (p/n: 5311884)
  Adds tools for automatically creating or staking points along defined geometry. This is helpful for repetitive layout tasks such as points along lines, grids, alignments, or construction patterns.

• Auto Setup Subscription (p/n: 5312116)
  Adds automated total station setup routines to improve speed and consistency. This is useful when crews want to reduce manual setup steps and improve field efficiency.

• TPS Monitoring Subscription (p/n: 5312117)
  Adds total station monitoring workflows for repeated measurements over time. This is useful for deformation monitoring, structural movement checks, settlement monitoring, and other projects requiring recurring observations.

• Offset+ Subscription (p/n: 5312118)
  Expands offset measurement tools for collecting or staking points that cannot be directly occupied. This is useful around obstacles, unsafe areas, walls, traffic, equipment, and other blocked locations.

• Compaction Control Subscription (p/n: 5312119)
  Adds compaction-related workflows for earthwork and construction projects. This is useful for field teams working around compaction verification, site preparation, and construction quality control.

• Site Inspector Subscription (p/n: 5312347)
  Adds site inspection workflows for checking field conditions against design or project requirements. This is useful for construction QA, progress checks, and documenting whether work matches the intended design.

• Quick Ground Subscription (p/n: 5312625)
  Adds a faster workflow for collecting and working with ground data. This is useful for terrain-related tasks, surface creation, basic topo work, and quick field checks where speed is important.

Why Choose Leica Captivate Measure & Stakeout?

Leica Captivate Measure & Stakeout is a strong choice for crews who want one consistent field software platform for measuring, staking, visualizing, processing, and exporting data. It is built to support professional survey and construction workflows while staying flexible enough for specialized add-ons when your projects require more advanced tools.

With its 3D viewer, coding and linework tools, customizable workflows, cloud connectivity, and support for Leica GNSS and total stations, Captivate helps field crews work faster and deliver cleaner results.
