Spectra Geospatial FOCUS 50 Robotic Total Station

Brochure / Data Sheet

Overview

The Spectra Geospatial FOCUS 50 Robotic Total Station is a high performance robotic solution built for one person surveying and construction layout. Designed for speed, accuracy, and reliability, the FOCUS 50 supports a wide range of workflows including topographic surveys, construction staking, boundary work, and site development.

Available in Autolock, Short Range Robotic, and Long Range Robotic configurations, the FOCUS 50 adapts easily to both urban and remote job sites. Its MagDrive servo system delivers fast, silent movement with minimal mechanical wear, allowing rapid prism acquisition and smooth tracking throughout the workday.

With selectable 1″, 2″, 3″, or 5″ angle accuracy, strong reflectorless performance, and seamless integration with Spectra data collectors and Origin field software, the FOCUS 50 is built for professionals who demand efficiency without compromise.

Key Features

Angle Accuracy Options
Available in 1″, 2″, 3″, or 5″

Robotic Prism Tracking
Autolock technology tracks prisms up to 700 m (2297 ft) with sub 2 mm pointing precision at 200 m.

Long Distance Measurement
Reflectorless range up to 1300 m (4265 ft) standard.
Extended DR range up to 2200 m (7218 ft) on Long Range models.
Prism range up to 5500 m (18,044 ft) with one prism.

MagDrive Servo System
Smooth, silent motorization with rotation speeds up to 90° per second for fast target acquisition.

Fast Measurement Times
Standard mode measurements in 1.2 seconds.
Tracking mode measurements in 0.4 seconds.

Advanced Leveling and Optics
Dual-axis compensator with 0.5″ accuracy.
30× telescope with illuminated crosshair and optical plummet.

Connectivity and Data Flow
USB and Bluetooth standard.
2.4 GHz long-range radio on robotic models.

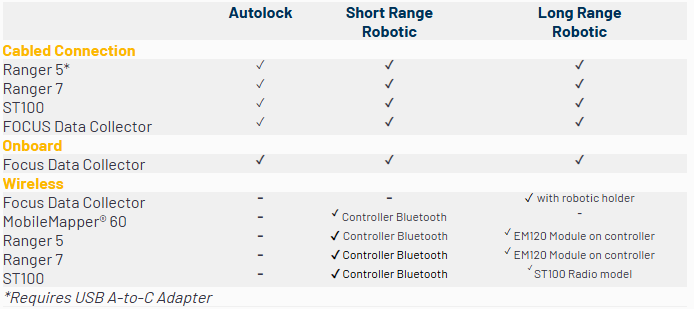

Full integration capabilities with Ranger 710, ST100, TSC510, and Origin software.

Rugged Jobsite Design
IP65 rated for dust and water resistance.
Operating range from -20 °C to +50 °C (-4 °F to +122 °F).

Extended Battery Runtime
Up to 7.5 Hours per battery.

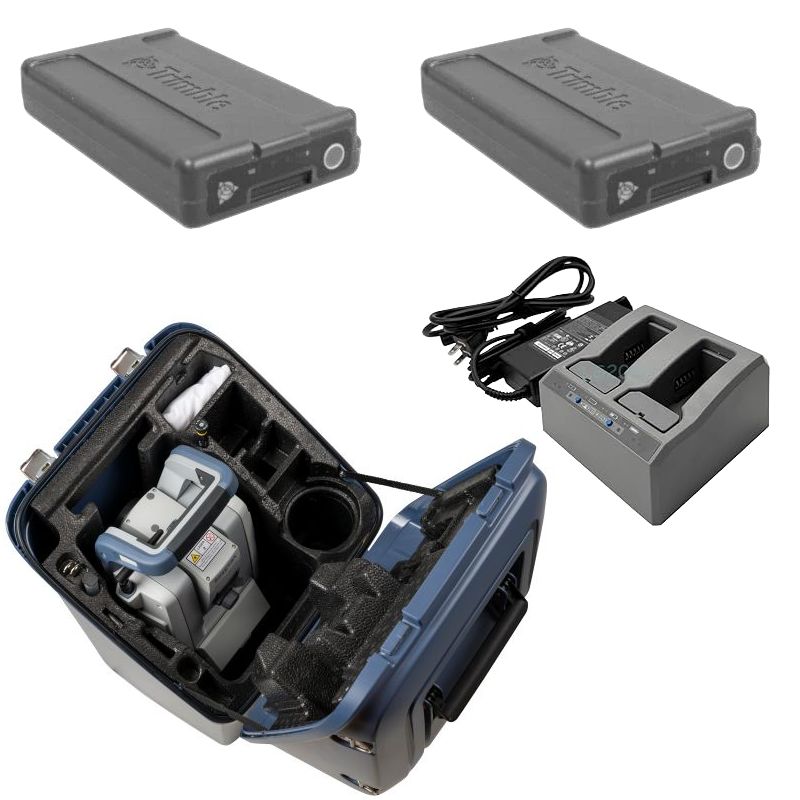

What’s Included

• Spectra Geospatial FOCUS 50 Robotic Total Station
• Accuracy option: 1″, 2″, 3″, or 5″
• 78607007-10 Tribrach without optical plummet
• FOCUS50-CASE-01 Hard carrying case with keys and backpack straps
• 59819025-SPN 2.4 GHz antenna TNC/R male
• Lens sunshade
• Rain cover
• 71199035 Laser adjustment tool
• Two 99511-30 Li Ion battery packs, 10.8 V, 6500 mAh
• 115148-00-SPN Dual slot charger kit with vehicle adapter and international cords


FOCUS 50 Model Differences Explained

The Spectra Geospatial FOCUS 50 is offered in Autolock, Short Range Robotic, and Long Range Robotic configurations. All three share the same core measurement accuracy and optics. The differences come down to how the instrument is controlled and how far it can communicate and track.

Autolock Model

The Autolock model automatically locks onto and tracks a prism, but the instrument is operated at the total station, not remotely.

• Prism tracking range: up to 700 m (2297 ft)
• Robotic control: No
• Remote data collector control: No

This model is best for two-person crews who want faster tracking than a manual total station without needing robotic radios or one-person workflows.

Best for:
Two-person survey crews
Construction layout with a rod person
Users upgrading from manual tracking

Short Range Robotic Model

The Short Range Robotic model supports true one-person operation. The total station is fully controlled from a data collector and automatically tracks the prism.

• Prism tracking range: up to 700 m (2297 ft)
• Robotic radio range: approximately 300 to 400 m (980 to 1310 ft)
• Reflectorless range: up to 1300 m (4265 ft) standard DR

This configuration is ideal for construction staking, topo, and layout work on compact to mid-size sites where long radio distances are not required.

Best for:
One person surveying
Building and roadway layout
Urban job sites
Users who do not need long-range radio communication

Long Range Robotic Model

The Long Range Robotic model provides the maximum robotic and reflectorless capability in the FOCUS 50 lineup.

• Prism tracking range: up to 700 m (2297 ft)
• Robotic radio range: up to 900 m (2950 ft) with long-range radio
• Reflectorless range:
  • 1300 m (4265 ft) standard DR
  • 2200 m (7218 ft) DR Extended mode
• Prism measurement range: up to 5500 m (18,044 ft)

This model is designed for large sites, open terrain, boundary surveys, and control work where extended distances and strong radio links are required.

Best for:
Large civil projects
Boundary and control surveys
Open terrain
Users needing maximum flexibility and distance

Quick Comparison Summary

• Tracking performance is the same
• The difference is how far you can control the instrument remotely and how large your job sites are
