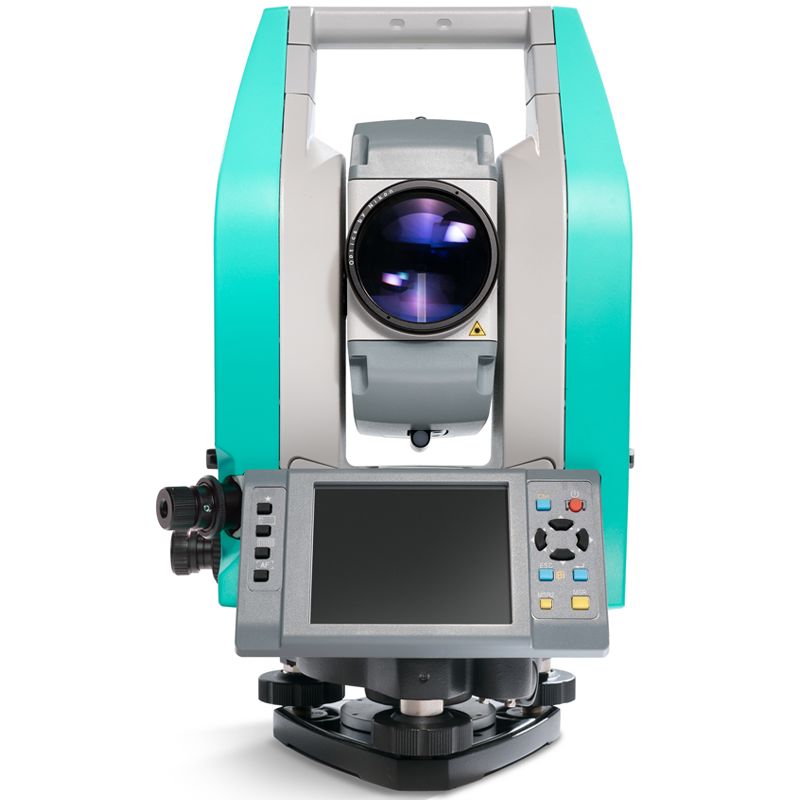

Nikon XF HP Manual Total Station 1"

The Nikon XF HP 1" Total Station is the high-performance model in the Nikon XF series, delivering exceptional accuracy, speed, and reliability for critical layout and measurement tasks. Built in Japan with superior Nikon optics and a rugged design, the XF HP is designed for surveyors who need greater precision in a variety of environments.

Unlike the standard Nikon XF, the XF HP features a higher-accuracy phase shift EDM, tighter beam divergence, and a more refined measurement profile for both prism and reflectorless work. The 1" angular accuracy paired with ±(1 + 1.5 ppm × D) mm prism precision makes it ideal for construction layout, control surveys, and other high-stakes positioning work.

Key Features – Nikon XF HP 1" Model

• 1-Second Angular Accuracy – For high-precision measurements in control and layout work
• Phase Shift EDM Technology – Delivers tighter beam divergence (22mm at 30m) and higher non-prism accuracy
• 3,000m Prism Range – With standard prism, and up to 500m in reflectorless mode
• ±(1 + 1.5 ppm × D) mm Prism Accuracy – Exceeds the performance of standard XF models
• Dual Color Touchscreens – Fast, user-friendly data input and stakeout visualization
• Hot-Swappable Batteries – Extended 18-hour runtime with swappable dual Li-ion batteries
• IP66 Rated Durability – Weather-resistant construction for harsh jobsite conditions
• Integrated Long-Range Bluetooth – Wireless communication with field controllers
• Optical Plummet and Laser Pointer – Precise instrument setup every time

XF HP vs Standard Nikon XF

Time-of-flight and phase shift EDMs differ in how they measure distance:

• Time-of-flight EDM calculates distance by measuring how long it takes a laser pulse to travel to a target and return. It's ideal for long-range, fast measurements, but is generally less precise.
• Phase shift EDM compares the phase of emitted and reflected continuous wave signals to calculate distance. It offers higher precision, especially at short to medium ranges, and is better for detailed or close-up work, such as corners and edges.

In short, time-of-flight is faster and better for range, while phase shift is slower but more accurate.

The XF HP sacrifices autofocus in favor of tighter precision and longer runtime, making it better suited for detailed measurement and layout work that demands consistency and accuracy over distance.

Software Compatibility:

The Nikon XF Series is fully compatible with Survey Pro, Survey Basic (pre-installed on the XF), Carlson SurvCE, and Carlson SurvPC. These field-proven software platforms provide full instrument control, including angle and distance measurements, COGO routines, setup functions, and advanced stakeout. With integrated Bluetooth® and RS-232 ports, the XF connects seamlessly to a variety of data collectors running supported applications.

What's Included

• 2× Li-Ion Long-life Batteries – 67201-01-SPN
• 1× Tribrach
• 1× Plastic Carrying Case
• 2× Shoulder Straps for Carrying Case
• 1× Universal Charger, Power Cord, and Adapters
• 1× Rain/Dust Cover
• 1× Lens Cap
• 1× Adjustment Pin Tool
• 1× Allen Wrench
