GeoMax Zone75 DG Dual Grade Rotary Laser Level

What's included in the package?

• Receiver of your choice

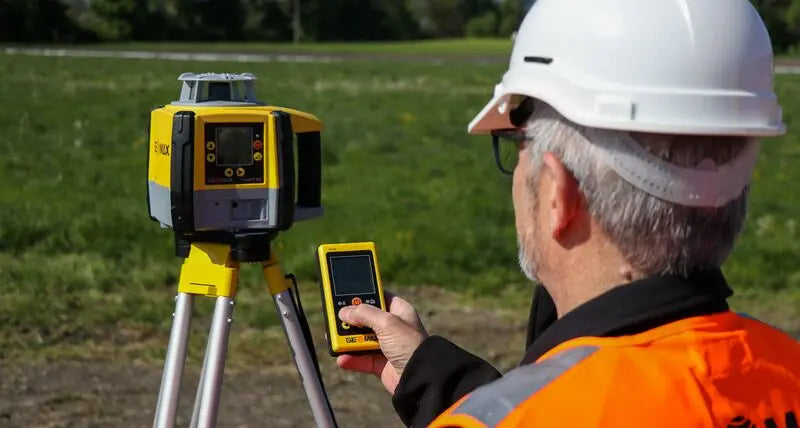

• 835245 - ZRC60 Remote Control
• 835242 - Charger for Zone Laser
• 878394 - Li-Ion Battery Pack for Zone 75-80
• Hard Carrying Case
• 5-Year Manufactures Warranty
• Calibration Certification

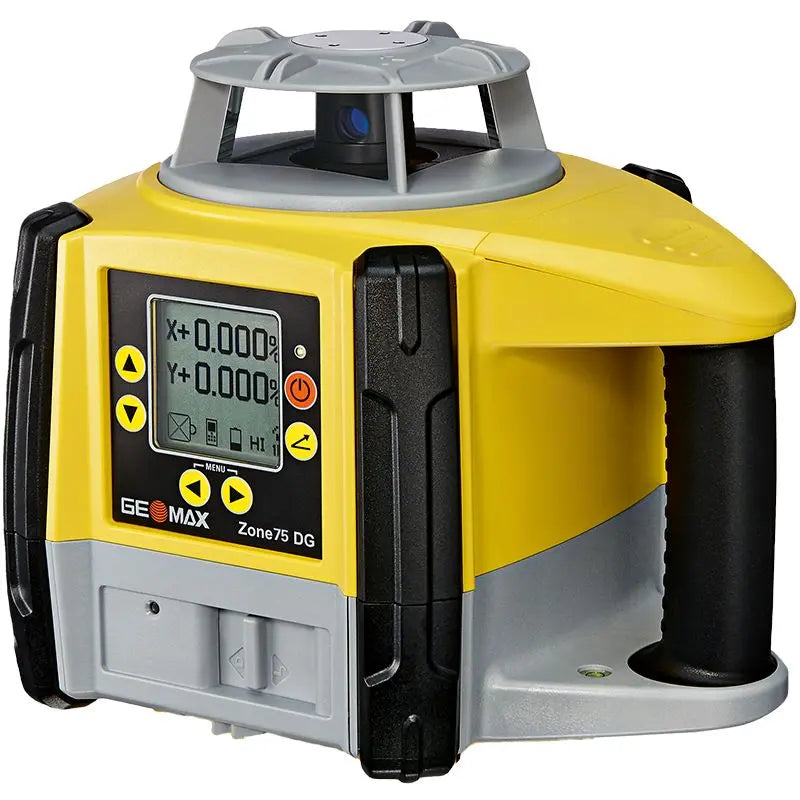

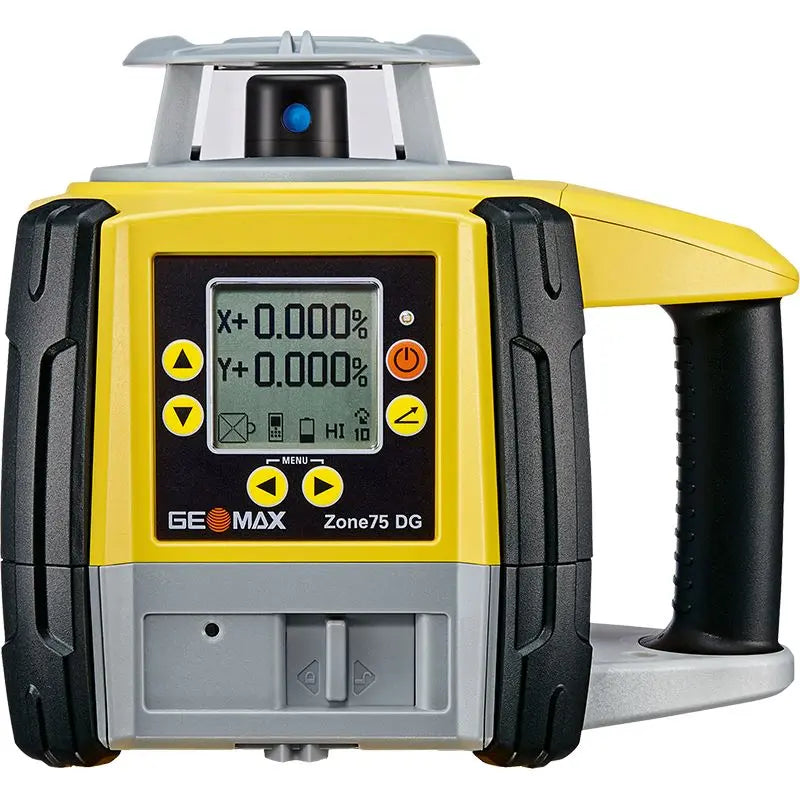

The GeoMax Zone75 DG is a self-leveling dual-slope grade laser designed for long-distance land leveling, excavation, and earthworks. With an extended 1100m (3600ft) working range, it provides exceptional accuracy over large job sites. Featuring fully automatic dual-axis slope control and beam catching functionality, this laser streamlines complex grading tasks with minimal manual input. The adjustable 300, 600, or 900 rpm rotation speed ensures stable and precise laser projection, making it ideal for machine control applications.

Key Features

• Extended Working Range: Up to 1100m (3600ft) diameter, perfect for large-scale projects.
• High Accuracy: ±1.5mm at 30m (±1/16” at 100ft) for reliable grading and excavation.
• Fully Automatic Dual-Slope Control: Digital slope entry up to 15% for precise grading.
• Beam Catching Feature: Automates laser beam detection for quick alignment.
• Selectable Rotation Speeds: 300, 600, or 900 rpm for flexibility in various applications.
• Rugged & Weatherproof: IP67-rated for dust and water protection in extreme environments.
• Long Battery Life: 50+ hours on Li-Ion for uninterrupted operation.
• Wide Operating Temperature Range: -20°C to 50°C (-4°F to 122°F) for all-weather reliability.

The Zone75 DG is engineered for professionals who require maximum range, precision, and automation for their grading and excavation projects. The beam catching function ensures faster setup, while the high-speed rotation options provide smooth laser projection, even for machine guidance. With its IP67-rated durability, this laser withstands the toughest job site conditions, delivering consistent performance in land leveling, construction, and roadwork.
