SECO Tilting Triple Prism Assembly

Overview

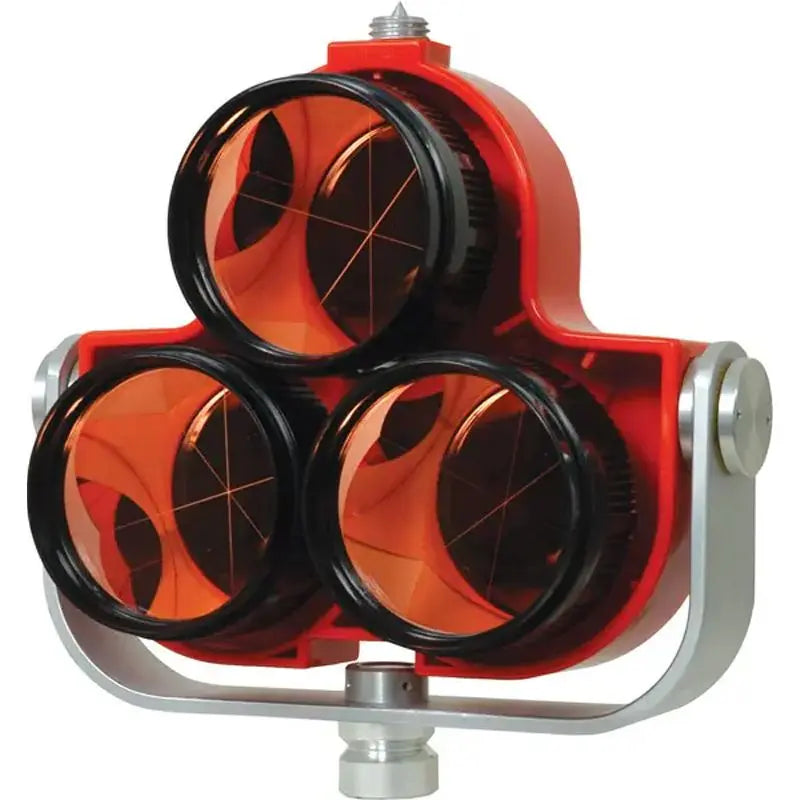

The SECO 6341-00 Tilting Triple Prism Assembly is a high-visibility prism system designed for longer-range total station measurements, control surveys, monitoring, construction layout, and other applications requiring a strong reflective target.

The assembly holds from one to three compatible screw-in prisms and includes three sealed 62 mm copper-coated prisms installed in black canisters. Its tilting aluminum yoke allows the prism array to be aimed toward the instrument, while an integrated peep sight assists with accurate pointing over longer distances.

The holder provides selectable 0 mm and -30 mm prism offsets and is constructed from orange polycarbonate with metal inserts for durability and improved jobsite visibility.

Key Features

• Tilting triple-prism assembly
• SECO part number: 6341-00
• Includes three 62 mm prisms
• Sealed copper-coated prism construction
• Black prism canisters
• Included prism part number: 6411-02-BLK
• Holds one, two, or three screw-in prisms
• Compatible with most screw-in prism configurations
• Selectable 0 mm and -30 mm prism offsets
• Tilting aluminum yoke
• Integrated peep sight for aiming
• Well suited for longer-distance measurements
• Orange polycarbonate holder
• Reinforced with metal inserts
• Manufacturer-specified H.T. dimension of 97 mm

Three-Prism Configuration

The SECO 6341-00 is supplied as a complete three-prism assembly.

Using three prisms creates a larger reflective target than a single-prism configuration, making the assembly particularly useful for longer-distance measurements and applications where dependable instrument tracking is important.

The holder can also be configured with fewer prisms when the complete three-prism array is not required.

Included 62 mm Prisms

The assembly includes three sealed 62 mm copper-coated prisms in black canisters.

Each included prism is:

• SECO part number: 6411-02-BLK
• Prism diameter: 62 mm
• Coating: Copper
• Canister color: Black
• Construction: Sealed

The sealed canisters help protect the internal reflective surfaces from normal field exposure and contamination.

One-to-Three Prism Capacity

The holder can accommodate:

• One prism
• Two prisms
• Three prisms

This allows the assembly to be configured according to the required measurement distance, target size, instrument capability, and field application.

Only compatible screw-in prisms should be installed, and all prisms should be securely tightened before use.

0 mm and -30 mm Prism Offsets

The assembly provides two selectable prism-offset positions:

• 0 mm
• -30 mm

The selected offset must be entered correctly into the total station or field software before measurements are collected.

Prism-constant conventions can vary between instrument manufacturers. Always verify whether the instrument uses the physical prism offset, an additive constant, or a manufacturer-specific equivalent setting.

Tilting Aluminum Yoke

The aluminum yoke allows the prism array to tilt toward the total station.

This adjustment helps orient the reflective faces toward the instrument when working at different elevations, vertical angles, or measurement positions.

Once the proper angle has been established, the assembly should be securely tightened to prevent movement during observations.

Integrated Peep Sight

A peep sight is built into the prism holder to assist with pointing the assembly toward the total station.

This is especially helpful during longer-distance measurements, where accurately orienting the prism faces can be more difficult from the target location.

The peep sight gives the rod person or target operator a direct visual reference for aligning the assembly with the instrument.

High-Visibility Polycarbonate Holder

The holder is manufactured from orange polycarbonate for durability and visibility.

Its bright orange construction makes the assembly easier to identify and locate on active jobsites, while metal inserts reinforce critical connection and mounting areas.

Aluminum and Metal Construction

The SECO 6341-00 combines several materials to balance strength, weight, and field durability:

• Orange polycarbonate holder
• Metal reinforcing inserts
• Aluminum tilting yoke
• Black prism canisters

This construction supports repeated adjustment and regular use in professional surveying environments.

97 mm H.T. Dimension

SECO specifies the assembly with an H.T. dimension of:

• 97 mm

This manufacturer-provided dimension should be considered when configuring the assembly, determining the target height, or combining it with compatible mounting accessories.

The completed prism height should always be measured or verified before being entered into the data collector or total station.

Ideal Applications

• Long-range total station measurements
• Control surveying
• Construction layout
• Structural monitoring
• Deformation monitoring
• Boundary surveying
• Topographic surveying
• Engineering surveys
• Bridge and infrastructure work
• Industrial measurements
• High-visibility target setups

Technical Specifications

What’s Included

• 1 × SECO Tilting Triple Prism Holder and Yoke
• SECO p/n: 6341-00
• 3 × SECO sealed 62 mm copper-coated prisms in black canisters
• Prism p/n: 6411-02-BLK

Prism pole, tribrach, tribrach adapter, tripod, carrying case, and other surveying accessories are sold separately.

High-Visibility Prism Array for Longer Measurements

The SECO 6341-00 combines three sealed 62 mm prisms, selectable 0 mm and -30 mm offsets, a tilting aluminum yoke, and an integrated peep sight. Its configurable one-to-three-prism design provides a versatile reflective target for longer-range surveying, monitoring, and precision layout.
