SitePro 05-3511K Complete Traverse Adapter System
All Instruments Will Ship Calibrated
Certification Provided For Optical & Lasers
Description
Description
Overview

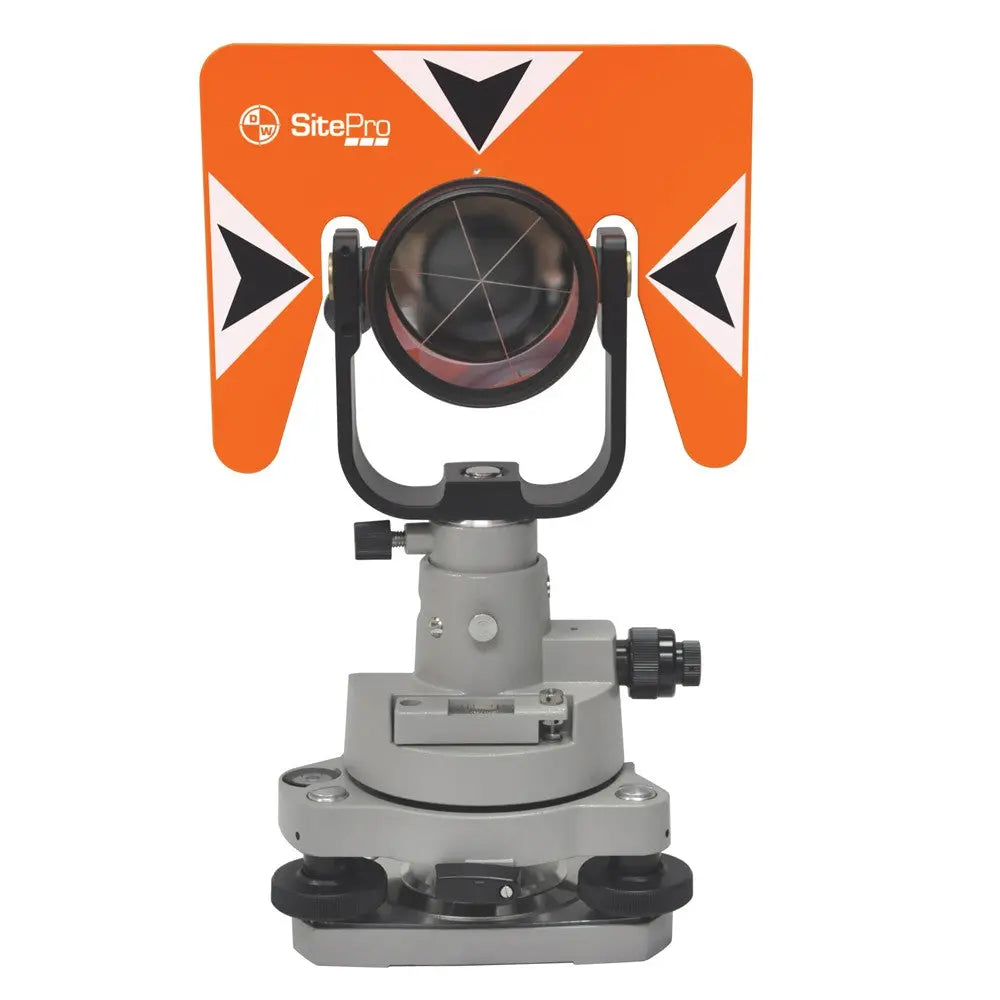

The SitePro 05-3511K Complete Traverse Adapter System is a professional surveying kit designed for high-accuracy prism setups in traversing, control surveys, construction layout, monitoring, and topographic surveys. Combining a precision tribrach, rotating tribrach adapter, 62 mm copper-coated prism assembly, and protective hard case, this complete system delivers the stability and repeatability required for demanding field applications.
The included 03-1010-O prism assembly features 2 mm centering accuracy, while the 05-1201 optical plummet tribrach provides 0.5 mm optical plummet accuracy at 1.5 m, helping crews establish reliable control points and minimize setup error. Whether you’re running a traverse, setting project control, or performing precision layout, the 05-3511K is built to provide dependable results day after day.
Key Features
- Complete prism and tribrach system
- 2 mm prism centering accuracy
- 0.5 mm optical plummet accuracy at 1.5 m
- Precision tribrach with optical plummet
- Rotating tribrach adapter for repeatable prism positioning
- 62 mm copper-coated prism assembly
- Rugged hard carrying case for transport and protection
- Ideal for traversing, control surveys, monitoring, and construction layout
- Compatible with most standard 5/8”-11 surveying equipment
Precision Components for Reliable Measurements
Every component in the 05-3511K is designed to reduce setup error and improve measurement repeatability. The precision tribrach allows accurate centering and leveling over survey monuments, while the rotating tribrach adapter lets the prism be removed and replaced without disturbing the setup.
The included 62 mm copper-coated prism provides dependable EDM performance for total station measurements, making the kit well suited for both conventional and robotic surveying applications.
Technical Specifications
|
Specification |
Detail |
|
Prism Type |
62 mm Copper-Coated Circular Prism |
|
Prism Centering Accuracy |
2 mm |
|
Optical Plummet Accuracy |
0.5 mm at 1.5 m |
|
Mounting Thread |
5/8”-11 |
|
Applications |
Traverse, control, monitoring, layout, topographic surveys |
What’s Included
- SitePro 05-3511 Rotating Tribrach Adapter
- SitePro 05-1201 Tribrach with Optical Plummet (0.5 mm accuracy at 1.5 m)
- SitePro 03-1010-O 62 mm Copper-Coated Prism Assembly (2 mm centering accuracy)
- Hard Carrying Case
Built for Professional Survey Work
The SitePro 05-3511K Complete Traverse Adapter System provides everything needed for accurate prism setups in one convenient package. With precision optical centering, a high-quality rotating adapter, and a 2 mm accuracy prism assembly, it’s an excellent choice for surveyors who need dependable performance for daily field work, from boundary surveys to construction control and monitoring projects.
