SECO 5910-05 Sliding 25 mm Prism and Sectional Pole Kit

Overview

The SECO 5910-05 Sliding Prism and Sectional Pole Kit is a compact, modular surveying system designed for stakeout, construction layout, topographic measurements, and other total station applications.

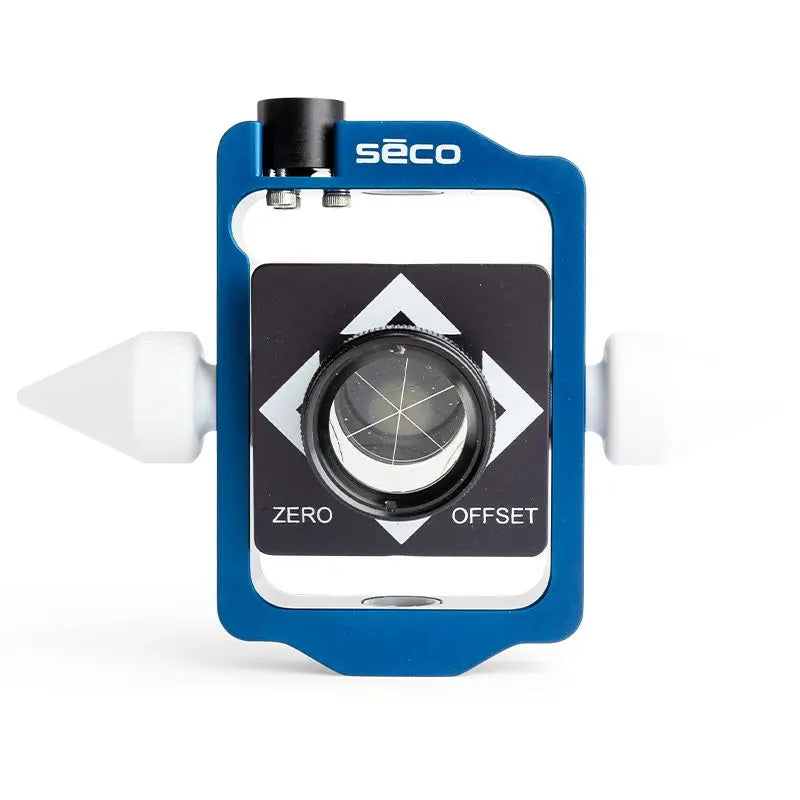

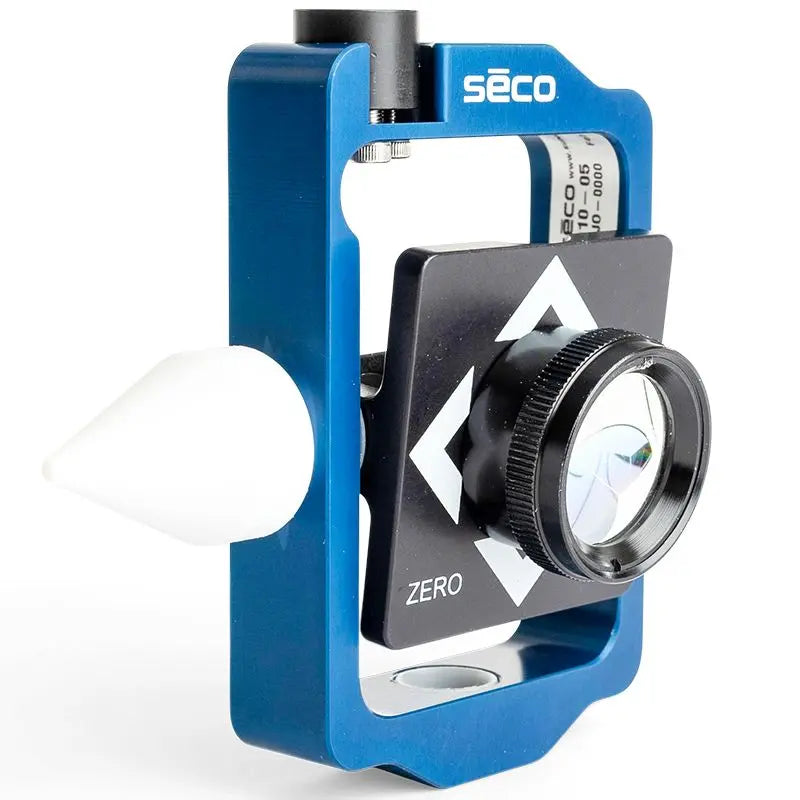

The included 25 mm silver-coated prism features a 0 mm offset and mounts in a high-quality aluminum holder that tilts and slides along the pin pole. Integrated sight cones improve aiming and double as locks for securing the prism’s tilt.

Four 1-foot pole sections provide a maximum assembled pole length of 4 feet. Each section includes a 0.50-foot reference mark, allowing the system to be assembled in different configurations according to the required working height. A 5/8-11 adapter and protective system bag are included.

Key Features

• Sliding prism and sectional pin pole system
• SECO part number: 5910-05
• 25 mm silver-coated prism
• 0 mm prism offset
• Prism holder slides along the pole
• Adjustable tilting prism holder
• High-quality aluminum holder
• Sight cones improve instrument aiming
• Sight cones double as tilt-locking knobs
• Adjustable 40-minute vial
• Four removable pole sections
• Each pole section measures 1 ft (30.5 cm)
• Each section includes a 0.50 ft (15.24 cm) reference mark
• Maximum assembled pole length of 4 ft
• Includes adapter for 5/8-11 threaded mounts
• Compatible with appropriate poles and tribrach adapters
• Includes protective system bag

25 mm Silver-Coated Prism

The SECO 5910-05 includes a compact 25 mm silver-coated prism designed for reliable total station measurements.

Its smaller profile is well suited for construction stakeout, close-range layout, control work, and locations where a full-size prism assembly may be unnecessarily large or difficult to position.

0 mm Prism Offset

The included prism has a specified offset of:

• 0 mm

The correct prism setting should be entered into the total station or field software before measurements are collected.

Prism-constant conventions may differ between instrument manufacturers, so the required setting should always be confirmed for the specific total station being used.

Sliding Prism Holder

The prism holder slides vertically along the assembled pin pole, allowing the prism height to be adjusted without changing the number of pole sections.

Once the required position is reached, the holder can be secured to maintain a consistent prism height during measurements.

This adjustment is useful when working around obstructions, changing instrument elevations, or setting the prism at a specific measured height.

Adjustable Tilting System

The prism can tilt within its aluminum holder, allowing the reflective surface to be aimed toward the total station.

Tilting the prism toward the instrument helps maintain a clear line of sight during measurements involving varying horizontal and vertical angles.

Sight Cones and Tilt Locks

The integrated sight cones provide a visible reference for aiming at the prism assembly.

These cones also function as the locks for the tilting mechanism. The operator can loosen them to adjust the prism angle and tighten them to secure the selected position.

Adjustable 40-Minute Vial

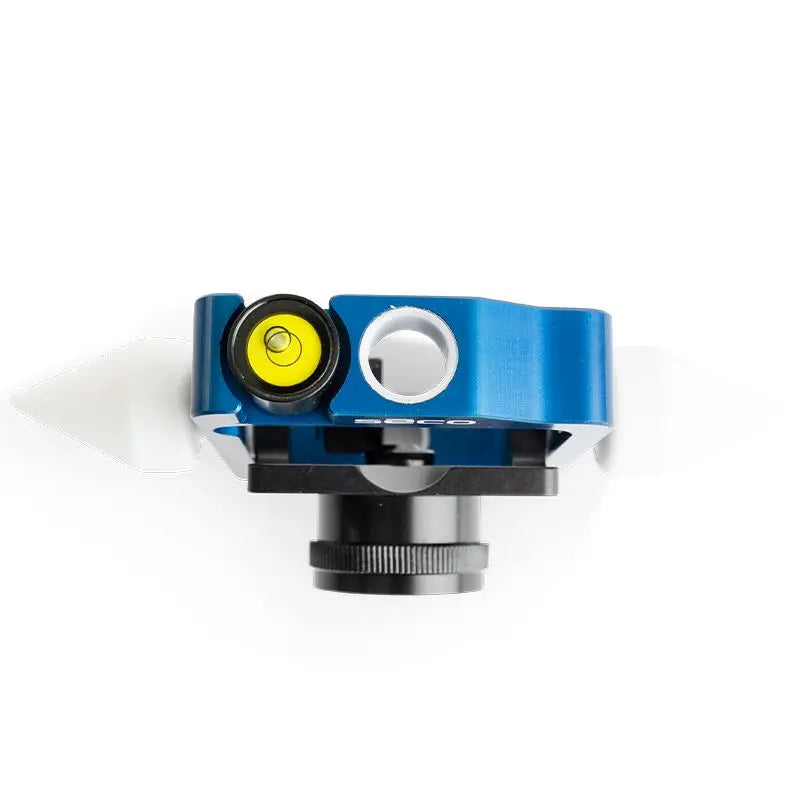

An adjustable 40-minute vial is incorporated into the prism assembly.

The vial provides a visual reference for keeping the pole vertical over a survey point, stake, nail, monument, or other control location. Its adjustable design allows it to be checked and recalibrated as part of routine equipment maintenance.

Four-Section Pole System

The kit includes four removable pole sections, each measuring:

• 1 ft
• 30.5 cm

When all four sections are assembled, the pole provides a total sectional length of 4 feet.

The modular design allows fewer sections to be used for lower-height or handheld configurations.

0.50-Foot Reference Marks

Each pole section includes a reference mark at:

• 0.50 ft
• 15.24 cm

These known markings help operators confirm assembled heights and position the sliding prism consistently along the pole.

The complete prism height should always be verified before entering it into the total station or field software.

5/8-11 Mounting Adapter

The included adapter allows the prism assembly to be used with compatible equipment featuring a 5/8-11 threaded connection.

Possible mounting options include:

• Standard prism poles
• Tribrach adapters
• Surveying mounts
• Compatible threaded accessories

Thread compatibility and the completed prism-height configuration should be confirmed before measuring.

Included System Bag

A protective system bag is included for carrying and storing the prism, pole sections, adapter, and related components.

The bag keeps the modular system organized and helps protect the equipment from dirt, abrasion, and damage during transportation.

Ideal Applications

• Construction stakeout
• Precision layout
• Topographic surveying
• Control-point measurements
• Boundary surveying
• Utility layout
• Building and structural measurements
• Close-range total station work
• Monitoring surveys
• Confined-area measurements
• Engineering fieldwork

Technical Specifications

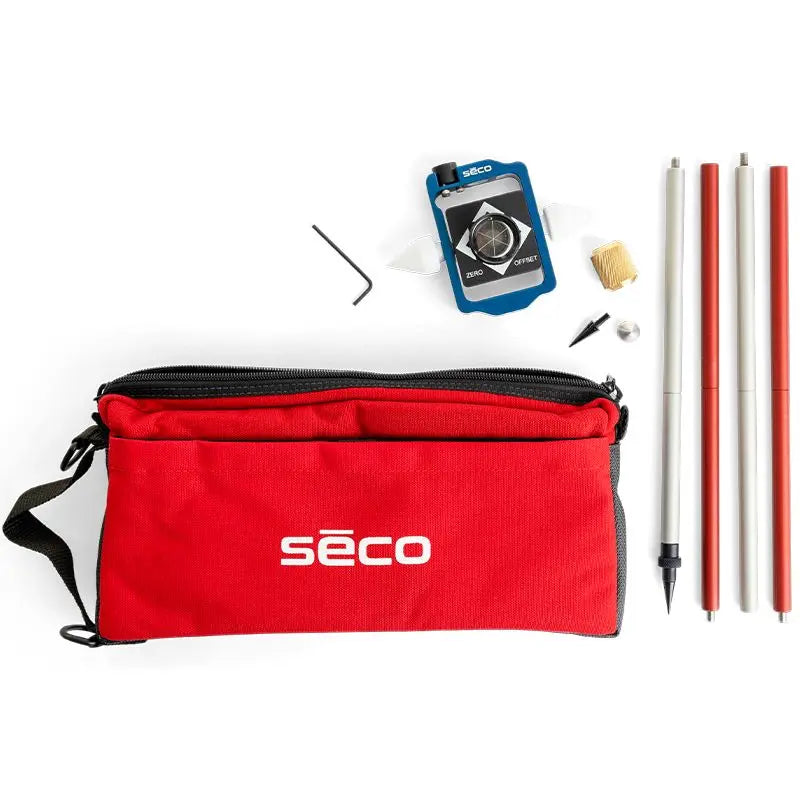

What’s Included

• 1 × SECO 25 mm silver-coated prism
• 1 × Sliding and tilting aluminum prism holder
• 1 × Adjustable 40-minute vial
• 4 × 1 ft (30.5 cm) sectional pole sections
• 1 × 5/8-11 mounting adapter
• 1 × Protective system bag
• SECO p/n: 5910-05

Total station, tribrach, prism pole, tribrach adapter, and other surveying accessories are sold separately.

Modular Prism System for Layout and Stakeout

The SECO 5910-05 combines a 25 mm zero-offset prism, sliding and tilting aluminum holder, four modular pole sections, and standard 5/8-11 compatibility. Its adjustable vial and included carrying bag make it a versatile system for stakeout, topographic work, and precision total station measurements.
