SECO 5126-20 Collapsible Carbon Fiber 2M Rod

Overview

The SECO 5126-20 Collapsible Carbon Fiber 2 m Rod is designed for survey crews who need a lightweight, full-height pole that breaks down into a compact size for transportation and storage.

The pole consists of two lightweight sections constructed from aluminum and carbon fiber composite materials. The upper section includes an aluminum telescoping portion with metric graduations, while the lower section incorporates a telescoping carbon fiber section that securely snap-locks into position.

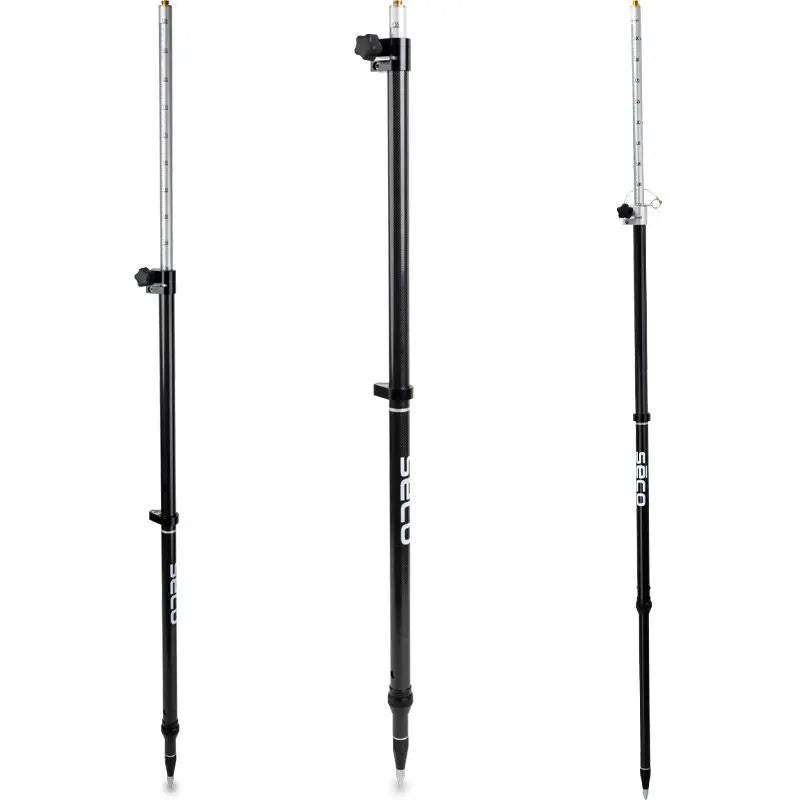

When fully extended, the rod reaches 2 m (78.75 in). For transport, it separates into two sections and collapses to just 0.615 m (24.25 in). A twist-lock assembly with an integrated 40-minute vial and a retaining pin with fixed locking positions at 1.6, 1.8, and 2 m provide convenient height adjustment in the field.

Key Features

• Collapsible 2 m survey rod
• SECO part number: 5126-20
• Lightweight aluminum and carbon fiber composite construction
• Breaks down into two sections for compact transportation
• Maximum extended height of 2 m (78.75 in)
• Collapsed height of only 0.615 m (24.25 in)
• Metric graduations
• Aluminum telescoping upper section
• Telescoping carbon fiber lower section
• Lower section securely snap-locks into place
• Twist-lock mechanism
• Integrated 40-minute vial
• Retaining pin with fixed height positions
• Locking positions at 1.6 m, 1.8 m, and 2 m
• Lightweight 2.5 lb (1.13 kg) design
• Manufactured in North America

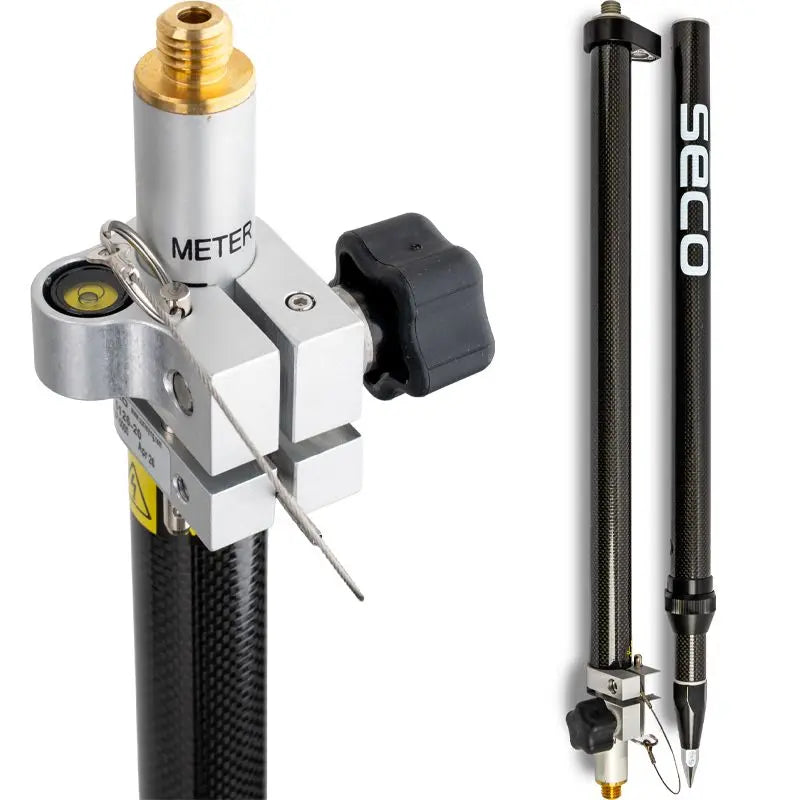

Compact Two-Section Design

The SECO 5126-20 is designed specifically for easier transport.

Instead of requiring a full-length pole to remain assembled, the rod separates into two sections and collapses to:

• 0.615 m
• 24.25 in

This compact size makes it easier to store in survey vehicles, equipment cases, or other limited spaces while still providing a full 2-meter working height in the field.

2 Meter Extended Height

When fully assembled and extended, the rod reaches:

• 2 m
• 78.75 in

The full 2-meter configuration is suitable for a variety of survey and positioning workflows where a known metric rod height is required.

Aluminum and Carbon Fiber Construction

The SECO 5126-20 combines aluminum and carbon fiber composite materials.

The upper section uses an aluminum telescoping portion, while the lower section incorporates telescoping carbon fiber construction. This combination provides a balance of strength, low weight, and field durability.

At only 2.5 lb (1.13 kg), the pole is easy to carry between survey points and helps reduce fatigue during extended fieldwork.

Metric Graduations

The telescoping upper section features metric graduations for convenient height reference.

These graduations allow the operator to check the pole configuration directly while setting up for measurements.

The completed rod or antenna height should always be verified before entering it into GNSS, total station, or field software.

Fixed Height Locking Positions

A retaining pin provides positive locking locations at three commonly used heights:

• 1.6 m
• 1.8 m
• 2.0 m

These fixed positions make it easier to establish repeatable rod heights without relying solely on friction from the twist lock.

The retaining pin should be fully engaged before measurements are taken.

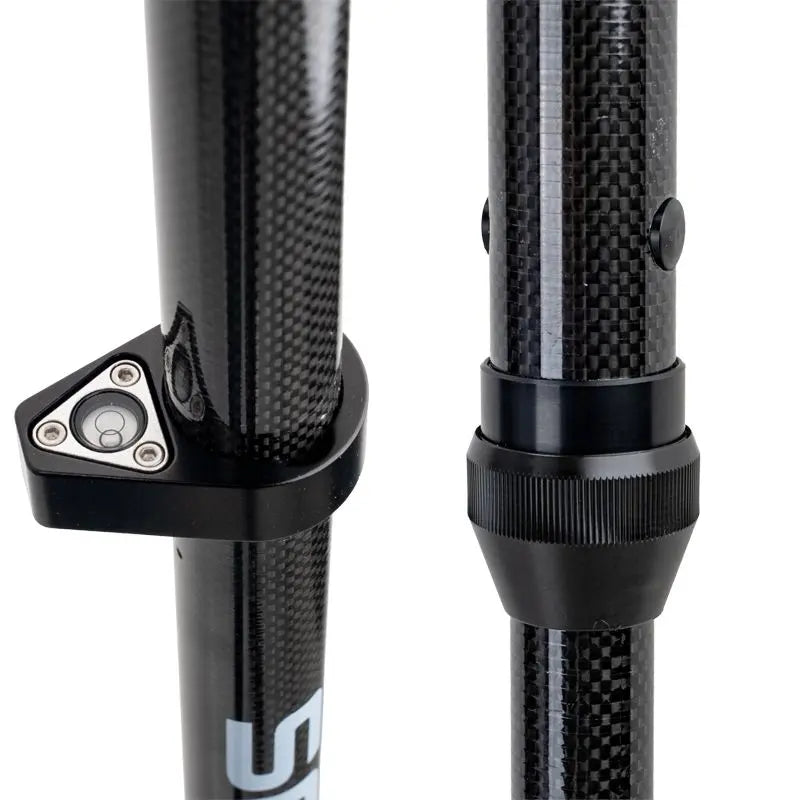

Twist Lock with 40-Minute Vial

The pole includes a twist-lock mechanism with an integrated 40-minute vial.

The twist lock secures the telescoping section at the selected height, while the vial provides a visual reference for keeping the rod plumb.

A properly vertical rod helps position the mounted prism, GNSS receiver, antenna, or other equipment directly above the intended survey point.

Snap-Locking Lower Section

The lower carbon fiber telescoping section securely snap-locks into place when assembled.

This locking design helps keep the rod sections properly connected while maintaining the convenience of a collapsible two-piece configuration.

Manufactured in North America

The SECO 5126-20 is manufactured in North America.

Its combination of lightweight materials, compact storage, and fixed-height positioning makes it well suited for crews who frequently transport survey equipment between jobsites or remote locations.

Ideal Applications

• GNSS rover surveying
• GPS antenna positioning
• Prism pole applications
• Construction layout
• Survey stakeout
• Topographic surveying
• Boundary surveying
• Utility mapping
• Control-point measurements
• Engineering fieldwork
• Compact travel and field kits

Technical Specifications

What’s Included

• 1 × SECO Collapsible Carbon Fiber 2 m Rod
• SECO p/n: 5126-20
• 1 × Integrated twist-lock assembly with 40-minute vial
• 1 × Retaining pin with 1.6 m, 1.8 m, and 2 m locking positions

GNSS receiver, prism, antenna, bipod, carrying case, and other surveying accessories are sold separately.

Lightweight 2 Meter Rod with Compact Storage

The SECO 5126-20 combines a full 2-meter working height with a compact two-section design that collapses to only 24.25 inches. Its aluminum and carbon fiber construction, fixed height positions, metric graduations, and integrated 40-minute vial make it a practical rod for surveying, GNSS, and construction layout applications.
