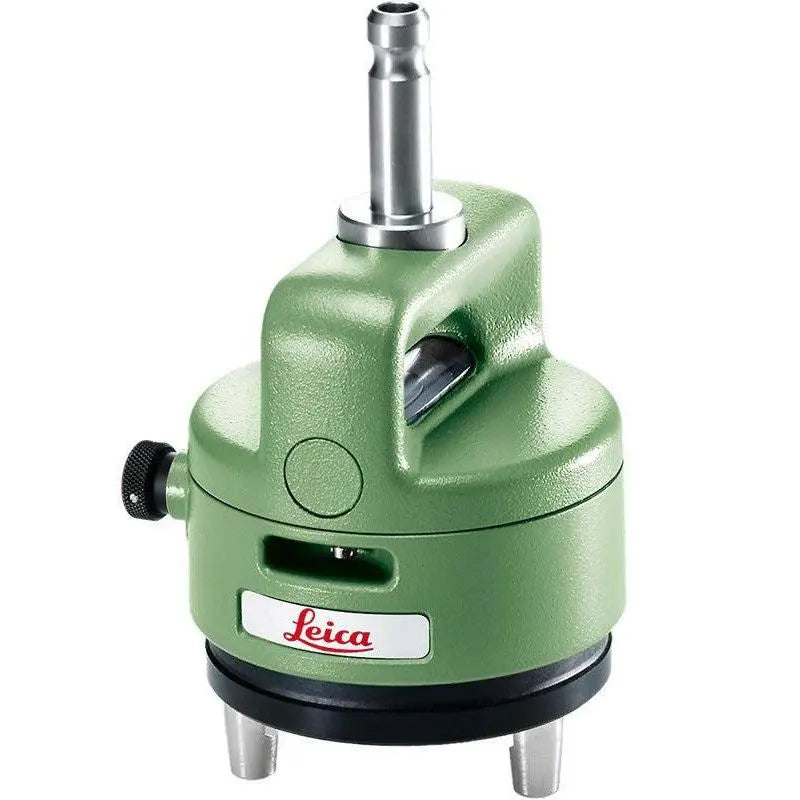

Leica GZR3 Rotatable Carrier with Optical Plummet

Overview

The Leica GZR3 Rotatable Carrier with Optical Plummet is a precision carrier designed for accurate centering and positioning over survey points. Built for Leica total station and reflector workflows, the GZR3 provides dependable setup accuracy when mounting compatible prisms, reflectors, or surveying accessories over a known control point.

With an integrated optical plummet and longitudinal bubble, the GZR3 helps operators align the instrument setup directly over the measurement point with confidence. Its rotatable carrier design allows precise orientation while maintaining centered positioning, making it a strong choice for control surveys, monitoring work, traversing, and high-accuracy reflector setups.

Key Features

• Leica GZR3 rotatable carrier
• Integrated optical plummet for accurate point centering
• Longitudinal bubble for precise leveling and positioning
• Rotatable design for easier reflector orientation
• Reflector centering accuracy: 0.3 mm
• Optical plummet accuracy: 0.5 mm at 1.5 m
• Designed for high-accuracy Leica reflector and survey setups
• Ideal for control points, traversing, monitoring, and precision measurement work
• Durable Leica accessory for professional field use

Precision Centering for Survey Setups

Accurate centering is critical when setting up prisms, reflectors, or other survey targets over a point. The Leica GZR3 helps reduce setup error by combining a high-accuracy optical plummet with a stable rotatable carrier design.

The built-in optical plummet allows the user to visually center the carrier over the ground point, while the longitudinal bubble helps confirm proper positioning. Once centered, the carrier can be rotated as needed without sacrificing setup accuracy.

Technical Specifications

Ideal For

• Leica total station reflector setups
• Control surveys
• Traversing
• Monitoring points
• High-accuracy prism positioning
• Construction layout control
• Survey networks requiring precise centering
• Field crews needing repeatable setup accuracy

What’s Included

• 1 × Leica GZR3 Rotatable Carrier with Optical Plummet

Reliable Leica Setup Accuracy

The Leica GZR3 is a professional-grade carrier built for surveyors who need dependable centering performance. With 0.3 mm reflector centering accuracy, 0.5 mm optical plummet accuracy at 1.5 m, and an integrated longitudinal bubble, it provides the precision needed for demanding Leica total station and reflector workflows.
