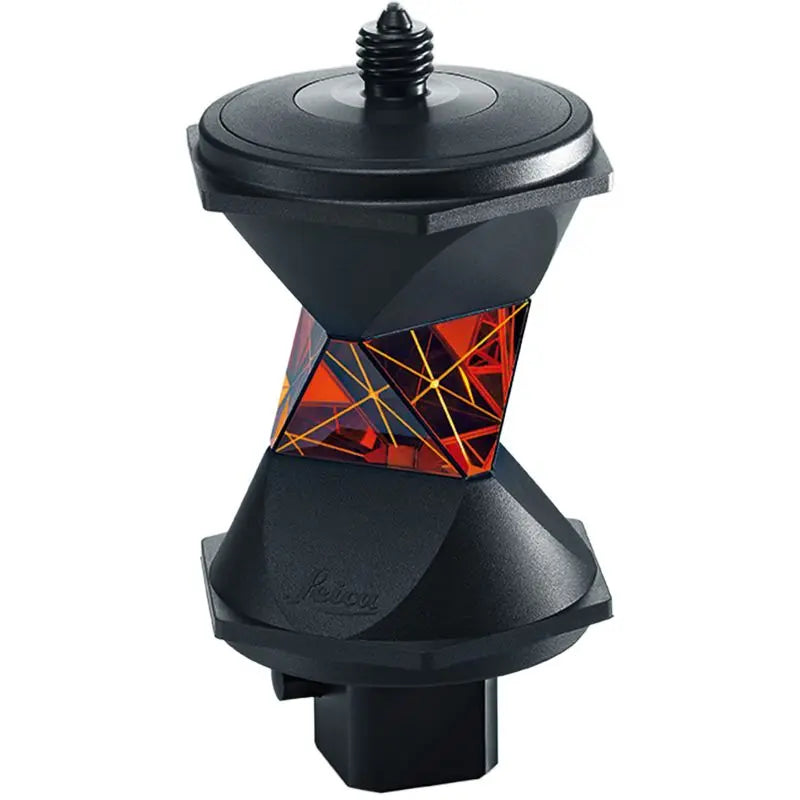

Leica GRZ122 360° Reflector PRO

Overview

The Leica GRZ122 360° Reflector PRO is a high-precision robotic surveying reflector designed for Leica total station and SmartAntenna workflows. Built for accurate target tracking from any direction, the GRZ122 is ideal for robotic total station operation, monitoring, control work, and integrated GNSS/total station setups.

Unlike a standard single prism that must be aimed directly toward the instrument, the GRZ122 provides 360° reflector visibility, allowing the total station to lock onto the prism from any horizontal direction. This makes it especially useful for one-person robotic surveying, stakeout, construction layout, and high-productivity field work.

Key Features

• Leica GRZ122 360° Reflector PRO
• Leica part number: 754384
• 360° reflector for robotic total station tracking
• Designed for high-accuracy Leica surveying workflows
• Allows connection to Leica SmartAntenna setups
• Built-in point for direct positioning on a survey mark
• 78 mm reflector height when positioned directly on a mark
• 3D pointing accuracy: 2.0 mm
• ATR range: up to 1,000 m / 3,280 ft, depending on instrument and conditions
• Leica prism constant: +23.1 mm
• Includes 5/8" thread adapter for mounting a GPS/GNSS antenna
• Ideal for robotic surveying, GNSS/total station integration, layout, and monitoring

Designed for Robotic Total Station Work

The GRZ122 is built for Leica robotic total station workflows where fast lock, reliable tracking, and high pointing accuracy are important. Its 360° reflector design allows the instrument to maintain target lock as the operator moves around the site, reducing the need to constantly reorient the prism toward the total station.

This makes it a strong choice for:

• One-person robotic surveys
• Construction layout
• Stakeout
• Topographic surveys
• Control point work
• Monitoring applications
• Integrated GNSS and total station workflows

SmartAntenna Compatibility

The Leica GRZ122 Reflector PRO is designed to support Leica SmartAntenna connectivity. The included 5/8" thread adapter allows a compatible GPS/GNSS antenna to be mounted above the reflector, making it useful for combined GNSS and total station workflows.

This setup allows crews to work with a common pole configuration for both prism and GNSS positioning, improving flexibility in the field.

Direct Survey Mark Positioning

The GRZ122 includes a built-in point that allows the reflector to be positioned directly on a survey mark at a height of 78 mm. This is useful for control work and setups where the reflector needs to be accurately positioned over a known point.

Technical Specifications

What’s Included

• 1 × Leica GRZ122 360° Reflector PRO
  Leica p/n: 754384
• 1 × 5/8" thread adapter for mounting a GPS/GNSS antenna

High-Accuracy 360° Reflector for Leica Robotic Systems

The Leica GRZ122 360° Reflector PRO is a premium reflector for crews using Leica robotic total stations and SmartAntenna configurations. With 2.0 mm 3D pointing accuracy, a +23.1 mm Leica prism constant, 360° target visibility, and SmartAntenna mounting support, it is built for professional surveyors who need accurate, efficient, and flexible field performance.
