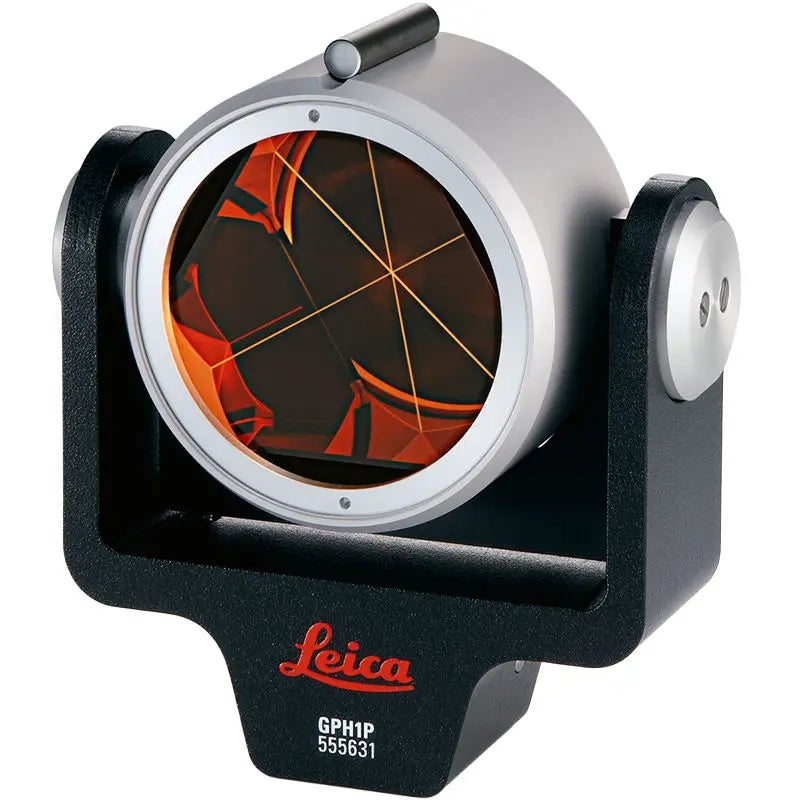

Leica GPH1P Single Prism Precision Reflector
All Instruments Will Ship Calibrated
Certification Provided For Optical & Lasers
Description
Description
Overview
The Leica GPH1P Single Prism Precision Reflector is a high-accuracy Leica circular prism assembly designed for demanding total station measurement work. Built with a precisely machined reflector and a slightly tilted prism diopter, the GPH1P helps reduce EDM reflection from the front surface of the prism for improved measurement accuracy.
With 0.3 mm centering accuracy, a 3,500 m / 11,500 ft range, and a 0.0 mm Leica prism constant, the GPH1P is a strong choice for high-precision surveying, control work, monitoring, traversing, and other applications where reflector accuracy matters.
Key Features
- Leica GPH1P single prism precision reflector
- Leica part number: 555631
- High-accuracy circular prism assembly
- Precisely machined reflector for demanding measurement work
- Slightly tilted prism diopter helps prevent EDM reflection from the front surface
- Centering accuracy: 0.3 mm
- Measurement range: 3,500 m / 11,500 ft
- Leica prism constant: 0.0 mm
- Circular prism diameter: 65 mm / 2.4 in
- Designed for Leica total station reflector workflows
- Ideal for control surveys, monitoring, traversing, and precision layout
High-Precision Prism Design
The GPH1P is built for surveyors who need a more accurate reflector than a standard general-purpose prism. Its precisely machined construction helps maintain consistent centering, while the tilted prism diopter reduces unwanted front-surface EDM reflections that can affect distance measurement quality.
This makes the GPH1P especially useful for high-accuracy total station measurements where small setup or reflector errors can affect final results.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Single prism precision reflector |
| Leica Part Number | 555631 |
| Prism Type | Circular prism |
| Prism Constant | 0.0 mm Leica constant |
| Centering Accuracy | 0.3 mm |
| Range | 3,500 m / 11,500 ft |
| Prism Diameter | 65 mm / 2.4 in |
| Application | High-accuracy total station measurement |
Ideal For
- High-accuracy total station work
- Control surveys
- Traversing
- Monitoring points
- Deformation monitoring
- Precision layout
- Structural and industrial measurement
- Survey networks requiring tight centering accuracy
- Long-range prism observations
What’s Included
-
1 × Leica GPH1P Single Prism Precision Reflector
Leica p/n: 555631
Reliable Reflector Accuracy for Leica Total Stations
The Leica GPH1P is a professional precision reflector built for crews that need dependable measurement accuracy and long-range performance. With its 0.3 mm centering accuracy, 3,500 m range, 0.0 mm Leica prism constant, and tilted prism design, it is well suited for high-precision Leica total station workflows.
