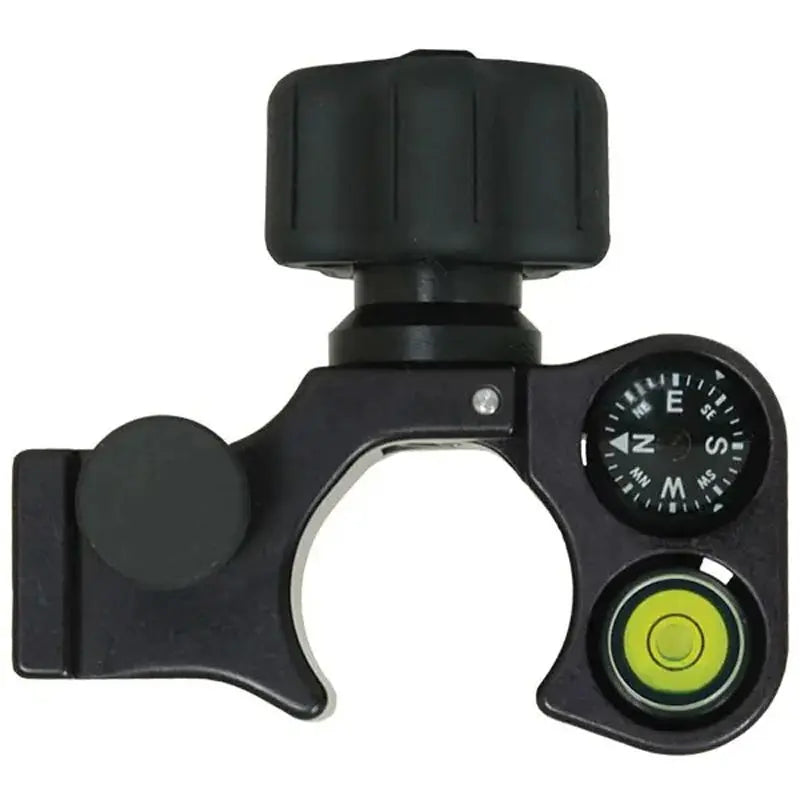

SECO 5200-155 Claw Pole Clamp with Compass and 40-minute Vial

Overview

The SECO 5200-155 Claw Pole Clamp with Compass and 40-Minute Vial is a durable controller-mounting clamp designed for use on survey poles, rover rods, and antenna poles.

SECO’s Claw Series limits the clamping action to help prevent the user from overtightening the clamp screw and accidentally crushing or cracking the pole. The clamp is manufactured from anodized aluminum for dependable everyday use in surveying and construction environments.

A built-in compass and 40-minute vial provide convenient directional and leveling references directly on the pole clamp. The SECO 5200-155 is compatible with existing SECO Quick-Release cradles and the Claw Quick-Release Cradle for mounting popular data collectors and field controllers.

Key Features

• SECO Claw pole clamp
• SECO part number: 5200-155
• Built-in compass
• Integrated 40-minute vial
• Clamping travel is limited to prevent overtightening
• Helps reduce the risk of crushing or cracking the pole
• Designed primarily for 1.25-inch OD poles
• Compatible pole diameter: 32 mm
• Can also be used with a 1-inch OD pole
• Optional Delrin Adapter increases a 1-inch pole to 1.25 inches OD
• Compatible adapter: SECO D11145
• Compatible with existing SECO Quick-Release cradles
• Compatible with the SECO Claw Quick-Release Cradle
• Manufactured from durable anodized aluminum
• Cradle and Delrin Adapter are sold separately

Claw Over-Tightening Protection

The SECO Claw Series is designed to help prevent damage caused by excessive tightening of the pole clamp screw.

Its clamping function is mechanically limited so the operator cannot continue tightening beyond the intended range. This helps reduce the possibility of crushing, cracking, or permanently deforming compatible survey poles and rover rods.

Built-In Compass

A compass is integrated directly into the pole clamp, providing a convenient directional reference during fieldwork.

The compass can assist with general pole orientation and directional awareness without requiring the operator to carry or retrieve a separate handheld compass.

Integrated 40-Minute Vial

The SECO 5200-155 also includes a built-in 40-minute vial.

The vial provides a quick visual reference for checking the pole’s position during setup and field operation. It is integrated into the clamp so it remains easy to view while the controller mounting system is installed.

Quick-Release Cradle Compatibility

The clamp is compatible with SECO’s existing Quick-Release cradles designed for many popular data collectors and controllers.

It can also be paired with the SECO Claw Quick-Release Cradle to create a complete pole-mounting system. The appropriate cradle should be selected according to the specific controller or data collector being used.

Pole Compatibility

The SECO 5200-155 is designed primarily for poles with a 1.25-inch, or 32 mm, outside diameter.

A 1-inch, or 25.4 mm, pole may also be used. SECO Delrin Adapter D11145 is available separately to increase the outside diameter of a 1-inch pole to 1.25 inches for a proper clamp fit.

Compatible applications may include:

• GNSS rover rods
• Survey poles
• Antenna poles
• Prism poles
• Other compatible controller-mounting poles

Always verify the pole’s outside diameter before ordering.

Anodized Aluminum Construction

The clamp is manufactured from durable anodized aluminum for reliable use in demanding field conditions.

Its construction provides a balance of strength, low weight, and corrosion resistance for regular surveying, construction layout, and data-collection work.

Ideal Applications

• GNSS rover surveying
• Robotic total station operation
• Construction layout
• Boundary surveying
• Topographic surveying
• Utility mapping
• GIS data collection
• Data collector mounting
• Field controller mounting
• Engineering fieldwork

Technical Specifications

What’s Included

• 1 × SECO Claw Pole Clamp with Compass and 40-Minute Vial
• SECO p/n: 5200-155

Quick-Release cradle, data collector, controller, pole, and SECO D11145 Delrin Adapter are sold separately.

Protected Controller Mounting with Integrated Field References

The SECO 5200-155 combines Claw over-tightening protection, durable anodized aluminum construction, cradle compatibility, a compass, and a 40-minute vial. It provides a practical mounting platform for controllers used on standard 1.25-inch survey poles and compatible 1-inch pole configurations.
