Leica CS30 Data Collector | Windows 10 7" Tablet

Data Sheet

Overview

The Leica CS30 Data Collector is a compact 7-inch Windows field tablet designed for Leica Captivate workflows. It is the entry-level tablet in Leica’s Captivate tablet lineup, offering a lightweight design, competitive performance, and a screen size that balances portability with clear field visibility. Leica describes the CS30 as a lightweight tablet that allows surveyors to move freely while still comfortably viewing detailed field data.

The CS30 is a strong choice for survey crews, construction layout teams, and Leica Captivate users who want a smaller Windows data collector for GNSS, total station, and robotic workflows. It runs Microsoft Windows 10 Enterprise LTSC 64-bit with an Intel Apollo Lake N3550 processor, 4 GB RAM, and 64 GB of storage.

Available Versions

The Leica CS30 is available in two versions, depending on the communication range and workflow you need.

CS30 Field Controller

The standard CS30 Field Controller is the base 7-inch Windows tablet configuration. It is ideal for users who need a compact Leica Captivate data collector for standard field data collection, GNSS workflows, file handling, and general Leica instrument control.

This option is best for users who do not need the extended long-range Bluetooth setup for robotic total station operation.

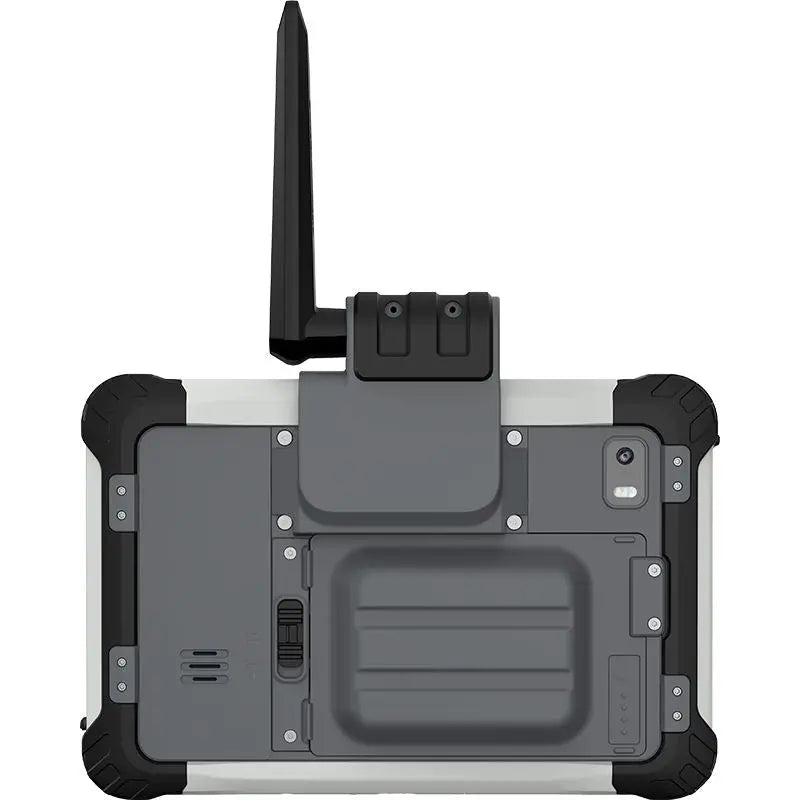

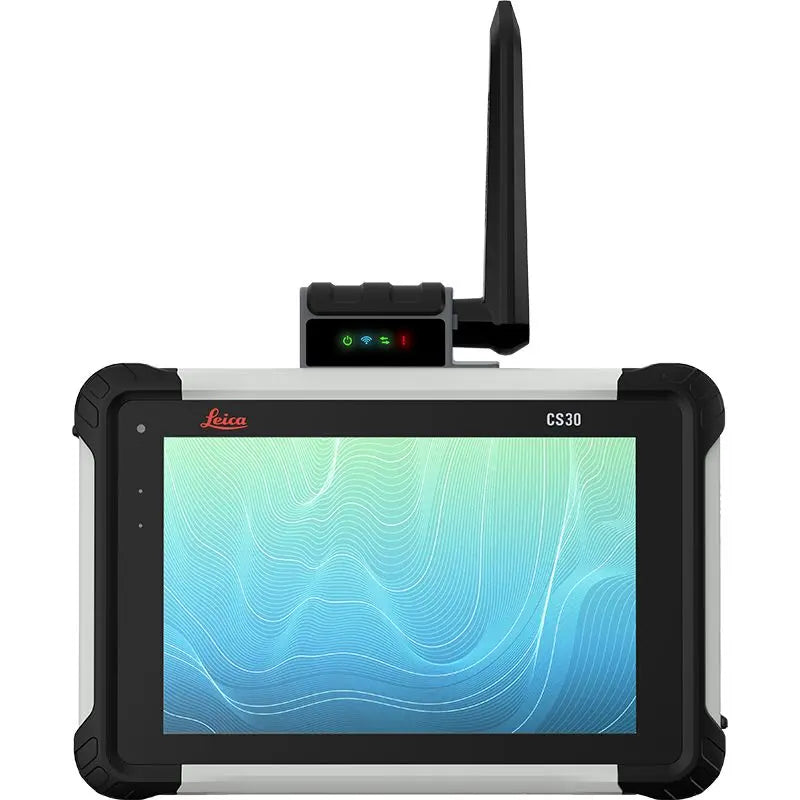

CS30 LTE / LRBT Tablet Field Controller

The CS30 LTE/LRBT version adds LTE and long-range Bluetooth capabilities for more advanced field communication workflows. This is the better choice for users who want a stronger communication range for robotic total stations and mobile connectivity.

Leica’s datasheet lists the CS30 TPS working range with the LR-BT module as typically 1000 m, making this version the preferred option for robotic total station users who need an extended range between the controller and instrument.

Key Features

• 7-inch Leica Captivate-compatible Windows field tablet
• Microsoft Windows Enterprise 10 LTSC 64-bit
• Intel Apollo Lake N3550 processor
• 4 GB RAM and 64 GB storage
• 1280 × 800 capacitive multi-touch display
• Glove and normal touchscreen modes
• USB-C, USB-A, and DC-in ports
• 3G / 4G LTE with SIM card support
• WLAN 802.11 and Bluetooth 4.2
• 8 MP rear camera with autofocus and flash
• Li-Ion 11.1V, 3000mAh battery
• Up to 8 hours on the desk
• Up to 3.5 to 3.75 hours connected to GS
• IP6x/IPx6 and IPx8 protection
• 1.50 m (4.92 ft) drop rating
• Operating temperature from -25°C to +55°C
• Weighs 0.760 kg (1.68 lb) including battery

Built for Leica Captivate Workflows

The CS30 is designed for users running Leica Captivate in the field. It gives crews a compact Windows controller for managing jobs, viewing project data, collecting measurements, staking points, and working with Leica GNSS and total station instruments.

Ideal for:

• GNSS data collection
• Total station workflows
• Robotic total station control with LRBT version
• Construction layout and staking
• Topographic surveys
• As-built data collection
• Field-to-office workflows
• Leica Captivate projects

Its small size and light weight make it especially practical for crews that prefer a compact tablet over a larger 8-inch or 10-inch controller.

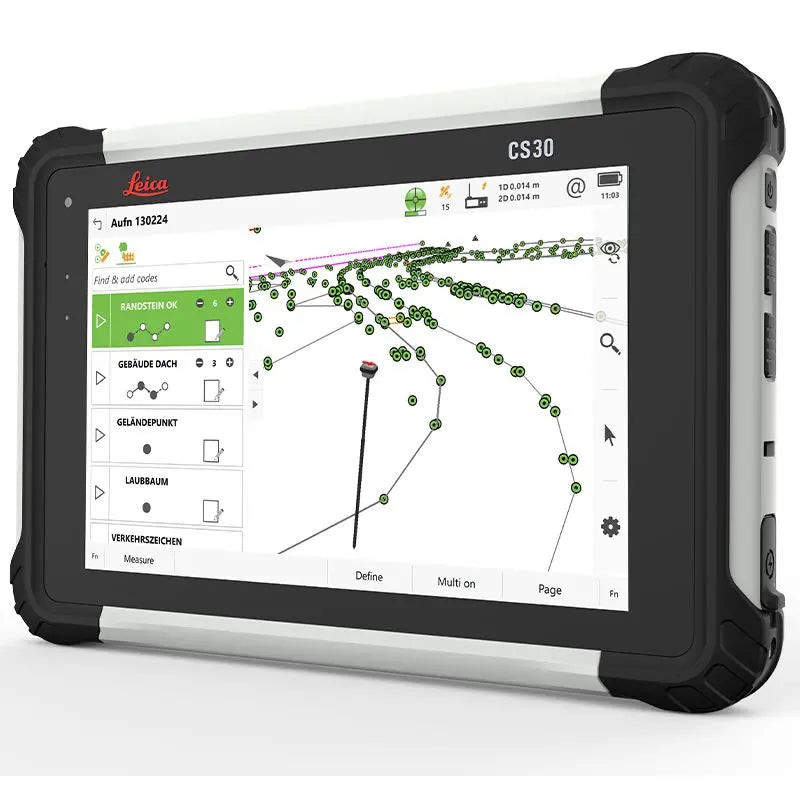

Compact 7-Inch Windows Tablet Design

The CS30 features a 7-inch display with a 1280 × 800 resolution, providing enough screen space to view field data while keeping the tablet easy to carry and mount. Compared to the larger CC180 and CC200 tablets, the CS30 is the most portable option in the Captivate tablet family.

At only 0.760 kg (1.68 lb) including the battery, it is well-suited for pole-mounted workflows and long days in the field.

Standard CS30 vs CS30 LTE / LRBT

Choose the CS30 Field Controller if you want the compact Leica Captivate tablet for standard field use. Choose the CS30 LTE / LRBT Tablet Field Controller if you need the extended communication setup for robotic total station work and want the included GAT25 radio antenna.

What’s Included: CS30 Field Controller

• 1 × CS30 Field Controller (p/n: 925660)
• 1 × Leica Entitlement Activation Guide, English (p/n: 947231)
• 1 × CS30 Quick Guide, Multilingual Volume 1 (p/n: 924349)
• 1 × GEB260 Li-Ion Battery for CS30 / CC170 (p/n: 925663)
• 1 × AC Power Cable C5 / Type B, US / CAN (p/n: 926054)

What’s Included: CS30 LTE / LRBT Tablet Field Controller

• 1 × CS30 LTE / LRBT Tablet Field Controller (p/n: 926415)
• 1 × Leica Entitlement Activation Guide, English (p/n: 947231)
• 1 × CS30 Quick Guide, Multilingual Volume 1 (p/n: 924349)
• 1 × GEB260 Li-Ion Battery for CS30 / CC170 (p/n: 925663)
• 1 × AC Power Cable C5 / Type B, US / CAN (p/n: 926054)
• 1 × GAT25 Radio Antenna for CTR Module (p/n: 812027)

Rugged Field Performance

The Leica CS30 is built for field use with IP6x/IPx6 and IPx8 protection, a 1.50 m drop rating, and an operating temperature range from -25°C to +55°C. This makes it suitable for demanding survey and construction environments where dust, water, temperature changes, and daily handling are part of the job.

Reliable Entry-Level Leica Data Collector

The Leica CS30 Data Collector is a practical choice for Leica users who want a lightweight Windows tablet for Captivate workflows. With a 7-inch display, rugged design, Leica instrument compatibility, and an available LTE / LRBT version for extended robotic communication, the CS30 gives crews a flexible and portable field controller for everyday survey and construction layout work.
