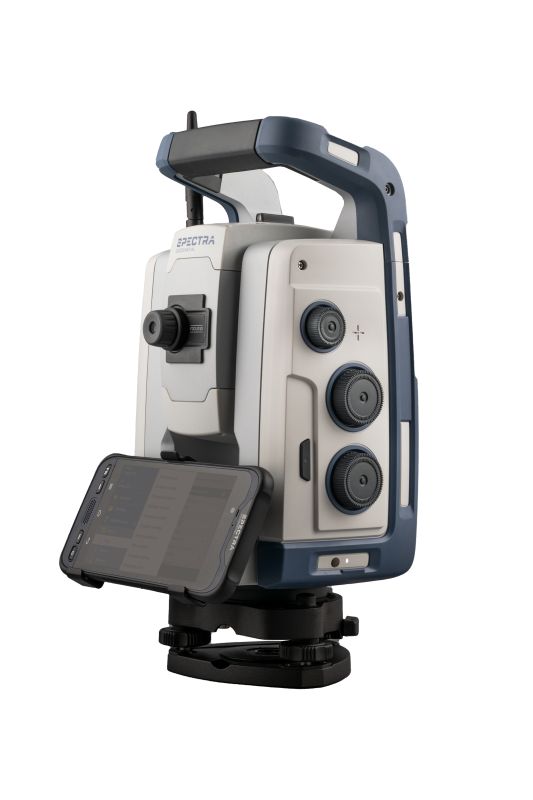

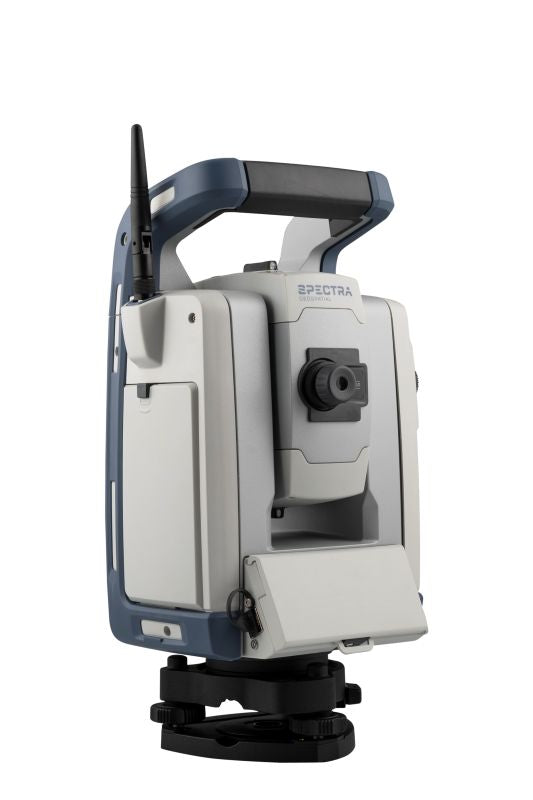

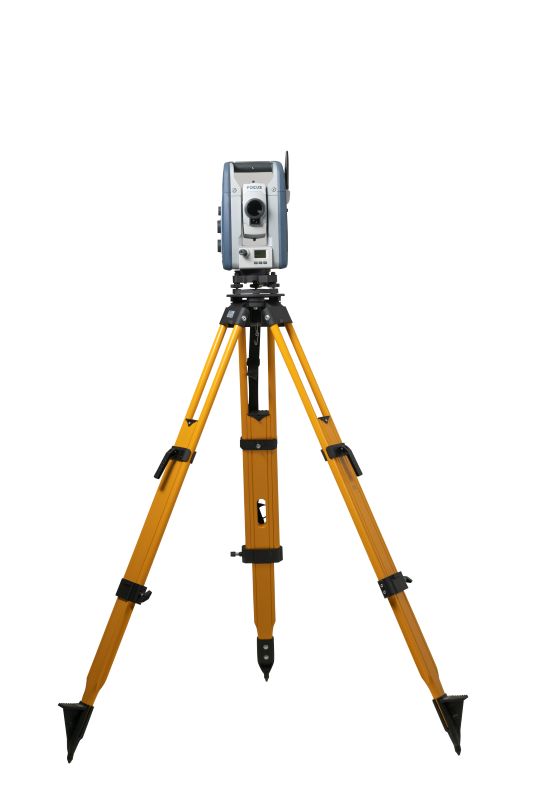

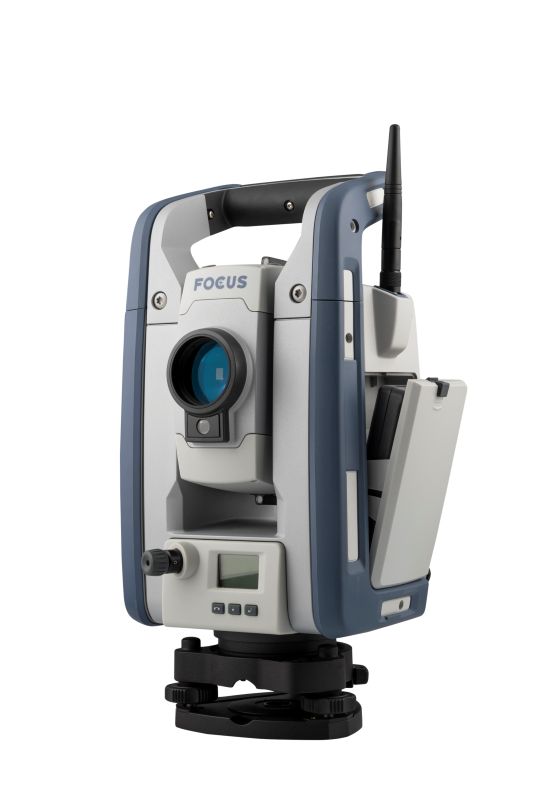

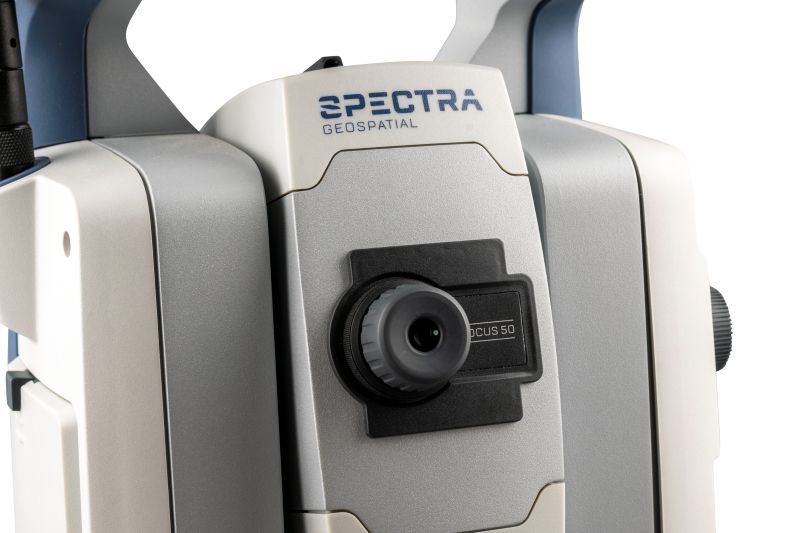

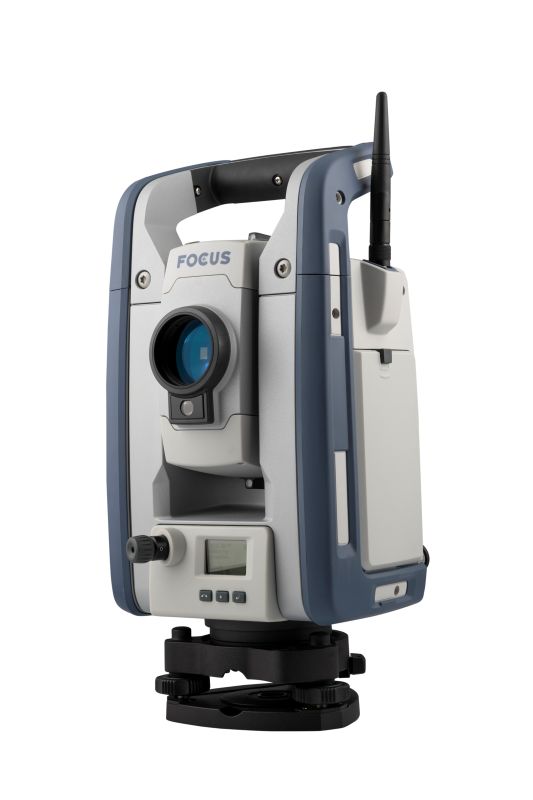

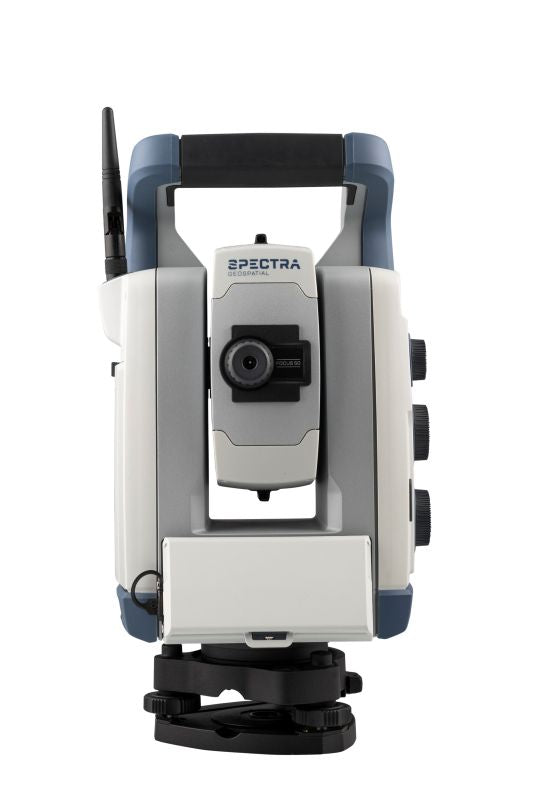

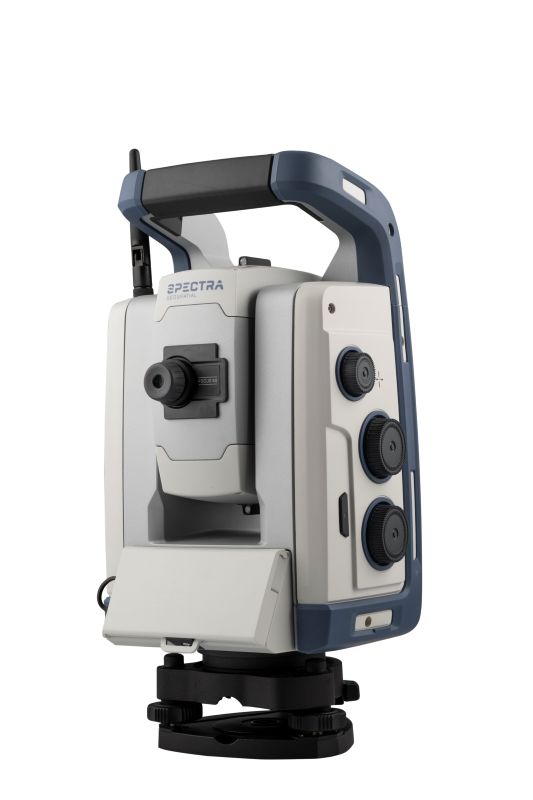

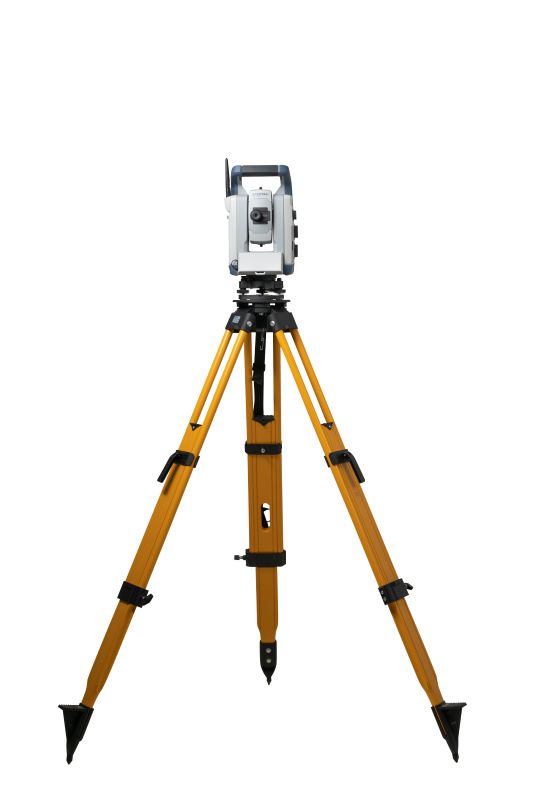

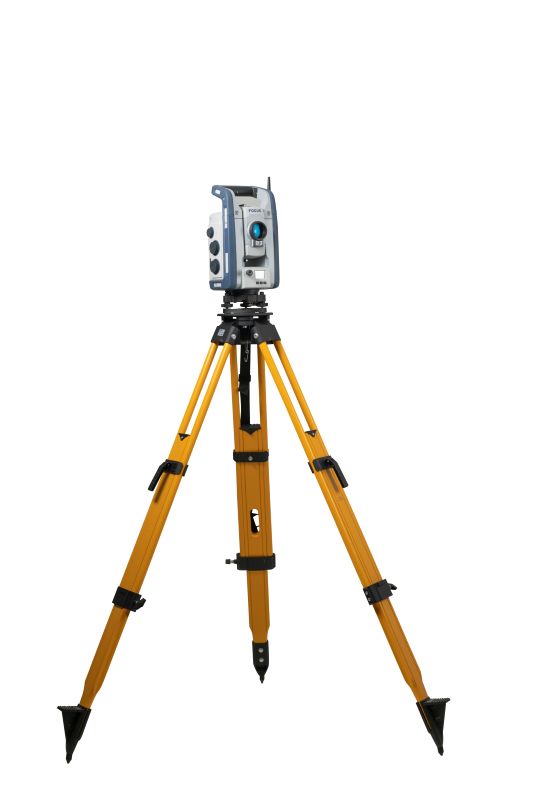

Spectra Geospatial FOCUS 50 Robotic Total Station

The Spectra Geospatial FOCUS 50 is a state-of-the-art robotic total station designed for one-person operation, delivering precision, speed, and reliable field performance for surveyors and construction professionals. Available in Autolock, Short Range Robotic, and Long Range Robotic models, the FOCUS 50 adapts to a variety of workflows from layout and topographic surveys to boundary marking and civil site development. Featuring Spectra’s MagDrive™ servo motor system, this total station provides smooth and silent motorization with minimal wear, allowing for fast prism acquisition and efficient job completion.

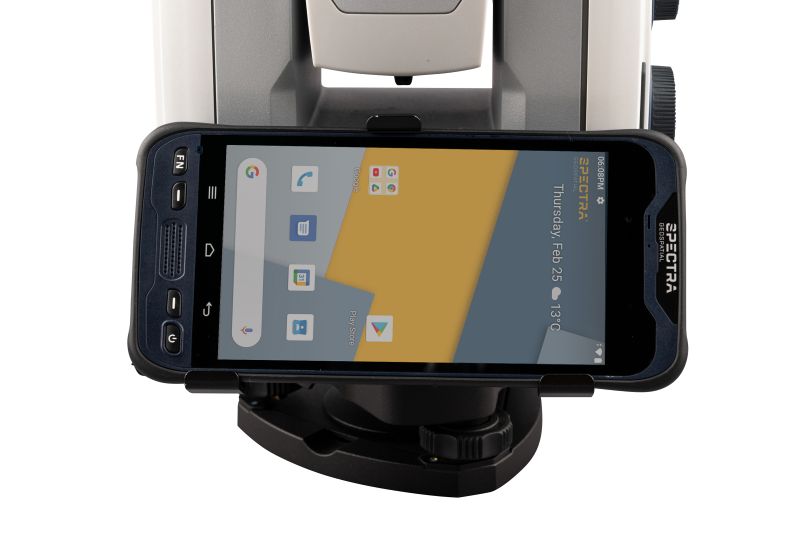

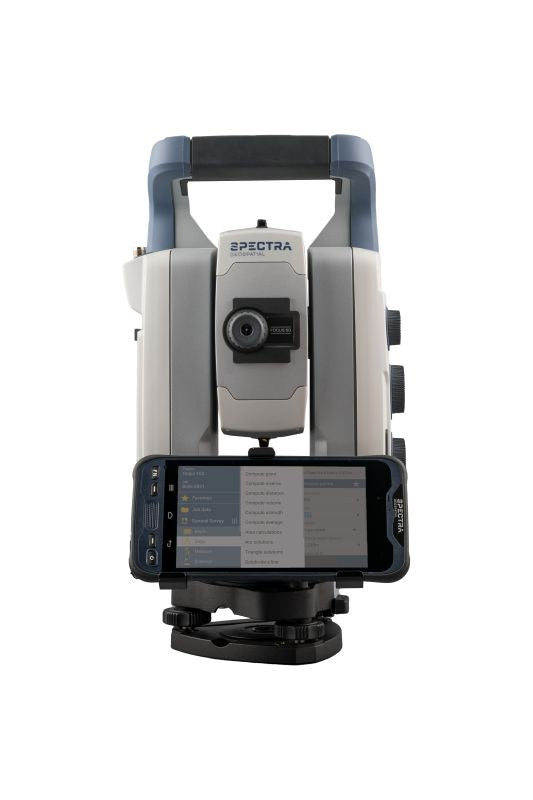

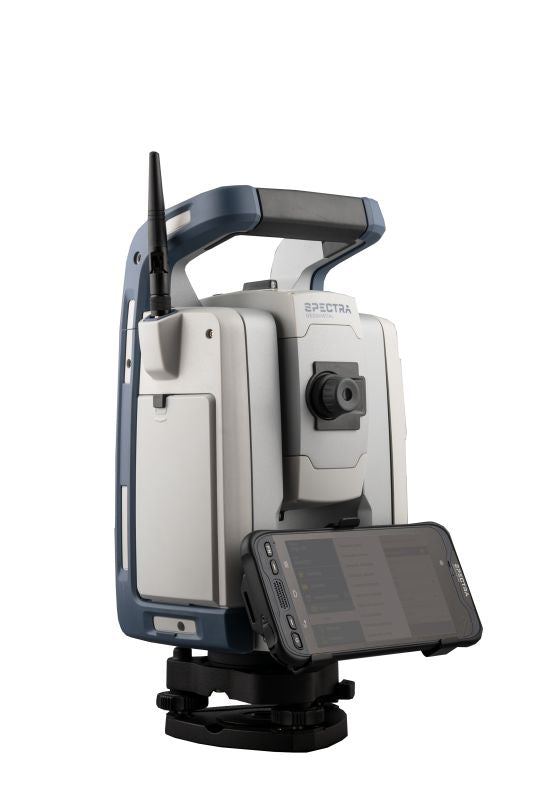

With selectable angle accuracies of 1", 2", 3", or 5", the FOCUS 50 allows users to tailor performance to jobsite demands. It offers a reflectorless (Direct Reflex) range of up to 1300 m (4265 ft), and the Long Range Robotic model extends that distance to 2200 m (7218 ft) on highly reflective surfaces. Prism range reaches up to 5500 m (18,044 ft), with reliable tracking in both standard and challenging lighting conditions. Designed to integrate seamlessly with Spectra data collectors like the Ranger 7 and ST100, and Origin software, the FOCUS 50 supports field-to-office workflows with real-time data capture, map-based navigation, and intelligent stakeout tools.

Built to withstand the harshest environments, the FOCUS 50 features IP65 dust and water resistance, internal long-lasting Li-Ion power, and robust communication options including USB, Bluetooth®, and long-range radio. Whether you’re working solo in remote terrain or navigating urban complexity, the FOCUS 50 delivers the power, accuracy, and flexibility professionals demand.

Key Features:

• High Precision Angle Measurement: Choose from 1", 2", 3", or 5" angular accuracy
• Reflectorless Range (DR Mode): Up to 1300 m (4265 ft) standard; 2200 m (7218 ft) in DR Extended Mode (Long Range Model only)
• Prism Range: Up to 5500 m (18,044 ft) with 1 prism in Long Range Mode
• MagDrive™ Servo System: Ultra-smooth motorized tracking at 90°/sec, silent operation
• Autolock™ Technology: Automatic prism tracking up to 700 m (2297 ft) with <2 mm precision at 200 m
• Fast Measurement Times: 1.2 seconds in standard mode, 0.4 seconds in tracking
• Integrated Leveling: Dual-axis compensator with 0.5" accuracy and ±5.4' range

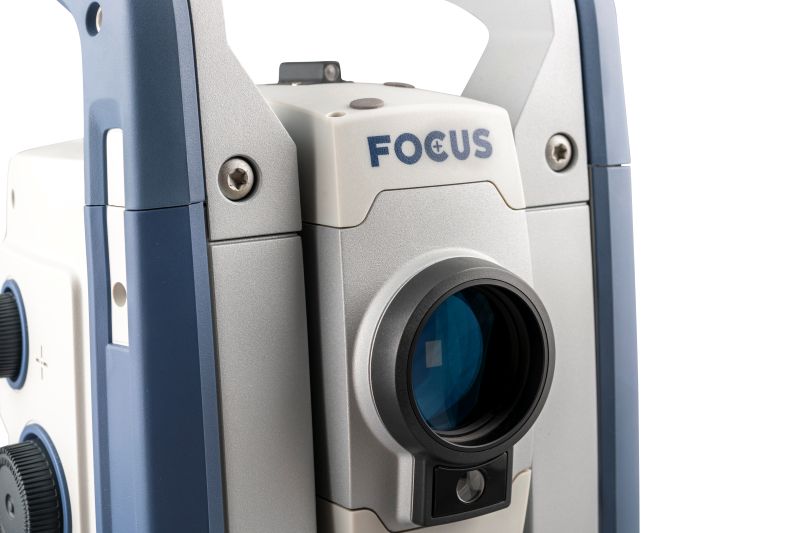

• Optical Plummet and 30× Telescope: High-quality optics for quick setup and targeting

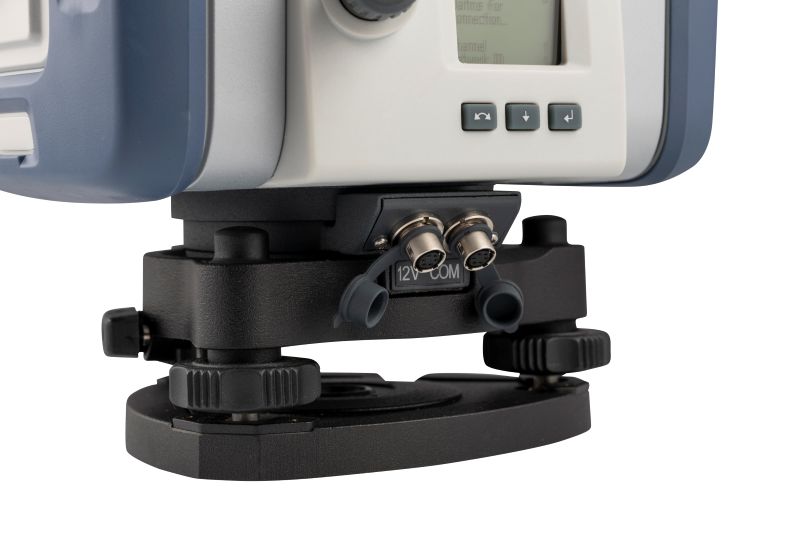

• Communication Options: USB, Bluetooth®, and 2.4 GHz spread spectrum radio (model-dependent)

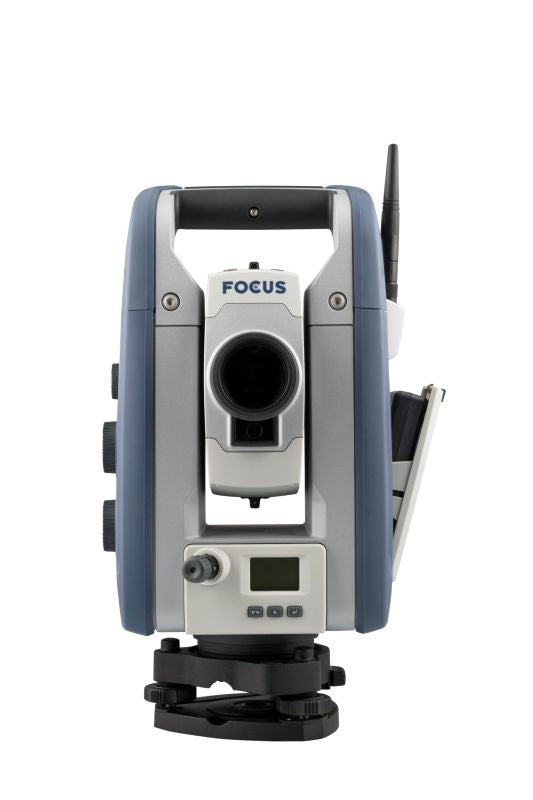

• Long Battery Life: Up to 30 hours with multi-battery configuration
• Rugged Build: IP65 rated for dust and water protection; operates from –20 °C to +50 °C

What’s Included

• FOCUS 50 Robotic Total Station
• 78607007-10 Tribrach without Optical Plummet

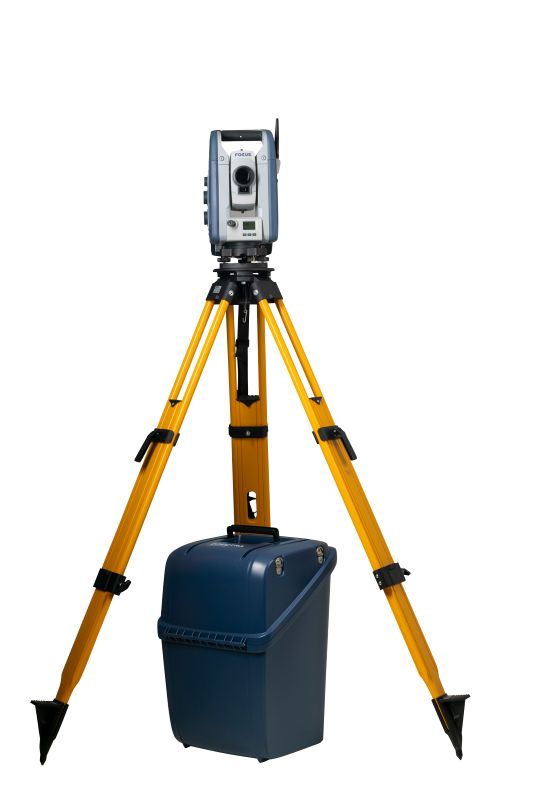

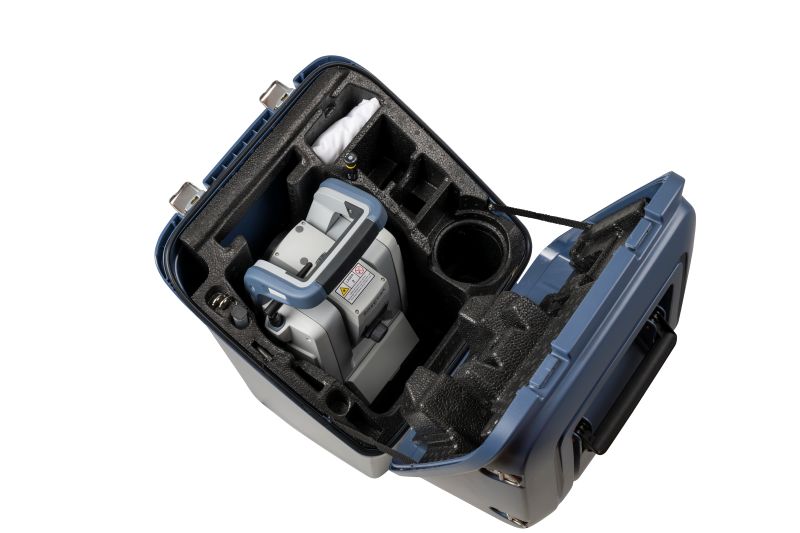

• FOCUS50-CASE-01 Hard Carrying Case, 2x keys, and backpack strap set
• 59819025-SPN Antenna 2.4GHz TNC/R Male
• Lens Sun Shade
• Rain Cover
• 71199035 Laser Adjustment Tool
• 2x 99511-30 Battery Packs – Li-Ion, 10.8V, 6500mAh
• 115148-00-SPN Dual Slot Charger Kit – includes vehicle adapter, power supply, and international power cords (USA, EU, UK, AUS)
• 58023002 360° Prism with height adapter to standard rod (prism constant: 0.002m)
