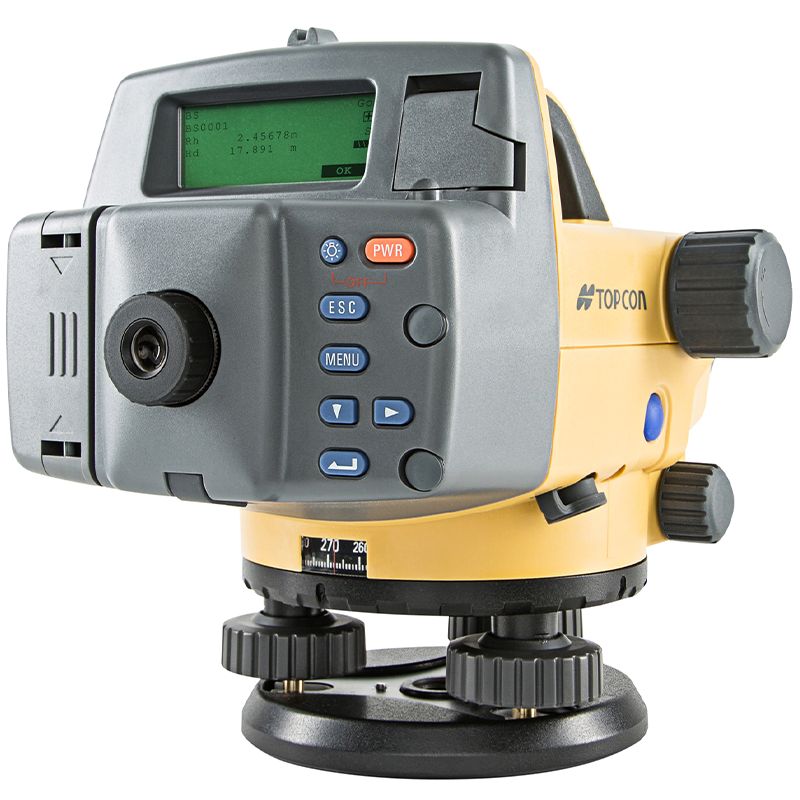

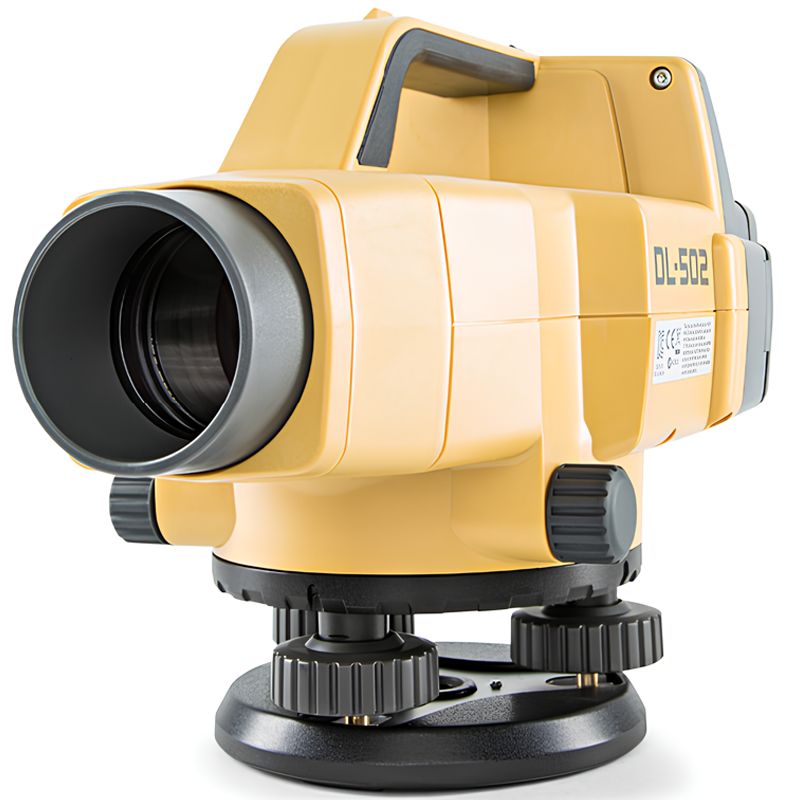

Topcon DL-502 Digital level
All Instruments Will Ship Calibrated
Certification Provided For Optical & Lasers
Description
Description
Data Sheet
Key Features
- ±0.6 mm/km double-run height accuracy
- 32x telescope magnification for sharp target visibility
- Wave-and-Read technology for fast, automated vertical alignment

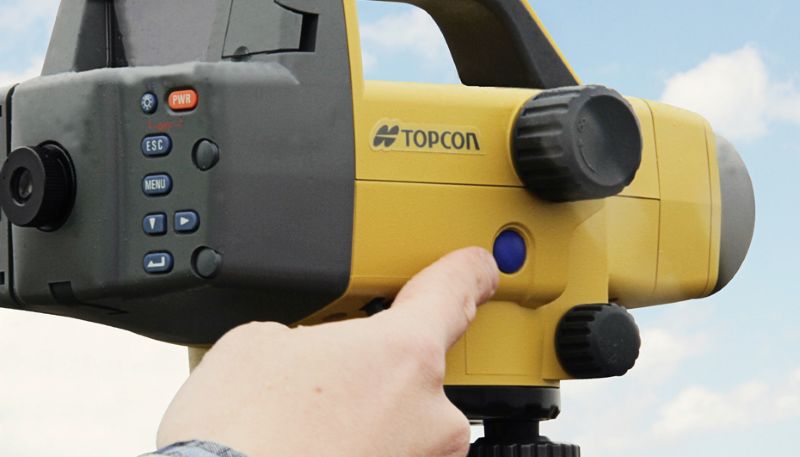

- One-button operation for height and distance readings
- Inverse staff reading simplifies overhead measurements
- 2,000-point internal memory for storing measurement data
- Built-in programs for elevation, height difference, cut/fill, and ceiling height
- Pendulum compensator with magnetic damping for stability under vibration

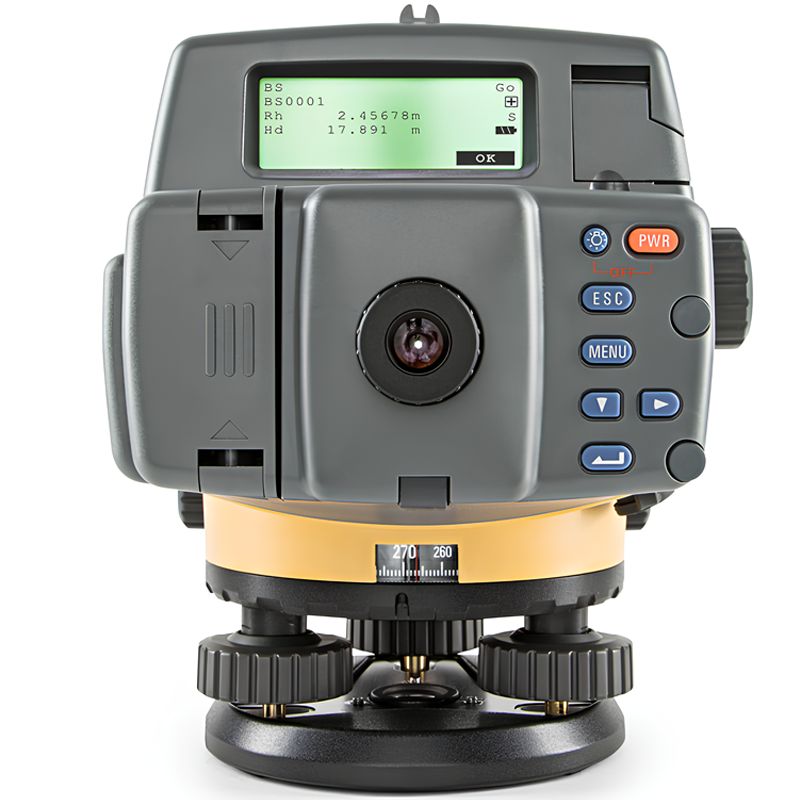

- LCD display with backlight for visibility in all lighting conditions
- Rechargeable Li-ion battery with up to 16 hours of runtime

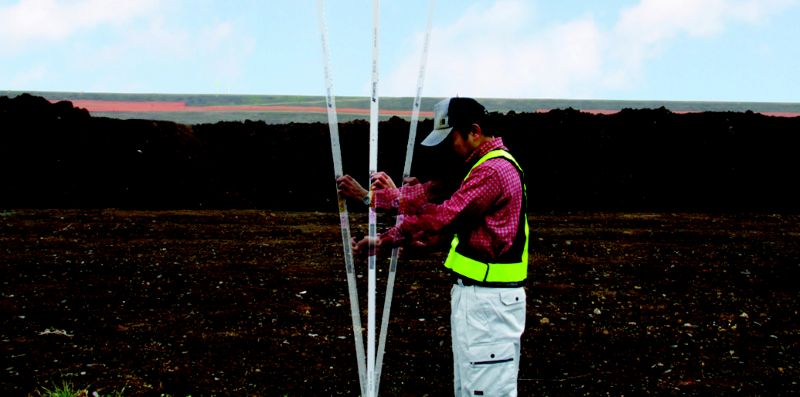

The Topcon DL-502 is a high-accuracy digital level designed for surveyors and contractors who need dependable performance, clear optics, and efficient workflow in daily leveling tasks. With 32x magnification and ±0.6 mm/km accuracy, the DL-502 delivers fast height and distance readings in just 2.5 seconds. It’s built with Topcon’s trusted Wave-and-Read technology, which lets users wave the RAB-coded staff back and forth while the instrument automatically locks onto the lowest vertical point, eliminating the need to keep the staff perfectly plumb.
One-button operation allows users to focus, press, and store measurements instantly, reducing human error and eye fatigue. The DL-502 also supports inverse staff readings, making it easy to measure overhead clearances like ceilings, tunnel crowns, or bridge structures. Its onboard programs for elevation, height difference, cut/fill, and ceiling height make calculations in the field fast and efficient. With a 2,000-point internal memory, IPX4-rated housing, and a shock-resistant magnetic compensator, the DL-502 is ready for use in a wide range of field conditions.
Technical Specifications
| Specification | Topcon DL-502 |
|---|---|
| Magnification | 32x |
| Height Accuracy | ±0.6 mm/km |
| Distance Accuracy | ±10 mm at 10 m |
| Measuring Range | 1.6 m – 100 m |
| Measuring Time | Approx. 2.5 seconds |
| Memory Capacity | 2,000 points |
| Keyboard | 8-key |
| Display | LCD with backlight |
| Operating Time | Up to 16 hours |
| Operating Temperature | -20°C to +50°C |
| Water Resistance | IPX4 |
Comparison
| Model | Magnification | Height Accuracy | Internal Memory | Keyboard |
|---|---|---|---|---|
| DL-503 | 28x | ±0.8 mm/km | 2,000 points | 8-key |
| DL-502 | 32x | ±0.6 mm/km | 2,000 points | 8-key |
| DL-501 | 32x | ±0.2 mm/km | 10,000 points | 27-key alphanumeric |
What’s Included
- Topcon DL-502 Digital Level
- Rechargeable Li-ion Battery
- Battery Charger
- Power Cable
- Carrying Case
- Vinyl Dust Cover
- Hex Wrench
- Digital User Manual
