Stonex R40 Manual Android Total Station 1", 2"
All Instruments Will Ship Calibrated
Certification Provided For Optical & Lasers
Description
Description

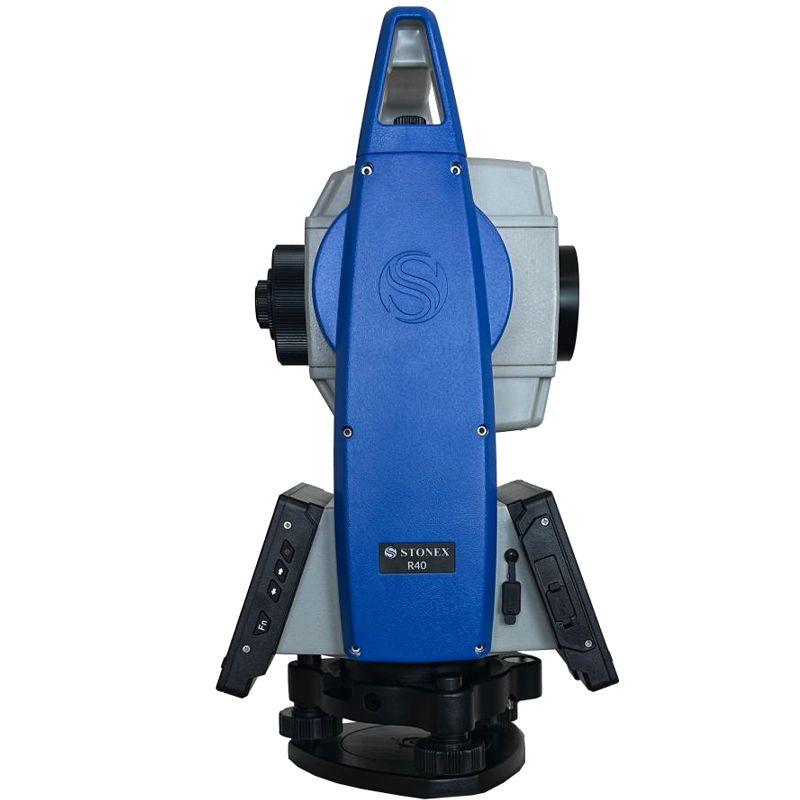

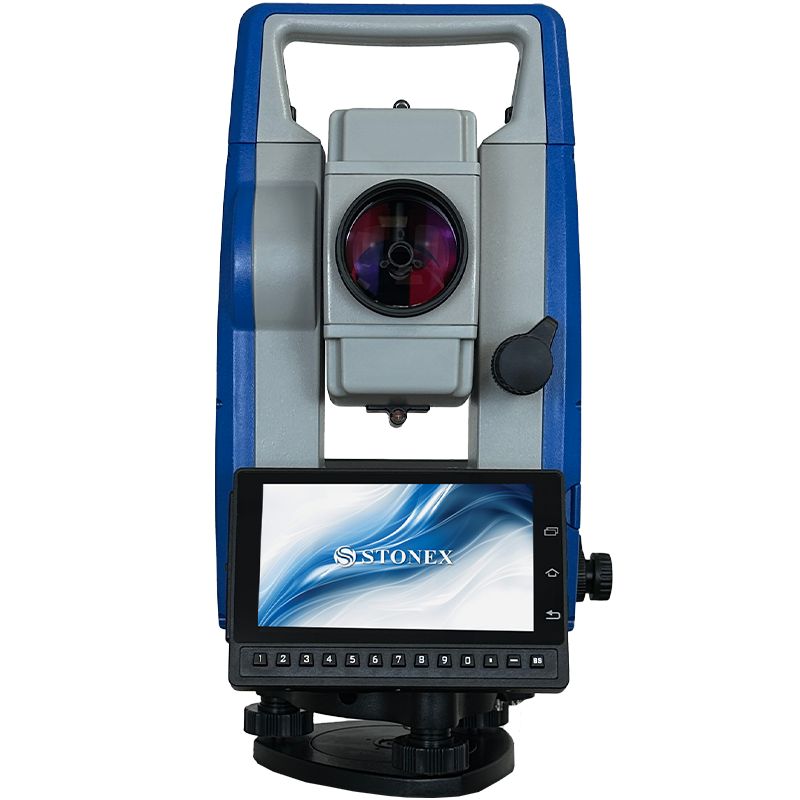

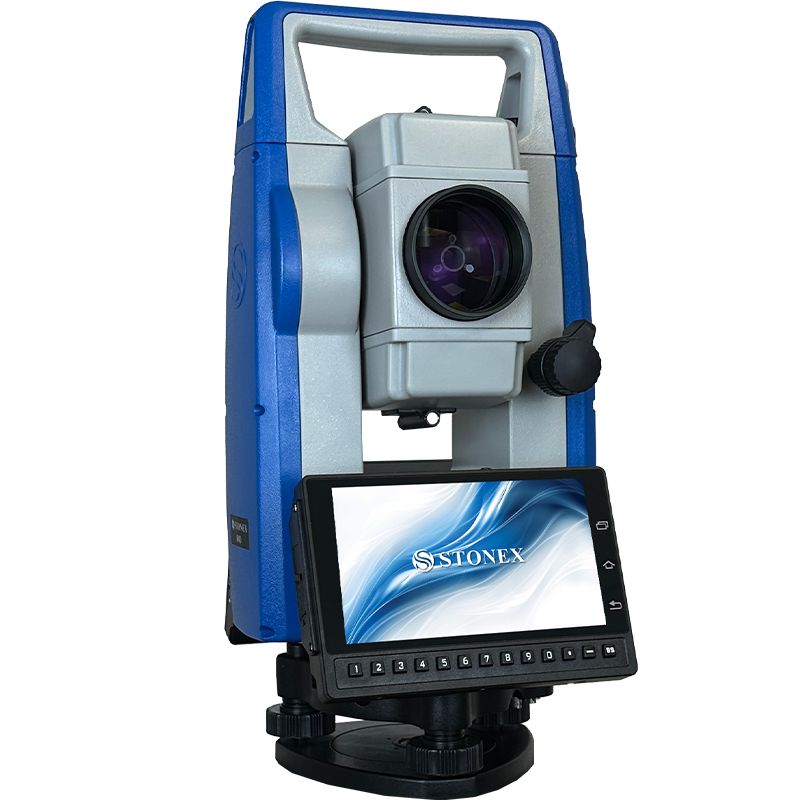

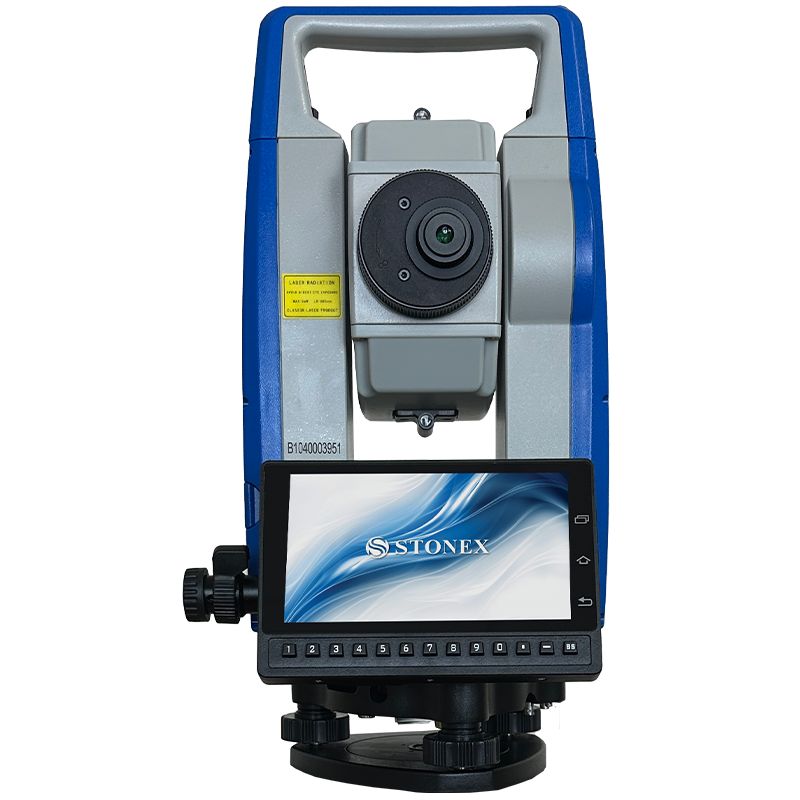

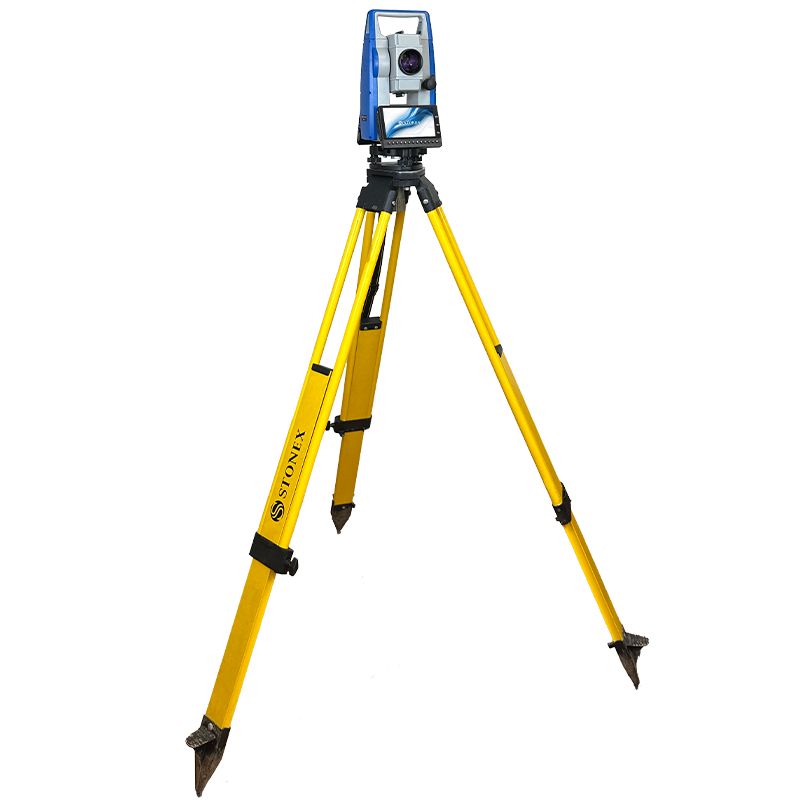

The Stonex R40 is a next-generation mechanical total station built for surveyors who demand modern efficiency with reliable accuracy. Powered by Android 11 and equipped with onboard Cube-a software, it allows seamless switching between GNSS and Total Station workflows in the same interface.
Available in 1" or 2" angular accuracy versions, the R40 delivers precision with long-range measurements, up to 5000m with prism and 1000m reflectorless. With 4GB RAM, 64GB internal storage, and Google service support, it's a smart and powerful field solution for complex survey jobs.
Key Features
• Android 11 OS with Cube-a v7 onboard for modern, intuitive survey control
• 1” or 2” angle accuracy with reflectorless EDM up to 1000m
• EDM Accuracy: ±(2mm + 2ppm) with prism; ±(3mm + 2ppm) reflectorless
• 5.5” Dual Displays (720x1280 TFT touchscreen) for clear field visibility
• RAM/Storage: 4GB RAM and 64GB ROM, expandable via TF Card
• Full Connectivity: USB-C, BT, 4G GSM, WLAN, Micro SIM
• Battery Life: Up to 5 hours of continuous operation
• IP55 Rated for dust and water resistance
• Fast measurement speeds (0.3–0.8 sec depending on mode)
• Google Services support for cloud storage, maps, remote access, and more
What's Included
• R40 Total Station (1" or 2") with Android 11 OS
• Cube-a On-Board TS+GPS software
• 2× Li-ion Batteries (7.4V, 2600mAh)
• Battery Charger + Power Cable (EU/US)
• Tribrach
• Lens Cap

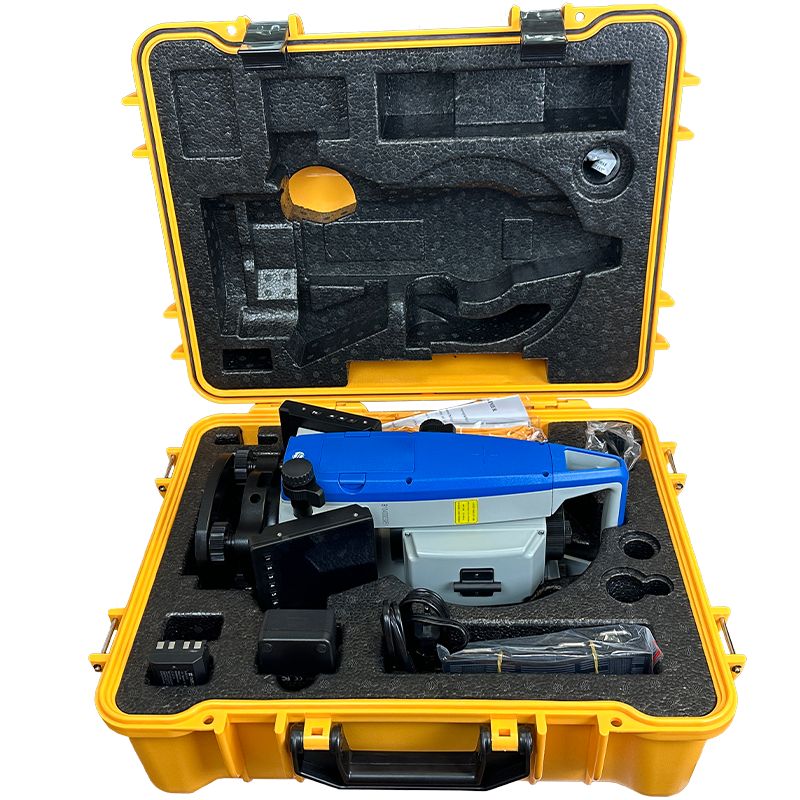

• Carrying Case + 2× Shoulder Straps
• Rain Cover
• USB Type-C Cables (x2)
• Tool Kit
• Target Set
