SECO 5217-40 Construction Series Thumb-Release Bipod

Overview

The SECO 5217-40 Construction Series Thumb-Release Bipod provides stable, freestanding support for compatible GNSS antenna poles, prism poles, and range poles used in surveying and construction layout.

Its no-crush bipod head is designed to protect carbon-fiber poles from damage, even when excessive clamping force is applied. The open clamp accepts poles from 1 to 1.25 inches in outside diameter, while compatible 1.5-inch poles can be loaded through the top.

Independently adjustable legs extend to 6 feet and collapse to 43 inches for transportation. A carrying bag and leg clip are included for convenient storage and movement between jobsites.

Key Features

• Construction Series thumb-release bipod
• SECO product series: 5217-40
• No-crush bipod head
• Helps prevent damage to carbon-fiber poles
• Supports freestanding GNSS antenna and prism poles
• Open clamp fits poles from 1 to 1.25 inches OD
• Metric pole range: 25.4 to 31.8 mm
• Compatible 1.5-inch poles can be loaded through the top
• Independently adjustable legs
• Maximum leg extension of 6 ft
• Metric maximum extension of 1.8 m
• Collapsed length of 43 in
• Metric collapsed length of 109 cm
• Thumb-release leg adjustment
• Includes carrying bag
• Includes leg clip
• Available in multiple colors

No-Crush Bipod Head

The SECO 5217-40 features a no-crush clamping head designed to protect compatible carbon-fiber range poles and prism poles.

The clamp limits damaging pressure against the pole, helping prevent crushing or cracking even when the operator applies excessive force. This makes the bipod especially useful with lightweight carbon-fiber poles that can be damaged by conventional clamps.

Open-Clamp Pole Mounting

The open bipod head allows compatible poles to be installed from the side without removing accessories from the top or bottom of the pole.

The clamp is designed for poles with outside diameters ranging from:

• 1 to 1.25 in
• 25.4 to 31.8 mm

Compatible 1.5-inch poles may also be loaded through the top of the clamp.

Always verify the pole diameter and mounting configuration before ordering.

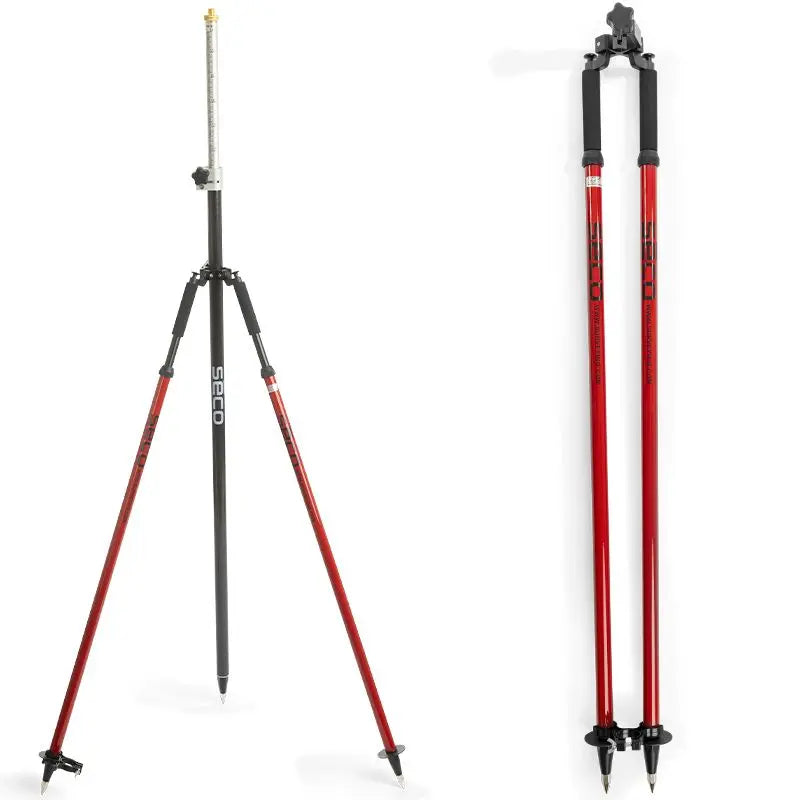

Freestanding Pole Support

The bipod allows a surveyor to create a stable, freestanding setup for compatible:

• GNSS antenna poles
• Prism poles
• Range poles
• Rover rods
• Other survey poles within the supported diameter range

This allows the operator to temporarily step away from the pole while maintaining its position during setup, data entry, measurements, or layout work.

Independent Thumb-Release Legs

Each leg adjusts independently using a thumb-release mechanism.

Independent leg adjustment allows the bipod to be leveled and stabilized on slopes, uneven ground, curbs, and other irregular surfaces commonly encountered during surveying and construction work.

Adjustable Working Height

The legs extend to a maximum length of 6 feet, or approximately 1.8 meters.

When collapsed, the bipod measures 43 inches, or approximately 109 centimeters, making it easier to transport in a survey vehicle or carry between measurement points.

Included Bag and Leg Clip

A carrying bag is included to protect and organize the bipod during transportation and storage.

The included leg clip holds the collapsed legs together, helping prevent them from spreading or moving while the bipod is being carried.

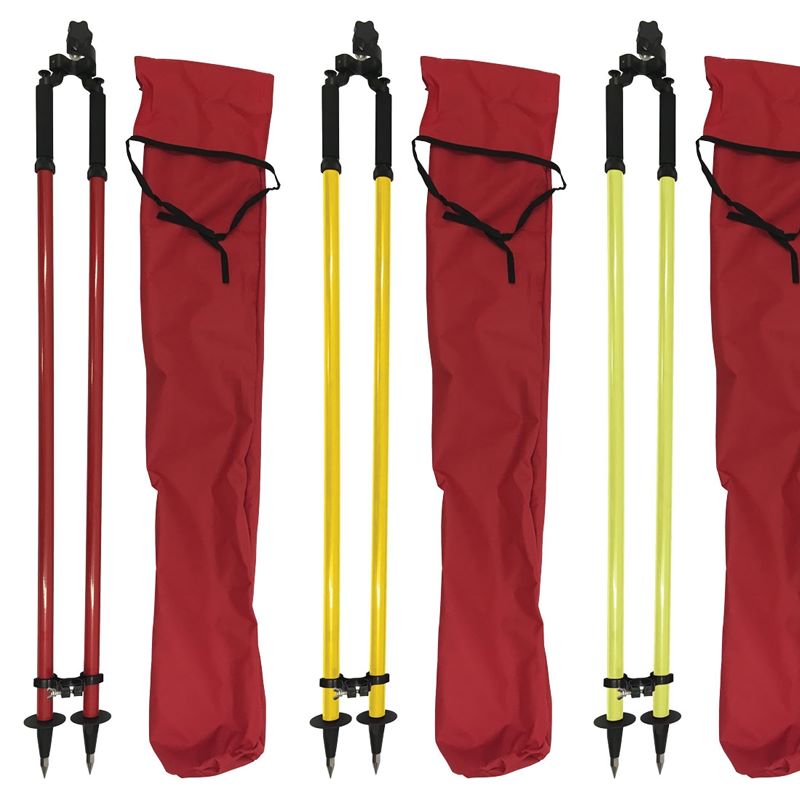

Available Colors and Variants

The Construction Series Thumb-Release Bipod is offered in multiple color variants, including:

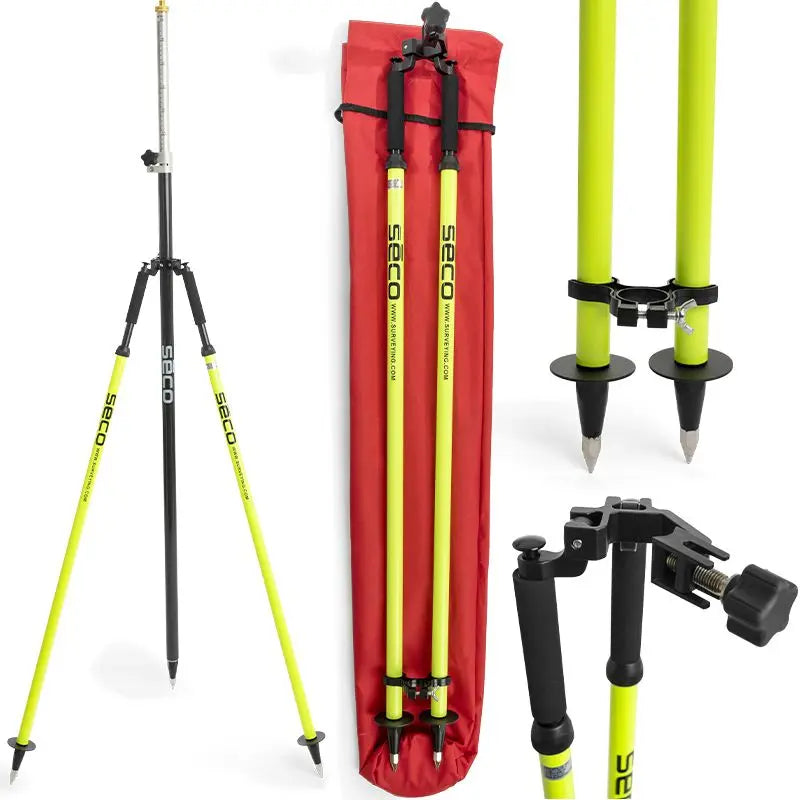

• 5217-40-FLY – Flo Yellow

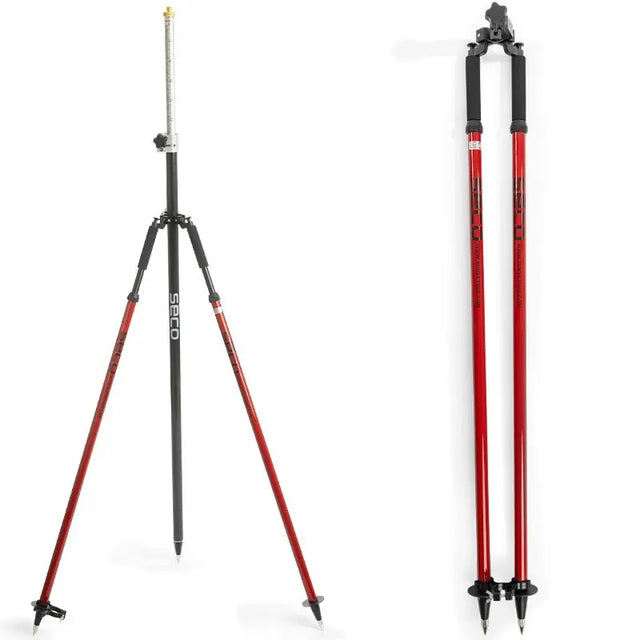

• 5217-40-RED – Red

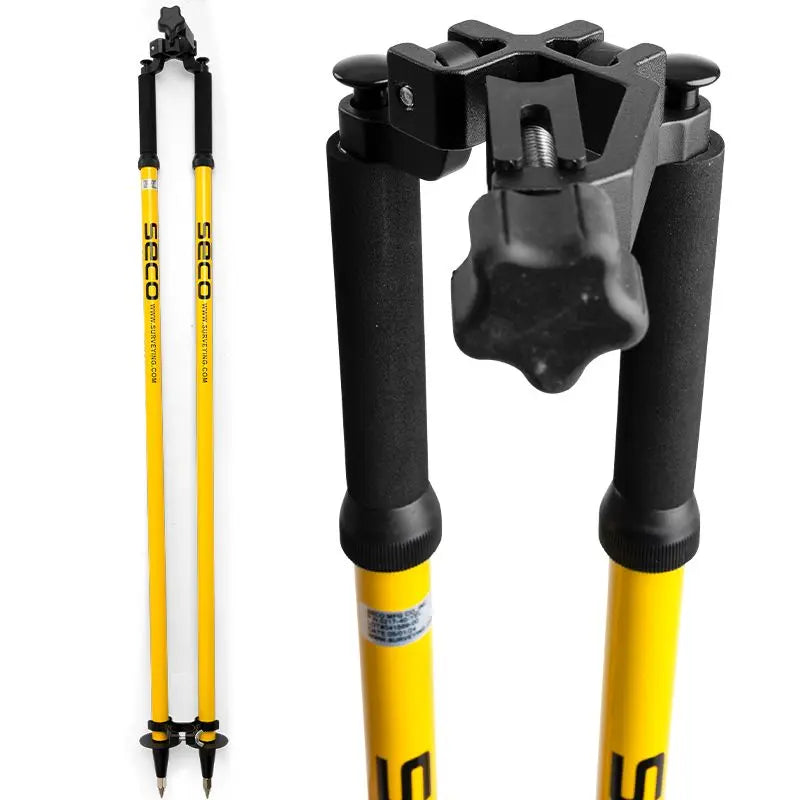

• 5217-40-YEL – Yellow

Select the preferred color before adding the bipod to the cart.

Ideal Applications

• GNSS rover surveying
• Prism pole support
• Robotic total station surveying
• Construction layout
• Boundary surveying
• Topographic surveying
• Utility mapping
• Grade staking
• Engineering fieldwork
• Temporary freestanding pole setups

Technical Specifications

What’s Included

• 1 × SECO Construction Series Thumb-Release Bipod
• Selected 5217-40 color variant
• 1 × Carrying bag
• 1 × Leg clip

GNSS pole, prism pole, range pole, antenna, prism, receiver, and other accessories are sold separately.

Stable Support Without Crushing the Pole

The SECO 5217-40 Construction Series Thumb-Release Bipod combines independent leg adjustment, a six-foot maximum extension, and a no-crush head that protects compatible carbon-fiber poles. Its open-clamp design and included carrying accessories make it a practical choice for everyday survey and construction fieldwork.
