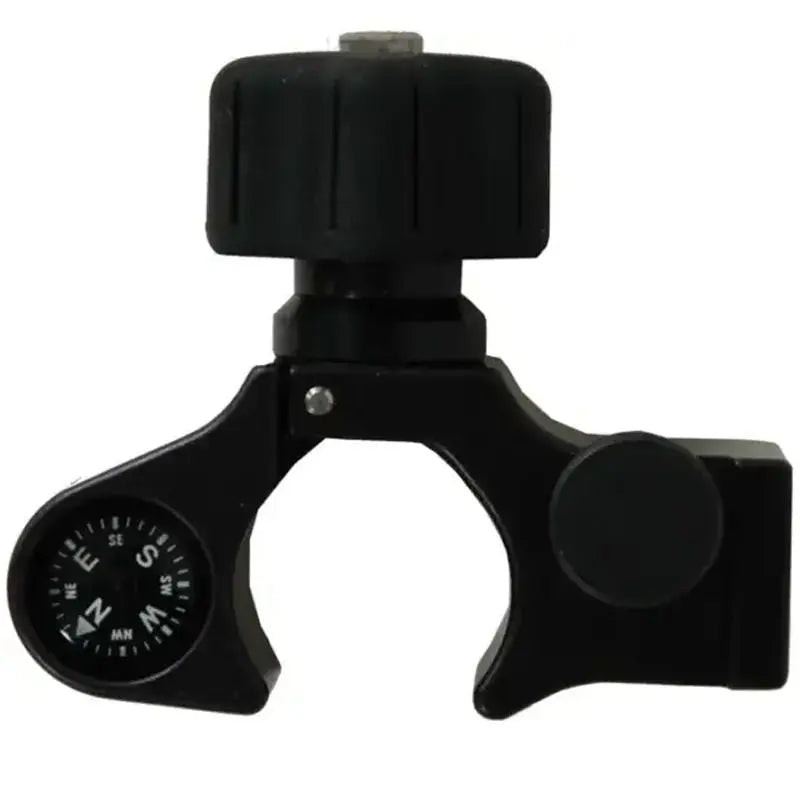

SECO 5200-154 Claw Pole Clamp with Compass

Overview

The SECO 5200-154 Claw Pole Clamp with Compass is a durable controller-mounting clamp designed for survey poles, rover rods, and antenna poles.

SECO’s Claw Series limits the clamping action to help prevent the user from overtightening the clamp screw and accidentally crushing or cracking the pole. The clamp is manufactured from anodized aluminum for dependable daily use in surveying and construction environments.

A built-in compass provides a convenient directional reference during fieldwork. The SECO 5200-154 is compatible with existing SECO Quick-Release cradles and can also be paired with a Claw Quick-Release Cradle for mounting a compatible data collector or field controller.

Key Features

• SECO Claw pole clamp
• SECO part number: 5200-154
• Built-in compass
• Clamping travel is limited to prevent overtightening
• Helps reduce the risk of crushing or cracking the pole
• Designed for 1.25-inch OD poles
• Compatible pole diameter: 32 mm
• Can be used with compatible 1-inch OD poles
• Optional Delrin Adapter increases a 1-inch pole to 1.25 inches OD
• Compatible adapter: SECO D11145
• Compatible with existing SECO Quick-Release cradles
• Compatible with SECO Claw Quick-Release Cradles
• Quick-Release cradles plug directly into the clamp
• Manufactured from durable anodized aluminum
• Cradle, adapter, controller, and pole are sold separately

Claw Over-Tightening Protection

The SECO Claw Series is designed to help prevent pole damage caused by excessive tightening of the clamp screw.

Its clamping function is limited so the operator cannot continue tightening beyond the intended range. This helps reduce the possibility of crushing, cracking, or permanently deforming compatible survey poles and rover rods.

Built-In Compass

A compass is integrated directly into the SECO 5200-154 pole clamp.

The compass provides a convenient directional reference during survey, construction layout, mapping, and data-collection work without requiring the operator to retrieve a separate handheld compass.

Quick-Release Cradle Compatibility

Compatible SECO Quick-Release cradles plug directly into the pole clamp, creating a secure mounting system for data collectors and field controllers.

The clamp can be paired with:

• Existing SECO Quick-Release cradles
• SECO Claw Quick-Release Cradles
• Compatible data collector cradles
• Compatible controller cradles

The appropriate cradle must be selected separately for the specific controller or data collector being used.

Pole Compatibility

The SECO 5200-154 is designed primarily for poles with a 1.25-inch, or 32 mm, outside diameter.

A compatible 1-inch, or 25.4 mm, pole may also be used. The optional SECO D11145 Delrin Adapter increases the outside diameter of a 1-inch pole to 1.25 inches for a proper clamp fit.

Compatible pole types may include:

• GNSS rover rods
• Survey poles
• Antenna poles
• Prism poles
• Other compatible controller-mounting poles

Always verify the outside diameter of the pole before ordering.

Anodized Aluminum Construction

The clamp is manufactured from durable anodized aluminum for dependable use in demanding field environments.

Its construction provides a balance of strength, low weight, and corrosion resistance for regular surveying, construction layout, and data-collection work.

Ideal Applications

• GNSS rover surveying
• Robotic total station operation
• Construction layout
• Boundary surveying
• Topographic surveying
• Utility mapping
• GIS data collection
• Data collector mounting
• Field controller mounting
• Engineering fieldwork

Technical Specifications

What’s Included

• 1 × SECO Claw Pole Clamp with Compass
• SECO p/n: 5200-154

Quick-Release cradle, data collector, controller, pole, and SECO D11145 Delrin Adapter are sold separately.

Protected Controller Mounting with Directional Reference

The SECO 5200-154 combines Claw over-tightening protection, durable anodized aluminum construction, Quick-Release cradle compatibility, and an integrated compass. It provides a practical mounting platform for controllers used on standard 1.25-inch survey poles and compatible 1-inch pole configurations.
