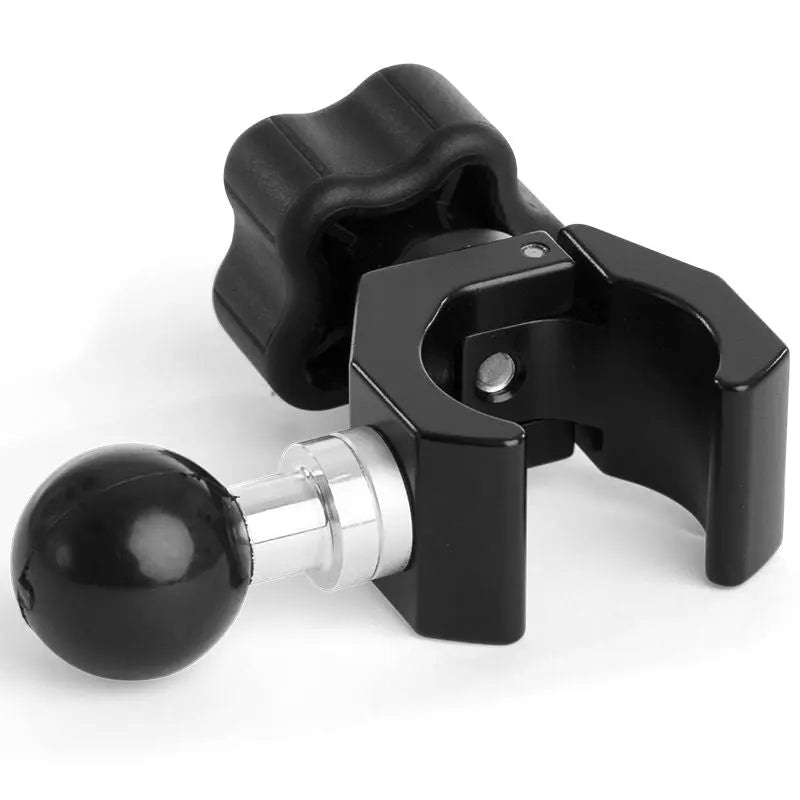

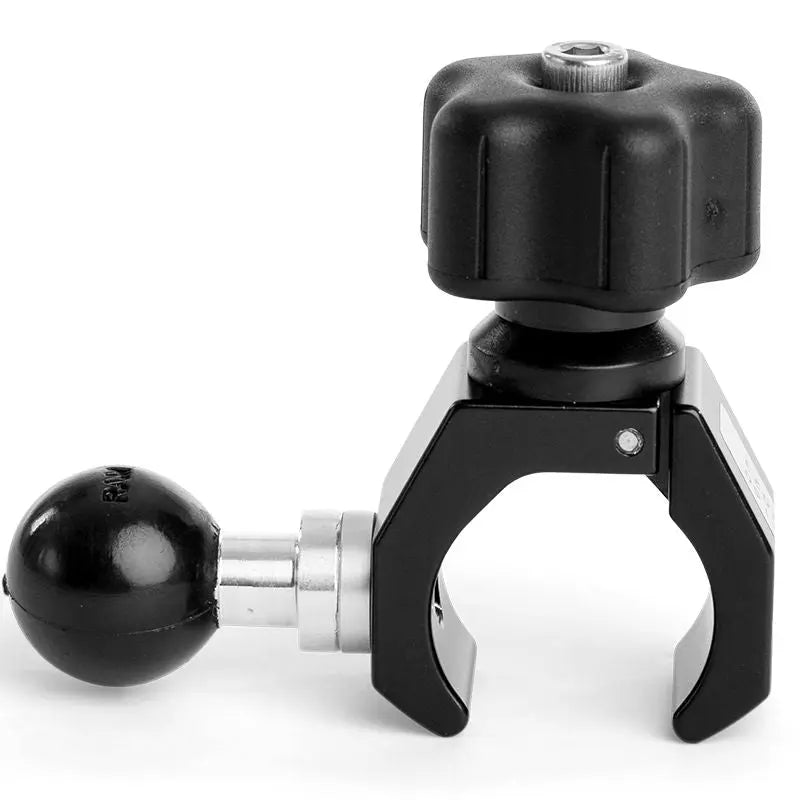

SECO 5200-160 Claw Clamp with 1-Inch Ball

Overview

The SECO 5200-160 Claw Clamp with 1-Inch Ball is a durable pole-mounting component designed for building a customized data collector or controller mounting system.

Manufactured from anodized aluminum, the clamp uses SECO’s Claw technology to tighten securely around compatible poles without crushing or damaging the pole. The integrated 1-inch ball provides a flexible connection point for compatible ball-and-socket mounting components, allowing the attached data collector or controller to be positioned at a comfortable viewing angle.

This plain clamp is designed for 1.25-inch outside-diameter poles and can be combined with compatible arms, cradles, and mounting components to create a field setup suited to the operator’s equipment.

Key Features

• SECO Claw pole clamp
• SECO part number: 5200-160
• Plain clamp configuration
• Integrated 1-inch ball
• Designed for 1.25-inch OD poles
• Compatible pole diameter: 32 mm
• Claw technology provides secure tightening
• Designed to reduce the risk of crushing the pole
• Supports adjustable ball-and-socket mounting configurations
• Allows compatible data collectors to be positioned at multiple angles
• Manufactured from durable anodized aluminum
• Designed for customized controller mounting systems
• Cradle, arm, and controller are sold separately

Claw Pole-Clamping Technology

SECO’s Claw technology is designed to provide maximum tightening force around the pole while helping prevent the pole from being crushed.

The clamp securely grips a compatible 1.25-inch outside-diameter pole, providing a stable mounting point for data collectors, controllers, and other field equipment.

Integrated 1-Inch Ball

The SECO 5200-160 includes an integrated 1-inch ball for connecting compatible ball-and-socket mounting components.

When combined with a compatible socket arm and cradle, the ball joint allows the mounted data collector or controller to be adjusted into a variety of positions. This flexibility helps operators set the screen at a comfortable angle for viewing, data entry, and field operation.

Build a Customized Mounting System

The plain clamp configuration allows users to select the additional components needed for their specific controller and field setup.

Compatible mounting components may include:

• Ball-and-socket mounting arms
• Data collector cradles
• Controller cradles
• Compatible 1-inch ball mounting accessories
• Other SECO Claw mounting components

Additional components must be selected separately based on the data collector or controller being used.

Designed for 1.25-Inch OD Poles

The clamp is designed to fit poles with a 1.25-inch, or 32 mm, outside diameter.

Compatible applications may include:

• Survey rover rods
• GNSS antenna poles
• Prism poles
• Robotic total station poles
• Other compatible 1.25-inch OD field poles

Always verify the outside diameter of the pole before ordering.

Ideal Applications

• GNSS rover surveying
• Robotic total station operation
• Construction layout
• Boundary surveying
• Topographic surveying
• Utility mapping
• GIS data collection
• Controller mounting
• Customized field equipment setups

Technical Specifications

What’s Included

• 1 × SECO Claw Clamp with 1-Inch Ball – Plain
• SECO p/n: 5200-160

Ball-and-socket arm, cradle, data collector, controller, pole, and other mounting accessories are sold separately.

Flexible Mounting for Field Controllers

The SECO 5200-160 provides a durable foundation for creating a customized ball-and-socket controller mounting system. Its secure Claw design, anodized aluminum construction, and integrated 1-inch ball make it a practical choice for mounting field equipment on 1.25-inch OD poles.
