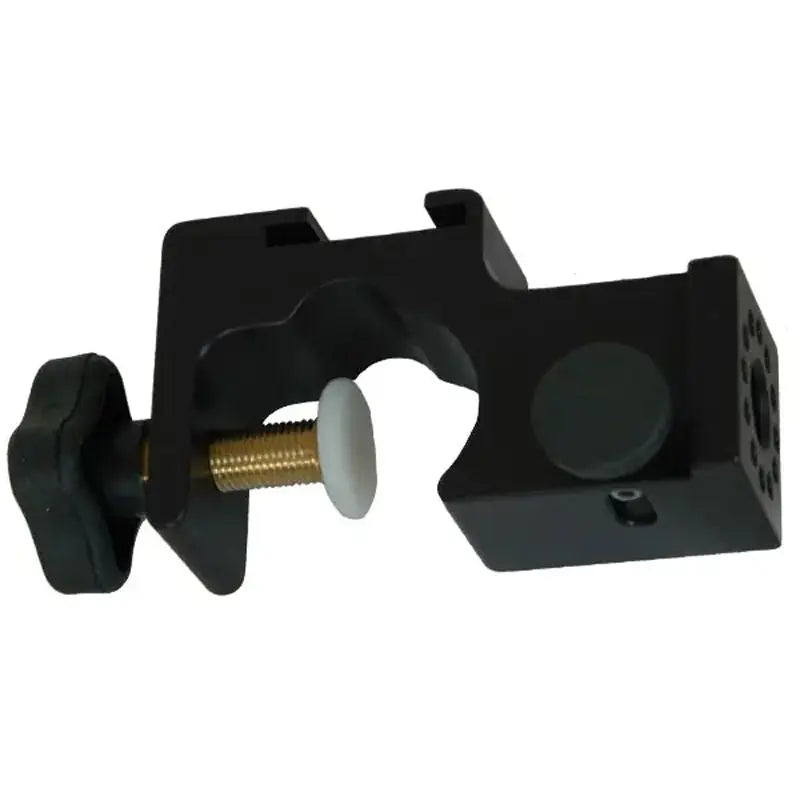

SECO 5198-153 Bracket with Battery Slot and Quick Release

Overview

The SECO 5198-153 Bracket with Battery Slot and Quick Release is a durable pole-mounting bracket designed for securely attaching compatible data collector and controller cradles to survey poles, antenna poles, and rover rods.

Built around SECO’s original Open Clamp Pole Bracket and Cradle system, this bracket allows the attached cradle to rotate into a comfortable viewing position with the push of a quick-release button. It also includes an integrated battery slot, providing convenient storage for a compatible spare battery during fieldwork.

Key Features

• SECO Open Clamp pole bracket
• SECO part number: 5198-153
• Includes integrated battery slot
• Includes quick-release cradle connection
• Designed for 1.25 in outside-diameter poles and rods
• Quick-release button allows the cradle to rotate
• Stainless-steel clamp screw secures the bracket to the pole
• Black anodized aluminum construction
• Lightweight, durable, and corrosion resistant
• Compatible with SECO standard and Claw Quick-Release cradles
• Cradle and controller are sold separately

Quick-Release Cradle Adjustment

The bracket’s quick-release mechanism allows the attached controller cradle to rotate without removing the entire mount from the pole. Pressing the release button lets the operator reposition the cradle to a more comfortable viewing angle for reading the screen or entering field data.

This adjustable design is useful when switching between walking, measuring, staking, and data-entry positions.

Integrated Battery Slot

The SECO 5198-153 includes a built-in battery slot for carrying a compatible spare controller battery directly on the pole bracket. Keeping an additional battery close at hand can help reduce downtime during long survey and construction layout projects.

Battery compatibility depends on the controller and cradle configuration being used.

Open Clamp Pole Mounting

The aluminum open clamp attaches directly to standard 1.25-inch outside-diameter survey poles and rover rods. A stainless-steel clamp screw provides a secure connection while allowing the bracket to be installed, removed, or repositioned as needed.

The open clamp design makes installation easier because the bracket can be attached to the side of the pole without sliding it over the top.

Compatible Mounting System

The SECO 5198-153 is designed to work with:

• SECO standard Quick-Release cradles
• SECO Claw Quick-Release cradles
• Compatible data collector cradles
• Compatible controller cradles
• 1.25-inch OD rover rods
• 1.25-inch OD antenna poles

The appropriate cradle must be selected separately for the specific data collector or controller.

Ideal Applications

• GNSS rover surveying
• Robotic total station operation
• Construction layout
• Boundary surveying
• Topographic surveying
• Utility mapping
• GIS data collection
• Engineering fieldwork

Technical Specifications

What’s Included

• 1 × SECO Bracket with Battery Slot and Quick Release
  SECO p/n: 5198-153

Controller cradle, data collector, battery, survey pole, and other accessories are sold separately.

Efficient Controller Mounting for Field Crews

The SECO 5198-153 provides a durable and adjustable mounting platform for compatible controller cradles. Its quick-release design, integrated battery slot, and rugged anodized aluminum construction make it a practical choice for everyday surveying and construction work.
