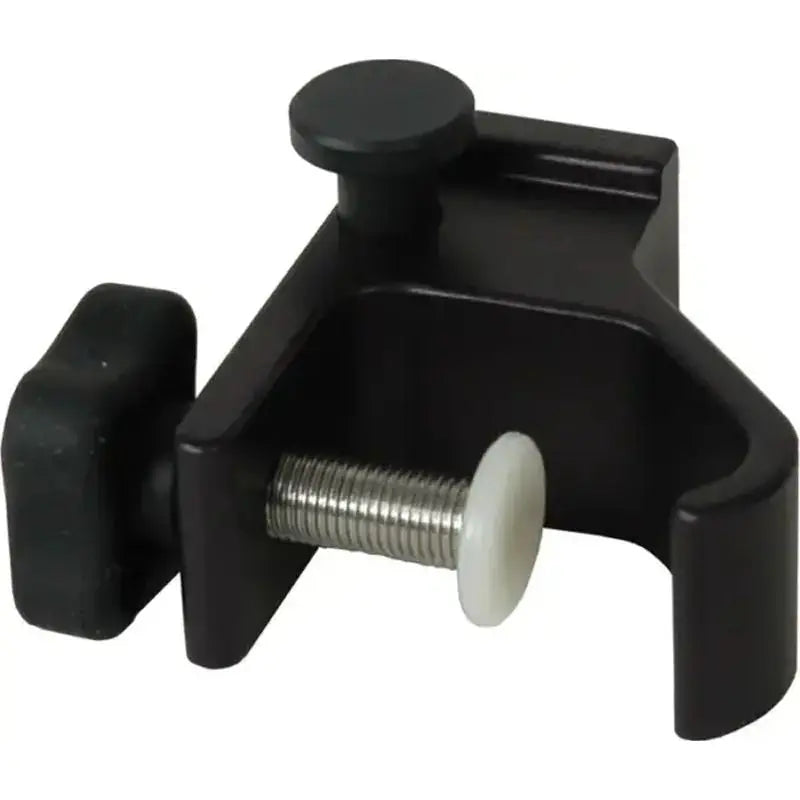

SECO 5198-152 Bracket with 1.5 inch OD Pole

The SECO 5198-152 Bracket with 1.5-Inch OD Pole Clamp is a durable mounting bracket designed for attaching compatible data collector and controller cradles to larger survey poles, antenna poles, and rover rods.

Built around SECO’s original Open Clamp Pole Bracket and Cradle system, the bracket provides a fast and efficient way to mount field controllers while keeping them positioned for comfortable viewing and operation.

The quick-release mechanism allows the attached SECO Claw Quick-Release Cradle or standard cradle to rotate without removing the bracket from the pole. Its black anodized aluminum construction provides a lightweight, durable, and corrosion-resistant mounting solution for everyday field use.

Key Features

• SECO original Open Clamp pole bracket design
• SECO part number: 5198-152
• Designed for larger 1.5-inch outside-diameter poles and rods
• Compatible with SECO Claw Quick-Release Cradles
• Compatible with SECO standard cradles
• Quick-release button allows the attached cradle to rotate
• Helps position the controller at a comfortable viewing angle
• Stainless-steel clamp screw secures the bracket to the pole
• Open clamp design allows side installation
• Manufactured from black anodized aluminum
• Lightweight, durable, and corrosion resistant
• Suitable for data collectors and field controllers

Quick-Release Cradle Adjustment

The SECO 5198-152 features a quick-release button that allows the attached cradle to rotate into a more comfortable operating position.

Pressing the release button lets the operator adjust the viewing angle of the data collector or controller without removing the entire bracket from the pole. This makes it easier to reposition the screen when transitioning between walking, measuring, staking, and entering field data.

Open Clamp Pole Mounting

The aluminum open clamp attaches directly to compatible 1.5-inch outside-diameter poles and rods. Unlike closed-ring brackets that must slide over the end of a pole, the open clamp can be installed directly from the side.

A stainless-steel clamp screw tightens the bracket securely against the pole while still allowing it to be removed or repositioned when necessary.

Designed for Larger 1.5-Inch Poles

The SECO 5198-152 is specifically designed for larger poles and rover rods with a 1.5-inch outside diameter.

This makes it suitable for field setups that use heavier-duty or oversized poles that are not compatible with standard 1.25-inch pole brackets.

Always verify the outside diameter of the pole before ordering.

Compatible Mounting System

The SECO 5198-152 is designed for use with:

• SECO Claw Quick-Release Cradles
• SECO standard controller cradles
• Compatible data collector cradles
• Compatible controller cradles
• 1.5-inch OD rover rods
• 1.5-inch OD antenna poles
• Other compatible 1.5-inch OD survey poles

The appropriate cradle should be selected based on the specific data collector or controller being used.

Ideal Applications

• GNSS rover surveying
• Robotic total station operation
• Construction layout
• Boundary surveying
• Topographic surveying
• Utility mapping
• GIS data collection
• Engineering fieldwork
• Survey controller mounting

Technical Specifications

What’s Included

• 1 × SECO Bracket with 1.5-Inch OD Pole Clamp
• SECO p/n: 5198-152

Adjustable Controller Mounting for Larger Survey Poles

The SECO 5198-152 provides a durable and adjustable mounting platform for data collectors and controllers used with larger 1.5-inch OD poles. Its open clamp design, stainless-steel clamp screw, and quick-release cradle adjustment make it a practical choice for demanding survey and construction fieldwork.
