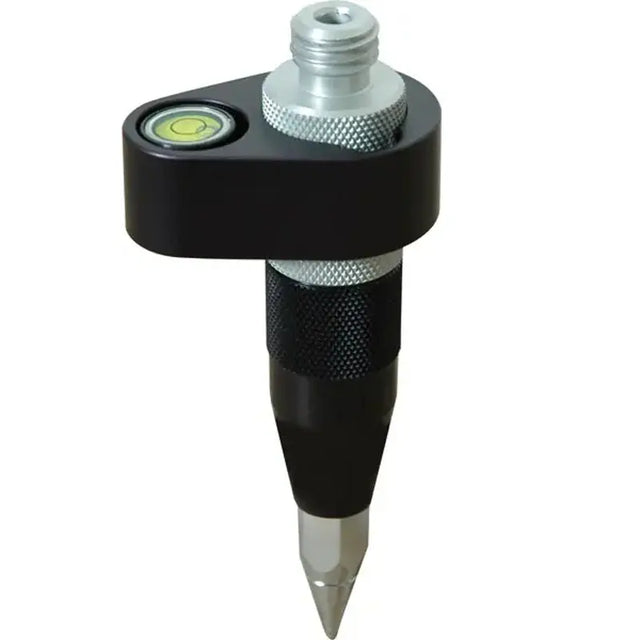

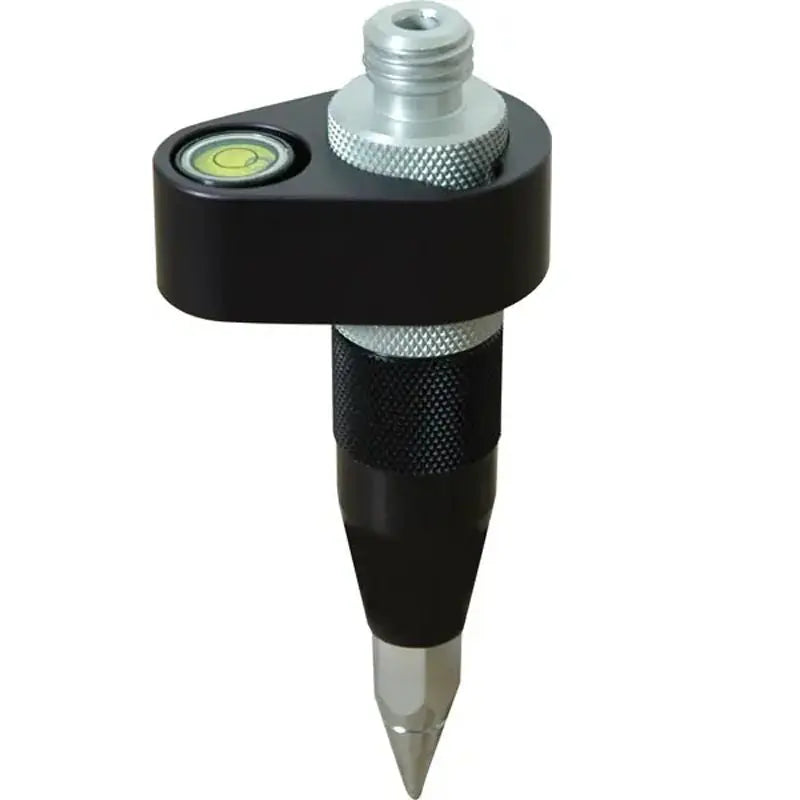

SECO 5010-01 Handheld Mini Rod - 120 mm
SECO 5010-01 Handheld Mini Rod - 120 mm is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Your order will be carefully processed and shipped as soon as possible. A tracking number will be sent via email and/or text once the shipping label is created. For more details, please view our 60-Day Return Policy.
Speak With An Expert
Speak With An Expert
Why Choose Absolute Accuracy
Why Choose Absolute Accuracy
Since 2008, we’ve been helping pros across Los Angeles get the right gear for the job. Our team’s got your back with certified, calibrated surveying and construction equipment you can count on. We offer quick shipping, solid support, and great prices on top brands. Shop with confidence. Everything we sell is tested, reliable, and ready to perform.
SECO 5010-01 Handheld Mini Rod - 120 mm
All Instruments Will Ship Calibrated
Certification Provided For Optical & Lasers
Description
Description
Overview
The SECO 5010-01 Handheld Mini Rod is a compact surveying rod designed for close-range measurements, stakeout work, and other applications where a full-size prism or rover pole would be impractical.
With a fixed height of 120 mm (0.394 ft), the mini rod provides a short and stable setup for positioning compatible surveying accessories near the ground. An integrated 40-minute vial helps the operator hold the rod vertically, while the removable tip allows the point to be replaced when worn or damaged.
Key Features
- Compact handheld mini rod
- SECO part number: 5010-01
- Fixed height of 120 mm
- Equivalent height of 0.394 ft
- Integrated 40-minute vial
- Removable and replaceable point
- Replacement standard point: SECO 5194-05
- Designed for close-range surveying applications
- Compact size for convenient field storage and transport
Compact 120 mm Height
The SECO 5010-01 has a fixed height of 120 mm, or 0.394 ft. Its short profile makes it useful for measurements close to the ground and in locations where a standard prism pole would be unnecessarily tall or difficult to position.
The known rod height can be entered into compatible surveying equipment or field software when accounting for the measurement setup.
Integrated 40-Minute Vial
A built-in 40-minute vial helps the operator keep the mini rod vertical while taking measurements.
The vial provides a convenient visual reference when positioning the rod over a point, helping improve setup consistency during stakeout and other short-range fieldwork.
Removable and Replaceable Point
The bottom point can be removed for replacement if it becomes worn or damaged through regular field use.
The compatible replacement is:
- SECO Standard Replacement Point
- SECO part number: 5194-05
The replaceable design extends the usable life of the mini rod without requiring the complete assembly to be replaced.
Ideal Applications
- Construction stakeout
- Close-range prism positioning
- Survey control work
- Topographic surveying
- Boundary surveying
- Layout measurements
- Measurements near ground level
- Confined or restricted field locations
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Handheld mini rod |
| SECO Part Number | 5010-01 |
| Fixed Height | 120 mm |
| Height in Feet | 0.394 ft |
| Vial Accuracy | 40 minutes |
| Tip Type | Removable |
| Replacement Point | SECO 5194-05 |
What’s Included
- 1 × SECO Handheld Mini Rod
- SECO p/n: 5010-01
- 1 × Removable standard point
Replacement point SECO 5194-05 is sold separately.
Compact Survey Rod for Close-Range Measurements
The SECO 5010-01 Handheld Mini Rod provides a compact and convenient solution for positioning surveying accessories close to the ground. Its known 120 mm height, integrated 40-minute vial, and replaceable point make it a practical accessory for everyday field measurements and stakeout work.
