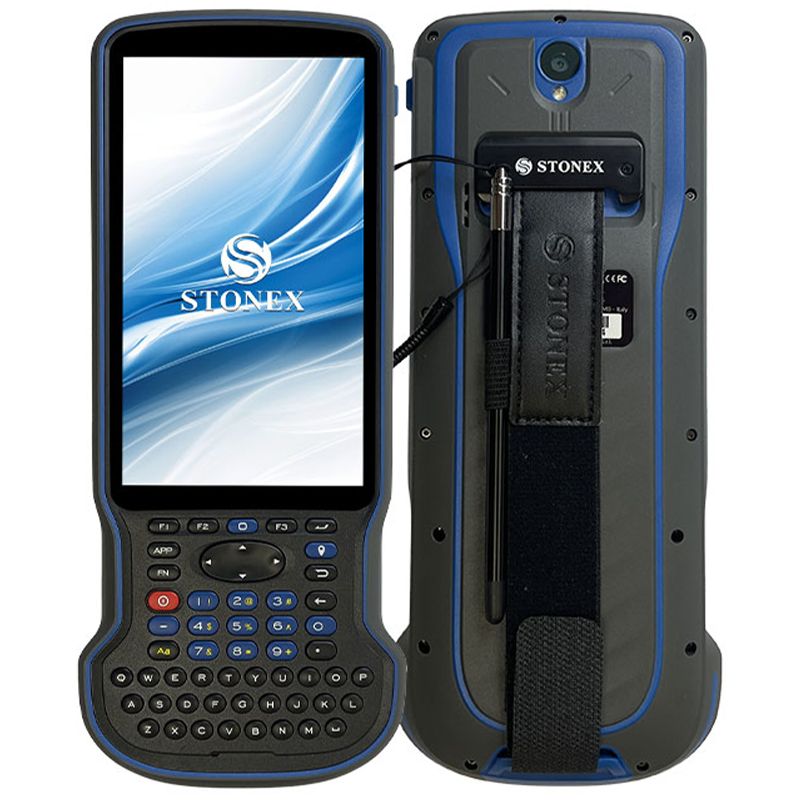

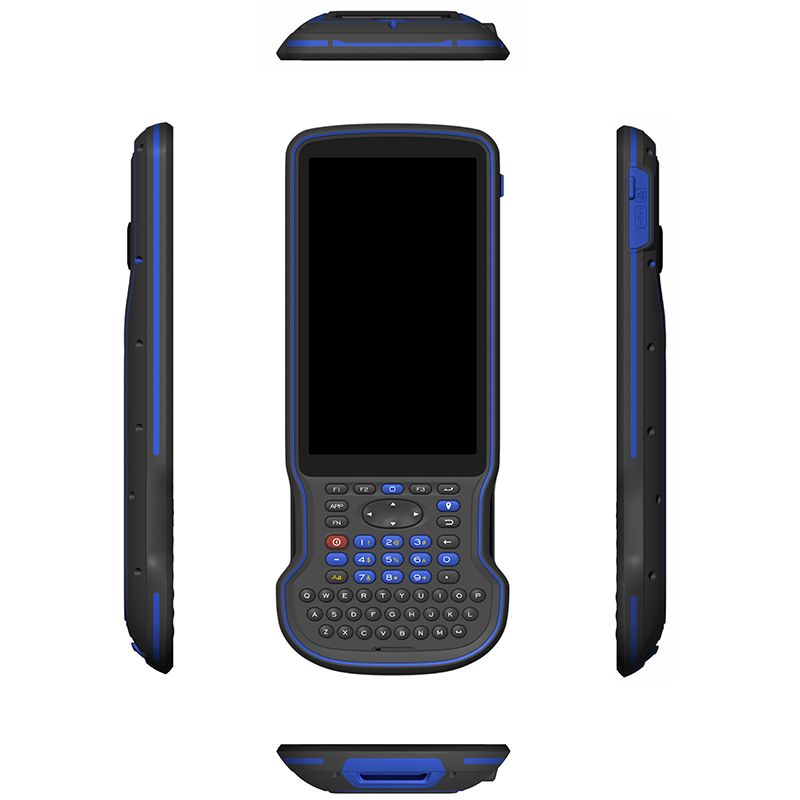

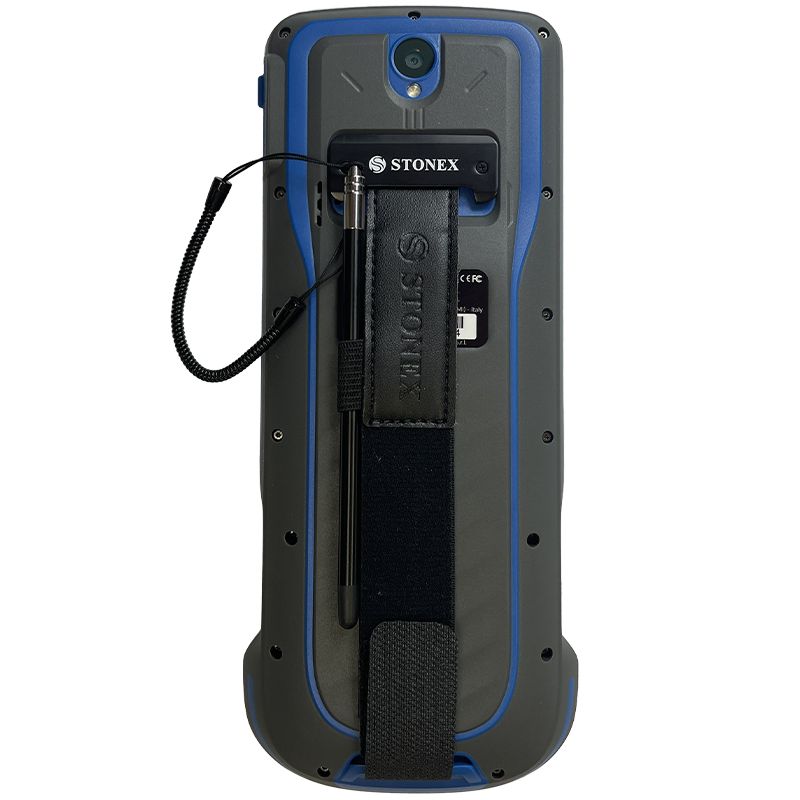

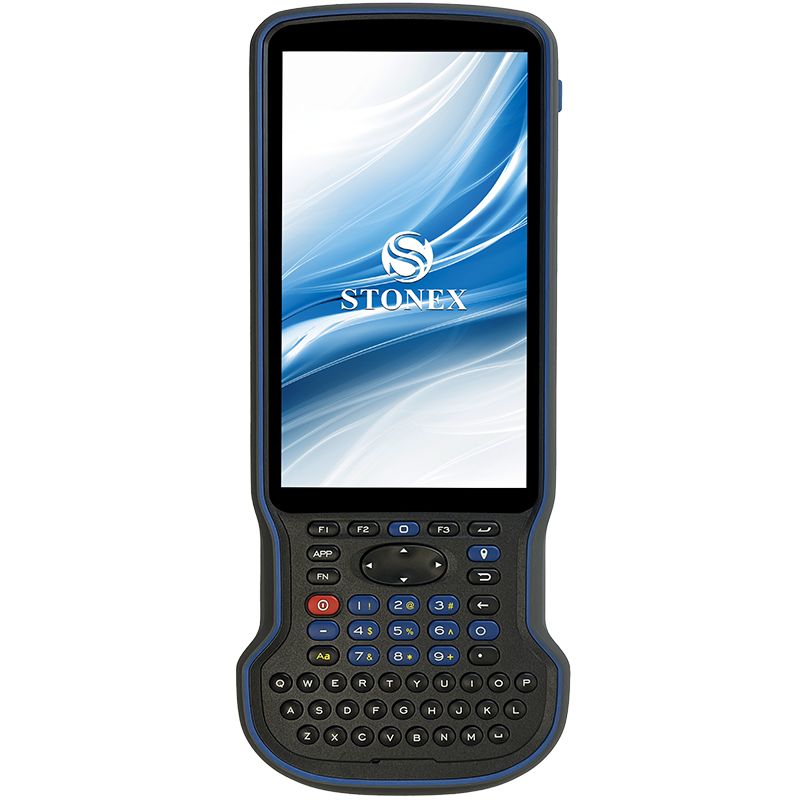

Stonex S55/S55G Android Field Controller & Pole Bracket

The Stonex S55 Series offers two powerful field controllers, giving surveyors the flexibility to choose the device that best fits their workflow. Both models are rugged, high-performance data collectors designed for surveying, mapping, and geospatial applications, but they come with key differences to match different field needs.

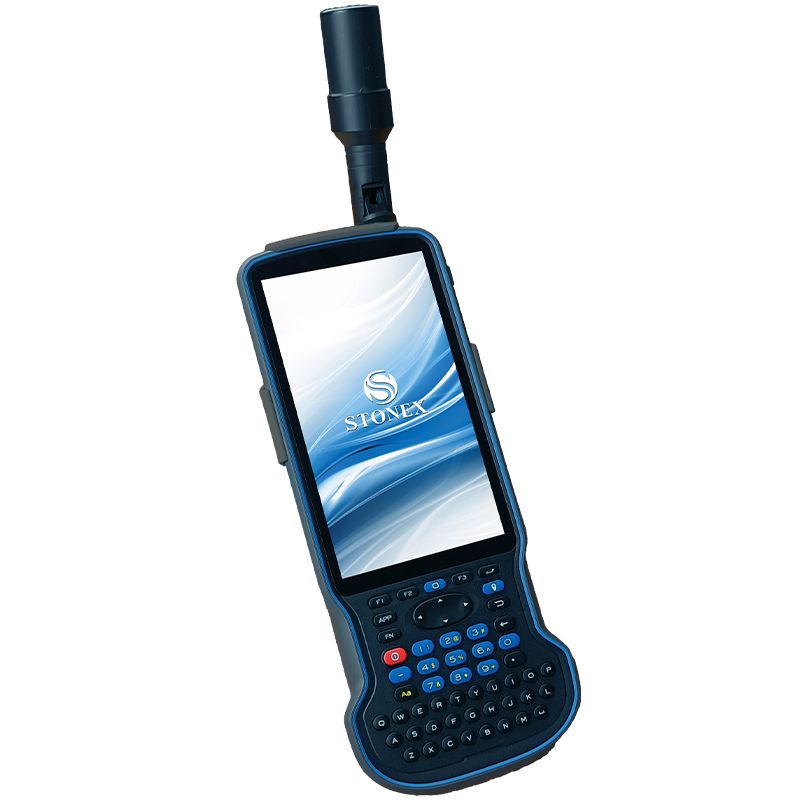

The Stonex S55G stands out with its built-in GNSS receiver, providing 1408 channels for real-time satellite tracking. This makes the S55G perfect for GNSS surveying without the need for an external receiver, so you can capture accurate positioning data directly from the controller itself.

The standard S55, on the other hand, works as a dedicated data collector without an internal GNSS receiver, making it ideal for pairing with external GNSS systems and total stations. Both models run on Android 12, feature a 5.5-inch high-resolution display, and offer Wi-Fi, Bluetooth 5.0, and 4G LTE connectivity for seamless communication between field and office.

Each S55 Series controller is built to endure harsh environments with IP67 protection, a durable 1.2-meter drop rating, and long-lasting 9000mAh batteries. No matter which model you choose, you’ll get a high-performance device that meets the demands of professional surveying work.

Cube-a Software is the powerful field software designed to work seamlessly with the Stonex S55 Series, giving surveyors complete control over their equipment and data collection workflows. With Cube-a, you can easily connect to GNSS receivers, total stations, or both, depending on your project requirements. The software offers intuitive survey and stakeout tools, advanced coordinate geometry (COGO) functions, and customizable data collection forms, ensuring you have everything you need for precise, efficient fieldwork. Whether you are capturing points with GNSS, laying out designs with a total station, or switching between the two, Cube-a keeps you in control and streamlines your work from field to office.

Key Differences:

• S55G: Internal 1408-channel GNSS receiver for standalone positioning
• S55: No internal GNSS, works best as a controller for external receivers and total stations

Key Features:

• 5.5-inch capacitive touch display with 1920 x 1080 resolution
• Android 12 operating system for modern app compatibility
• Wi-Fi, Bluetooth 5.0, and 4G LTE connectivity
• 9000mAh battery with up to 18 hours of operation
• Rugged IP67 design, resistant to dust, water, and 1.2m drops
• Compatible with Stonex Cube-a software for surveying workflows

Whether you need a standalone GNSS field controller or a dedicated data collector for your GNSS rover or total station, the Stonex S55 Series offers a reliable, flexible solution for professional surveyors.

What's included:

• S55 Pole Bracket (30-350734)
• S55 Pen
• S55 Hand Strap
• S55 Battery
• S55 Charger Adaptors
• S55 Screen Sticker
• Software of your choice (optional)
