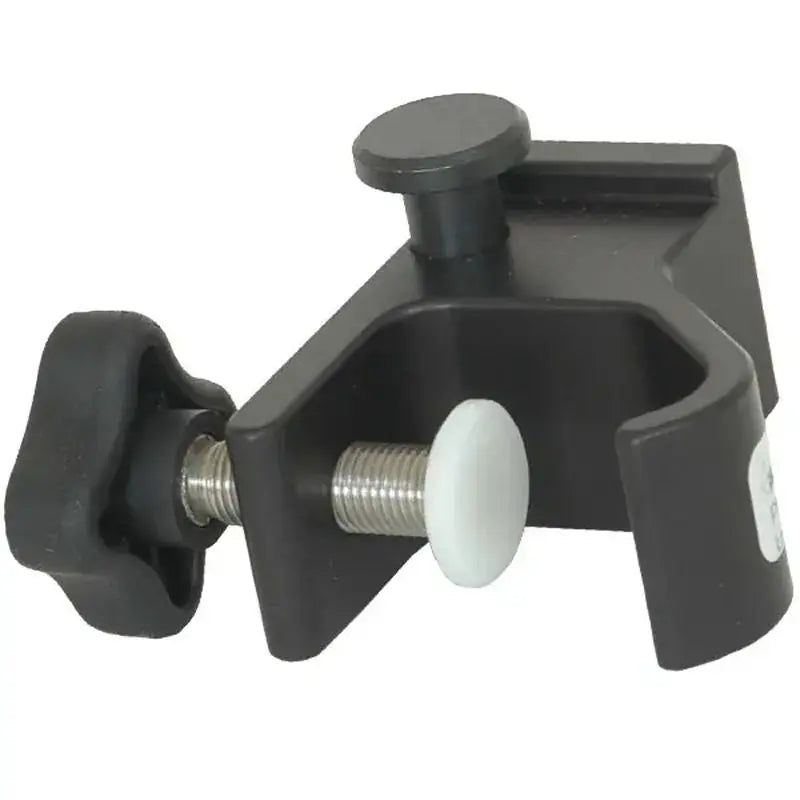

SECO 5198-052 Plain Open Clamp Pole Bracket

Overview

The SECO 5198-052 Plain Bracket is a durable open-clamp pole bracket designed for mounting compatible data collector and controller cradles to survey poles, antenna poles, and rover rods.

Based on SECO’s original Open Clamp Pole Bracket and Cradle system, the bracket provides a fast and efficient way to attach field controllers while keeping them positioned for comfortable viewing and operation.

The adjustable clamp fits standard poles and rods with outside diameters ranging from 0.75 to 1.25 inches. Its quick-release mechanism allows an attached SECO Claw Quick-Release Cradle or standard cradle to rotate without removing the bracket from the pole.

Key Features

• SECO original Open Clamp pole bracket
• SECO part number: 5198-052
• Plain bracket configuration
• Fits poles and rods from 0.75 to 1.25 inches OD
• Compatible with SECO Claw Quick-Release Cradles
• Compatible with SECO standard cradles
• Quick-release button allows the cradle to rotate
• Helps position controllers at a comfortable viewing angle
• Stainless-steel clamp screw secures the bracket
• Open clamp attaches from the side of the pole
• Manufactured from black anodized aluminum
• Lightweight, durable, and corrosion resistant
• Cradle and controller are sold separately

Quick-Release Cradle Adjustment

The SECO 5198-052 features a quick-release button that allows the attached controller cradle to rotate into a more comfortable operating position.

Pressing the button releases the cradle’s rotational adjustment, allowing the operator to change the screen angle without removing or loosening the entire pole bracket. This makes it easier to reposition the controller while walking, measuring, staking, or entering field data.

Adjustable Open Clamp

The open clamp is designed to fit standard survey poles and rover rods with outside diameters ranging from 0.75 to 1.25 inches.

Unlike closed-ring brackets that must be installed from the end of a pole, the open clamp attaches directly from the side. This makes the bracket easier to install, remove, and reposition around other pole-mounted accessories.

A stainless-steel clamp screw tightens the bracket securely around the pole.

Compatible Cradle System

The SECO 5198-052 is designed to work with:

• SECO Claw Quick-Release Cradles
• SECO standard Quick-Release cradles
• Compatible data collector cradles
• Compatible controller cradles
• Survey poles from 0.75 to 1.25 inches OD
• Rover rods from 0.75 to 1.25 inches OD
• Compatible antenna poles

The appropriate cradle must be selected separately for the specific data collector or controller.

Black Anodized Aluminum Construction

The bracket is manufactured from black anodized aluminum, providing a combination of low weight, durability, and corrosion resistance.

This rugged construction is designed for repeated installation and adjustment during everyday surveying and construction fieldwork.

Ideal Applications

• GNSS rover surveying
• Robotic total station operation
• Construction layout
• Boundary surveying
• Topographic surveying
• Utility mapping
• GIS data collection
• Engineering fieldwork
• Controller and data collector mounting

Technical Specifications

What’s Included

• 1 × SECO Plain Open Clamp Pole Bracket
• SECO p/n: 5198-052

Controller cradle, data collector, controller, survey pole, and other accessories are sold separately.

Adjustable Controller Mounting for Standard Survey Poles

The SECO 5198-052 provides a durable and flexible mounting platform for compatible controller cradles. Its adjustable open clamp, quick-release rotation, and anodized aluminum construction make it suitable for everyday survey and construction applications.
