Schonstedt Rex Receiver Pipe & Cable Locator
All Instruments Will Ship Calibrated
Certification Provided For Optical & Lasers
Description
Description
Technical Specifications

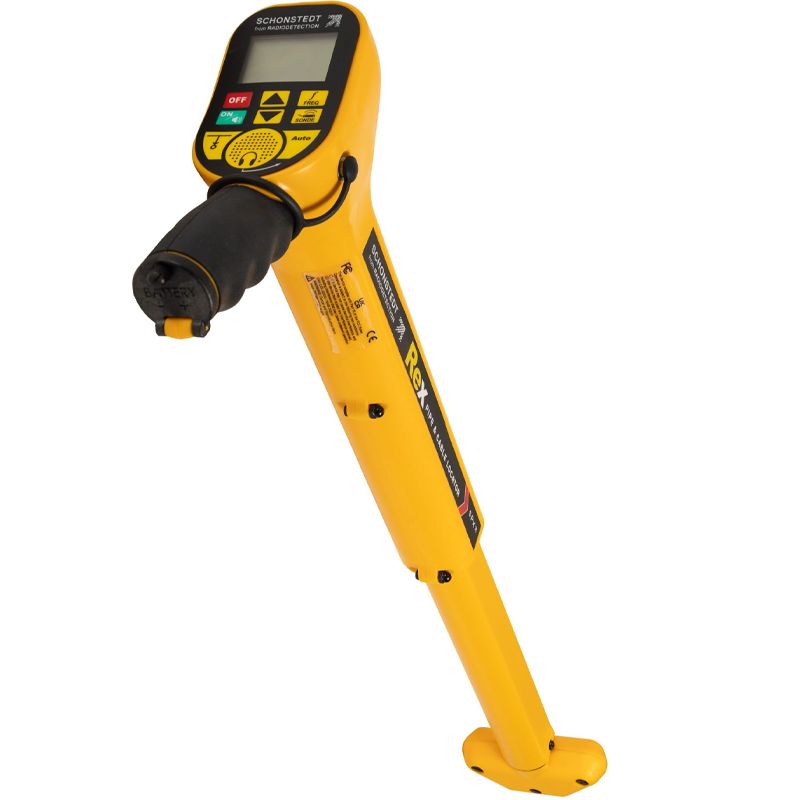

The Schonstedt REX Receiver is a professional-grade, telescoping pipe and cable locator receiver designed for precise utility detection in a compact, portable form. Engineered for everyday use by utility contractors and survey crews, the REX receiver detects signals at 512 Hz, 33 kHz, and 82 kHz with the ability to track active, passive (50/60 Hz), and Sonde (512 Hz) signals with depth accuracy up to 19 feet.
Built for convenience in the field, the receiver extends from 17.5" to 27.7" and features an ergonomic handle, directional guidance, depth readout, and visual and audio feedback. Its lightweight design and weather-resistant IP54 rating make it ideal for harsh jobsite conditions.
Key Specifications
-
Frequencies Supported:
- Active: 512 Hz, 33 kHz, 82 kHz
- Passive Power: 50/60 Hz
- Sonde Mode: 512 Hz
-
Max Depth Capability:
- Active locating: approx. 19 ft (5.8 m)
- Sonde locating: approx. 5–15 ft (1.5–4.2 m)
- Power: One 9V battery (up to 12 hours of intermittent use)
- Weight: 2.8 lbs (1.25 kg)
- Length: Collapsed – 17.5", Extended – 27.7"
- Operating Temp: –4°F to 140°F (–20°C to 70°C)
- Ingress Protection: IP54 rated
Perfect for locating active lines, tracing sondes, or verifying energized cables, the Schonstedt REX Receiver provides reliable performance with the portability to go anywhere your crew works.
