SitePro LT8-300 Series Transit Levels

The SitePro LT8-300 Universal Level-Transit Series offers contractors and surveyors a versatile, high-precision solution for layout, leveling, and alignment tasks. Featuring a powerful 26X telescope, full 360° rotation, and a horizontal circle with double vernier reads to 5 minutes, these instruments are ideal for a wide range of applications—from gravity pipe alignment to formwork, anchor bolt placement, and establishing 90° reference lines.

All LT8-300 models feature a field-proven optical design with an 8-lens telescope, stadia lines for distance measurement, and up to 400 feet (120 meters) of working range. Each model provides an accuracy of ±3⁄16 inch at 150 feet (5 mm at 45 m) and includes a rugged case and accessories for reliable field use.

Available Models

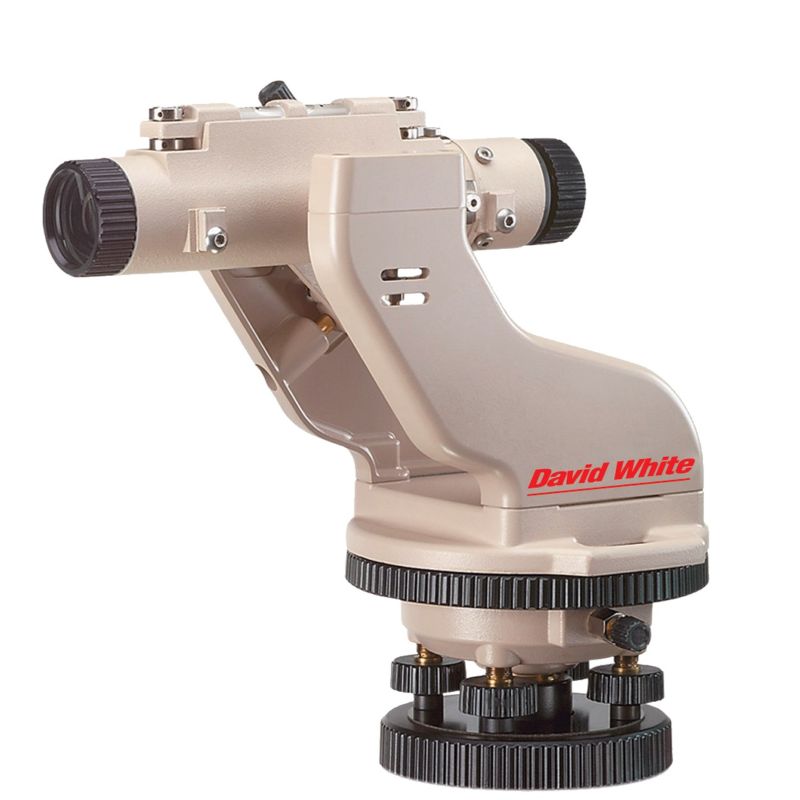

• LT8-300LTU – Standard Line Transit Unit with no plummet

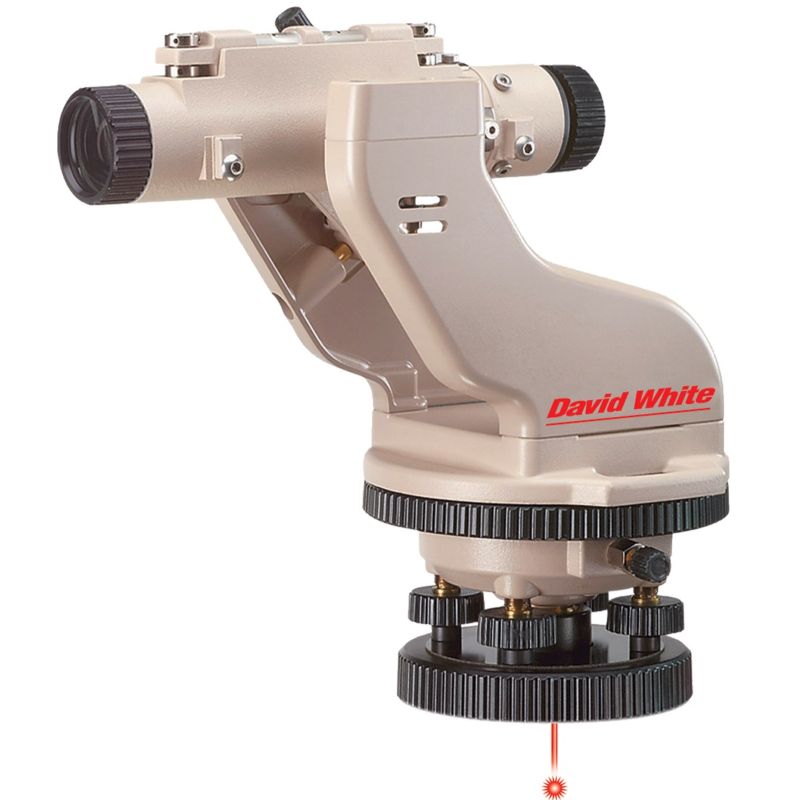

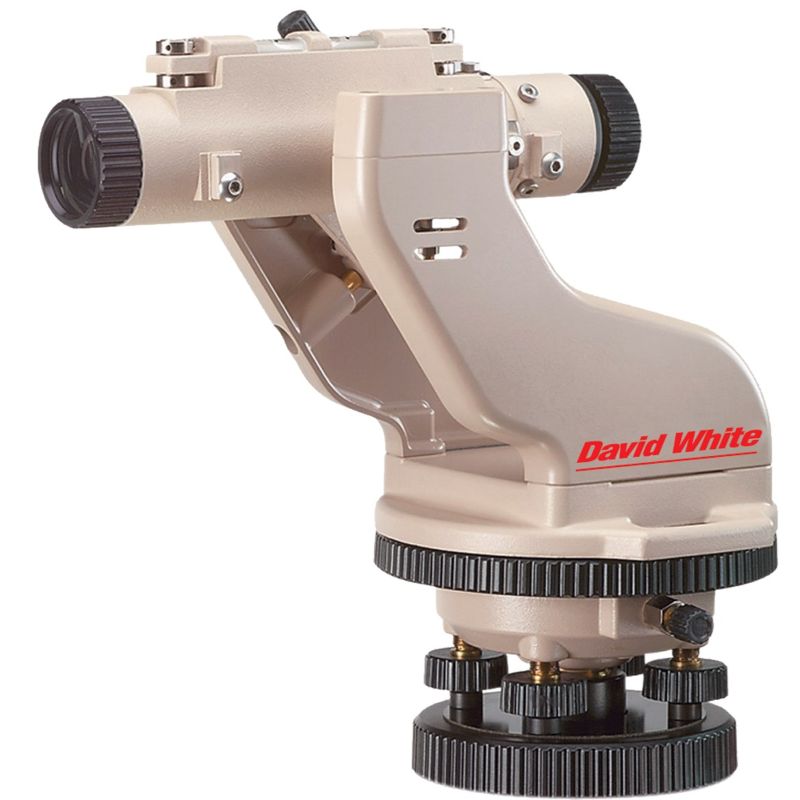

• LT8-300LTULP – Line Transit Unit with laser plummet for fast, visible alignment

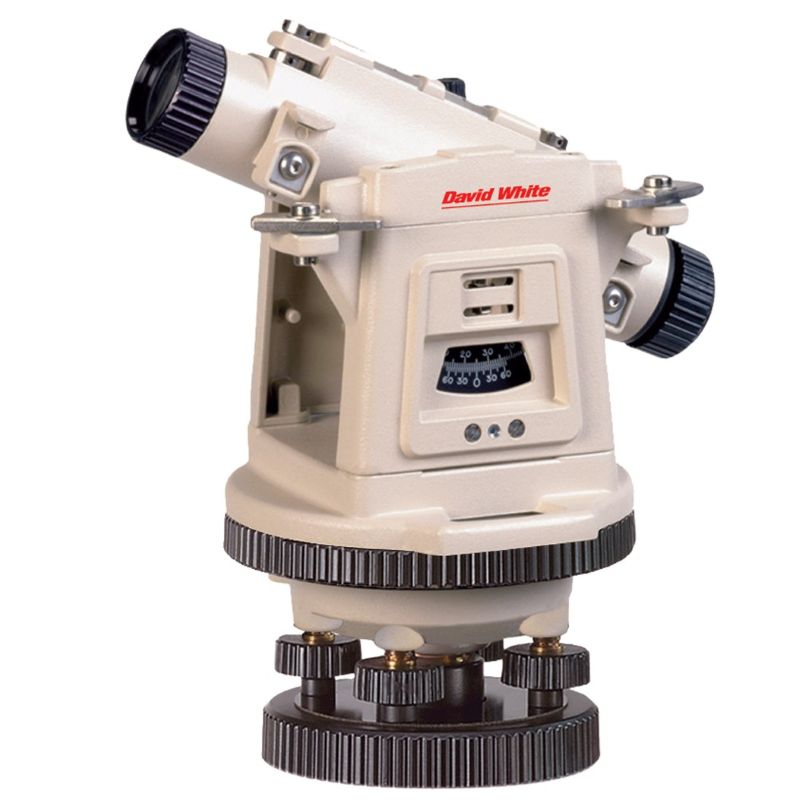

• LT8-300P – Level-Transit with integrated optical plummet for secure centering

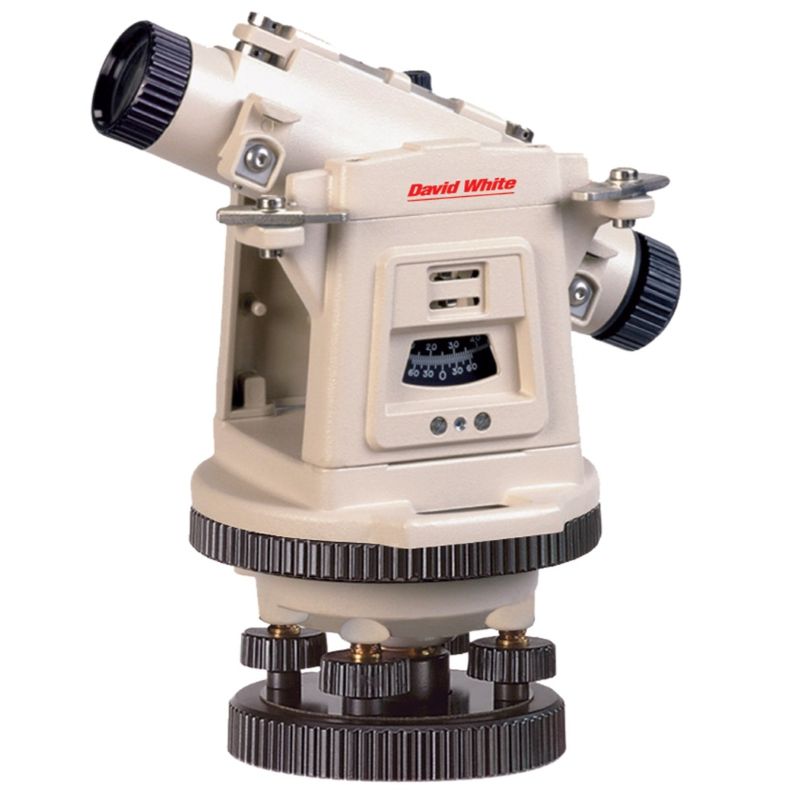

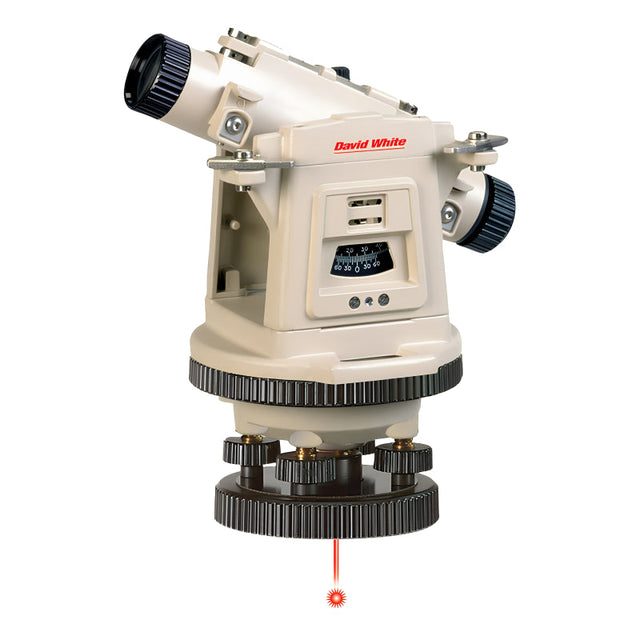

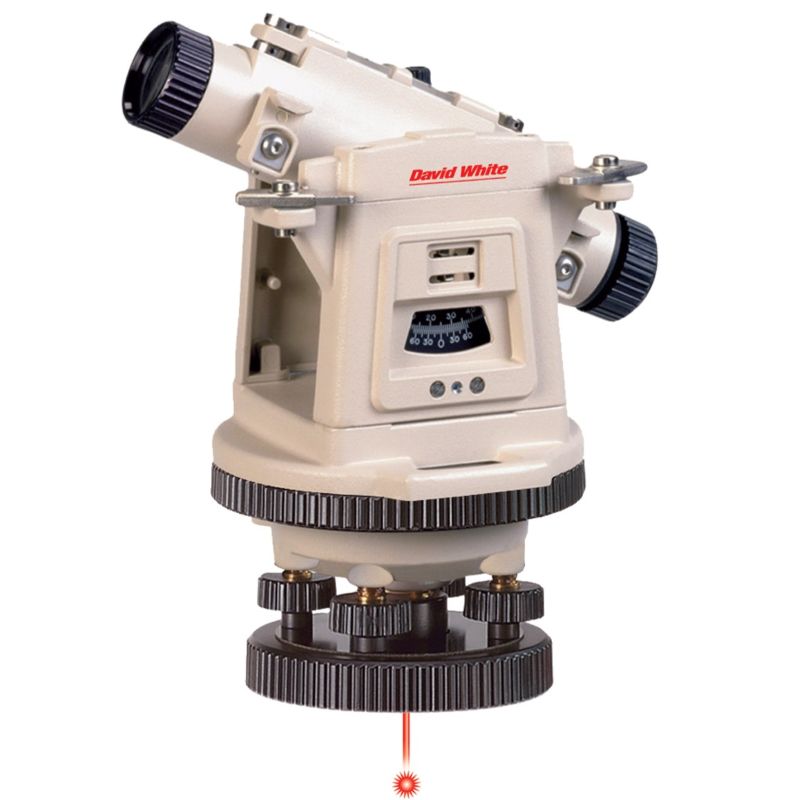

• LT8-300LP – Level-Transit with built-in laser plummet for efficient vertical setup

Key Features

• 26X Magnification with clear optics and 6 ft (1.8 m) minimum focus
• 360° telescope allows viewing directly below the instrument
• 1:100 stadia ratio for quick distance estimation
• Horizontal circle with 1° graduations and 5-minute vernier resolution
• Available with laser or optical plummet for easy centering over points
• Wide-stance dual row ball bearing center for smooth, accurate motion
• Weather-resistant build, plate vial (360 sec per 2.5 mm), and telescope vial (120 sec per 2 mm)
• Range: up to 400 ft (120 m)
• Accuracy: ±3⁄16 in at 150 ft (5 mm at 45 m)

The LT8-300 Series delivers trusted performance and repeatable results, whether you need a basic transit unit or enhanced laser plummet capability. Choose the model that fits your workflow and field conditions. All units come with a durable carrying case, rain hood, and setup manual, backed by SitePro’s 2-year limited instrument warranty.
