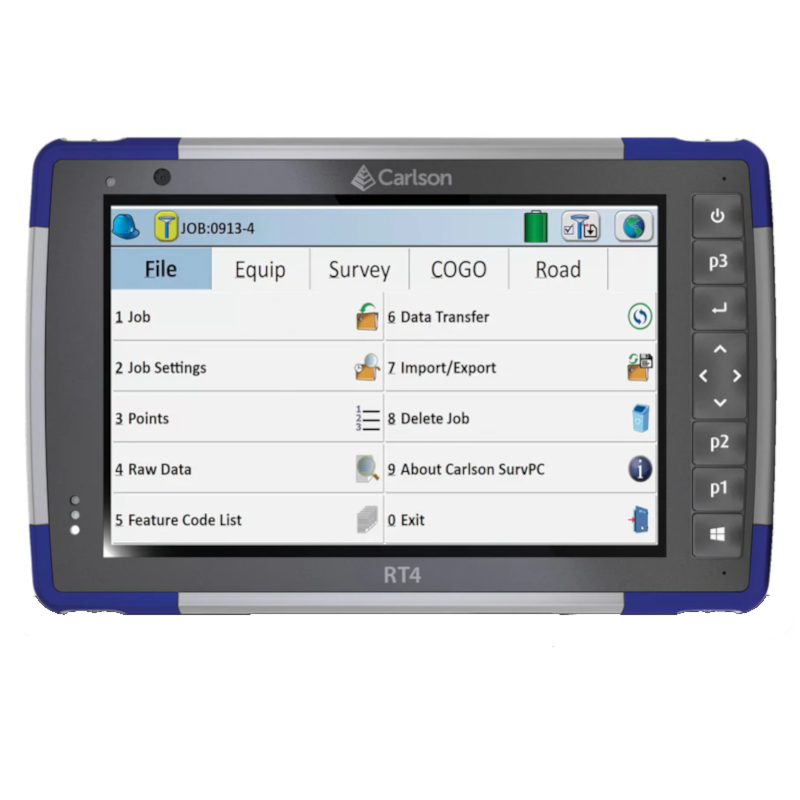

Carlson RT4 Tablet w/ SurvPC TS

• Increase productivity with the Carlson RT4, designed for surveying, stakeout, construction layout, and GIS mapping.
• The bundled Carlson SurvPC data collection program allows for faster and more efficient data collection and analysis.
• Compatible with the Esri OEM program for GIS field work, providing added value for GIS professionals.
• Use the RT4 in the office with any Carlson office software for maximum versatility.
• With 8GB of RAM and 128 GB of storage, the RT4 provides powerful performance to get the job done quickly and accurately.

Specifications

PROCESSOR

• Quad-core Intel® Pentium N4200 processor

OPERATING SYSTEM

• Microsoft® Windows 10

MEMORY AND DATA STORAGE

• 8 GB RAM (LPDDR4)

• 128 GB flash storage

• User-accessible MicroSDXC card slot

GRAPHICS

• Intel® HD Graphics

DISPLAY

• Active viewing area: 7” (178 mm)

• Resolution: WXGA (1280 x 800)

• Best-in-class sunlight view-ability

• Automatic screen rotation

TOUCH SCREEN

• Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions

KEYBOARD

• Adjustable LED backlit keys

• Four-way directional navpad

• Windows/home key

PORTS

• USB 3.0

• 12 VDC power input jack

• Docking port connections (Power, USB 2.0, HDMI, & ethernet)

•Optional RS-232 9-Pin D-Sub connector with 5VDC power output

BATTERY

• Removable Li-Ion battery, 43.2 Whr

• Operates 8–10 hours on one charge

• Hot-swappable battery, easily changed in field

WIRELESS CONNECTIVITY OPTIONS

• Long-range Bluetooth® Smart Ready wireless technology, v5.0 +EDR, Class 1.5, BLE support

• Wi-Fi· 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz

• 4G LTE (CELL & GEO/CELL MODELS)

CAMERA

• Rear: 8 MP with LED illumination

• Front:2MP

• Photos embedded with date, time, and GNSS position (GEO/CELL MODEL)

RUGGEDIZATION

• IP68 waterproof and dustproof

• Operating Temperature: -4 F to 122 F (-20° C to 50° C)

• Shockproof: multiple drops from 4’ (1.2–1.5 m) onto concrete

PHYSICAL

• Size: 5.40” w x 8.48” Ix 1.36” d (137 x 215 x 35 mm)

• Weight: 1.5-2 lbs (680-907 g) depending on battery configuration

• Easy-to-grip, impact-absorbing, overmolded bumpers

• Lightweight and ergonomic design

WARRANTY

• 2-Year Warranty

• Service Plans Available

Available models

• STANDARD

• CELL

• GEO/CELL
