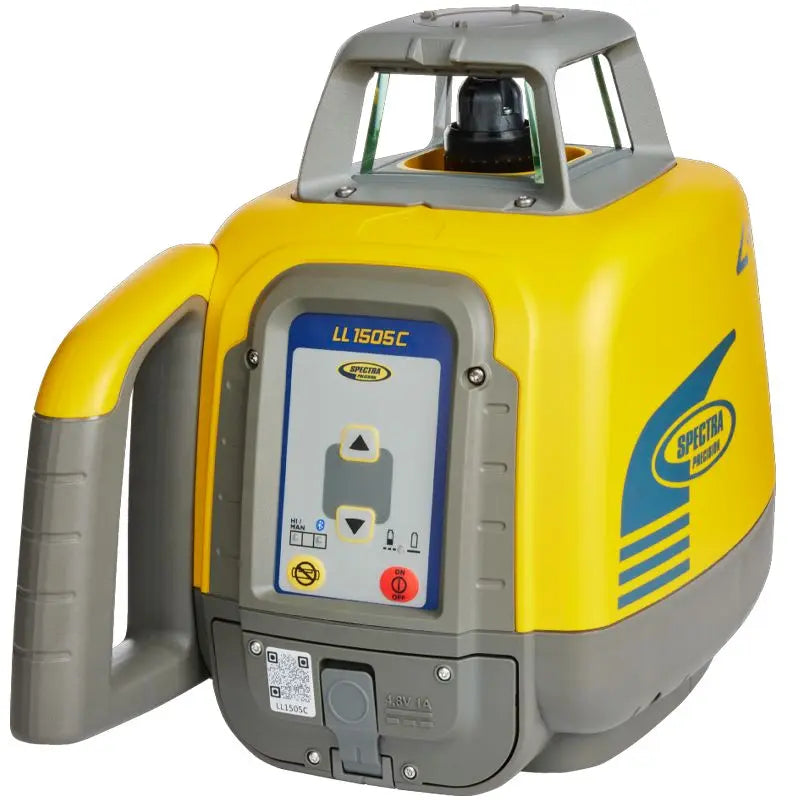

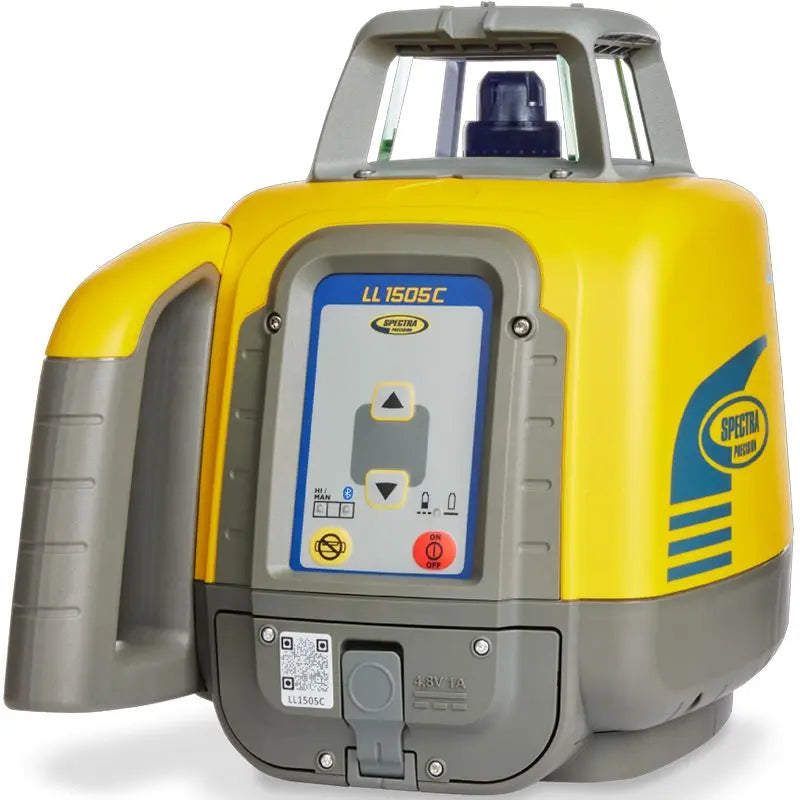

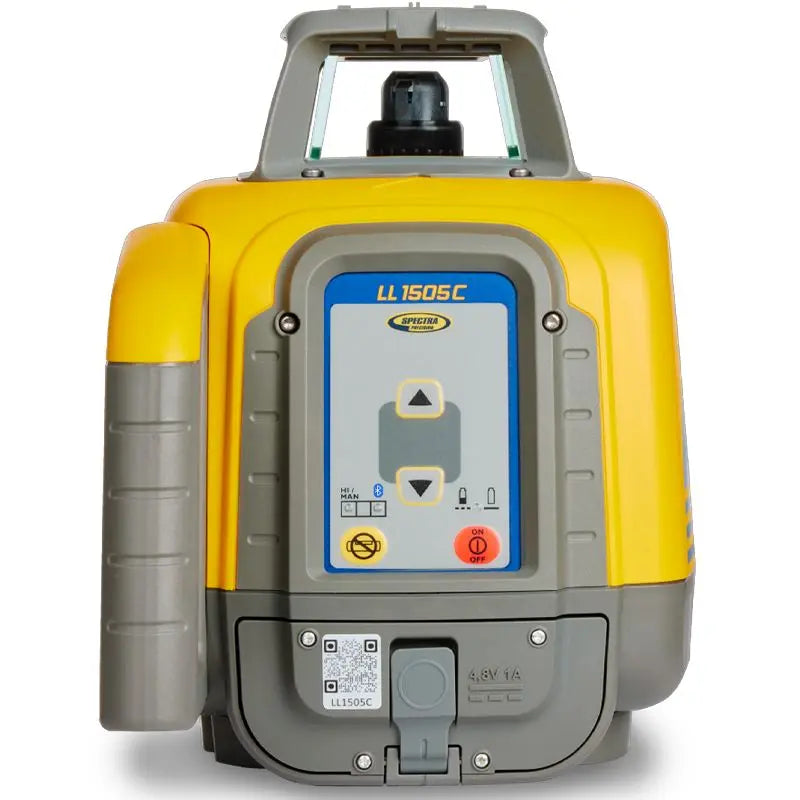

Spectra Precision LL1505C Rotary Laser Level

The Spectra Precision LL1505C is a high-accuracy, self-leveling rotary laser designed for grading, site preparation, foundation work, and interior applications. It is the next-generation replacement for the LL300S and features enhanced Bluetooth connectivity, allowing remote control via a smartphone using the Spectra Precision Laser Remote App. With a ±1/16 inch accuracy at 100 feet (±1.5 mm at 30 meters) and a working range of up to 1200 meters (4000 feet) with the HL760 receiver, it ensures precise and efficient leveling for various job sites.

The LL1505C includes new selectable rotation speeds up to 900 RPM, making it compatible with machine-mounted receivers for improved productivity. It features automatic self-leveling, PlaneMatch for single-person slope matching, and PlaneLok for enhanced stability, reducing manual adjustments. Built with an IP66-rated housing, it is resistant to dust, water, and harsh job site conditions, ensuring long-term durability.

Key Features:

• Automatic Self-Leveling – Fast and precise setup for horizontal applications.
• Long-Range Accuracy – ±1.5 mm at 30m (1/16 inch at 100ft) with a 1200m (4000ft) operating range.
• Bluetooth Connectivity – Control via Spectra Precision Laser Remote App or optional RC1402 remote.
• PlaneMatch & PlaneLok – Single-person slope-matching and laser beam stabilization.
• Machine Control Compatibility – 900 RPM rotation speed supports machine-mounted receivers.
• Durability & Weather Resistance – IP66-rated for water and dust protection, built for tough job sites.
• Extended Battery Life – Up to 55 hours on NiMH rechargeable batteries for long-lasting performance.

What's Included in Each Package:

LL1505C Standard Package

• LL1505C Rotary Laser
• HL760 Receiver
• C70 Clamp
• B10 NiMH Rechargeable Battery Pack
• CH10 Charger
• Small Carrying Case

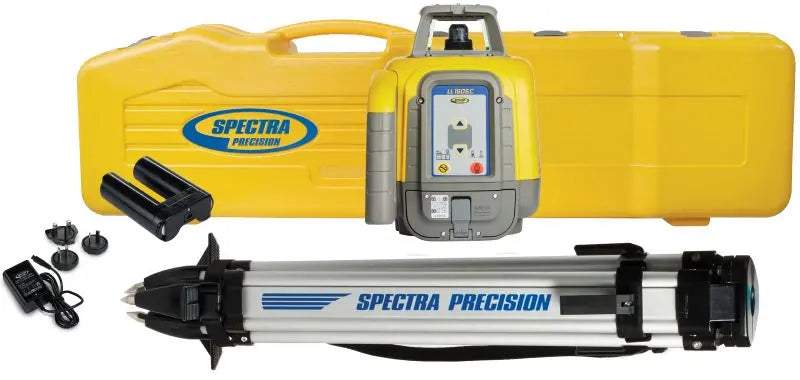

LL1505C-1 Package (Tripod - Grade Rod 10ths)

• LL1505C Rotary Laser
• HL450 Receiver
• C45 Clamp
• B10 NiMH Rechargeable Battery Pack
• CH10 Charger
• GR151 10ths-Inch Grade Rod
• Q104025 Tripod
• Long System Carrying Case

LL1505C-2 Package (Tripod - Grade Rod 8ths)

• LL1505C Rotary Laser
• HL450 Receiver
• C45 Clamp
• B10 NiMH Rechargeable Battery Pack
• CH10 Charger
• GR152 8ths-Inch Grade Rod
• Q104025 Tripod
• Long System Carrying Case

LL1505C-4 Basic Receiver Package

• LL1505C Rotary Laser
• HL450 Receiver
• C45 Clamp
• B10 NiMH Rechargeable Battery Pack
• CH10 Charger
• Small Carrying Case

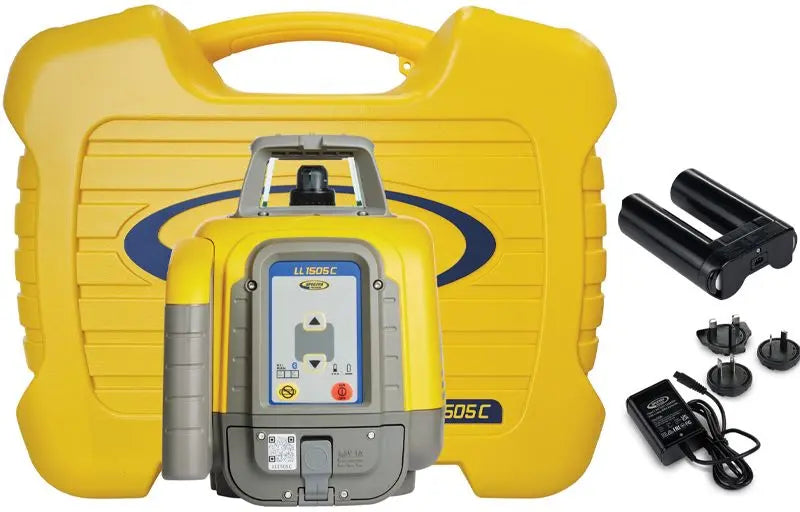

LL1505C-BCC Base Unit (No Receiver)

• LL1505C Rotary Laser
• B10 NiMH Rechargeable Battery Pack
• CH10 Charger
• Small Carrying Case

LL1505C-BSC Package (No Receiver - Long Case)

• LL1505C Rotary Laser
• B10 NiMH Rechargeable Battery Pack
• CH10 Charger
• Long System Carrying Case

Each package is designed for contractors, surveyors, and construction professionals who require reliable, high-precision leveling tools with advanced connectivity and durability.
