Topcon DL-503 Digital Level
Todo el equipo se enviará calibrado.
Los instrumentos ópticos y los láseres rotatorios vienen con una certificación
Descripción
Descripción
Data Sheet
Key Features
- ±0.8 mm/km leveling accuracy
- 28x telescope magnification for clear target acquisition

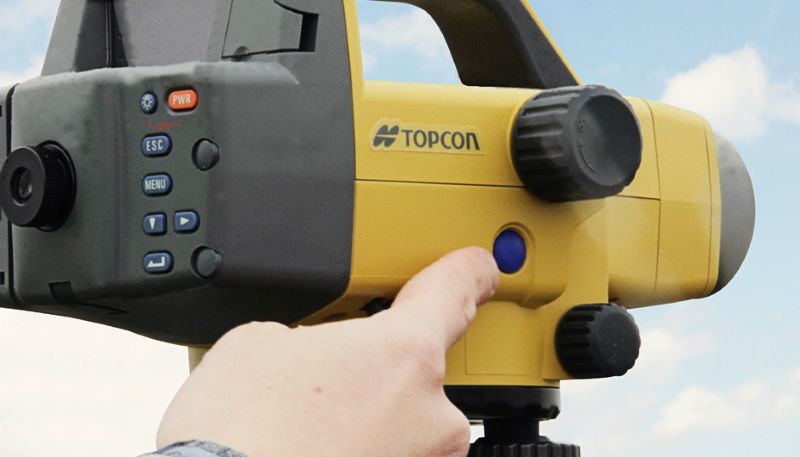

- One-button operation for height and distance measurements
- Wave-and-Read technology automates vertical alignment
- Inverse staff reading simplifies overhead measurement
- 2,000-point internal memory with RS-232C interface
- Onboard programs for elevation, height difference, and cut/fill
- Shock-resistant pendulum compensator with magnetic damping
- IPX4-rated for water and dust resistance
- Up to 16 hours of runtime on a rechargeable Li-ion battery

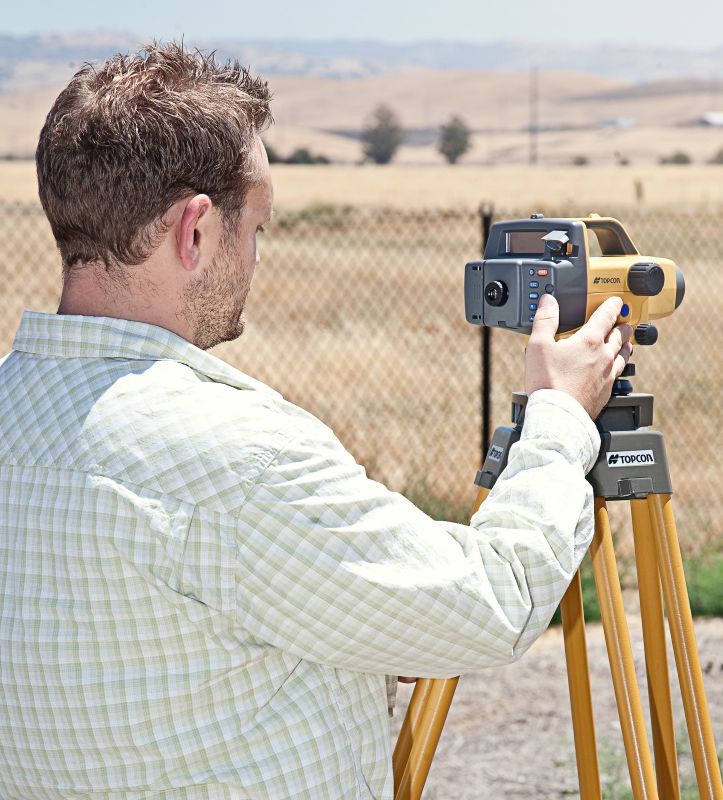

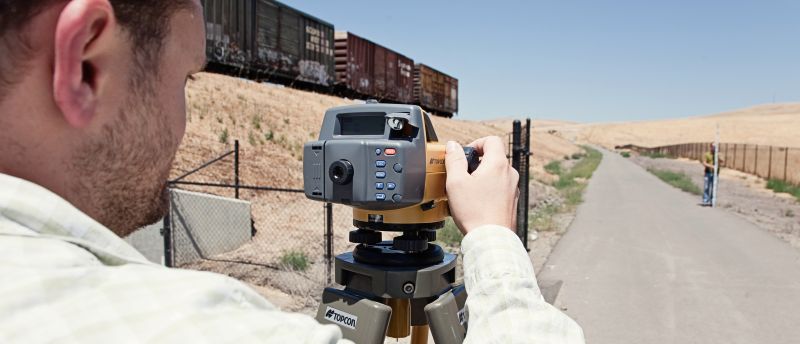

The Topcon DL-503 is a rugged, reliable digital level designed for routine construction and surveying tasks where dependable performance and efficiency are essential. With a 28x magnification telescope and ±0.8 mm/km accuracy, the DL-503 delivers quick and consistent height and distance readings using a single button press. It captures data in as fast as 2.5 seconds, significantly reducing downtime and operator fatigue on the job site.

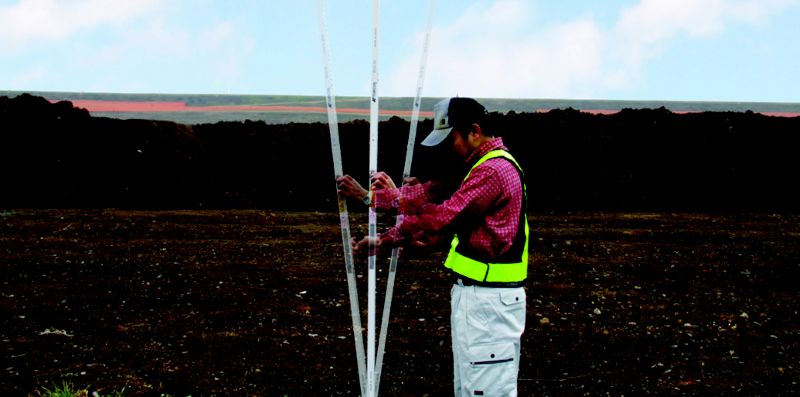

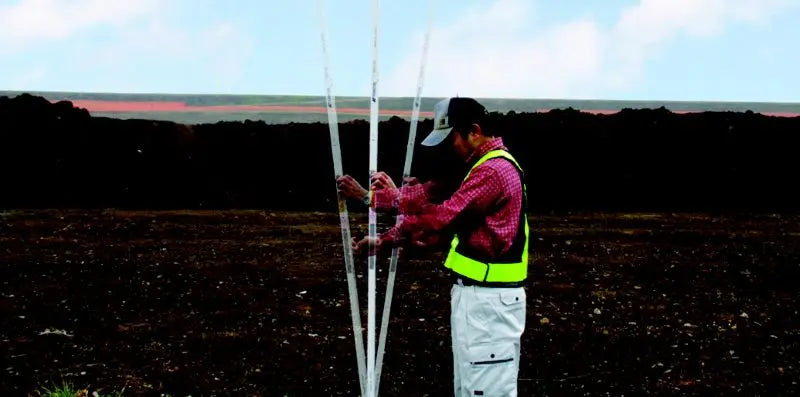

Topcon’s exclusive Wave-and-Read technology lets users take measurements simply by waving the RAB-coded staff forward and back. The DL-503 automatically detects the most accurate vertical reading, eliminating the need to hold the staff perfectly plumb. It also recognizes inverted staff positions, making overhead measurements—like tunnel crowns or bridge undersides—fast and error-free.
With 2000-point internal memory, a shock-resistant magnetic compensator, and IPX4 water resistance, the DL-503 is built to handle demanding field conditions while simplifying workflows. The built-in programs for elevation, height difference, and cut/fill remove the need for calculators or field notes, allowing for full focus on productivity.
Technical Specifications
| Specification | Topcon DL-503 |
|---|---|
| Magnification | 28x |
| Height Accuracy | ±0.8 mm/km |
| Distance Accuracy | ±10 mm at 10 m |
| Measuring Range | 1.6 m – 100 m |
| Measuring Time | Approx. 2.5 seconds |
| Memory Capacity | 2,000 points |
| Interface | RS-232C |

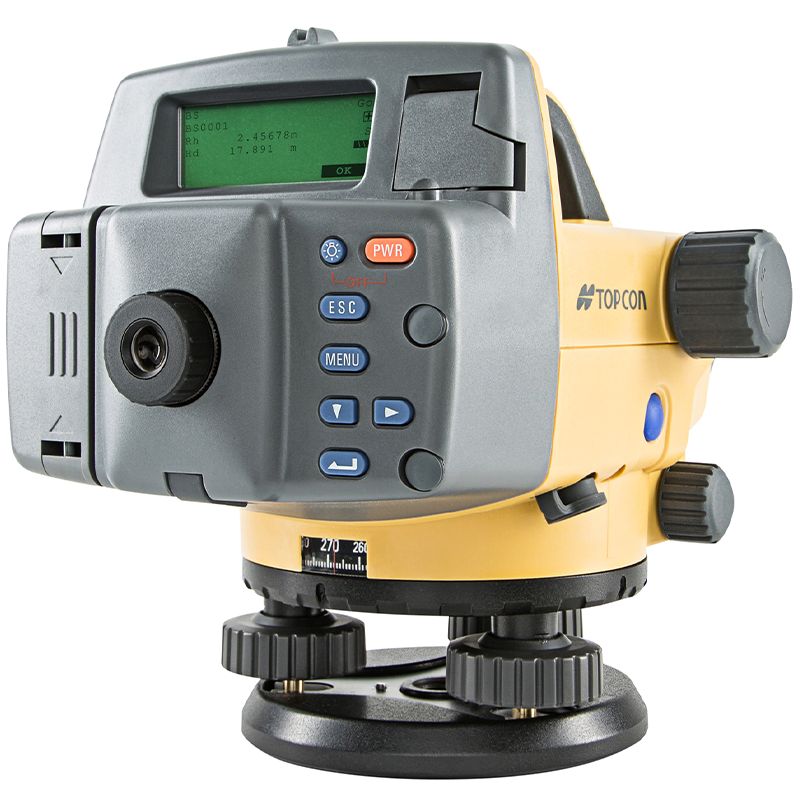

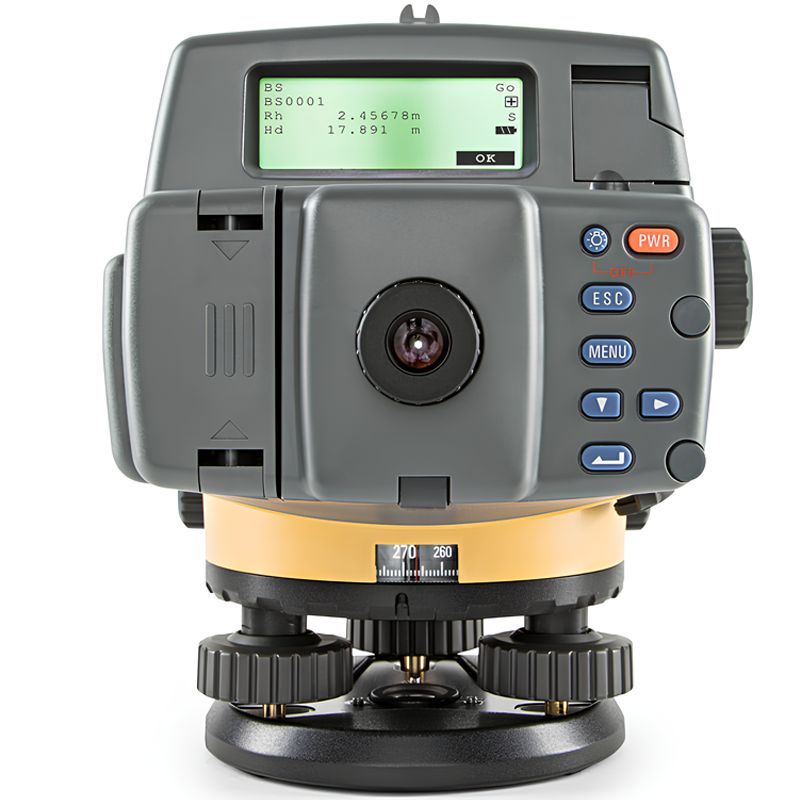

| Display | LCD with backlight |
| Water Resistance | IPX4 |
| Operating Time | Up to 16 hours |
| Operating Temperature | -20°C to +50°C |
Comparison
| Model | Magnification | Height Accuracy | Internal Memory | Keyboard |
|---|---|---|---|---|
| DL-503 | 28x | ±0.8 mm/km | 2,000 points | 8-key |

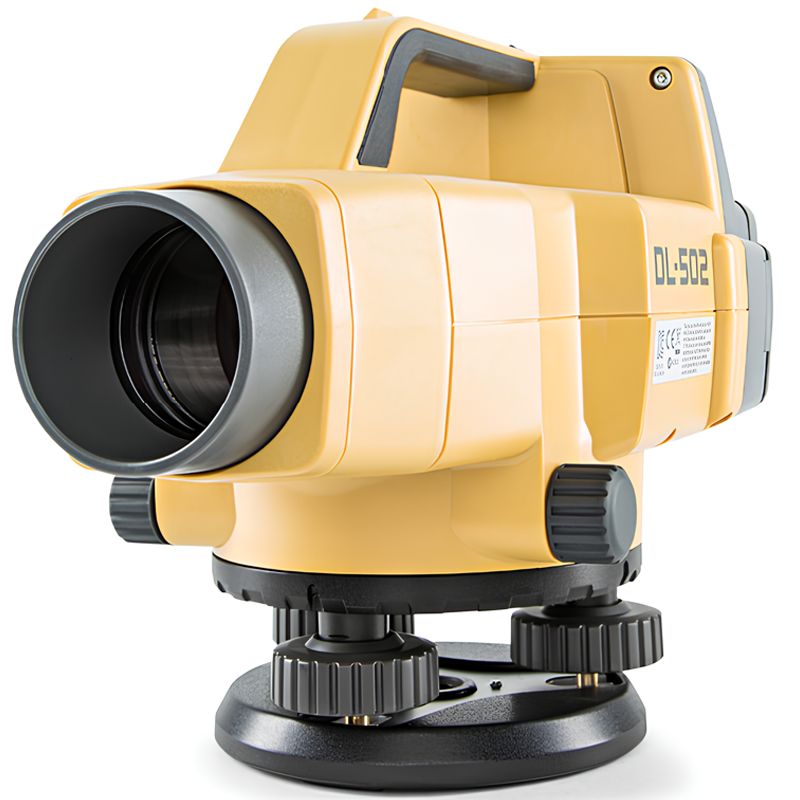

| DL-502 | 32x | ±0.6 mm/km | 2,000 points | 8-key |
| DL-501 | 32x | ±0.2 mm/km | 10,000 points | 27-key ABC |
What's Included
- Topcon DL-503 Digital Level
- Rechargeable Li-ion Battery
- Battery Charger
- Power Cable
- Carrying Case
- Vinyl Dust Cover
- Hex Wrench
- Digital User Manual
