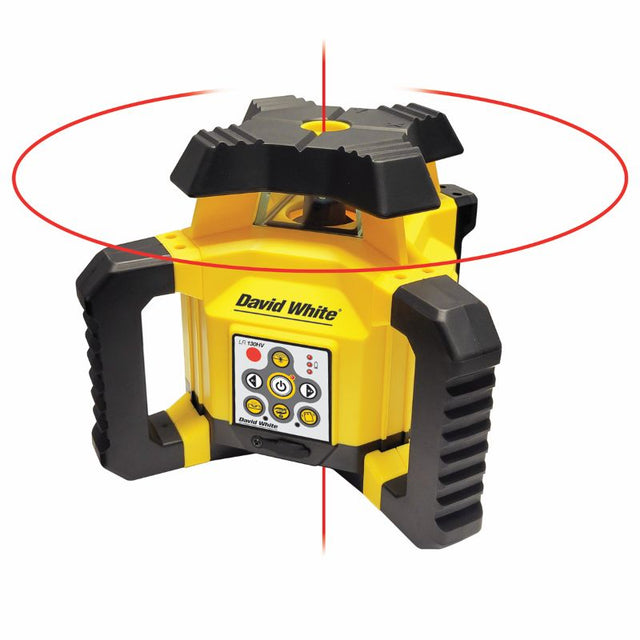

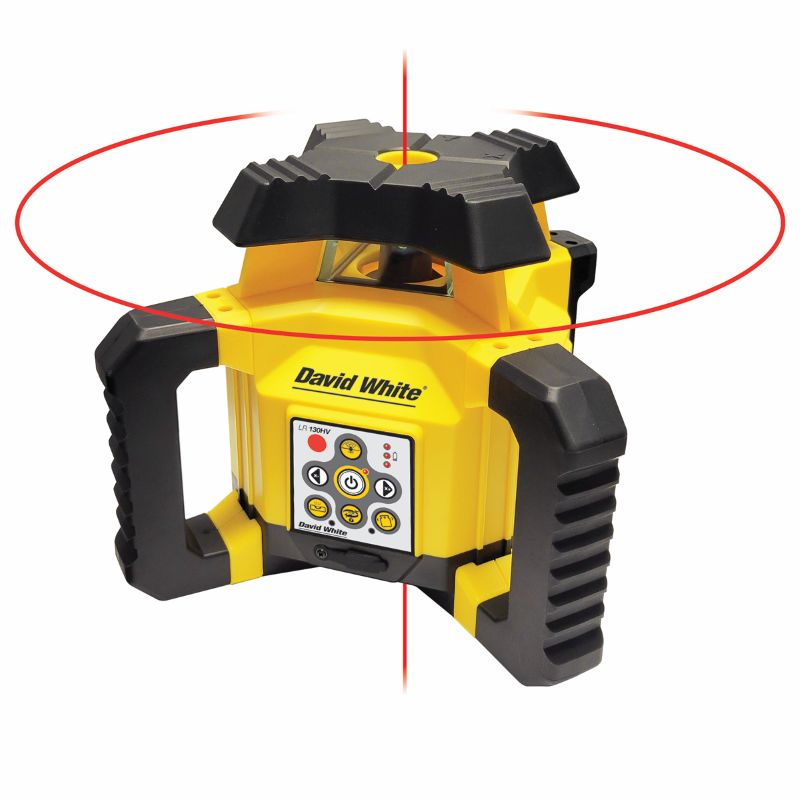

David White LM 130HV H/V Rotary Laser

Data Sheet

Key Features

• Horizontal and vertical electronic self-leveling for fast, accurate setup.
• ±1/8 in at 100 ft accuracy (3 mm at 30 m) for precise elevation control.
• Up to 2000 ft (600 m) working range with detector for large site coverage.
• Dual-axis slope capability from –5° to +5° using the remote.
• Adjustable scan angles at 0°, 10°, 45°, 90°, and 180°.
• Variable rotation speeds of 0, 300, and 600 RPM.
• Anti-Drift System alerts users if the laser shifts during operation.
• Enclosed rotor housing protects internal components from jobsite impacts.
• Rechargeable Li-Ion power with up to 25 hours of runtime.
• IP65 water and dust resistance for reliable outdoor use.

Overview

The David White LM 130HV is a rugged, versatile horizontal and vertical rotary laser engineered for contractors who need accuracy, durability, and long-range performance. According to the product datasheet, the LM 130HV is ideal for indoor and outdoor applications including leveling, foundation work, excavation, concrete forms, decks, pools, drop ceilings, and cut/fill estimation.

The unit features electronic self-leveling for quick setup and consistent accuracy, delivering ±1/8 in at 100 ft. With a working diameter of up to 2000 ft (600 m) when paired with the LD 320 detector, it performs exceptionally well on large projects. Its dual-axis slope feature allows simple grade matching, while adjustable scan and rotation settings offer full control in various lighting and layout conditions.

Built to handle tough environments, the LM 130HV includes an enclosed rotor assembly and carries an IP65 rating, ensuring resilience against dust, rain, and jobsite debris. With long battery life and a comprehensive kit, it is a dependable solution for construction professionals requiring both precision and ease of use in demanding field conditions.

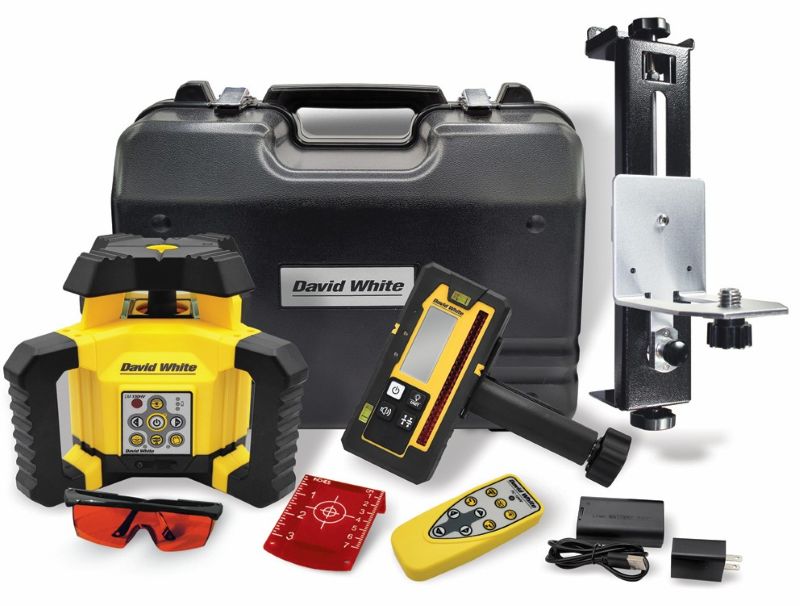

What’s Included

Part No: 47-LM130HV

• LM 130HV Rotary Laser
• LD 320 Laser Detector with Bracket
• Laser Glasses
• Magnetic Target
• Universal Mount
• Li-Ion Battery Pack with Charger
• Carrying Case
• User Guide
