GeoMax Zoom75 Robotic Total Station | 1" - 5"

What’s Included in the Box?

• 776093 – ZBA400 Li-Ion Battery (4.4Ah)
• 794088 – ZDC301 Mini-USB to USB Host Cable
• 765617 – ZTR101 Tribrach (Without Plummet)
• 832680 – ZRP1, 360° Reflector
• 1231 – GeoMax Charger Configuration
• 766872 – ZCH201 Battery Charger (ZBA200/201/400)
• 733272 – GEV192-1 AC/DC Adapter for GKL112/311 US
• 918666 – GeoMax Zoom75/95 Quick Guide (Multilingual)

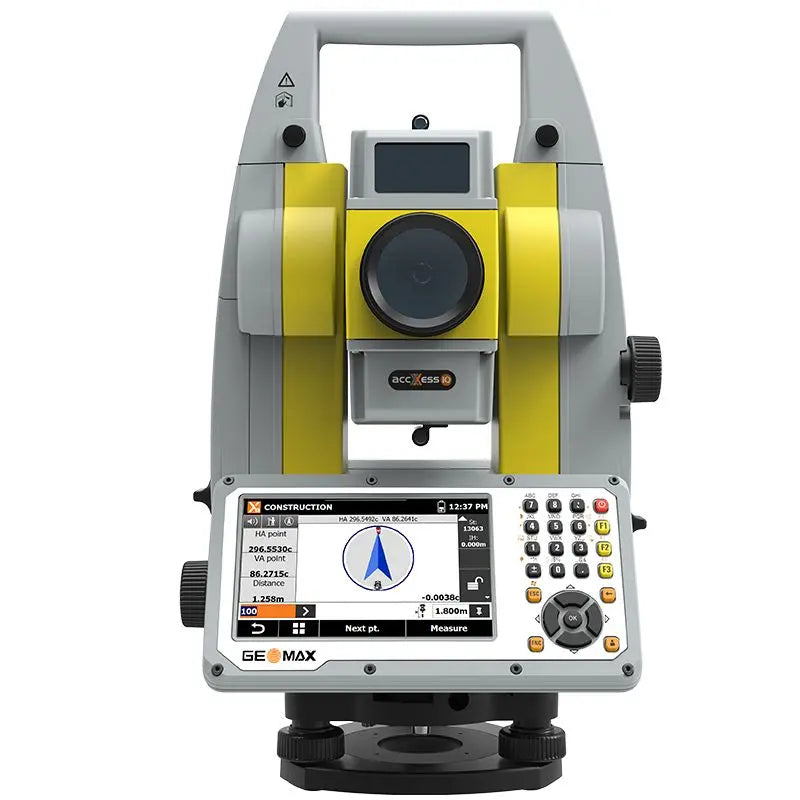

The GeoMax Zoom75 Robotic Total Station is an advanced one-person surveying solution, designed to enhance productivity and efficiency in fieldwork. Featuring a large 5” WVGA touchscreen, hybrid drive technology, and GNSS-based prism search (GeoTRAil), the Zoom75 offers precision and ease of use for both experienced and novice surveyors. With its flexible software compatibility and long-range reflectorless measurement capabilities, this total station is the ideal solution for modern digital site workflows.

Key Features:

• High-Precision Measurements: Available in 1", 2", 3", and 5" accuracy models to suit various project requirements.
• Extended Measurement Range: Measures up to 11,482ft (3,500m) with a prism and up to 1,000m reflectorless with accXXess10 EDM technology.
• GeoTRAil GNSS-Based Prism Search: Uses GNSS data to locate prisms quickly, reducing downtime in the field.
• Automatic Prism Tracking (TRack & AiM): Tracks prisms up to 2,624ft (800m) and provides fine aiming up to 3,280ft (1,000m) for efficient remote operation.
• Hybrid Drives for Smooth Motorization: Delivers fast, precise movement with 100g/sec speed and 56 mph tracking at 328ft.
• User-Friendly Interface: Features a 5” WVGA color touchscreen, full alphanumeric keypad, and LED backlight for easy operation.
• Seamless Data Handling: Stores data on 2GB internal memory, with support for SD cards, USB sticks, and wireless data transfer.
• Durable & Rugged Design: IP55-rated for dust and water resistance, ensuring reliability in tough environments.
• Long Battery Life: Up to 8 hours of continuous operation with a removable Li-Ion battery (4.4 Ah, 7.4V).
• X-PAD Software Compatibility: Works with both Android and Windows field controllers, providing an intuitive and efficient workflow.

The GeoMax Zoom75 Robotic Total Station is the ultimate digital surveying tool, offering high accuracy, flexible connectivity, and advanced automation for increased efficiency on any job site.
