Stonex S1000 GNSS Receiver With Laser Distance Measuring

Brochure & Data Sheet
Presentation & Overview

What’s Included

Unit Only

• Stonex S1000 GNSS Receiver – 1408 channels, IMU, 4G, UHF, laser, photogrammetry  - B10+150228
• PSAA30R-150 Adapter for Battery Charger CH 04 – 30-350227

• 2 x BP 5S Li-Ion Battery (7.4V - 3400mAh) – 30-350228

• CH 04 Battery Charger for BP 5S – 30-350235

• UHF antenna, frequency range 430–450 MHz
• Carrying case

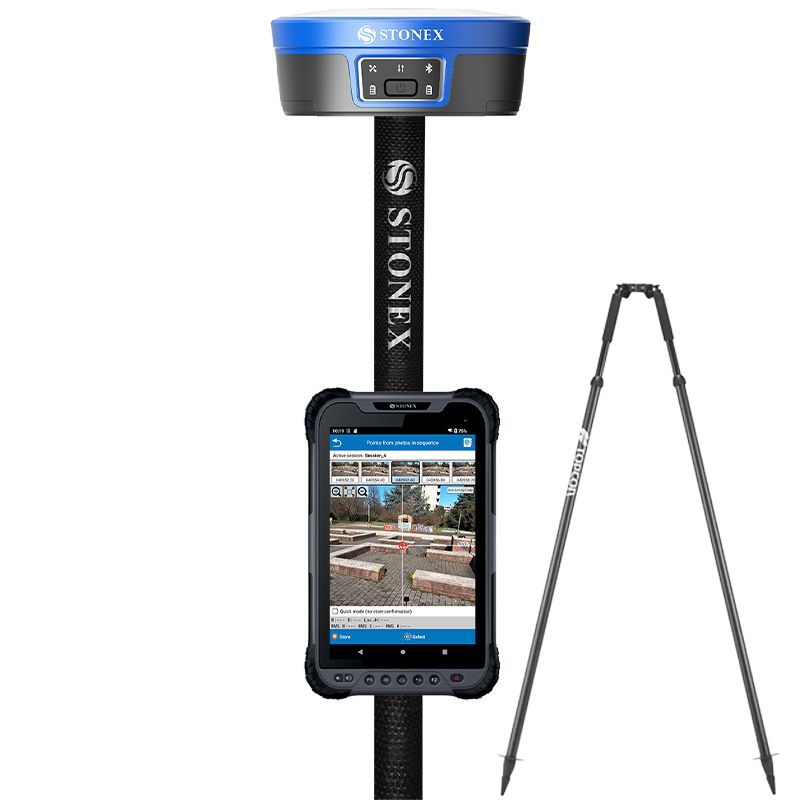

Rover Kit

• Everything from the Unit Only configuration
• Stonex S80 8" Android Rugged Tablet - 50-550739
• Stonex S80 Complete Pole Ball Mount Assembly - 30-350844
• Stonex Cube-a 7.x GPS Field Software -
  40-450941
• Stonex PG-180 GNSS Rover Rod, 4-Sections, 1.80m, Lightweight Aluminum
• Topcon Carbon Fiber Bipod - 1009274-01

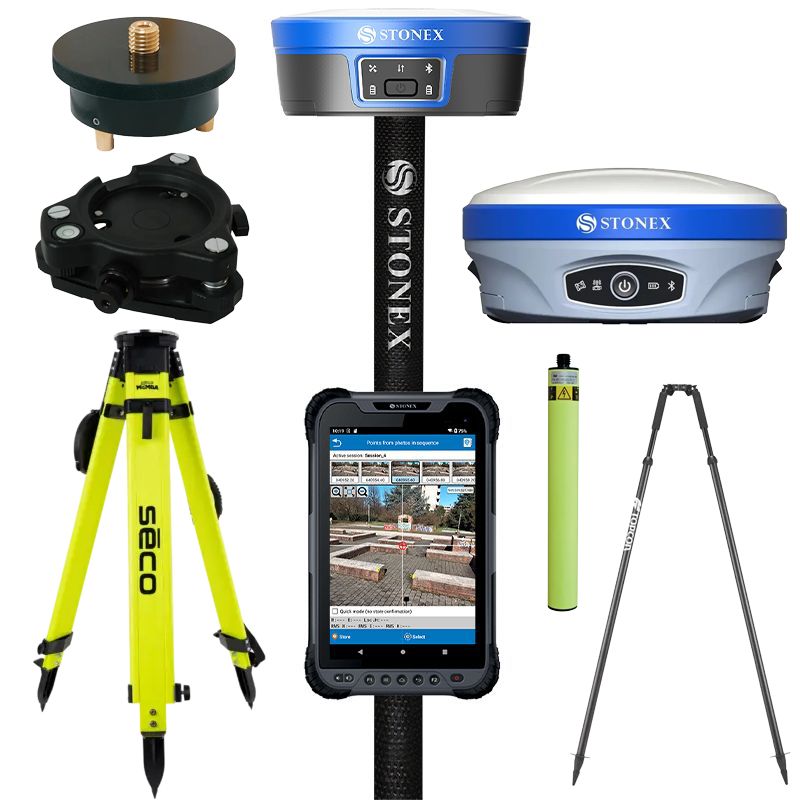

Base and Rover Kit

• Everything from the Unit Only & Rover Kit configuration
• Stonex S900+ GNSS Receiver - B10+150214
  • PSAA30R-150 Adapter for Battery Charger CH 04 – 30-350227
  • 2 x BP 5S Li-Ion Battery (7.4V - 3400mAh) – 30-350228
  • CH 04 Battery Charger for BP 5S – 30-350235
  • Multi-Port Link Cable (USB or 7-Pin Lemo for PC/Controller, 7-Pin Lemo for Receiver) – 30-350059
  • Measuring Tape (3m, MT-300) – 30-350063
  • UHF antenna, frequency range 430–450 MHz
  • Carrying Case for S900 (CC-900) – 30-350266
  • SW Cube-Link Software
• SECO Mamba Fiberglass Tripod, Round Head, Flo Yellow - 90563
• SECO Tribrach with Optical Plummet, Black - 2152-04-BLK
• SECO Tribrach Rotating Adapter - 2020-00
• SECO 25cm (9.84in) Pole Extension, Flo Yellow - 5145-00-FLY

Overview

The Stonex S1000 GNSS Receiver with Laser Distance Measuring is a high-performance all-in-one RTK receiver built for surveyors and construction professionals who need more than standard GNSS positioning. Combining a 1408-channel GNSS board, integrated IMU, 4G modem, internal UHF radio, laser distance measuring, and photogrammetry-ready dual cameras, the S1000 is designed to handle modern field workflows in one compact receiver.

What makes the S1000 stand out is its ability to measure points in multiple ways. In addition to traditional GNSS positioning, it can capture hard-to-reach points with its built-in laser, guide field crews visually with AR stakeout, and document scenes for photogrammetry and as-built workflows. For crews that want one receiver that can cover RTK surveying, stakeout, remote measurements, and image-based documentation, the S1000 is a very capable solution.

Key Features

• 1408-channel GNSS receiver
• Tracks all major constellations
• Integrated IMU
• Built-in laser distance measuring
• Dual-camera system for AR stakeout and photogrammetry
• 4G cellular modem
• Internal 2W UHF radio plus LoRa communication
• Hot-swappable dual batteries
• Up to 50 Hz update rate
• 32 GB internal memory
• RTK accuracy of 5 mm + 0.5 ppm horizontal and 10 mm + 0.5 ppm vertical
• Static accuracy of 2.5 mm + 0.1 ppm horizontal and 3.5 mm + 0.4 ppm vertical
• Laser range up to 30 m
• IP68 environmental protection
• MIL-STD-810H rugged design

Laser Distance Measuring for Hard-to-Reach Points

One of the biggest advantages of the Stonex S1000 is its integrated laser distance meter. This built-in laser helps crews capture points that are difficult, unsafe, or impossible to occupy directly. When combined with GNSS and IMU positioning, the receiver can compute coordinates for inaccessible points quickly and efficiently.

This is especially useful for:

• Building corners
• Fence lines
• Utility features
• Wall faces
• Road edges
• Hard-to-access topo points
• Hazardous areas where direct occupation is not ideal

The green laser is aligned with the camera view to help the operator verify the exact point being measured. This helps improve confidence and speeds up field collection.

Laser Distance Meter Specifications

• Laser range: 30 m
• Laser precision: 2 mm
• RTK + laser accuracy: 1 cm + 5 mm/m
• Measurement rate: 3 Hz

AR Stakeout and Visual Field Guidance

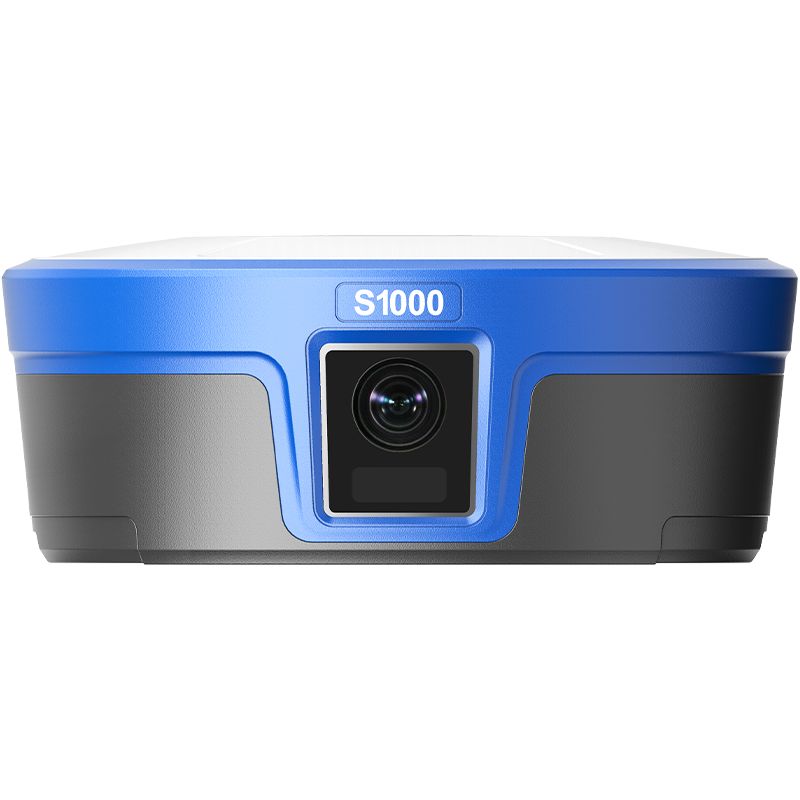

The S1000 includes a dual-camera system that supports AR stakeout and visually guided field positioning. This makes stakeout more intuitive by helping the operator see where the target point is located instead of relying only on numerical guidance.

As the operator moves closer to the target, the camera workflow helps refine positioning for faster convergence and easier layout. This is especially helpful for:

• Construction stakeout
• Utility layout
• Site positioning
• Field crews working in complex environments
• Faster point finding with less guesswork

For many users, this can speed up stakeout and reduce frustration in the field.

Photogrammetry-Ready Documentation

The S1000 is also designed to support photogrammetry workflows. Its camera system can capture high-resolution imagery and video, allowing operators to document the site and later extract images for point alignment and coordinate generation.

This can be useful for:

• As-built documentation
• Site records
• Visual verification
• Photogrammetric point extraction
• Project documentation
• Revisiting site details after leaving the job

For surveyors who want more than just coordinate collection, the S1000 adds a practical image-based workflow to the receiver.

GNSS Performance

The Stonex S1000 is built around a UM980 GNSS engine with 1408 channels, offering strong satellite tracking and modern signal support across major constellations.

Supported Signals

• GPS: L1 C/A, L2P, L2C, L5
• GLONASS: L1, L2, L3
• BeiDou: B1, B2, B3
• Galileo: E1, E5a, E5b, E6
• QZSS: L1, L2, L5, L6
• IRNSS: L5
• SBAS
• PPP: B2b PPP, HAS

Accuracy

• Static: H 2.5 mm + 0.1 ppm RMS
• Static: V 3.5 mm + 0.4 ppm RMS
• RTK (<30 km): H 5 mm + 0.5 ppm RMS
• RTK (<30 km): V 10 mm + 0.5 ppm RMS
• PPP accuracy: <20 cm RMS
• SBAS accuracy: <60 cm RMS

Performance

• Update rate: up to 50 Hz
• Memory: 32 GB

UHF, LoRa, and 4G Connectivity

The S1000 is built for flexible communication in the field. It features an internal 2W UHF radio, LoRa capability, and an internal 4G modem, giving crews multiple ways to receive and transmit correction data.

Internal UHF and LoRa

• Frequency range: 410–470 MHz
• Channel spacing: 12.5 kHz / 25 kHz
• Range: 3–4 km in urban environments
• Range: up to 12 km in optimal conditions

The LoRa communication capability is especially useful for base-rover setups where long-range, low-power communication is important.

Internal 4G Modem

The internal modem supports LTE, UMTS, and GSM bands, allowing field crews to connect to network RTK services and transfer data efficiently.

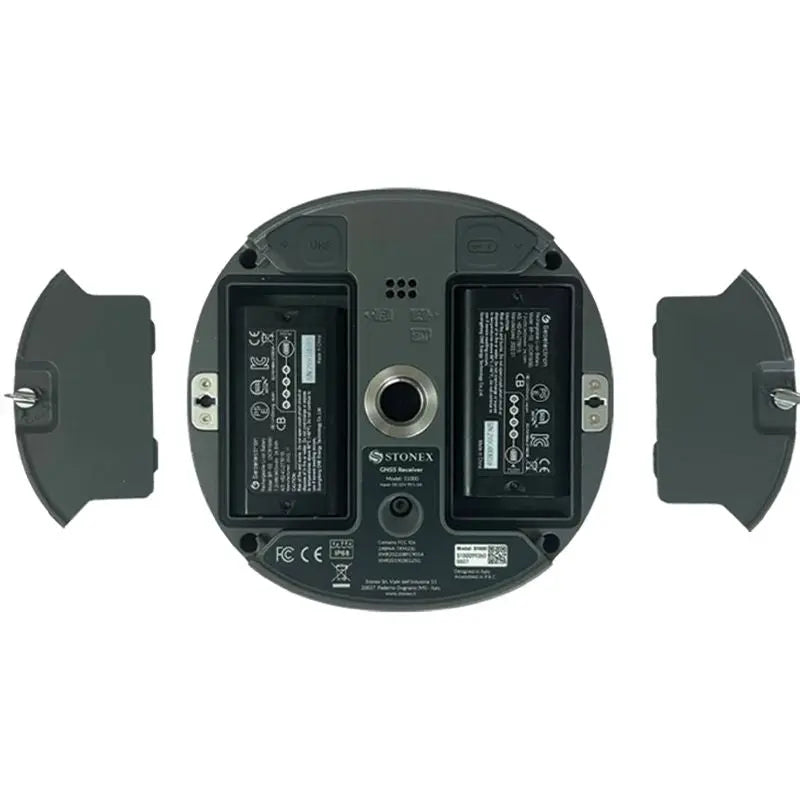

Hot-Swappable Dual Batteries

The S1000 includes two hot-swappable batteries, which helps keep the receiver running without interrupting work. This is a major benefit for longer survey days or crews working on high-production sites.

Power Specifications

• Battery type: Hot-swappable dual batteries
• Capacity: 3400 mAh each
• Voltage: 7.2V
• Working time: up to 12 hours
• Charge time: typically 4 hours

The receiver can also be powered by an external battery such as the Stonex EB-9000 or by a power bank.

Rugged Field Design

The Stonex S1000 is designed for demanding field conditions. It is compact, durable, and built to withstand dust, water, temperature extremes, and everyday survey use.

Physical Specifications

• Weight: 870 g without batteries
• Weight: 1100 g with 2 batteries
• Dimensions: Ø 156 × 68 mm
• Protection class: IP68
• Shock resistance: designed to withstand a 1.5 m pole drop
• Operating temperature: -40°C to 65°C
• Storage temperature: -40°C to 80°C
• Humidity: 100% non-condensing
• Certification: MIL-STD-810H

Applications

The Stonex S1000 is a strong fit for a wide range of professional workflows, including:

• RTK surveying
• Construction layout
• Topographic surveys
• Stakeout
• Utility mapping
• As-built documentation
• Remote point collection
• Photogrammetry support
• Field verification
• Hard-to-reach point measurement

Optional Software and Accessories

The S1000 can be paired with optional software and accessories to expand its workflow.

Optional Software

• Stonex Cube-a GPS v7.x
• Stonex Cube-a 3D v7.x

Optional Accessories

• Stonex S80 Android Rugged Tablet 8"
• S80 bracket, horizontal/vertical with ball mount
• S1000 triaxial cable
• S1000 power cable 2 PIN 90° – TYPE-C for EB-9000
• Additional batteries
• Additional charger
• Additional UHF antenna

Built for Modern Survey Work

The Stonex S1000 GNSS Receiver with Laser Distance Measuring is more than a standard rover. It combines GNSS precision, visual stakeout, laser-based remote measurements, and photogrammetry capabilities in one rugged receiver. For crews that want a versatile field instrument that can do more with fewer devices, the S1000 is a highly capable option.
