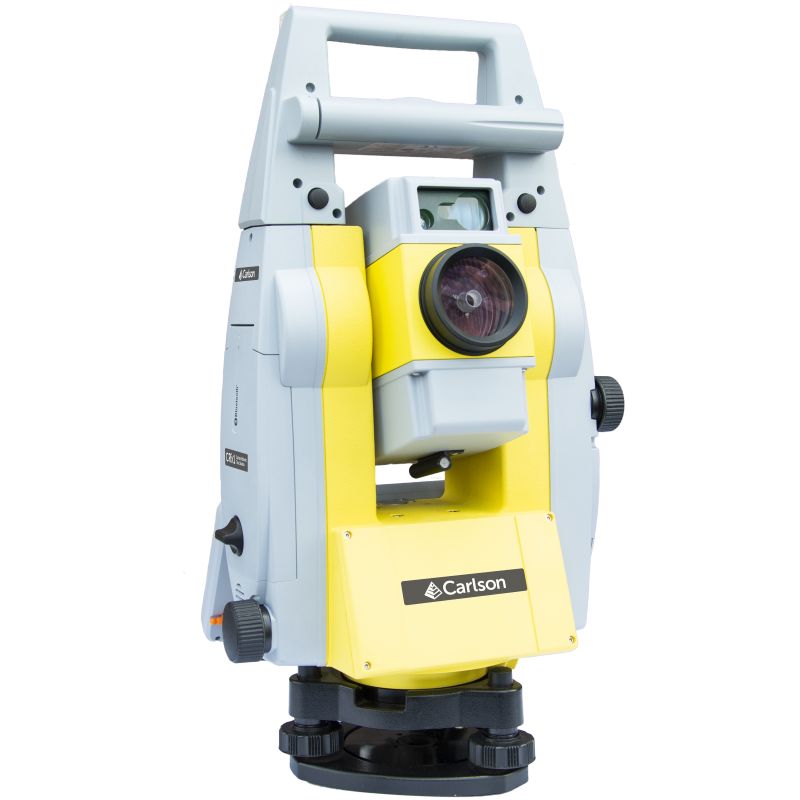

Carlson CRx Robotic Total Station | 1" - 5"

Data Sheet

Overview

The Carlson CRx Robotic Total Station is a high-performance robotic solution designed for one-person surveying and construction layout. Built specifically for Carlson SurvCE and SurvPC, the CRx delivers fast setup, reliable tracking, and accurate measurements in demanding field conditions.

Powered by X-MOTION hybrid drive technology and STReAM360 robotic positioning, the CRx offers smooth motorized movement, fast prism acquisition, and stable tracking even on moving targets. Available in 1″, 2″, 3″, and 5″ angle accuracy options, it adapts easily to construction, boundary, topo, and control workflows.

With strong reflectorless performance, long-range robotic tracking, and full Bluetooth connectivity, the CRx is built to maximize productivity while keeping field operations simple and efficient.

Key Features

Angle Accuracy Options
Available in 1″, 2″, 3″, or 5″ angular accuracy.

Robotic Tracking and Automation
STReAM360 robotic technology with Scout, TRack, and AiM for fast prism search, continuous tracking, and precise aiming.

X-MOTION Hybrid Drives
Smooth, silent motorization with tracking speeds up to 90 km/h at 100 m, improving productivity and target lock reliability.

Prism Measurement Performance
Prism range up to 3500 m (11,483 ft).
Fast measurement times down to 0.8 seconds in single mode.

Reflectorless EDM
accXess EDM technology with reflectorless range up to 1000 m (3281 ft) depending on model and conditions.

Advanced Optics and Aiming
30× telescope with NavLight alignment aid for faster stakeout and line guidance.

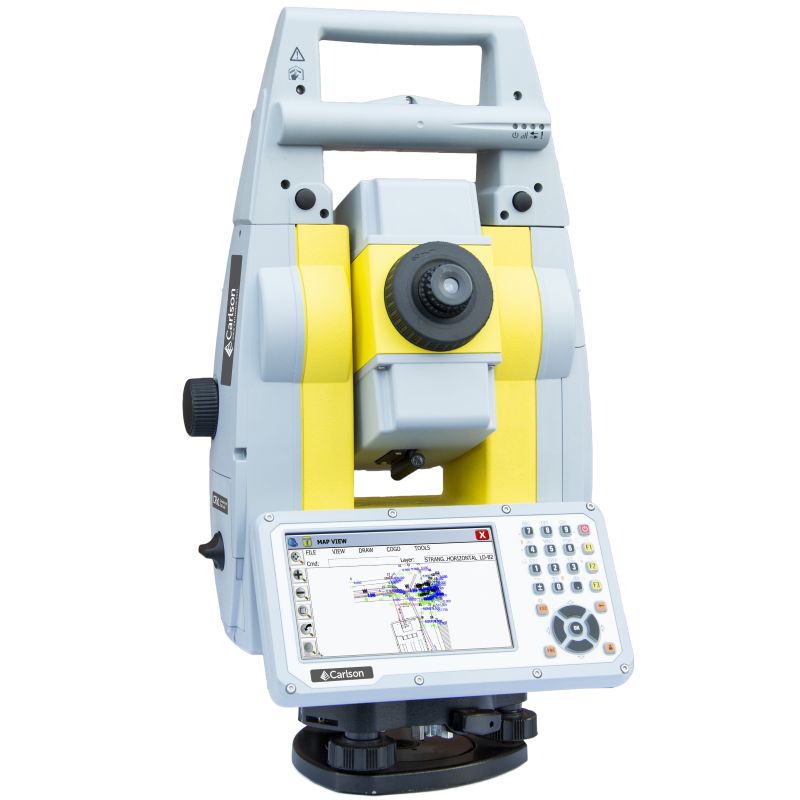

Integrated Display and Controls
5 inch color touchscreen with full alphanumeric keyboard and onboard SurvCE installed.

Connectivity and Data Storage
Internal Bluetooth, long-range Bluetooth handle, USB, SD card, and internal memory support.

Rugged Jobsite Design
IP55 dust and water protection.
Operating temperature from -4 °F to 122 °F (-20 °C to 50 °C).

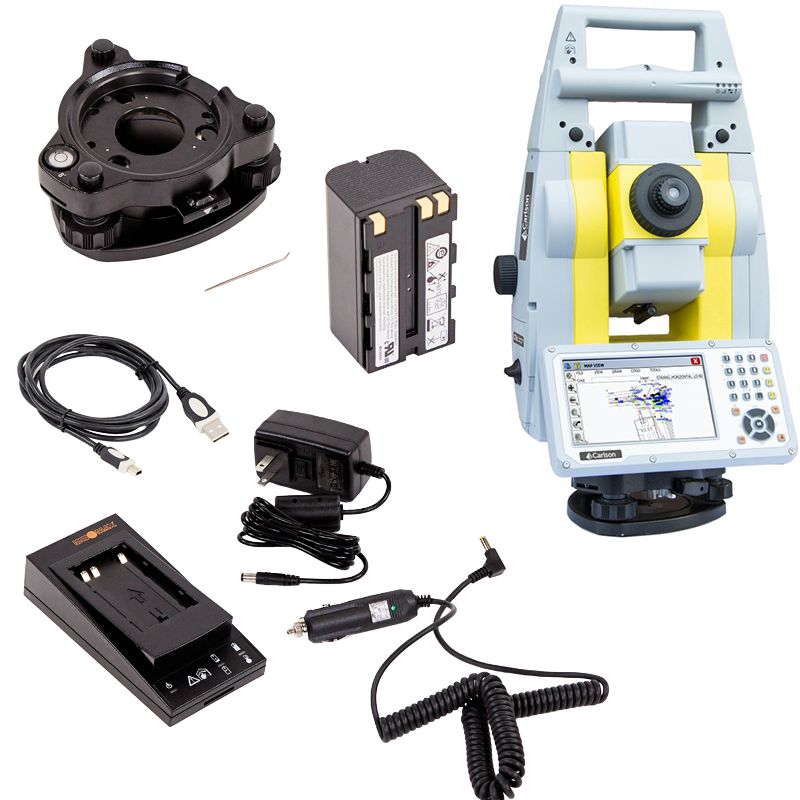

What’s Included

Carlson CRx Robotic Total Station Package

• ZRT82 LRBT Radio Handle
  p/n 8040.044.002
• ZBA400 Li-Ion Battery, 4.4Ah, rechargeable
  p/n 8040.058.010
• ZTR101 Tribrach without optical plummet
  p/n 8040.054.087
• ZCH201 Charger for ZBA200 and ZBA400
  p/n 8040.060.005
• ZDC301 USB Cable
  p/n 8040.064.001

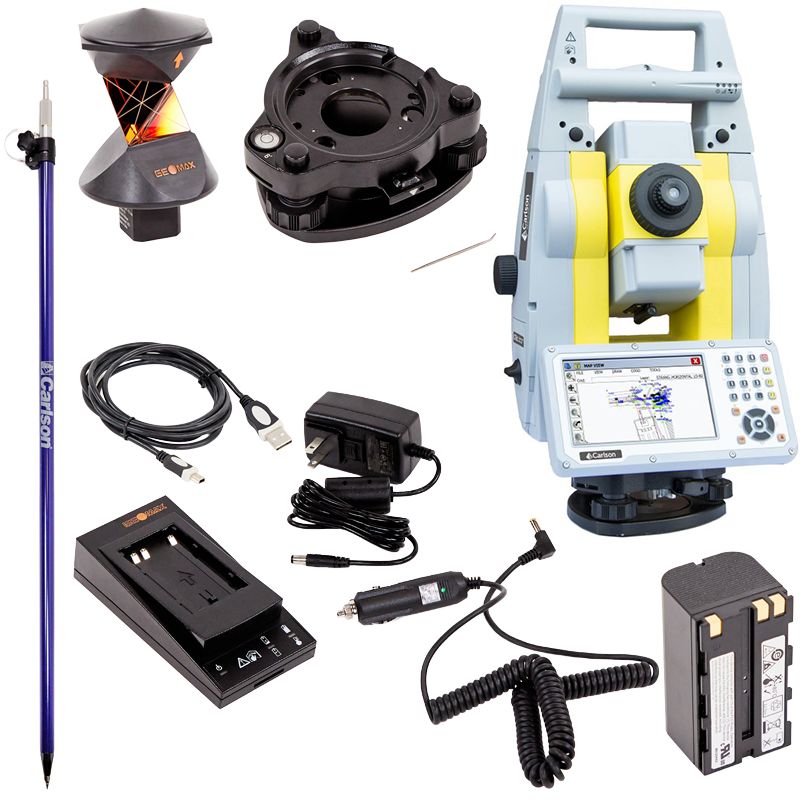

Optional Pole and Prism Package

CRx Accessory Kit – Pole and Prism
p/n 8040.036.000

Includes:

• ZPR1 360° Reflector Prism
  p/n 8040.054.032
• 8 ft Aluminum Telescopic Pole with Leica tip
  p/n 8040.048.001

Why Choose the Carlson CRx

The Carlson CRx combines robust robotic tracking, fast EDM performance, and native SurvCE integration into a reliable, field-proven platform. It is an excellent choice for surveyors and contractors who want one-person efficiency, dependable tracking, and flexible accuracy options without unnecessary complexity.
