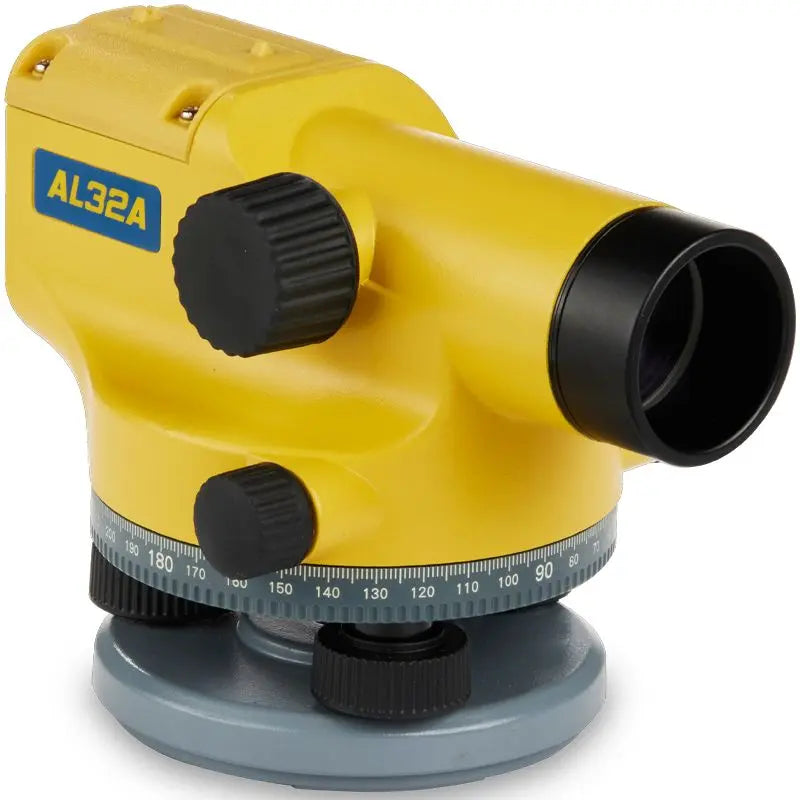

Spectra Precision AL32A Automatic Level

The Spectra Precision AL32A is a high-performance 32x magnification automatic level engineered for precise leveling applications in construction and surveying.Equipped with anair-damped compensator, the AL32A offers exceptional stability and precision, making it an excellent choice for jobs that demandtight vertical tolerances,especially over long distances.

This model delivers 1.5 mm accuracy at 50 meters and 1.0 mm per kilometer of double-run leveling, ensuring top-tier measurement results. The AL32A features a 30 mm objective lens, 120' field of view, and a minimum focusing distance of 0.60 m (1.97 ft.), allowing efficient work in both confined and open areas. The erect image system with stadia lines supports quick distance estimation, while dual-side tangent knobs make fine adjustments fast and intuitive.

Built into a robust metal housing with weather-resistant construction, the AL32A is ideal for long-term use in demanding outdoor environments where consistent accuracy is essential.

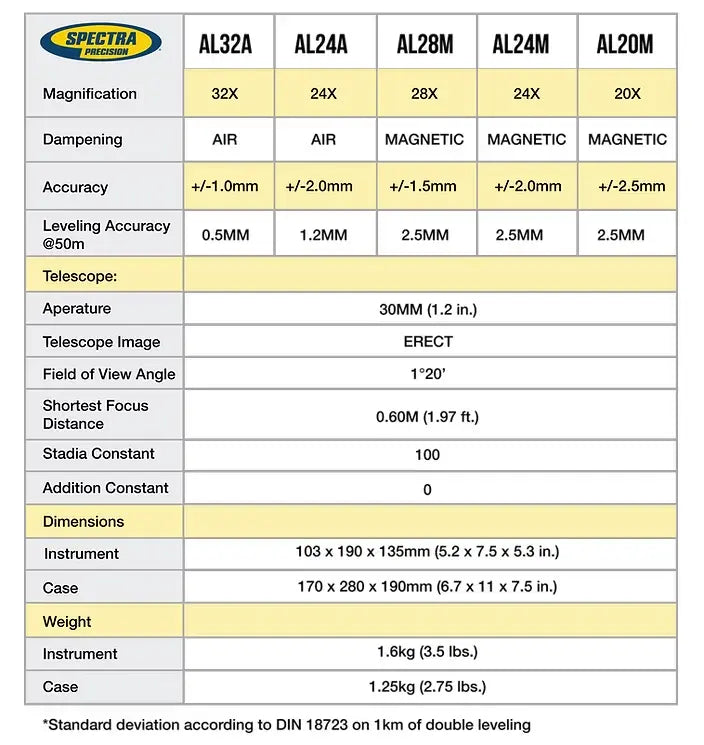

Key Specifications:

• Magnification: 32x
• Accuracy: 1.0 mm (1 km double-run), 1.5 mm @ 50 m
• Dampening System: Air
• Minimum Focus Distance: 0.60 m (1.97 ft.)
• Objective Aperture: 30 mm
• Field of View: 120′
• Instrument Weight: ~1.8 kg (4.0 lbs)

What’s Included:

• AL32A Automatic Level (Air Dampened)
• Plumb Bob
• Adjustment Tools
• Rain Hood
• Hard Carrying Case

Air vs. Magnetic Dampened

The AL32A's air-damped compensator is finely tuned for high-accuracy leveling and smooth movement, making it ideal for surveyors and engineers working in low-vibration environments. Compared to magnetic dampening (which is better for job sites with frequent vibrations), air dampening allows for finer resolution and more stable readings over longer setups.
