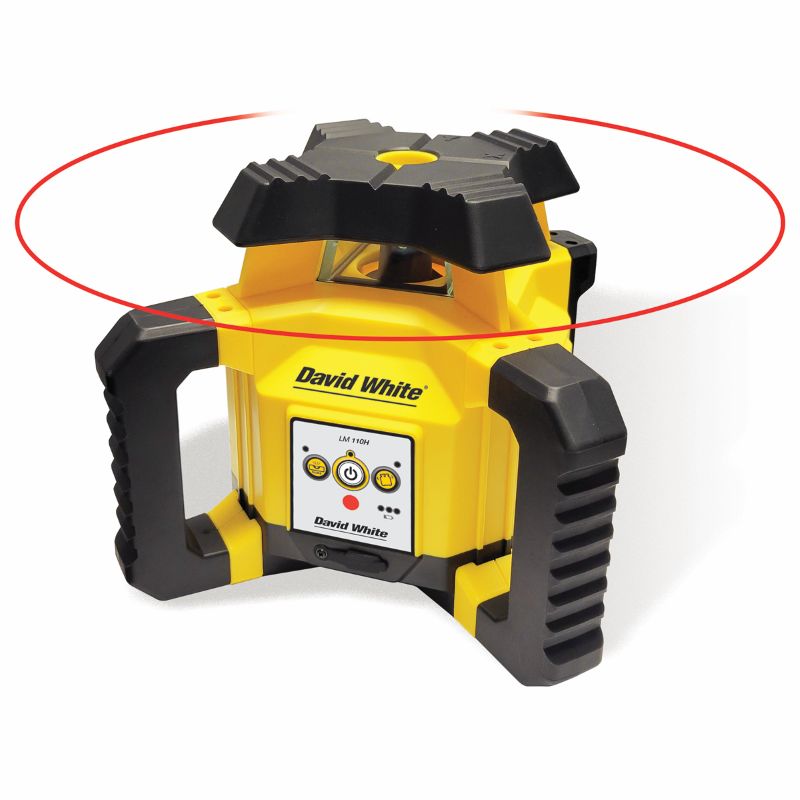

David White LM 110H Laser Level

Data Sheet

Key Features

• Electronic self-leveling for fast and accurate setup.
• ±1/8 in at 100 ft accuracy for dependable elevation control.
• Up to 2000 ft (600 m) working range with the LD 120 detector.
• Dual-axis slope capability from minus 5 degrees to plus 5 degrees when used with a remote.
• Simple one-button operation designed for easy field use.
• Anti-Drift System alerts users if the laser is moved or disturbed.
• Enclosed rotor housing protects the laser from tough jobsite conditions.
• Rechargeable Li-Ion battery pack delivers up to 25 hours of operation.
• IP65 water and dust resistance for reliable outdoor performance.

Overview

The David White LM 110H is a rugged and straightforward horizontal rotary laser built for contractors who want accuracy, simplicity, and durability. According to the datasheet details, the LM 110H is ideal for grading, elevation checks, concrete work, decks, pools, foundations, excavation, and septic installations, making it a versatile tool for everyday construction use.

The LM 110H provides consistent precision with ±1/8 in at 100 ft leveling accuracy and a 2000 ft working range, ensuring dependable performance on both small and large job sites. Its electronic self-leveling system allows fast setup, while the dual-axis slope function gives operators flexibility for simple grade applications.

To withstand demanding work environments, the LM 110H features a sealed rotor housing, an IP65 rating, and a long-lasting Li-Ion power system. Combined with intuitive controls and durable accessories, the LM 110H is a reliable rotary laser for contractors who need a cost-effective yet professional-grade leveling solution.

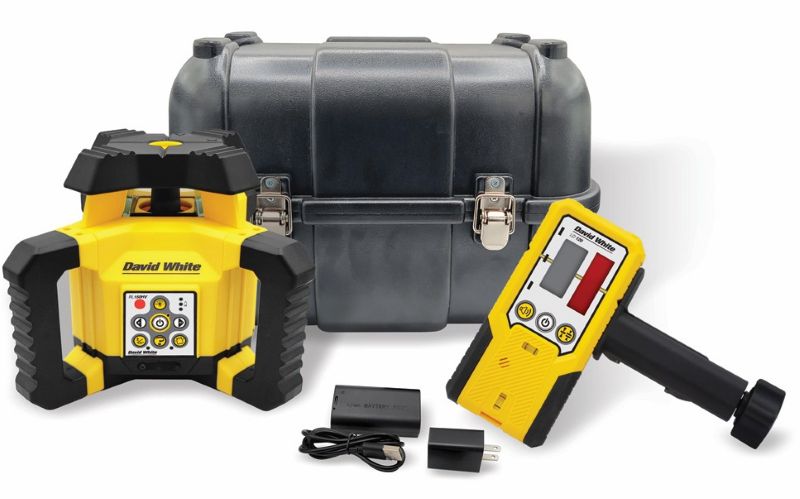

What’s Included

Part Number: 47-LM110H

• LM 110H Rotary Laser
• LD 120 Detector with Bracket
• Li-Ion Battery Pack with Charger
• Carrying Case
• User Guide
