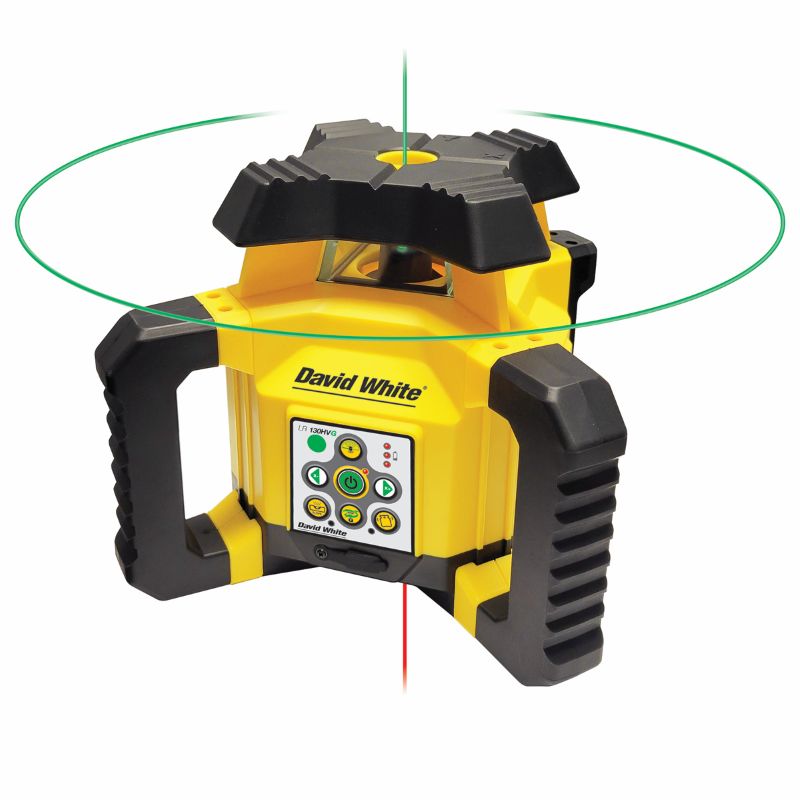

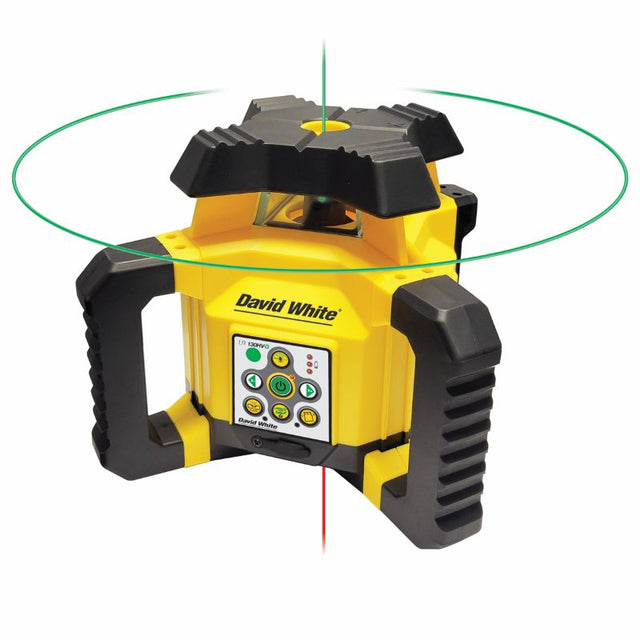

David White LM 130HVG Laser Level

Data Sheet

Key Features

• Green beam technology that is up to four times brighter and more visible than red beams.
• Electronic self-leveling for both horizontal and vertical applications.
• ±1/8 in at 100 ft accuracy for dependable leveling precision.
• Dual-axis slope capability from minus 5 degrees to plus 5 degrees with remote.
• Auto-Alignment Technology that automatically aligns the beam to your reference point.
• Up to 2000 ft (600 m) working range with the LD 320-TR detector.
• Multiple scan angles including 0°, 10°, 45°, 90°, and 180°.
• Adjustable rotation speeds of 0, 300, and 600 RPM.
• Anti-Drift System to prevent errors when the laser is disturbed.
• Enclosed rotor housing for protection in rugged jobsite environments.
• IP65 water and dust resistance for reliable indoor and outdoor use.
• Rechargeable Li-Ion battery pack with up to 25 hours of operation.

Overview

The David White LM 130HVG is a high-visibility green beam rotary laser designed for contractors who require exceptional brightness, long-range performance, and advanced alignment features. As shown on the datasheet, the green beam output provides four times the visibility of standard red lasers, making it ideal for bright outdoor conditions as well as indoor layout work.

With horizontal and vertical self-leveling, the LM 130HVG supports a wide range of leveling, alignment, and layout tasks including grading, foundations, footings, concrete forms, cut and fill, and interior layout. Its standout feature, Auto-Alignment Technology, allows the laser to automatically align to a designated reference point, greatly improving efficiency and accuracy during setup.

The LM 130HVG delivers ±1/8 in at 100 ft precision and a 2000 ft working diameter when used with the LD 320-TR detector, giving it the reach needed for large construction sites. Designed for durability, the unit includes an IP65-rated enclosure, an enclosed rotor housing, and a long-lasting Li-Ion power system that keeps the laser running for up to 25 hours. This combination of visibility, accuracy, and ruggedness makes the LM 130HVG a dependable choice for professionals who demand both performance and reliability.

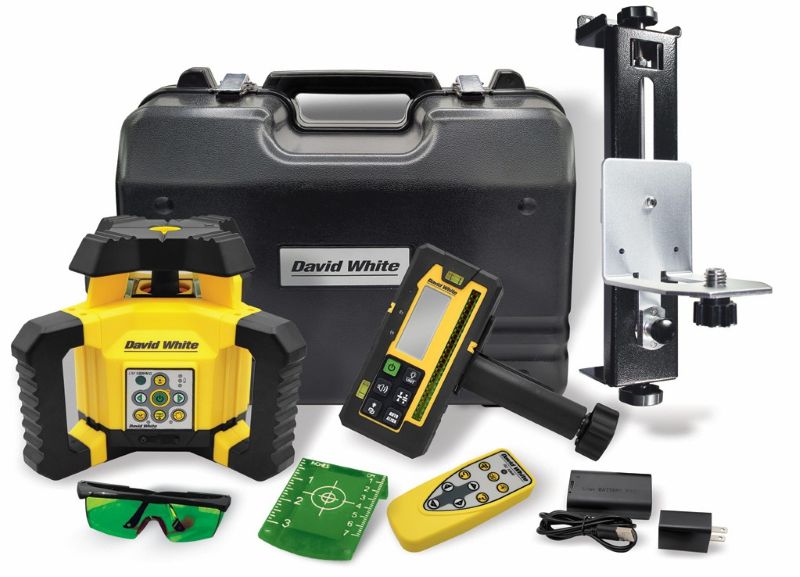

What’s Included

Part Number: 47-LM130HVG

• LM 130HVG Green Beam Rotary Laser
• LD 320-TR Detector with Bracket
• Laser Glasses
• Magnetic Target
• Universal Mount
• Li-Ion Battery Pack with Charger
• Carrying Case
• User Guide
