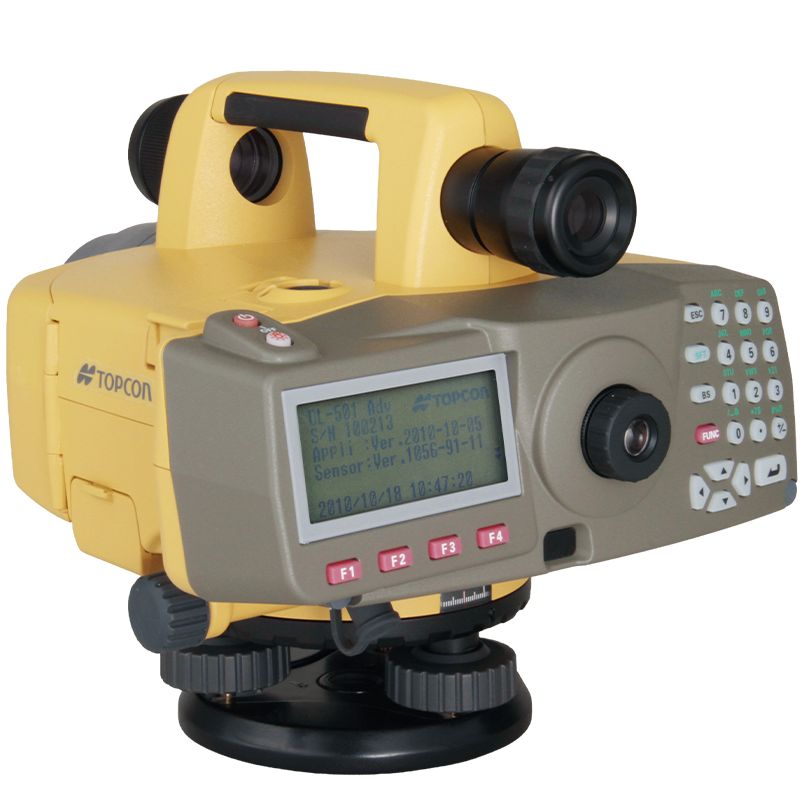

Topcon DL-501 Digital Level

Data Sheet

The Topcon DL-501 is a high-precision digital level designed for demanding surveying, geodetic leveling, deformation monitoring, and construction applications. Featuring 0.3 mm/km leveling accuracy with an Invar staff, a 32x telescope, advanced RAB-Code measurement technology, and 10,000-point internal memory, the DL-501 delivers exceptional accuracy and efficiency for professional leveling operations.

Product specifications based on the supplied Topcon DL-501 brochure. SKU 2112216G0 corresponds to the Standard model, without autofocus.

Key Features

• 0.3 mm/km leveling accuracy with BIS20/BIS30 Invar staffs for high-precision elevation measurements

• 32x telescope magnification with a 45 mm objective lens for accurate sighting

• Fast measurements in under 2.5 seconds with rapid repeat measurements in under 1 second

• RAB-Code technology for reliable electronic staff readings

• Dual-axis tilt sensor with audible and visual warnings to help prevent measurement errors

• 10,000-point internal memory for extensive leveling projects

• SD/SDHC card and USB storage support for convenient data transfer

• Seven onboard leveling methods with adjustable tolerances and error calculations

• 20 lux minimum staff illumination for dependable measurements in low-light environments

• IP54 dust and water resistance for use in demanding field conditions

• Up to 14 hours of battery operation with the rechargeable BDC70 Li-ion battery

Precision Leveling with RAB-Code Technology

The Topcon DL-501 incorporates advanced RAB-Code technology, precision optics, and a pendulum compensator with magnetic damping to deliver accurate and repeatable staff readings.

With a leveling accuracy of 0.3 mm per kilometer of double-run leveling when paired with a compatible BIS20 or BIS30 Invar staff, the DL-501 is ideal for precise elevation transfer, settlement monitoring, and engineering surveys.

The instrument also supports a specialized BIS30A Super-Invar staff, providing 0.2 mm/km accuracy when used with the DL-501 Advanced model.

High-Speed Electronic Measurements

Designed to improve field productivity, the DL-501 completes individual height and distance measurements in less than 2.5 seconds. Rapid repeat measurements take less than one second, helping crews collect more observations without sacrificing precision.

The 32x magnification telescope provides clear sighting, while the 1.6 to 100 m electronic measuring range accommodates a wide variety of leveling applications.

Even in challenging lighting conditions, the DL-501 can electronically read compatible staffs with as little as 20 lux of illumination at the staff surface.

Dual-Axis Tilt Detection and Automatic Compensation

The DL-501 features a pendulum compensator with magnetic damping and a dual-axis liquid tilt sensor for enhanced measurement reliability.

Its tilt-warning system can display visual notifications, produce audible alerts, and prevent measurements when instrument tilt exceeds ±8.5 minutes. These functions help reduce potential setup errors and improve the consistency of elevation measurements.

The compensator provides a working range of at least ±12 minutes with a setting accuracy of ±0.3 arcseconds.

Integrated Leveling Programs and Data Management

The DL-501 includes onboard line-leveling programs designed to streamline professional surveying workflows.

Supported leveling methods include BF, BFFB, BBFF, BFBF, aBF, aBFFB, and aFBBF. Up to two intermediate sights can be recorded in each measurement set.

Adjustable measurement tolerances and built-in error calculations allow operators to evaluate leveling quality directly in the field.

With 10,000 points of internal storage, removable SD/SDHC card support, USB flash memory compatibility, and an RS-232C interface, the DL-501 offers flexible data management for large surveying projects.

Ideal Applications

• High-Precision Geodetic Leveling: Establishing and transferring accurate elevations between survey benchmarks.

• Settlement and Deformation Monitoring: Monitoring elevation changes in buildings, bridges, dams, and infrastructure.

• Engineering and Construction Surveys: Performing precise leveling for civil engineering and construction projects.

• Structural Monitoring: Detecting vertical displacement and settlement over time.

• Control Network Establishment: Developing and maintaining accurate vertical control networks.

• Industrial and Infrastructure Surveys: Providing precise elevation measurements for transportation, utilities, and industrial facilities.

Technical Specifications

Height accuracy values represent standard deviations for 1 km double-run leveling in accordance with ISO 17123-2-compatible testing.

DL-501 vs. DL-502 vs. DL-503 Digital Levels

Topcon offers several digital levels designed for different precision requirements, from general construction leveling to high-accuracy geodetic surveys.

The DL-501 provides the highest precision among these three models, making it particularly suitable for applications requiring tight elevation tolerances.
