Sokkia SHC6400 Field Controller / Data Collector

Data Sheet

What’s Included

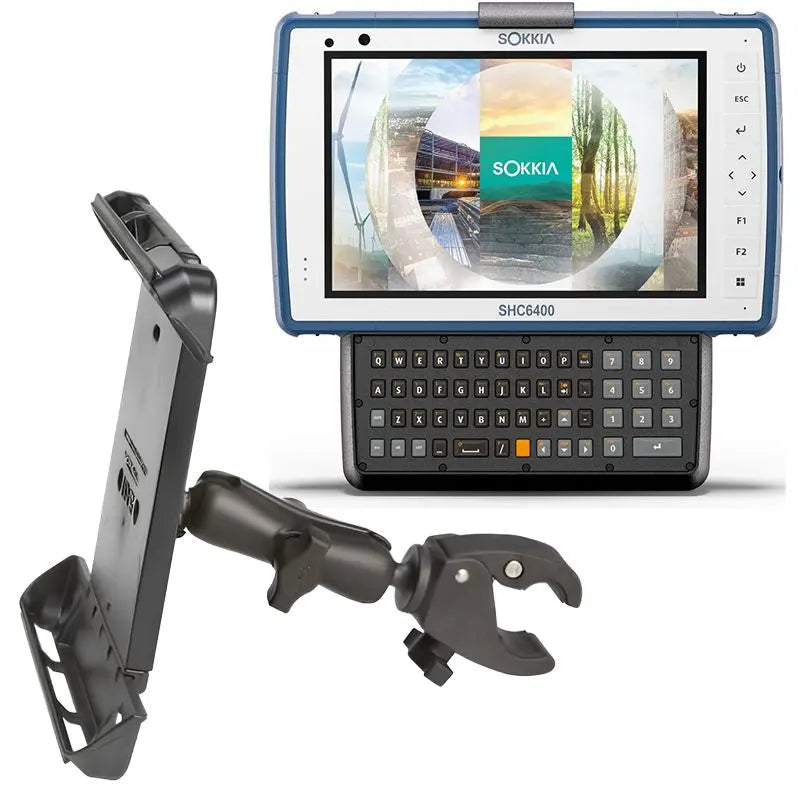

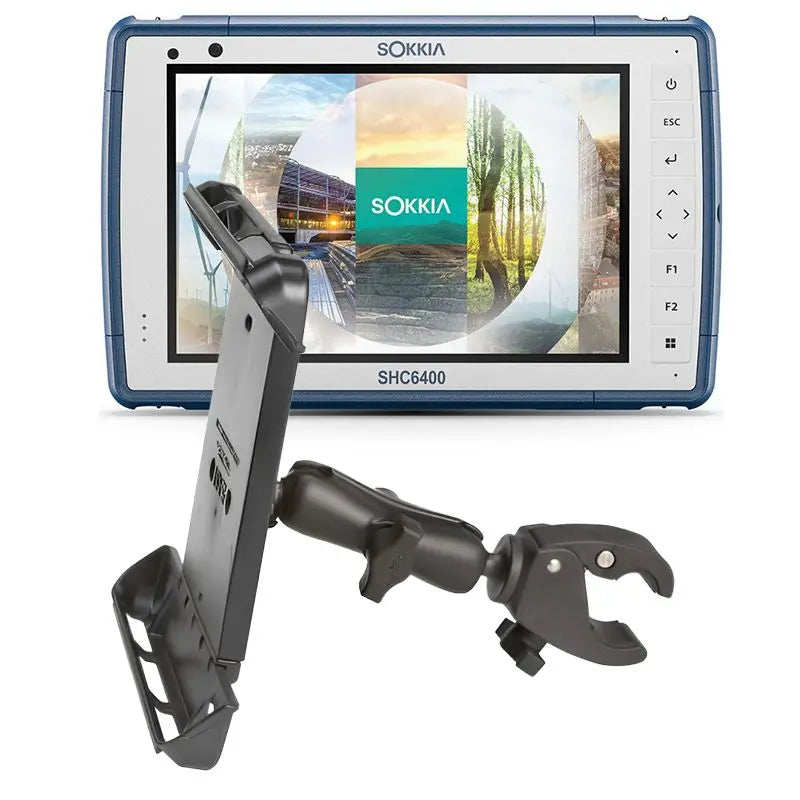

• FC/SHC6000/6400 Cradle with Pole Claw (1013399-01) [Optional]
• FC/SHC5000/6400 Keyboard (1029734-01-SURSK) [Optional]
• FC/SHC6000/6400 Ultra-Clear Screen Protector (1013584-01)
• Adjustable Hand Strap (1013589-01)
• Removable Battery Pack (1035028-01)
• 30W Charger (1040957-01)
• Fine Tip Stylus and Tether (1069044-01)
• Quick Start Card (1068441-01)
• RED Instructions (1068444-01)
• MyTopcon Card (1022905-01)

Shop MAGNET Field Software

The Sokkia SHC6400 is a rugged, high-performance Windows 11 field controller designed for surveying, construction layout, and robotic total station operation.

Powered by an Intel N200 processor with 16GB LPDDR5 RAM, the SHC6400 provides the processing power needed for Sokkia field software, large project files, maps, and 3D design data. Its 7-inch, 800-nit sunlight-readable touchscreen provides a clear working display in outdoor environments. Sokkia SHC6400 Brochure and Dat…

Built-in 4G LTE, Wi-Fi, Bluetooth®, and GNSS keep crews connected to instruments, correction services, and the office. Sokkia states that Bluetooth and Wi-Fi communication can be used to connect with Sokkia GNSS receivers and optical total stations at distances of up to 500 meters, depending on equipment and field conditions. Sokkia SHC6400 Brochure and Dat…

The SHC6400 is also designed for demanding field environments with an IP68 dust and water rating, MIL-STD-810H certification, and 4 ft. drop resistance to concrete. An internal battery combined with the removable battery provides up to 15 hours of operating time. Sokkia SHC6400 Brochure and Dat…

Front and rear cameras allow crews to document site conditions and associate photos with field measurements, while USB-A and USB-C connections provide additional peripheral and data-transfer options.

Standard Bluetooth vs. Extended Range Bluetooth

The SHC6400 is available with either standard Bluetooth Class 1.5 or Extended Range Bluetooth (ER BT). Sokkia specifically lists these as two different Bluetooth configurations for the SHC6400. Sokkia SHC6400 Brochure and Dat…

SHC6400 128GB / 16GB – 1067910-01

• 128GB SSD
• 16GB RAM
• Standard Bluetooth Class 1.5
• Ideal for GNSS, conventional total station work, and applications where extremely long wireless range is not required

SHC6400 256GB / 16GB ER BT – 1067911-01

• 256GB SSD
• 16GB RAM
• Extended Range Bluetooth
• Recommended for robotic total station operation and larger job sites where maintaining communication over longer distances is important
• Provides greater wireless range and link reliability than the standard Bluetooth configuration under suitable line-of-sight conditions

Sokkia advertises instrument communication at distances of up to 500 meters for the SHC6400 platform. The Extended Range Bluetooth model is designed to improve long-distance communication beyond what is achievable with the standard Bluetooth radio, although actual range depends on the connected instrument, obstructions, interference, and job-site conditions. Sokkia SHC6400 Brochure and Dat…

For robotic surveying applications, we recommend the 256GB Extended Range Bluetooth model.

Key Features

• 7" Sunlight-Readable Display: 1280 × 800 resolution with 800-nit brightness
• Operating System: Windows 11 Pro
• Processor: Intel N200, up to 3.7 GHz
• Memory: 16GB LPDDR5 RAM
• Storage: 128GB SSD or 256GB SSD
• Bluetooth: Class 1.5 or Extended Range Bluetooth
• Wireless Connectivity: Wi-Fi 802.11 a/b/g/n/ac/ax and Global 4G LTE
• Integrated GNSS: Quectel LC79H
• Field Software Compatibility: Compatible with MAGNET Field, Pocket3D, and other Windows-based field software
• Rear Camera: 13 MP with autofocus and flash
• Front Camera: 5 MP
• Durability: IP68, MIL-STD-810H certified, 4 ft. drop-tested to concrete
• Battery Life: Up to 15 hours of operating time
• Ports: USB-A and USB-C
• Expandable Storage: MicroSD card support
• Optional Keyboard: Snap-on full QWERTY keyboard available for field entry

The hardware specifications above match Sokkia's published SHC6400 specifications.
