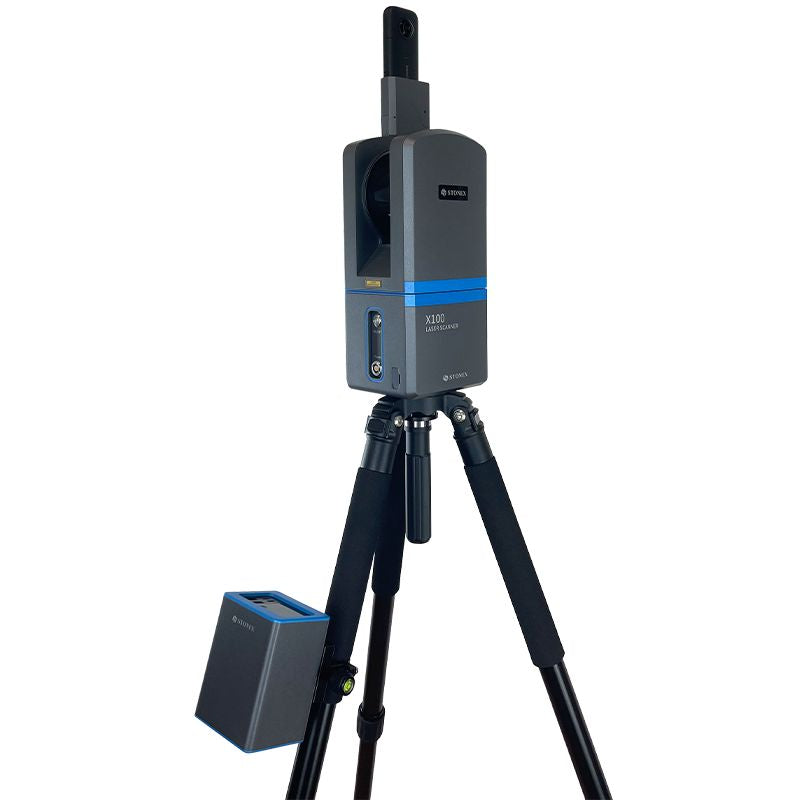

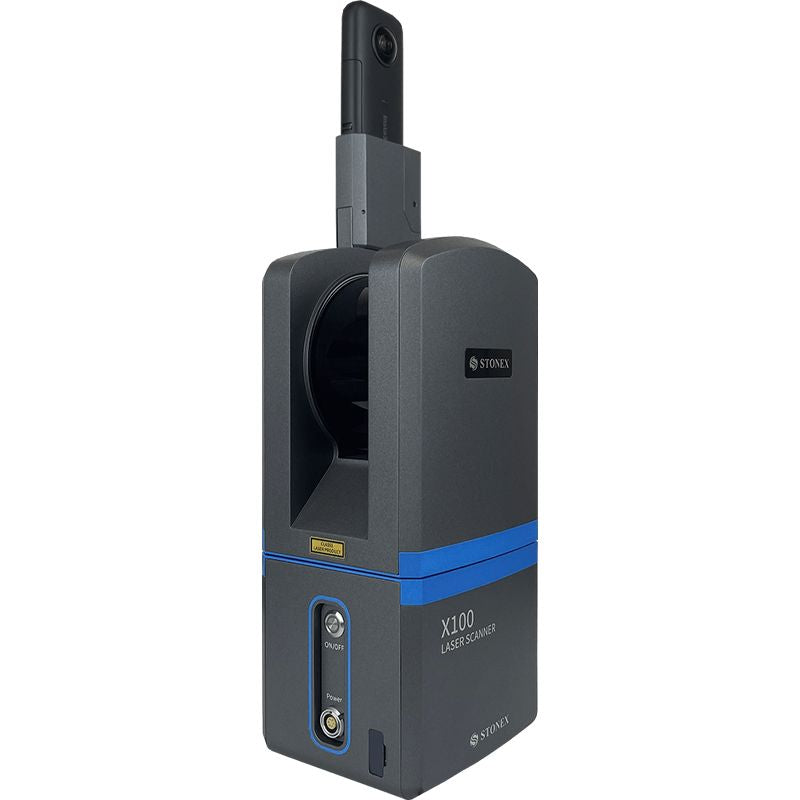

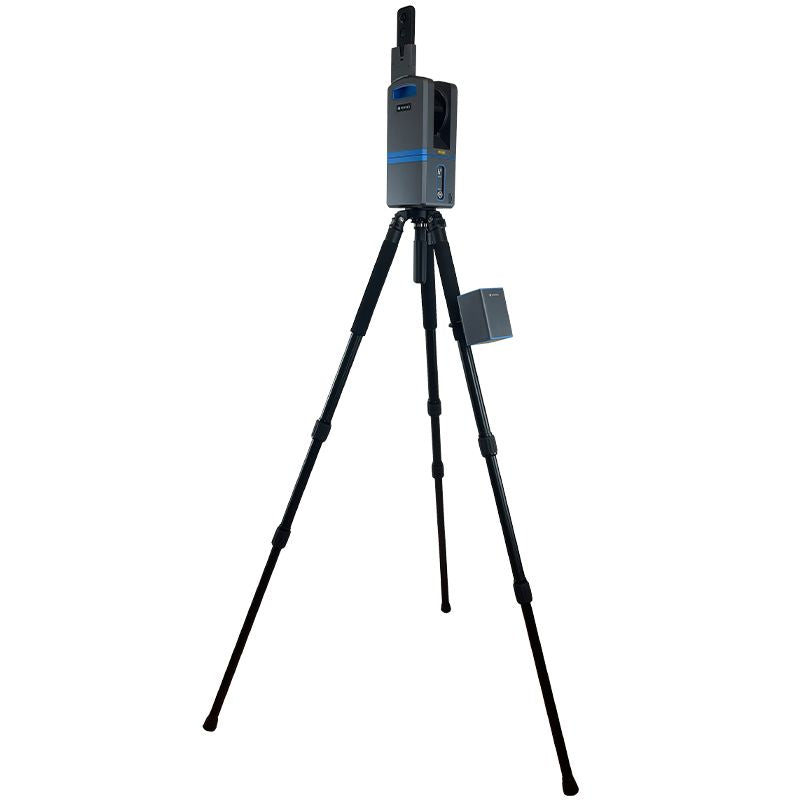

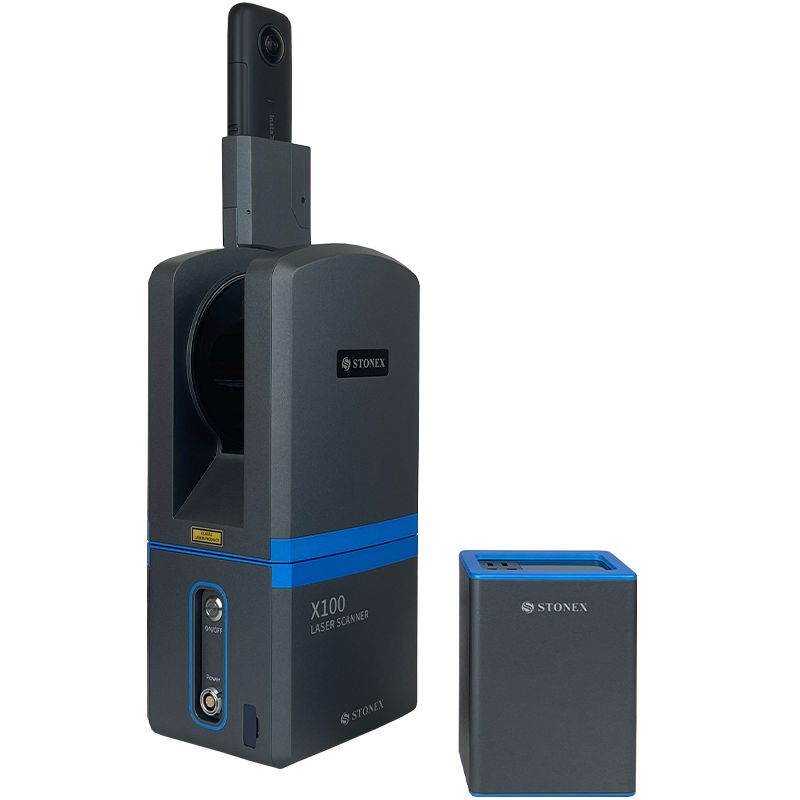

Stonex X100 Laser Scanner

The Stonex X100 is a compact and lightweight terrestrial laser scanner designed for quick and efficient 3D data capture across a wide range of environments. With a fast scan time of just 45 seconds, the X100 is ideal for professionals working in land surveying, construction layout, architectural planning, and emergency management.

Its multi-line LiDAR sensor collects up to 320,000 points per second, creating highly accurate 3D models of terrain, facades, tunnels, and more. The built-in 72MP panoramic HDR camera adds color to your point clouds, while the ±5° dual-axis tilt compensation ensures precise leveling.

The X100 can be operated remotely using the X100App on Android, allowing users to preview, scan, and download point cloud data directly to a USB drive. Each scan is automatically self-calibrated and saved, with real-time electronic bubble display for leveling feedback.

What’s Included:

• X100 Scanner
• 72MP Panoramic Camera & Holder (30-350669)
• 2x Rechargeable Batteries (30-350662)
• Battery Charger Adapter (30-350661)
• Data Cable
• Carbon Fiber Tripod (30-350663)
• Rugged Flight Case Trolley (30-350668)
• X100 Manager Software
• X100 Android Control App
• Stonex Reconstructor Software (optional, if you already have it)
• USB Dongle Key for Reconstructor (40-430009)

Reconstructor Software Overview:

Stonex Reconstructor is a powerful desktop application for processing and aligning point clouds captured by laser scanners or generated via photogrammetry. Compatible with the X100, it transforms raw data into detailed, accurate 3D models ready for use in BIM, mining, construction, and cultural heritage preservation. With customizable modules, Reconstructor supports every stage from scan registration to mesh generation and final export, ensuring reliable workflows for professionals needing robust, field-to-office solutions.

Tutorial Videos on Stonex Reconstructor

PDF Manual

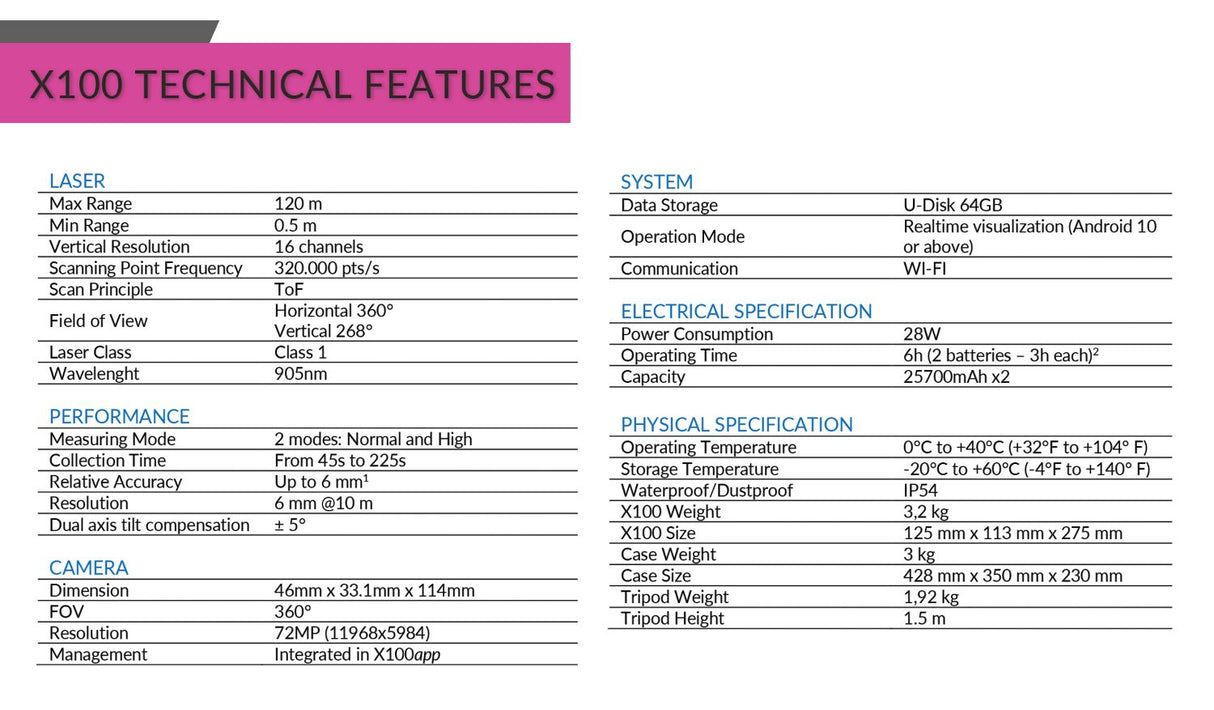

Key Features:

• Scan Range: 0.5–120m
• 360° Field of View with ±268° vertical coverage
• Accuracy: Up to 6 mm
• Resolution: 6 mm @ 10m
• Collection Speed: 45–225s per scan
• Dual Scan Modes: Normal and High
• Integrated 72MP Panoramic Camera
• App-Based Control with Real-Time Preview
• Weight: Only 3.2kg with tripod
• IP54 Dust and Water Protection

Whether capturing as-built interiors, topographic data, or colorized models for architecture, the Stonex X100 makes fast, reliable 3D scanning accessible and easy.
